zigdiggity — A ZigBee hacking toolkit by Bishop Fox | Kitploit
Tools/GitHubGitHub/bishopfox/zigdiggity
Embedded Systems SecurityPenetration Testing FrameworksIoT SecurityExploitationWireless SecurityHardware & IoT Security
GitHubbishopfox/zigdiggity

zigdiggity

A ZigBee hacking toolkit by Bishop Fox

View Repository
29962495 years agoReviewed by Kitploit
Share
Website

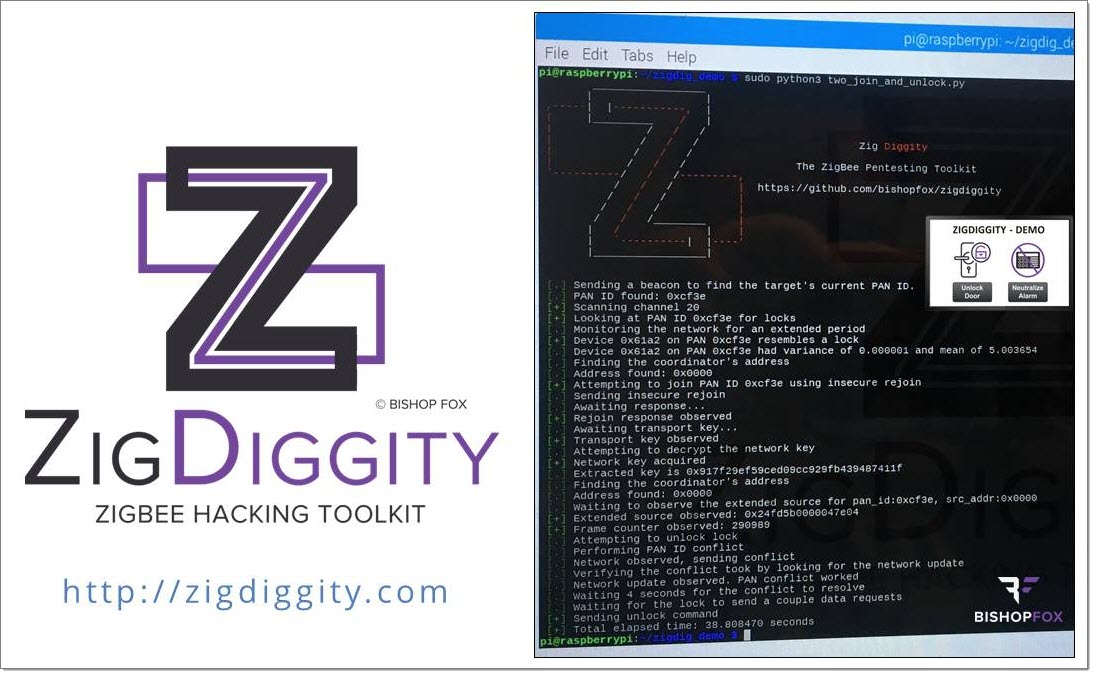

ZigDiggity - Logo

ZigDiggity Version 2

Introducing ZigDiggity 2.0, a ZigBee penetration testing framework created by Matt Gleason & Francis Brown of Bishop Fox. Special thanks to Caleb Marion!

ZigDiggity version 2 is a major overhaul of the original package and aims to enable cybersecurity professionals, auditors, and developers to run complex interactions with ZigBee networks using a single device.

2019 - Black Hat USA 2019 & DEF CON 27 - links, slides, and videos

  • Black Hat USA 2019 - ARSENAL LAB - ZigBee Hacking: Smarter Home Invasion with ZigDiggity - Aug 7-8, 2019
  • https://www.defcon.org/html/defcon-27/dc-27-demolabs.html#ZigDiggity

Videos

  • YouTube - Zigbee Hacking: Smarter Home Invasion with ZigDiggity - 58sec DEMO - 20Aug2019
    • Defeating Zigbee smart locks & home alarm sensors; demonstrating effective IoT product security evaluations using ZigDiggity 2.0 - the new open-source Zigbee pentest toolkit from Bishop Fox.

ZigDiggity 2019 DEMO

Slides

  • https://www.slideshare.net/bishopfox/smarter-home-invasion-with-zigdiggity-165606623
  • https://www.bishopfox.com/files/slides/2019/Black_Hat_USA_2019-Zigbee_Hacking-Smarter_Home_Invasion_with_ZigDiggity-08Aug2019-Slides.pdf

ABSTRACT:

Do you feel safe in your home with the security system armed? You may reconsider after watching a demo of our new hacking toolkit, ZigDiggity, where we target door & window sensors using an "ACK Attack". ZigDiggity will emerge as the weapon of choice for testing Zigbee-enabled systems, replacing all previous efforts.

Zigbee continues to grow in popularity as a method for providing simple wireless communication between devices (i.e. low power/traffic, short distance), & can be found in a variety of consumer products that range from smart home automation to healthcare. Security concerns introduced by these systems are just as diverse and plentiful, underscoring a need for quality assessment tools.

Unfortunately, existing Zigbee hacking solutions have fallen into disrepair, having barely been maintained, let alone improved upon. Left without a practical way to evaluate the security of Zigbee networks, we've created ZigDiggity, a new open-source pentest arsenal from Bishop Fox.

Our DEMO-rich presentation showcases ZigDiggity's attack capabilities by pitting it against common Internet of Things (IoT) products that use Zigbee. Come experience the future of Zigbee hacking, in a talk that the New York Times will be hailing as "a veritable triumph of the human spirit." ... ya know, probably

Installation

Using a default install of Raspbian (GUI install, not headless), perform the following steps:

  • With your Raspberry Pi powered off, plug your Raspbee into your Raspberry Pi
  • Clone this repository onto your Raspberry Pi and cd into the ZigDiggity directory
  • Enable serial using the sudo raspbi-config command
    • Select "Advanced Options/Serial"
    • Select NO to "Would you like a login shell to be accessible over serial?"
    • Select YES to enabling serial
    • Restart the Raspberry Pi
  • Install GCFFlasher available Here
    • wget http://deconz.dresden-elektronik.de/raspbian/gcfflasher/gcfflasher-latest.deb
    • sudo dpkg -i gcfflasher-latest.deb
    • sudo apt update
    • sudo apt -f install
  • Flash the Raspbee's firmware
    • sudo GCFFlasher -f firmware/zigdiggity_raspbee.bin
    • sudo GCFFlasher -r
  • Install the python requirements using pip3 install -r requirements.txt
  • Patch scapy sudo cp patch/zigbee.py /home/$USER/.local/lib/python3.7/site-packages/scapy/layers/zigbee.py
  • Install wireshark on the device using sudo apt install wireshark
    • be sure to add your user to the wireshark group (e.g. sudo usermod -a -G wireshark $USER). Log out and back in again for the changes to take effect.

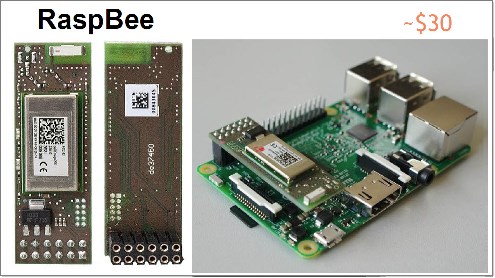

Hardware

The current version of ZigDiggity is solely designed for use with the Raspbee

  • https://www.amazon.com/RaspBee-premium-ZigBee-Raspberry-Firmware/dp/B00E6300DO
  • Raspberry Pi 3 B+
    • https://www.amazon.com/CanaKit-Raspberry-Power-Supply-Listed/dp/B07BC6WH7V
  • RasPad by SunFounder (Optional) - great portable Zigbee hacking solution, tablet to house the RaspPi3 & RaspBee radio:
    • https://www.amazon.com/SunFounder-RasPad-Built-Touchscreen-Compatible/dp/B07JG53K2W/

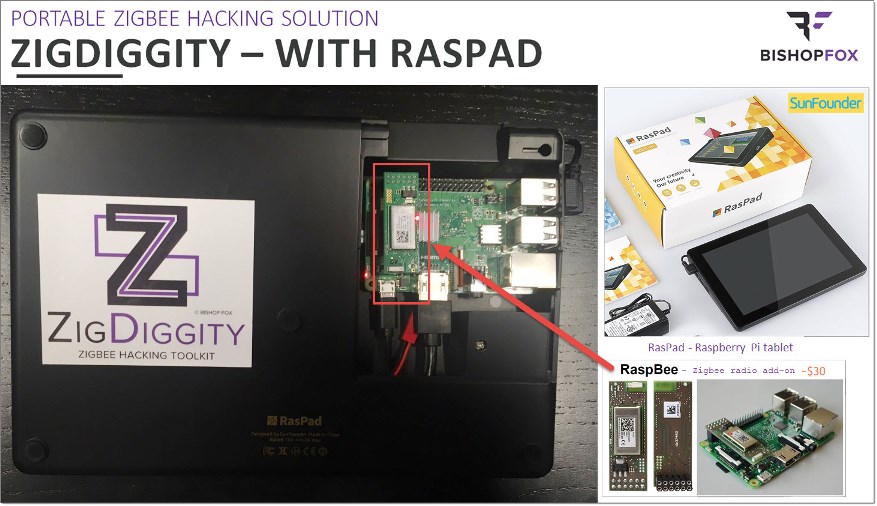

      • ZigDiggity - RasPad - Photo

Usage

Currently scripts are available in the root of the repository, they can all be run using Python3:

python3 listen.py -c 15

When running with wireshark, root privileges may be required.

Scripts

  • ack_attack.py - Performs the acknowledge attack against a given network.
  • beacon.py - Sends a single beacon and listens for a short time. Intended for finding which networks are near you.
  • find_locks.py - Examines the network traffic on a channel to determine if device behavior looks like a lock. Displays which devices it thinks are locks.
  • insecure_rejoin.py - Runs an insecure rejoin attempt on the target network.
  • listen.py - Listens on a channel piping all output to wireshark for viewing.
  • scan.py - Moves between channels listening and piping the data to wireshark for viewing.
  • unlock.py - Attempts to unlock a target lock

Notes

The patterns used by ZigDiggity version 2 are designed to be as reliable as possible. The tool is still in fairly early stages of development, so expect to see improvements over time.
