NetWatch

Network diagnostics in your terminal.

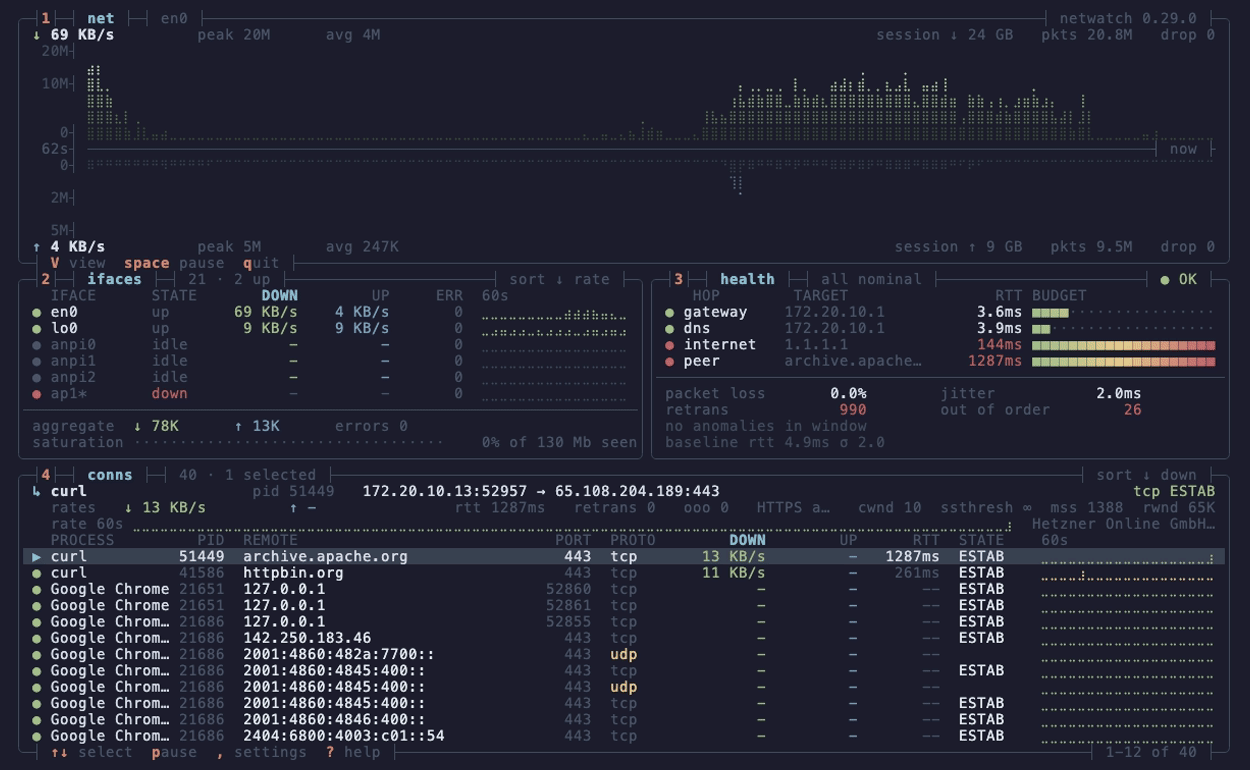

netwatch --view dense. Four boxes, no chrome, every keybind on a border. Download grows up from the axis, upload grows down.

One binary, no config. sudo netwatch and you have live capture with L7 decode, process attribution where available, and a diagnostic engine that opens an issue when a learned baseline breaks and closes it when the fix holds.

Install

brew install netwatch                 # macOS / Linux
scoop install netwatch                # Windows (needs Npcap)
cargo binstall netwatch-tui           # prebuilt binary, anywhere with Rust
paru -S netwatch-tui                  # Arch (AUR)
nix-shell -p netwatch                 # NixOS / Nix
conda install -c conda-forge netwatch # conda / mamba (Linux, macOS)

Debian / Ubuntu (apt repository):

curl -fsSL https://matthart1983.github.io/netwatch/apt/netwatch.gpg \
  | sudo tee /usr/share/keyrings/netwatch.gpg >/dev/null
echo "deb [signed-by=/usr/share/keyrings/netwatch.gpg] \
https://matthart1983.github.io/netwatch/apt stable main" \
  | sudo tee /etc/apt/sources.list.d/netwatch.list
sudo apt update && sudo apt install netwatch

Fedora: sudo dnf copr enable matthart1983/netwatch && sudo dnf install netwatch

Container: docker run --rm -it --net=host --pid=host --cap-add=NET_RAW ghcr.io/matthart1983/netwatch

Binaries for macOS, Linux (x86_64, aarch64, armv5te) and Windows are on the releases page, with .deb, .rpm, checksums and signed provenance. The Linux builds are static and need nothing installed; Windows needs Npcap. Verifying a download · every channel.

Run

netwatch              # interfaces, connections, config. No privileges.
sudo netwatch         # enables capture where elevated access is required
netwatch --lite       # one 80x24 screen
netwatch --view dense # four boxes, 130x44 or larger

1 to 9 and 0 switch tabs, V cycles the three views, ? shows every key. To run without sudo on Linux, grant the capabilities once: sudo setcap 'cap_net_raw,cap_bpf,cap_perfmon+eip' "$(which netwatch)" (why and when to repeat it).

The tabs

#	Tab	Shows
1	Dashboard	Latency tiles, mirrored throughput, the link carrying it, connections rolled up per process
2	Connections	Every socket with process, PID, state, GeoIP, RTT, retransmits
3	Interfaces	Addresses, MTU, rates, errors, drops
4	Packets	Live decode, TLS 1.3 decryption, JA4, stream tracking, display filters, PCAP export
5	Stats	Protocol breakdown and handshake-timing histogram
6	Topology	Machine, gateway, DNS, top hosts, traceroute
7	Timeline	Connections by TCP state, with alerts
8	Processes	Bandwidth per process
9	Diagnose	Issue, cause, fix, verified close. report.md from the same objects
0	Egress	Learned destinations, promoted policy, drift

Every keybinding, display filters, decoders, themes, configuration.

Views

V cycles all three without a restart; the collectors keep running.

View	Size	For
Full	any	The ten tabs above
Lite (--lite)	80x24	An SSH session to a Pi, or a tmux split
Dense (--view dense)	130x44+	The hero image: four boxes, braille throughput, kernel TCP detail

Why they look like this.
