IOCX

Deterministic, Zero‑Risk IOC Extraction for Modern Security Pipelines

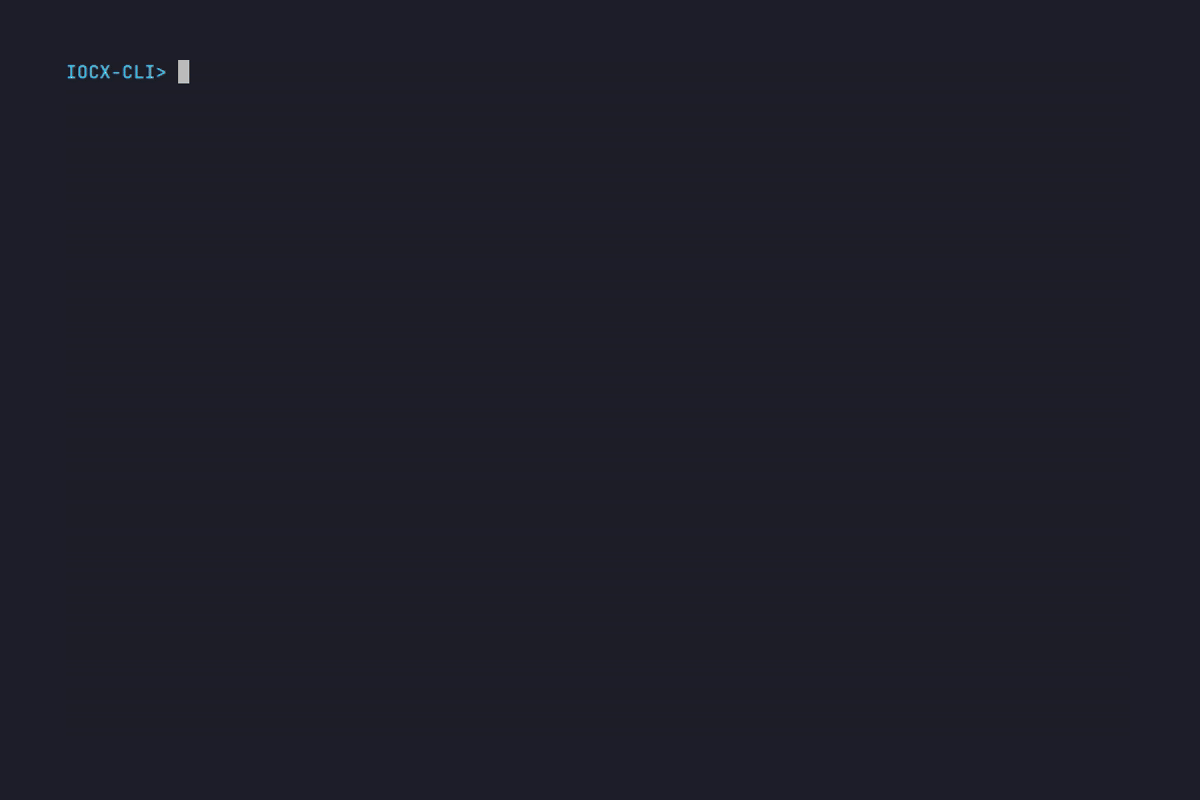

_{Static IOC extraction from a PE file using the IOCX CLI}

Official IOCX Project

This is the original IOCX engine for deterministic static IOC extraction and PE analysis. Any other repositories using the name "iocx" are not affiliated with this project.

Official links:

• PyPI: https://pypi.org/project/iocx/
• Github: https://github.com/iocx-dev/iocx
• Website: https://iocx.dev/

Why IOCX Matters

Modern malware is adversarial by default — malformed, evasive, and engineered to break naive extractors.

• Binary‑unaware tools collapse under malformed PEs
• Sandboxes are unsafe and unusable in CI/CD
• Reproducibility is essential for automated pipelines

IOCX is built for environments where correctness and determinism actually matter.

The IOCX Engine

IOCX is the official static IOC extraction engine — a deterministic, binary‑aware system built for DFIR, SOC automation, CI/CD security, and large‑scale threat‑intel pipelines.

Unlike regex‑only extractors or sandbox‑dependent tools, IOCX performs:

• pure static analysis
• zero execution risk
• stable, deterministic output
• adversarial‑tested heuristics

It is a core component of the MalX Labs ecosystem for scalable, modern threat analysis.

Try IOCX in 10 Seconds

echo "http://malicious.example" | iocx -

Or scan a PE file safely:

iocx suspicious.exe -a deep

Why IOCX Exists

Security teams face three persistent problems:

1. Regex extractors break under adversarial input
2. Sandboxing is unsafe, slow, and unsuitable for automation
3. Most IOC tools are inconsistent, slow, or produce subtly different output between runs

IOCX solves this with a deterministic, static‑only engine designed for automation, safety, and scale.

What IOCX Is Not

IOCX is intentionally not:

• a sandbox
• a behavioural analysis tool
• an emulator
• an enrichment engine

It never executes untrusted code. It never performs dynamic analysis. It is static‑only by design — for safety, determinism, and CI/CD compatibility.

Design Philosophy

IOCX is engineered for the realities of modern malware, not the assumptions of legacy tools.

1. Determinism over ambiguity

Stable, reproducible output — no randomness, no volatility.

2. Static over dynamic

Execution is unsafe. Static analysis is predictable, scalable, and CI‑friendly.

3. Adversarial‑first engineering

Malformed PEs, corrupted RVAs, hostile strings — IOCX treats them as normal input.

4. Schema stability as a contract

Downstream systems should never break on upgrade.

5. Performance without compromise

150–300 MB/s on raw text. 6–15 MB/s on typical PEs. Predictable even under worst‑case adversarial load.

These commitments are derived from a published research methodology for PE structural analysis — deterministic fixture construction, single-anomaly discipline, and Windows loader behaviour as the correctness oracle. See docs/methodology.md for the full methodology, and paax.dev for the broader adversarial-PE taxonomy and commercial fixture suite.

What Makes IOCX Different

In short: IOCX is built for real adversarial reality, not idealized input.

Use Cases

CI/CD & DevSecOps

• Scan binaries before release
• Detect accidental URLs, IPs, or secrets in builds
• Enforce security gates with zero execution risk

SOC & Incident Response

• Extract indicators from alerts or analyst clipboard text
• Safely inspect malware samples without execution
• Normalize IOCs into structured JSON

Threat Intelligence

• Process feeds at scale
• Parse unstructured reports
• Build enrichment pipelines on deterministic output

Automation & Scripting

• Pipe logs or artifacts through IOCX
• Use the Python API for ETL or batch workflows
• Extend with custom detectors

Performance Profiles

1. Raw IOC Extraction (Text, Logs, Buffers)

150–300 MB/s sustained throughput Fast path — no PE parsing.

2. Typical PE Files (~39 KB)

• 0.0122 s (typical)
• 0.0145 s (with heuristics)
• 6–15 MB/s throughput

3. Adversarial Dense PE (1.5 MB)

• 0.192 s
• ~7.6 MB/s throughput
• Triggers TLS anomalies, structural anomalies, anti‑debug patterns

4. Full Engine (Non‑PE)

• 1 MB: 0.038 s

Version Highlights

Quickstart

Install

pip install iocx

Extract IOCs from a file

iocx suspicious.exe

Extract from text

echo "Visit http://bad.example.com" | iocx -

Enable PE analysis

iocx suspicious.exe -a

Python API

from iocx.engine import Engine

engine = Engine()
results = engine.extract("suspicious.exe")
print(results)

Example Output

IOCX produces structured, deterministic JSON that includes IOCs, PE metadata, section analysis, heuristics, and obfuscation indicators.

The example below is an abridged output from a real adversarial PE sample. It demonstrates the shape and depth of the schema while keeping the size manageable for documentation purposes.

{
    "file": "heuristic_rich.full.exe",
    "type": "PE",
    "iocs": {
        "urls": ["http://not-a-real-domain.test/payload"],
        "domains": ["example-malware.com"],
        "ips": ["192.0.2.123"],
        "hashes": [
            "abcd1234ef567890abcd1234ef567890",
            "1234567890",
            "3333333333333333"
        ],
        "filepaths": [
            "/usr/src/mingw-w64-11.0.1-3build1/mingw-w64-crt/crt/crtexe.c",
            "/usr/x86_64-w64-mingw32/include",
            "/usr/src/mingw-w64-11.0.1-3build1/mingw-w64-crt/crt/pseudo-reloc.c"
        ]
    },
    "metadata": {
        "file_type": "PE",
        "imports": ["KERNEL32.dll", "msvcrt.dll", "USER32.dll"],
        "sections": [
            ".text", ".data", ".rwx", ".rdata",
            "UPX0", ".pdata", ".xdata", ".tls"
        ],
        "resources": [],
        "resource_strings": [],
        "delayed_imports": [],
        "bound_imports": [],
        "exports": [],
        "signatures": [],
        "has_signature": false,
        "tls": {
            "start_address": 5368758272,
            "end_address": 5368758280,
            "callbacks": 5368754232
        },
        "header": {
            "entry_point": 5088,
            "image_base": 5368709120,
            "machine": "AMD64",
            "subsystem": "Windows GUI"
        },
        "optional_header": {
            "section_alignment": 4096,
            "file_alignment": 512,
            "size_of_image": 155648
        }
    },
    "analysis": {
        "sections": [
            { "name": ".text", "entropy": 5.92 },
            { "name": ".rwx", "entropy": 0 },
            { "name": "UPX0", "entropy": 0.34 },
            { "name": ".rdata", "entropy": 4.03 }
        ],
        "obfuscation": [
            {
                "value": "abnormal_section_layout_virtual_only",
                "category": "obfuscation_hint",
                "metadata": {
                    "section": ".bss",
                    "raw_size": 0,
                    "virtual_size": 384
                }
            }
        ],
        "extended": [
            {
                "value": "summary",
                "category": "pe_metadata",
                "metadata": {
                    "dll_count": 3,
                    "import_count": 45,
                    "resource_count": 0,
                    "has_tls": true,
                    "has_signature": false
                }
            }
        ],
        "heuristics": [
            {
                "value": "packer_suspected",
                "metadata": {
                    "reason": "packer_section_name",
                    "section": "UPX0"
                }
            },
            {
                "value": "anti_debug_heuristic",
                "metadata": {
                    "reason": "anti_debug_api_import",
                    "dll": "kernel32.dll",
                    "function": "CheckRemoteDebuggerPresent"
                }
            },
            {
                "value": "anti_debug_heuristic",
                "metadata": {
                    "reason": "timing_api_import",
                    "dll": "kernel32.dll",
                    "function": "GetTickCount"
                }
            },
            {
                "value": "pe_structure_anomaly",
                "metadata": {
                    "reason": "section_overlaps_headers",
                    "section": ".bss",
                    "raw_address": 0,
                    "size_of_headers": 1536
                }
            },
            {
                "value": "pe_structure_anomaly",
                "metadata": {
                    "reason": "data_directory_overlap",
                    "directory_a": "IMAGE_DIRECTORY_ENTRY_IMPORT",
                    "directory_b": "IMAGE_DIRECTORY_ENTRY_IAT"
                }
            }
        ]
    }
}

Architecture

iocx/
├── examples/
├── docs/
├── tests/
└── iocx
    ├── detectors/
    ├── parsers/
    ├── plugins/
    ├── cli/
    └── analysis/

Plugin Ecosystem & Extensibility

IOCX is designed to be extended safely and predictably. Plugins are first‑class citizens, validated by the same deterministic snapshot tests as the core engine.

You can build:

• custom IOC detectors
• custom regex rules
• binary‑aware plugins
• internal heuristics
• pipeline‑specific extractors

See:

• docs/specs/overlap-suppression.md
• docs/specs/plugin-authoring-guidelines.md

Ecosystem Overview

IOCX is more than a single binary — it’s a modular ecosystem:

• Core Engine — deterministic IOC extraction + PE analysis
• Plugin System — custom detectors and analysis modules
• Adversarial Corpus — malformed PEs, hostile strings, fuzz samples
• Snapshot Testing Framework — ensures deterministic output
• Performance Benchmarks — enforced in CI
• Documentation Suite — specs, contracts, and plugin guides

Who Uses IOCX?

IOCX is used across:

• DFIR teams
• SOC automation pipelines
• CI/CD security gates
• Threat‑intel platforms
• Malware research labs
• Security engineering teams

Anywhere indicators need to be extracted safely, deterministically, and at scale, IOCX fits.

Safe Testing (No Malware Required)

All test samples are:

• Synthetic
• Benign
• Publicly safe (EICAR, GTUBE)
• Designed to avoid accidental malware handling

Performance Guarantees

IOCX enforces strict performance thresholds in CI to ensure:

• No regex backtracking stalls
• No pathological slowdowns
• Stable performance across releases

See:

• docs/performance.md

Project Identity & Naming

The name IOCX refers exclusively to the official engine published on:

• PyPI: https://pypi.org/project/iocx/
• GitHub: https://github.com/iocx-dev/iocx

Not allowed

• Repositories named iocx
• Tools named “iocx” not part of this project
• Implying affiliation without permission

Allowed

• iocx-<plugin>
• iocx-extension-<name>
• iocx-detector-<feature>

Official IOCX Repositories

• Core Engine: https://github.com/iocx-dev/iocx
• Plugins Meta‑Repo: https://github.com/iocx-dev/iocx-plugins
• Documentation: https://github.com/iocx-dev/iocx/tree/main/docs/specs
• PyPI Package: https://pypi.org/project/iocx/

Roadmap

IOCX development focuses on stability, extensibility, and deeper static‑analysis coverage. The items below represent ongoing areas of work and exploration.

• Extended PE heuristics (delay‑load behaviour, structural anomalies, relocation patterns)
• Selective suppression rules for OSINT, DFIR, and threat‑intel workflows
• ELF and Mach‑O metadata extraction
• Batch analysis mode for multi‑artifact workflows
• YARA‑style output modes and enrichment hooks
• Binary‑agnostic static analysis
• Cross‑platform plugin ecosystem
• Language bindings for Rust, Go, and Node.js

Contributing

We welcome:

• New detectors
• Parser improvements
• Documentation updates
• Synthetic adversarial samples

See CONTRIBUTING.md for guidelines.

Security

If you discover a security issue, do not open a GitHub issue. Follow the instructions in SECURITY.md.

License

MPL‑2.0 License — see LICENSE.
