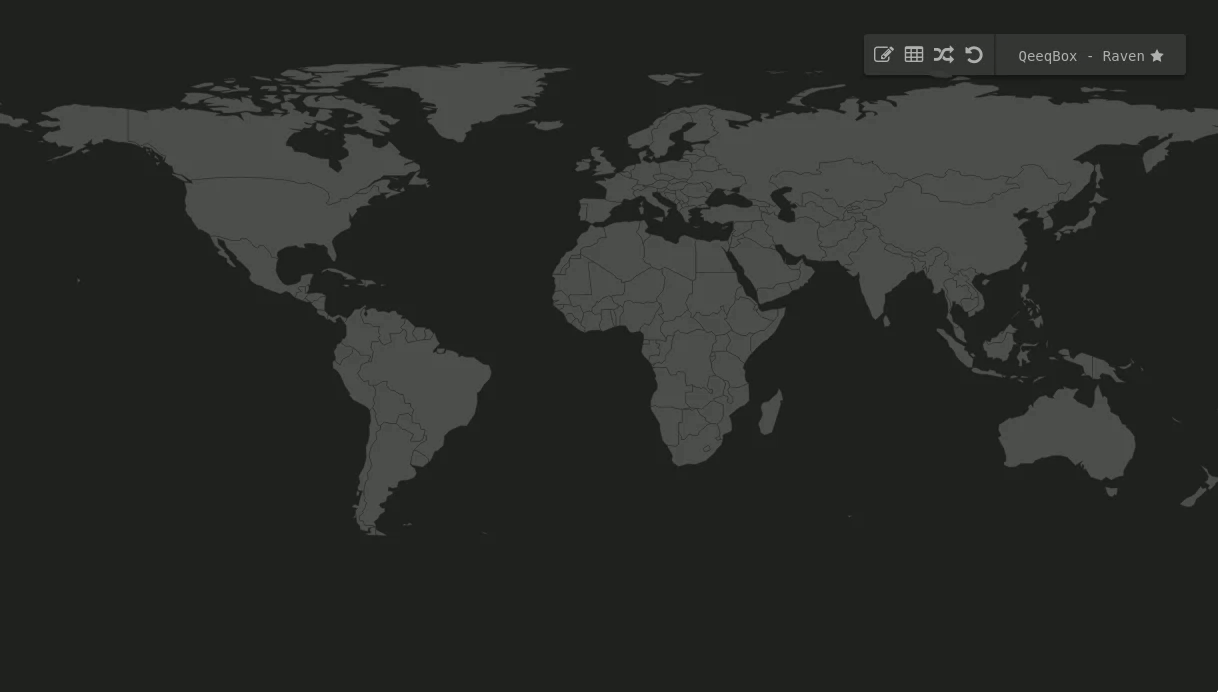

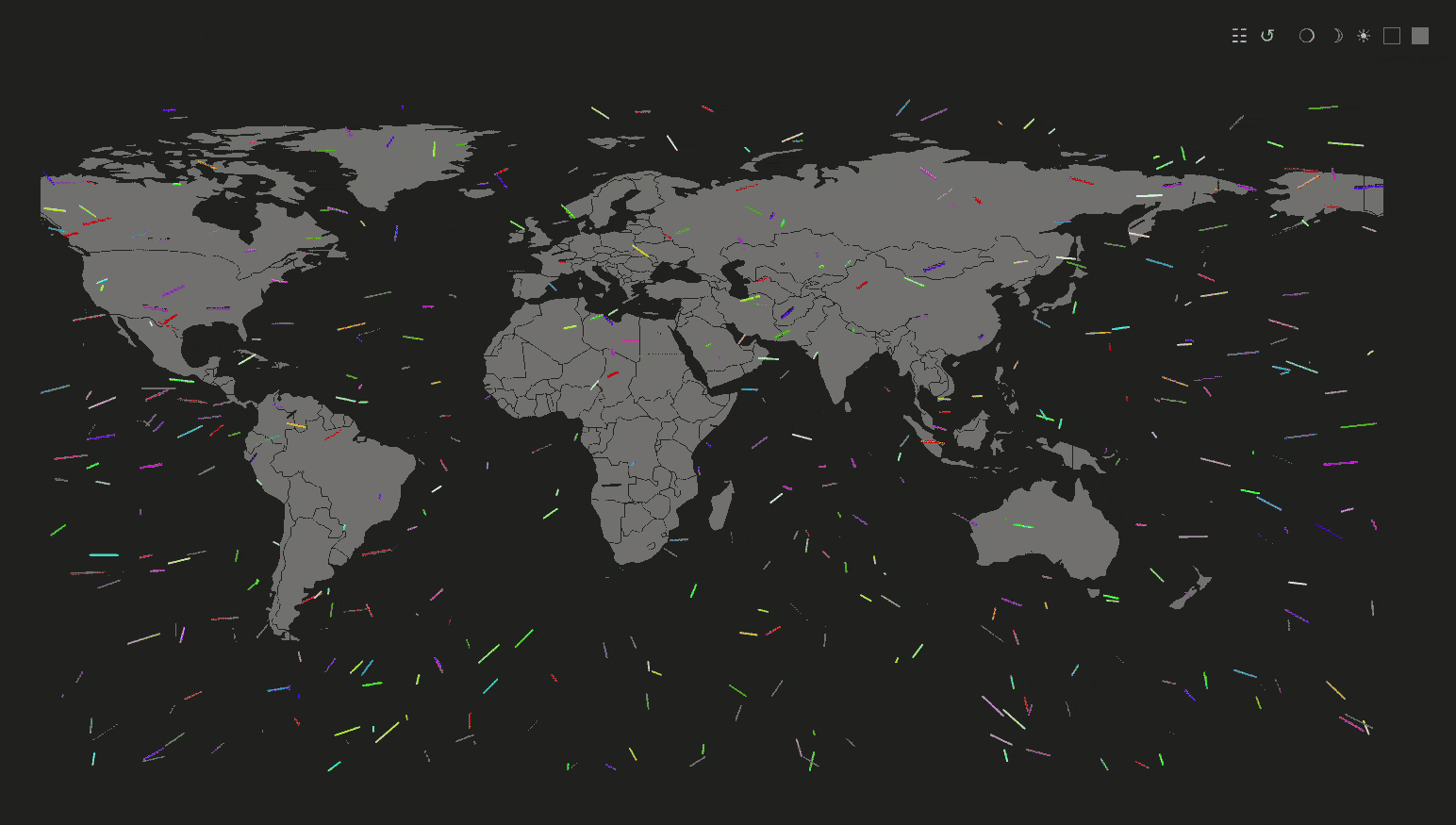

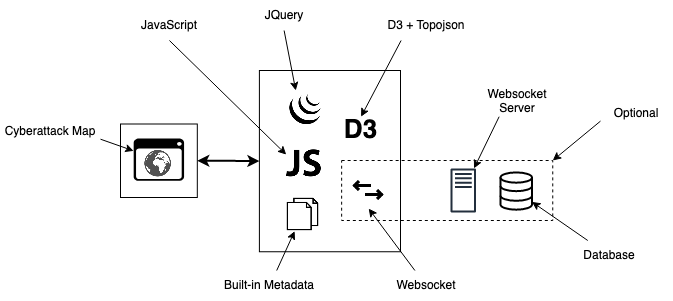

Raven - 高级网络威胁地图（简化、可定制且响应迅速。它使用 D3.js 和 TOPO JSON，包含 247 个国家、约 10 万个城市，并可无需外部查询在隔离环境中使用！）
https://qeeqbox.github.io/raven/
您有不同的选项：ip、name、coordinates
ip 私有或公网 IP -> 以下任一 IP -> 0.0.0.0 或 8.8.8.8，格式为 {'from':'0.0.0.0','to':'8.8.8.8'}name 城市,州,国家 -> 以下任一格式均可 -> seattle,wa,us 或 0,us，格式为 {'from':'seattle,wa,us','to':'0,in'}coordinates 纬度和经度，格式为 {'from':['-11.074920','-51.648929'],'to':['51.464957','-107.583864']} //您只需将以下 iframe 嵌入到您的项目中即可。
//然后，使用您的自定义设置运行初始化脚本 - 仅此而已！
<script type="text/javascript">
document.getElementById('raven-iframe').addEventListener("load", function() {
var raven_options = {
'world_type': null,
'selected_countries': [],
'remove_countries': ['aq'],
'height': window.innerHeight,
'width': window.innerWidth,
'backup_background_color': '#212222',
'orginal_country_color': '#737373',
'clicked_country_color': '#6c4242',
'selected_country_color': '#ff726f',
'attack_output': true,
'global_timeout': 2000,
'global_stats_limit': 10,
'db_length': 1000,
'location': 'scripts',
'panels': ['multi-output', 'single-output','tooltip', 'random', 'insert','taskbar'],
'disable': [],
'verbose': true
}
window['raven'] = document.getElementById('raven-iframe').contentWindow.raven
window['raven'].init_all(raven_options)
window['raven'].init_world()
});
//之后，您可以绘制任何所需数据
raven.add_to_data_to_table({'from':'seattle,wa,us','to':'delhi,in'},{'line':{'from':null,'to':null}},2000,['line','multi-output','single-output'])
</script>
raven.add_marker_by_gussing() //通过国家/城市名称、IP 或坐标绘制信息
marker_object //对象 {'from':'','to':""} 参见示例
colors_object //对象 {'line': {'from': '#FF0000','to': '#FF0000'}} 表示两点之间连线的颜色（若为 null，则随机选取颜色）
timeout //动画超时时间
options = [] //选项列表，例如动画标记
raven.add_marker_by_gussing({'from':'seattle,wa,us','to':'8.8.8.8'},{'line':{'from':null,'to':null}},2000,['line'])
raven.add_marker_by_gussing({'from':'-11.074920,-51.648929','to':'0.0.0.0:53'},{'line':{'from':'#FF0000','to':'#FF0000'}},1000,['line'])
raven.add_marker_by_gussing({'from':'-11.074920,-51.648929','to':'us'},{'line':{'from':null,'to':'#FFFF00'}},1000,['line'])
raven.add_marker_by_gussing({'from':'portland,or,us','to':null},{'line':{'from':null,'to':null}},2000,['point'])
raven.add_marker_by_gussing({'from':'8.8.8.8','to':null},{'line':{'from':'#FF0000','to':'#FF0000'}},1000,['point'])
raven.add_marker_by_gussing({'from':'-11.074920,-51.648929','to':null},{'line':{'from':null,'to':'#FFFF00'}},1000,['point'])
raven.add_to_data_to_table() //绘制信息并将其添加到输出表
method //名称、IP 或坐标
marker_object //对象 {'from':'','to':""} 参见示例
colors_object //对象 {'line': {'from': '#FF0000','to': '#FF0000'}} 表示两点之间连线的颜色（若为 null，则随机选取颜色）
timeout //动画超时时间
options = [] //选项列表，例如动画标记 'line' 和显示位置 'multi-output' 或 'single-output' 表，或两者
raven.add_to_data_to_table({'from':'8.8.8.8','to':'delhi,in'},{'line':{'from':null,'to':null}},2000,['line','multi-output','single-output'])
raven.add_to_data_to_table({'from':'-11.074920,-51.648929','to':'0.0.0.0:3389'},{'line':{'from':'#FF0000','to':'#FF0000'}},1000,['line','multi-output'])
raven.add_to_data_to_table({'from':'br','to':'51.464957,-107.583864'},{'line':{'from':null,'to':'#FFFF00'}},1000,['line','single-output'])
raven.add_to_data_to_table({'from':'seattle,wa,us','to':null},{'line':{'from':null,'to':null}},2000,['line','multi-output','single-output'])
raven.add_to_data_to_table({'from':'0.0.0.0','to':null},{'line':{'from':'#FF0000','to':'#FF0000'}},1000,['line','multi-output'])
raven.add_to_data_to_table({'from':'-11.074920,-51.648929','to':null},{'line':{'from':null,'to':'#FFFF00'}},1000,['line','single-output'])
//您只需将以下 iframe 嵌入到您的项目中即可。
<script type="text/javascript">
document.getElementById('raven-iframe').addEventListener("load", function() {
var raven_options = {
'world_type': null,
'selected_countries': [],
'remove_countries': ['aq'],
'height': window.innerHeight,
'width': window.innerWidth,
'backup_background_color': '#212222',
'orginal_country_color': '#737373',
'clicked_country_color': '#6c4242',
'selected_country_color': '#ff726f',
'attack_output': true,
'global_timeout': 2000,
'global_stats_limit': 10,
'db_length': 1000,
'location': 'scripts',
'panels': ['single-output'],
'disable': ['multi-output','tooltip', 'random', 'insert','taskbar','move_to_country'],
'websocket':{'server':'ws://localhost:5678',
'request_timeout':3000},
'verbose': false
}
window['raven'] = document.getElementById('raven-iframe').contentWindow.raven
window['raven'].init_all(raven_options)
window['raven'].init_world()
window['raven'].fetch_data_from_server()
});
</script>
{
"function":"marker",
"method": "ip",
"object": {
"from": "0.0.0.0",
"to": "us"
},
"color": {
"line": {
"from": "#977777",
"to": "#17777",
}
},
"timeout": 1000,
"options": [
"line",
"single-output",
"multi-output"
]
}
{
"function":"table",
"object": {
"from": "-11.074920,-51.648929",
"to": "br"
},
"color": {
"line": {
"from": "#977777",
"to": "#17777",
}
},
"timeout": 1000,
"options": [
"line",
"single-output",
"multi-output"
]
}
sudo docker build -t simulation . && sudo docker run -p 5678:5678 -p 8080:8080 -it simulation
然后，访问 http://localhost:8080/simulation.html
