CVE-2022-26269 — Suzuki connect app is used to get the car information like Fuel, Ignition status, Current location, Seat buckle status etc. In Ignis, Zeta variant car if the Fuel CAN messages and Seat buckle status is spoofed via OBD 2 port with the crafted value (e.g. zero percent fuel and Car seat is buckled ), then the same value is reflected on Suzuki connect app, which can mislead the user. | Kitploit
工具/GitHubGitHub/nsbogam/cve-2022-26269
Embedded Systems SecurityVulnerability AnalysisExploitationFuzzingHardware & IoT Security
GitHubnsbogam/cve-2022-26269

CVE-2022-26269

查看仓库

最受欢迎

查看全部 →

发现我们社区最常用的工具。

探索所有工具

浏览我们的工具集合

查看所有工具 →

关于

Suzuki connect app is used to get the car information like Fuel, Ignition status, Current location, Seat buckle status etc. In Ignis, Zeta variant car if the Fuel CAN messages and Seat buckle status is spoofed via OBD 2 port with the crafted value (e.g. zero percent fuel and Car seat is buckled ), then the same value is reflected on Suzuki connect app, which can mislead the user.

分享
234年前尚未审核

CVE-2022-26269

Suzuki connect 应用用于获取汽车信息,如燃油、点火状态、当前位置、安全带扣状态等。在 Ignis Zeta 车型中,如果通过 OBD2 端口使用精心构造的值(例如零百分比燃油、安全带已扣)欺骗燃油 CAN 消息和安全带扣状态,那么相同的值会反映在 Suzuki connect 应用上,从而可能误导用户。

受影响产品: Suzuki Connect 应用版本 1.0.15 汽车 Ignis Zeta 车型,制造年份 2019

Suzuki connect URL 补充详情: https://www.marutisuzuki.com/corporate/technology/suzuki-connect

详细报告

所需设置:

  1. Ignis Zeta 车型(2019 年款),确保车辆处于联网区域
  2. Suzuki connect 设备,应用版本 1.0.15
  3. USB 转 CAN 硬件(OBD2 端口)
  4. 用于接收和发送 CAN 消息的软件

实现 POC 需按以下步骤操作:

  1. 启动汽车发动机

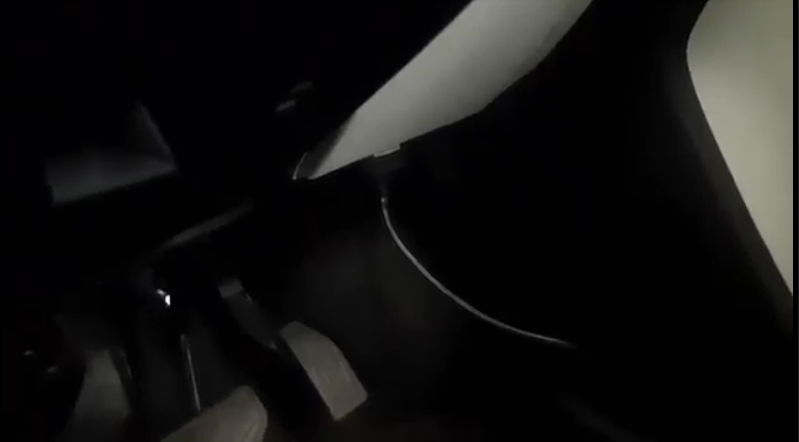

  2. 连接 OBD2 转 USB 连接器 image

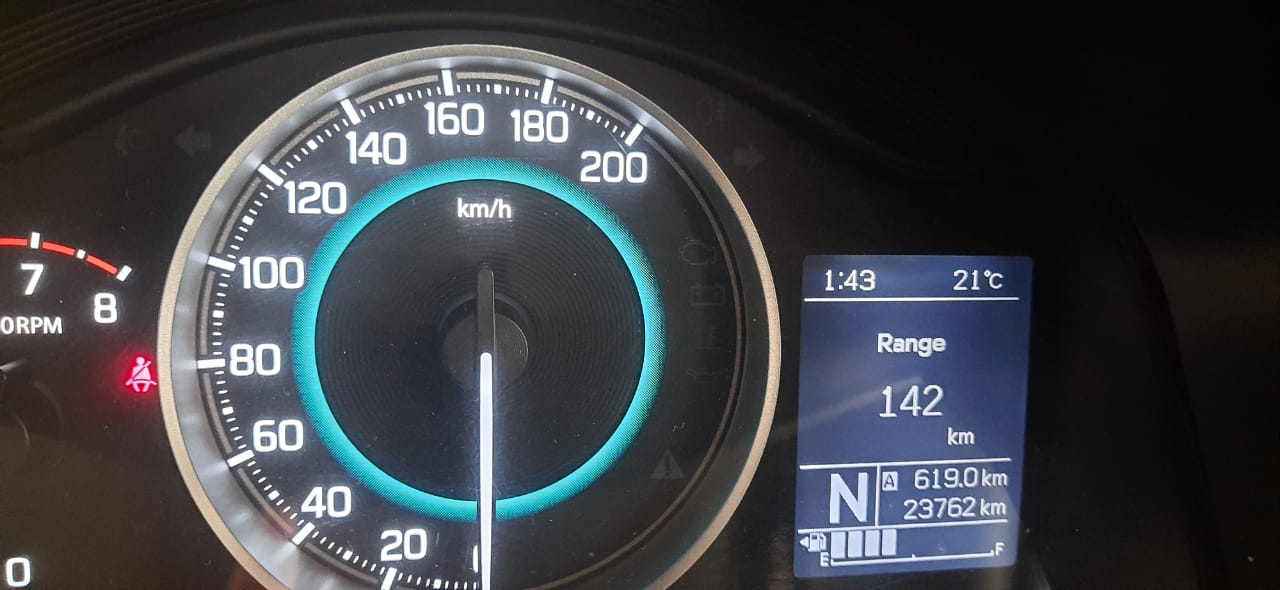

  3. 汽车燃油不应为空 Fuel Status
  4. 驾驶员安全带未扣。
  5. 检查 Suzuki connect 应用是否显示燃油和安全带状态
  6. 现在以每 10 毫秒的间隔发送以下消息
  • 燃油状态 0%:标识符 - 3B9,长度 - 6,数据 - 00 00 00 00 00 00
  • 安全带状态:已扣:标识符 - 3D1,长度 - 8,数据 - 00 00 00 00 00 81 94 9B

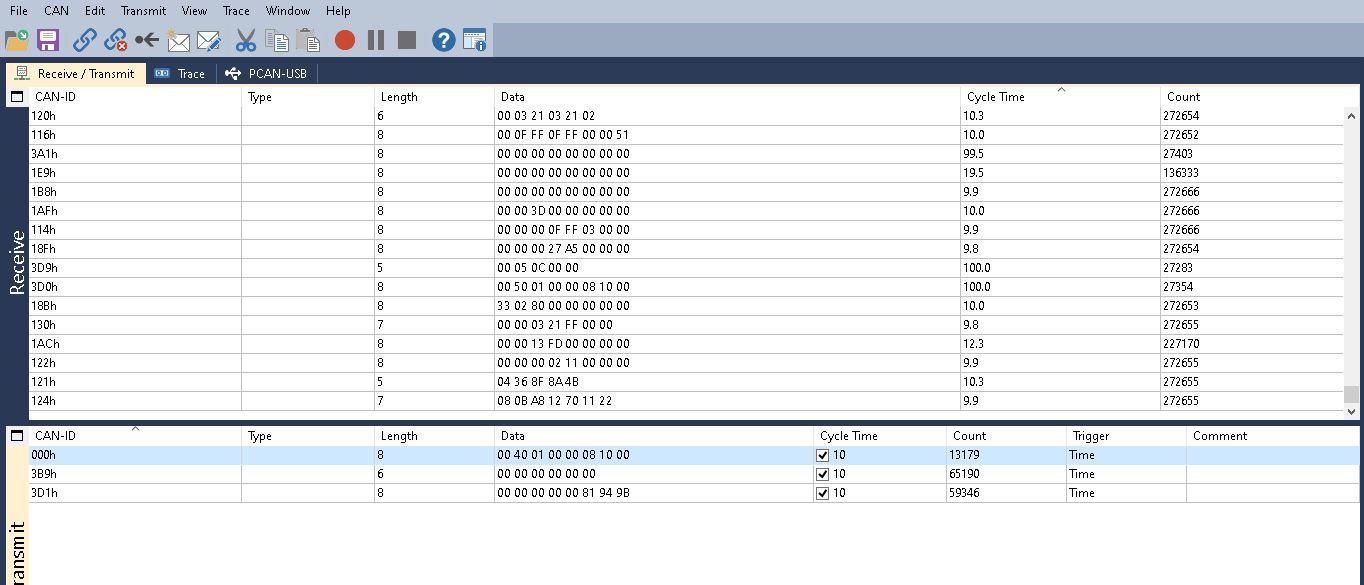

Data Snap 7. 等待几分钟,检查 Suzuki connect 应用:安全带状态显示已扣,燃油状态应为零,并在 Suzuki connect 应用中显示低燃油警报。

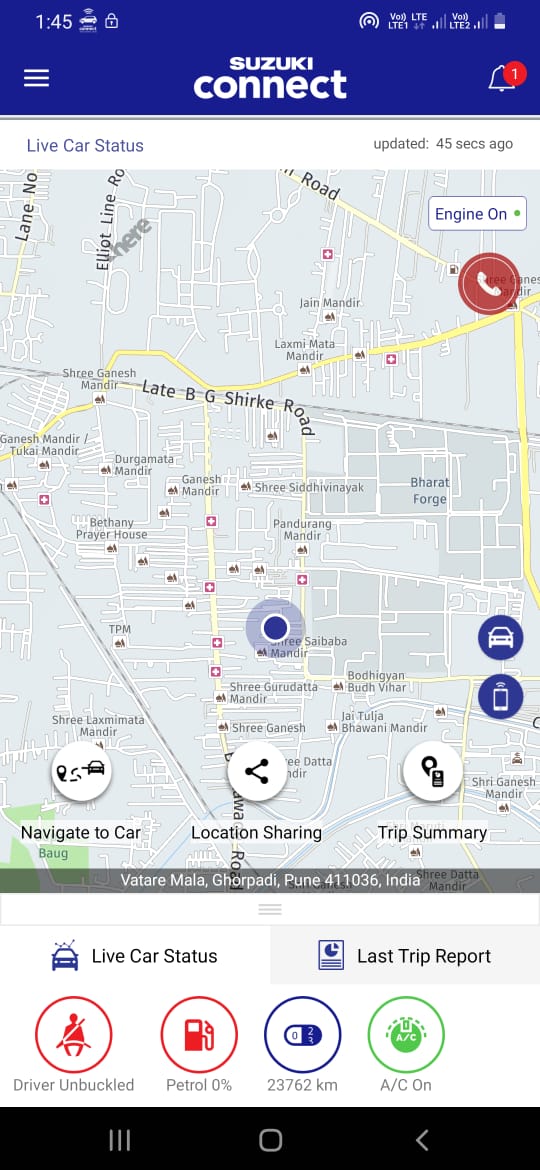

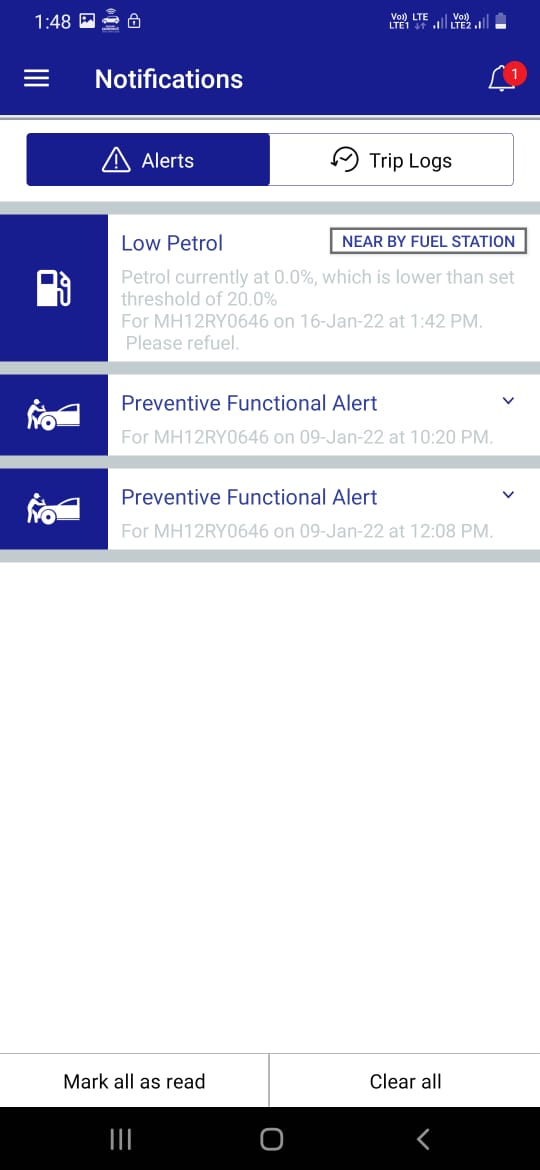

Seat buckle and fuel fuel warning

附加说明:未进行进一步分析,但可通过 OBD2 端口欺骗多条消息 致谢:Nikhil Bogam
