### 基础

基础控制包括对初始ARM对象的检查，用于简单的“打开/关闭”布尔设置。

**示例：Azure容器注册表管理员用户**

[acr_adminUser](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.containerregistry/functions/acr_adminUser.js)

门户|EAST
-|-
  ![image](https://assets.kitploit.com/production/public/readmes/5701/955386627eceb05ef02ac4f9aed2c6671397ff9f86946fab1422f65c40510e5d.png) | ``if (item.properties?.adminUserEnabled == false ){returnObject.isHealthy = true }``



### 高级

高级控制包括对初始ARM对象之外的检查。通常调用新请求以获取有关范围内资源及其与其他服务关系的进一步信息。


**示例：角色分配**

除了检查订阅的角色分配外，还通过Azure AD条件访问报告对MFA进行额外检查，并确保特权账户不仅受到密码保护（具有客户端机密的SPN）。

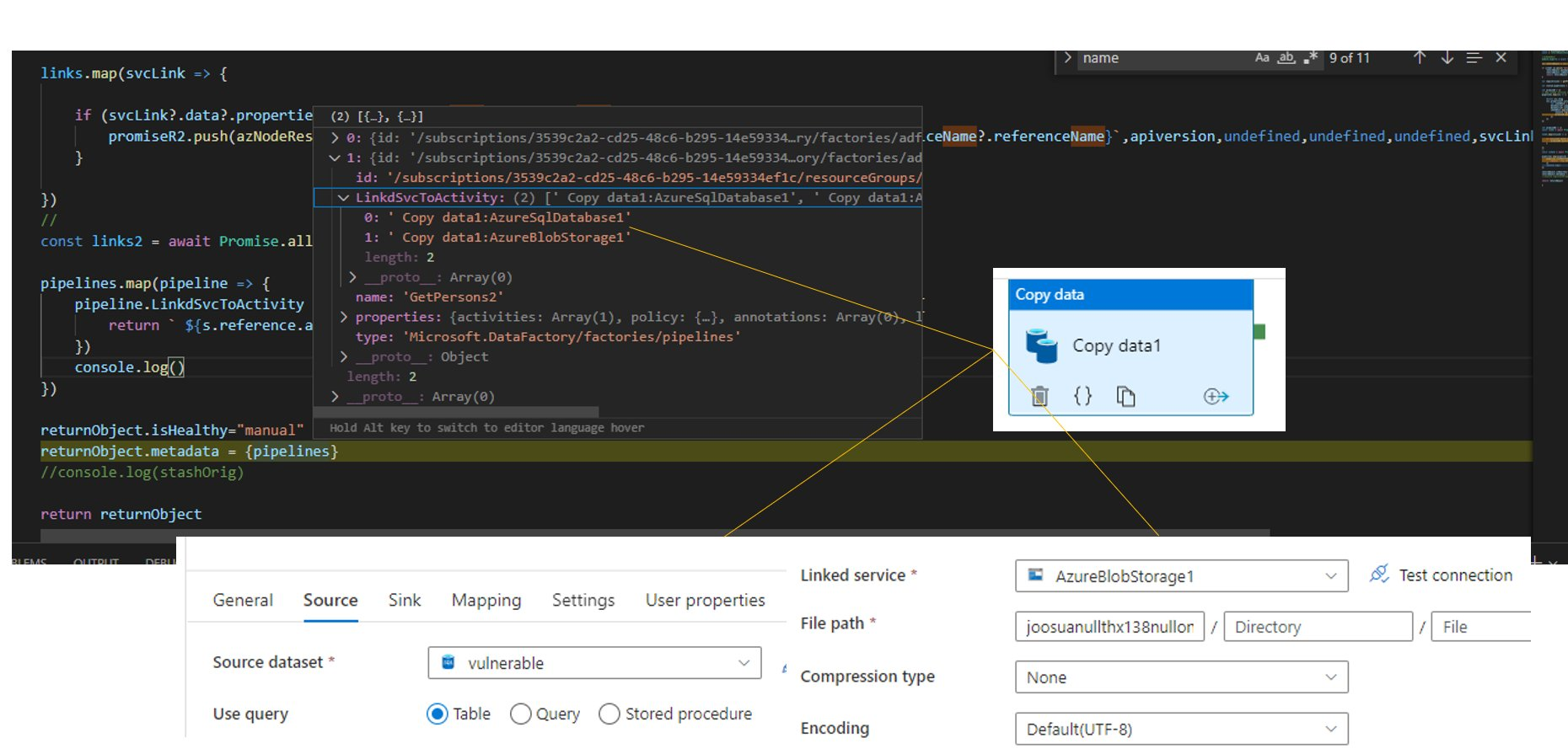

**示例：Azure数据工厂**

[ADF_pipeLineRuns](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.datafactory/functions/ADF_pipeLineRuns.js)

Azure数据工厂管道映射将管道、活动和数据目标结合在一起，然后通过所述活动的运行历史检查日志中泄露的机密。

![img](https://assets.kitploit.com/production/public/readmes/5701/bceb35d6b891df36e341228206a02952c46b7a271be23b40d9a72ff76a0c357f.png)

---

### 组合

组合控制将来自管道的两个或多个控制结果结合起来，以形成一个或多个新控制。使用组合解决了EAST的两个用例：
1. 你无法保证管道中返回的控制结果的顺序
2. 你需要从单个检查中返回多个控制结果

**示例：[composite_resolve_alerts](https://github.com/jsa2/east/blob/HEAD/composites/composite_resolve_alerts.js)**

1. 从Microsoft Cloud Defender获取订阅检查的警报
2. 为每个资源提供商的警报形成新的控制

## 报告

EAST并不专注于提供自动化报告生成，因为它主要提供带有控制和评估状态的JSON文件。想法是使用单独的工具创建报告，通过markdown生成脚本和诸如[Pandoc](https://github.com/jgm/pandoc#the-universal-markup-converter)之类的工具，自动化这些报告相当简单。

- 虽然重点不在报告上，但此存储库包含使用pandoc创建报告的自动化示例，以便以单一文档格式轻松阅读结果。

虽然此工具不分发pandoc，但可以在创建报告时使用它，因此添加了以下引用：https://github.com/jgm/pandoc/blob/master/CITATION.cff```
cff-version: 1.2.0
title: Pandoc
message: "If you use this software, please cite it as below."
type: software
url: "https://github.com/jgm/pandoc"
authors:
  - given-names: John
    family-names: MacFarlane
    email: [email protected]
    orcid: 'https://orcid.org/0000-0003-2557-9090'
  - given-names: Albert
    family-names: Krewinkel
    email: [email protected]
    orcid: '0000-0002-9455-0796'
  - given-names: Jesse
    family-names: Rosenthal
    email: [email protected]

[跳转到下一步](#login-az-cli-and-run-the-scan)

#### 详细前提条件（如果你选择不执行“即忘即用”版本）

**前提条件**```bash

git clone https://github.com/jsa2/EAST --branch preview
cd EAST;
npm install

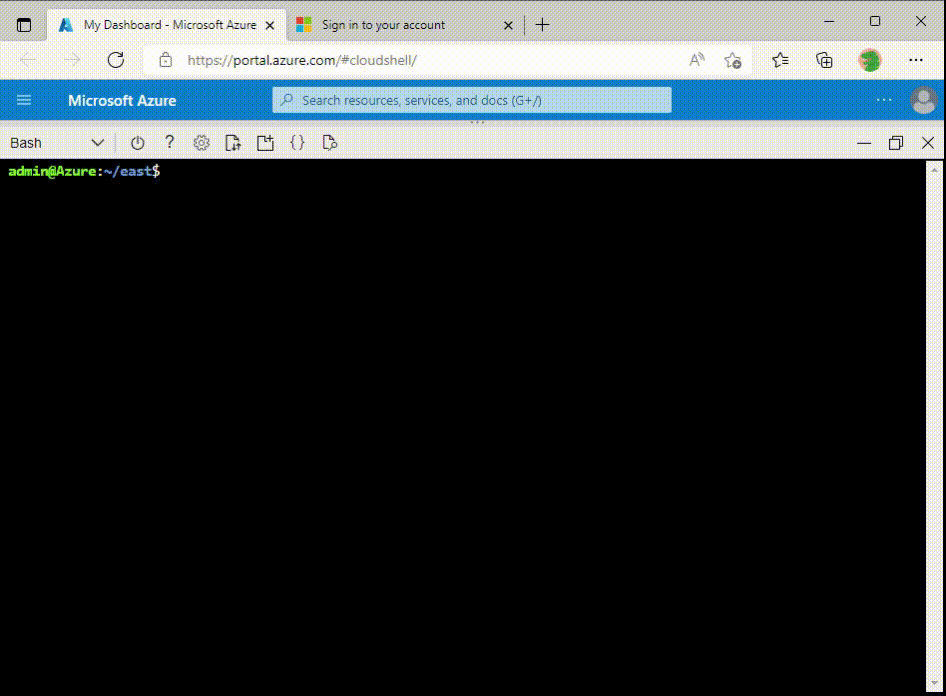

**在支持APT的发行版上安装pandoc**```bash
# Get pandoc for reporting (first time only)
sudo apt install pandoc

![img](https://assets.kitploit.com/production/public/readmes/5701/e85a6607ac555d9bbde7a179042df2a344b0a9f004e99f27ade78e0bc20af5b5.gif)





**生成报告**

``cd EAST; node templatehelpers/eastReports.js --doc``

- 如果想要在报告中包含所有 Azure 安全基准结果

``cd EAST; node templatehelpers/eastReports.js --doc --asb``

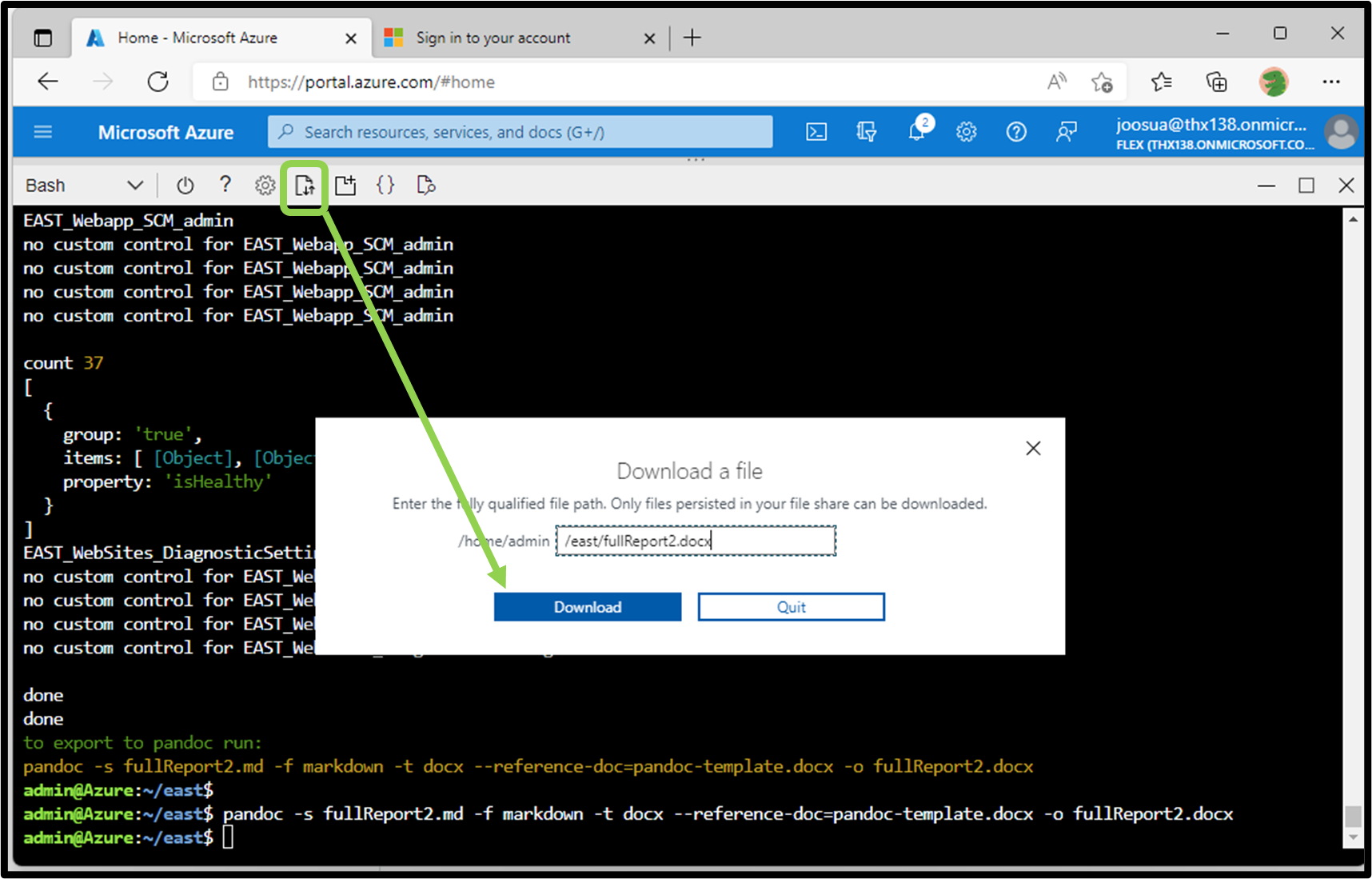

**从云 Shell 导出报告**

`` pandoc -s fullReport2.md -f markdown -t docx --reference-doc=pandoc-template.docx -o fullReport2.docx ``

![image](https://assets.kitploit.com/production/public/readmes/5701/503e773de2e18294b3d74101d8c2eb6f675e1057c838e89703b440650450c374.png)

**Azure DevOps（实验性）**
有一个用于转储管道日志的 Azure DevOps 控件。你可以通过以下示例指定控件运行：``` node ./plugins/main.js --batch=10 --nativescope=true --roleAssignments=true --helperTexts=true --checkAad=true --scanAuditLogs --composites --subInclude=$subId --azdevops "organizationName" ```

---
## Licensing

**Community use**
- Share relevant controls across multiple environments as community effort

**Company use**
- Companies have possibility to develop company specific controls which apply to company specific work. Companies can then control these implementations by decision to share, or not share them based on the operating principle of that company.

**Non IPR components**
- Code logic and functions are under MIT license. since code logic and functions are alredy based on open-source components & vendor API's, it does not make sense to restrict something that is already based on open source

If you use this tool as part of your commercial effort we only require, that you follow the very relaxed terms of [MIT license](https://github.com/jsa2/east/blob/HEAD/LICENSE)

[Read license](https://github.com/jsa2/EAST/blob/public/LICENSE)

---

# Tool operation documentation

## Principles


### AZCLI USE

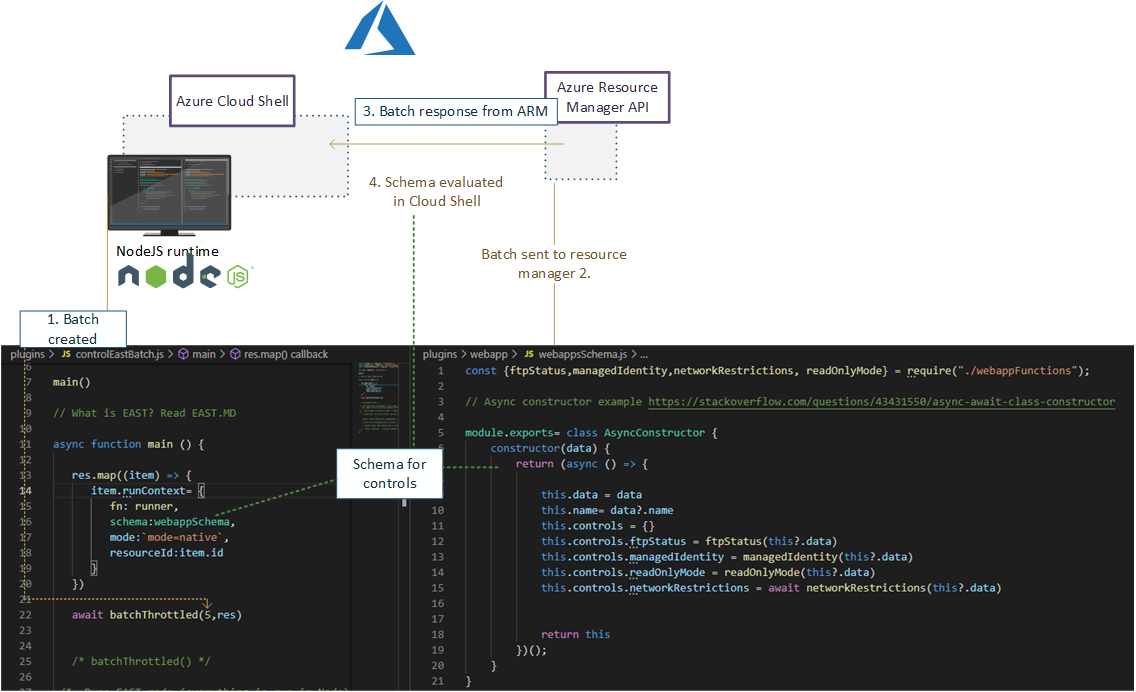

**Existing tooling enhanced with Node.js runtime**

Use rich and maintained context of [Microsoft Azure CLI](https://github.com/Azure/azure-cli#microsoft-azure-cli) ``login & commands``  with Node.js control flow which supplies enhanced rest-requests and maps results to schema.
 - This tool does not include or distribute Microsoft Azure CLI, but rather uses it when it has been installed on the source system (Such as Azure Cloud Shell, which is primary platform for running EAST)

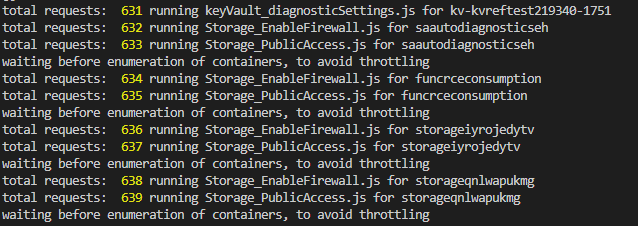

### Speedup

View more [details](https://github.com/jsa2/east/blob/HEAD/speedup.md)

✅ Using Node.js runtime as orchestrator utilises Nodes asynchronous nature allowing batching of requests. Batching of requests utilizes the full extent of Azure Resource Managers incredible speed.

✅ Compared to running requests one-by-one, the speedup can be up to 10x, when Node executes the batch of requests instead of single request at time

## Parameters reference


**Example:**
```shell
node ./plugins/main.js --batch=10 --nativescope --roleAssignments --helperTexts=true --checkAad --scanAuditLogs --composites --shuffle --clearTokens```

Param| Description | Default if undefined
-|-|-
`` --nativescope `` | Currently mandatory parameter | no values
`` --shuffle `` | Can help with throttling. Shuffles the resource list to reduce the possibility of resource provider throttling threshold being met  | no values
`` --roleAssignments `` | Checks controls as per [microsoft.authorization](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.authorization/controls/) | no values
`` --includeRG `` | Checks controls with ResourceGroups as per [microsoft.authorization](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.authorization/controls/) | no values
`` --checkAad `` | Checks controls as per [microsoft.azureactivedirectory](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.azureactivedirectory/controls/) | no values
`` --subInclude `` | Defines subscription scope | no default, requires subscriptionID/s, if not defined will enumerate all subscriptions the user have access to
`` --namespace `` | text filter which matches full, or part of the resource ID <br> **example** `` /microsoft.storage/storageaccounts`` all storage accounts in the scope| optional parameter
`` --notIncludes `` | text filter which matches full, or part of the resource ID <br> **example** `` /microsoft.storage/storageaccounts`` all storage accounts in the scope are **excluded**| optional parameter
`` --batch `` | size of batch interval between throttles |5
`` --wait `` | size of batch interval between throttles | 1500
`` --scanAuditLogs `` | optional parameter. When defined in hours will toggle Azure Activity Log scanning for weak authentication events <br> **defined in:** [scanAuditLogs](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.authorization/functions/scanAuditLogs.js) | 24h
`` --composites `` | read [composite](#composite)| no values
`` --clearTokens `` | clears tokens in session folder, use this if you get authorization errors, or have just changed to other `` az login `` account <br> use `` az account clear`` if you want to clear AZ CLI cache too | no values
`` --tag `` | Filter all results in the end based on single tag``--tag=svc=aksdev``  | no values
``--ignorePreCheck``  | use this option when used with browser delegated tokens| no values
``--helperTexts``  | Will append text descriptions from [general](https://github.com/jsa2/east/blob/HEAD/providers/microsoft.general/controls/) to manual controls| no values
``--reprocess``  | Will update results to existing content.json. Useful for incremental runs| no values


**Parameters reference for example report:**
```shell
node templatehelpers/eastReports.js --asb```

Param| Description | Default if undefined
-|-|-
`` --asb `` | gets all ASB results available to users | no values
`` --policy `` | gets all Policy results available to users | no values
``  --doc`` | prints pandoc string for export to console | no values

## (Highly experimental) Running in restricted environments where only browser use is available

Read here [Running in restricted environments](https://github.com/jsa2/EAST/tree/DelegationToken#highly-experimental---bypassing-trusted-device-requirements-for-azure-cli-in-highly-restricted-environments-where-apis-are-available-for-browser-sessions)

## Developing controls
Developer guide including control flow description is here [``dev-guide.md``](https://github.com/jsa2/east/blob/HEAD/dev-guide.md)


## Updates and examples

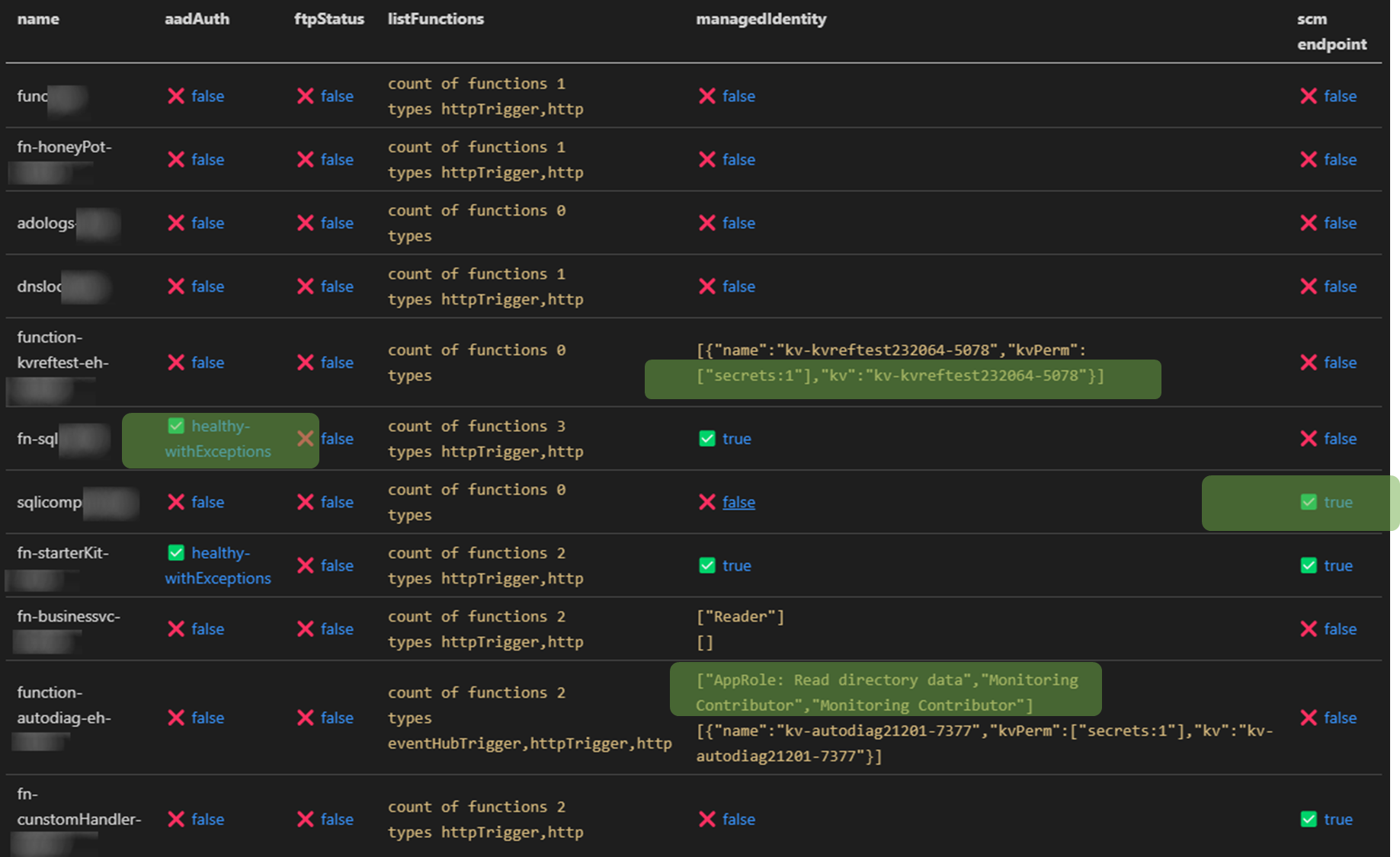

### Auditing Microsoft.Web provider (Functions and web apps)

✅ Check roles that are assigned to function managed identity in Azure AD and all Azure Subscriptions the audit account has access to <br>
✅ Relation mapping, check which keyVaults the function uses across all subs the audit account has access to<br>
✅ Check if Azure AD authentication is enabled
✅ Check that generation of access tokens to the api requires assigment ``.appRoleAssignmentRequired`` <br>
✅ Audit bindings <br>
  - Function or Azure AD Authentication enabled
  - Count and type of triggers
<br>

✅ Check if [SCM](https://docs.microsoft.com/en-us/azure/azure-functions/security-concepts#secure-the-scm-endpoint) and [FTP](https://docs.microsoft.com/en-us/azure/azure-functions/security-concepts#disable-ftp) endpoints are secured


![image](https://assets.kitploit.com/production/public/readmes/5701/b074ecdbe5d910c416ad2bbc5b5c57295c3f61348d5a8bb35146112959a15be8.png)


### Azure RBAC baseline authorization

⚠️ Detect principals in privileged subscriptions roles protected only by password-based single factor authentication.
-  Checks for users without MFA policies applied for set of conditions
-  Checks for ServicePrincipals protected only by password (as opposed to using Certificate Credential, workload federation and or workload identity CA policy)

  Maps to [App Registration Best Practices](https://docs.microsoft.com/en-us/azure/active-directory/develop/security-best-practices-for-app-registration#credential-configuration)
- *An unused credential on an application can result in security breach. While it's convenient to use  <span style="color:red">password</span>. secrets as a credential, we strongly recommend that you use x509 certificates as the only credential type for getting tokens for your application*

``✅State healthy`` - **User result example**
```JSON
{
  "subscriptionName": "EAST -msdn",
  "friendlyName": "[email protected]",
    "mfaResults": {
      "oid": "138ac68f-d8a7-4000-8d41-c10ff26a9097",
      "appliedPol": [{
        "GrantConditions": "challengeWithMfa",
        "policy": "baseline",
        "oid": "138ac68f-d8a7-4000-8d41-c10ff26a9097"
      }],
      "checkType": "mfa"
    },
    "basicAuthResults": {
      "oid": "138ac68f-d8a7-4000-8d41-c10aa26a9097",
      "appliedPol": [{
        "GrantConditions": "challengeWithMfa",
        "policy": "baseline",
        "oid": "138ac68f-d8a7-4000-8d41-c10aa26a9097"
      }],
      "checkType": "basicAuth"
      },
    }

{
  "subscriptionName": "EAST - HoneyPot",
      "friendlyName": "thx138-kvref-6193053b-408b-44d0-b20f-4e29b9b67394",
      "creds": {
        "@odata.context": "https://graph.microsoft.com/beta/$metadata#servicePrincipals(id,displayName,appId,keyCredentials,passwordCredentials,servicePrincipalType)/$entity",
        "id": "babec804-037d-4caf-946e-7a2b6de3a45f",
        "displayName": "thx138-kvref-6193053b-408b-44d0-b20f-4e29b9b67394",
        "appId": "5af1760e-89ff-46e4-a968-0ac36a7b7b69",
        "servicePrincipalType": "Application",
        "keyCredentials": [],
        "passwordCredentials": [],
        "OnlySingleFactor": [{
          "customKeyIdentifier": null,
          "endDateTime": "2023-10-20T06:54:59.2014093Z",
          "keyId": "7df44f81-a52c-4fd6-b704-4b046771f85a",
          "startDateTime": "2021-10-20T06:54:59.2014093Z",
          "secretText": null,
          "hint": null,
          "displayName": null
        }],
        "StrongSingleFactor": []
        }
}
