362902755/cve-2020-0023BlueFrag experimentos
Parece que Android 9-6 tienen un subsistema Bluetooth similar, Android 5 y 4 son diferentes.
Android 9.0
Experimentos BlueFrag
Parche:
https://android.googlesource.com/platform/system/bt/+/3cb7149d8fed2d7d77ceaa95bf845224c4db3baf
A continuación, alcancé la condición del parche. Bien, creo que lo tengo, pero de alguna manera no puedo bloquear el proceso.
hmmmm

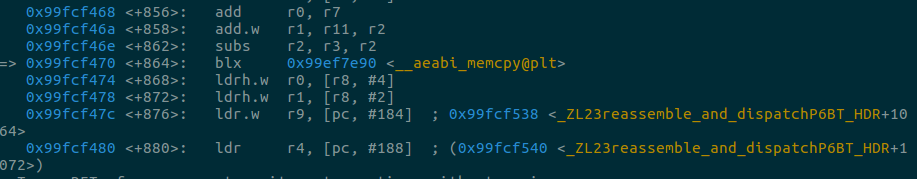

En realidad, logré obtener el valor de longitud firmada para memcpy()```

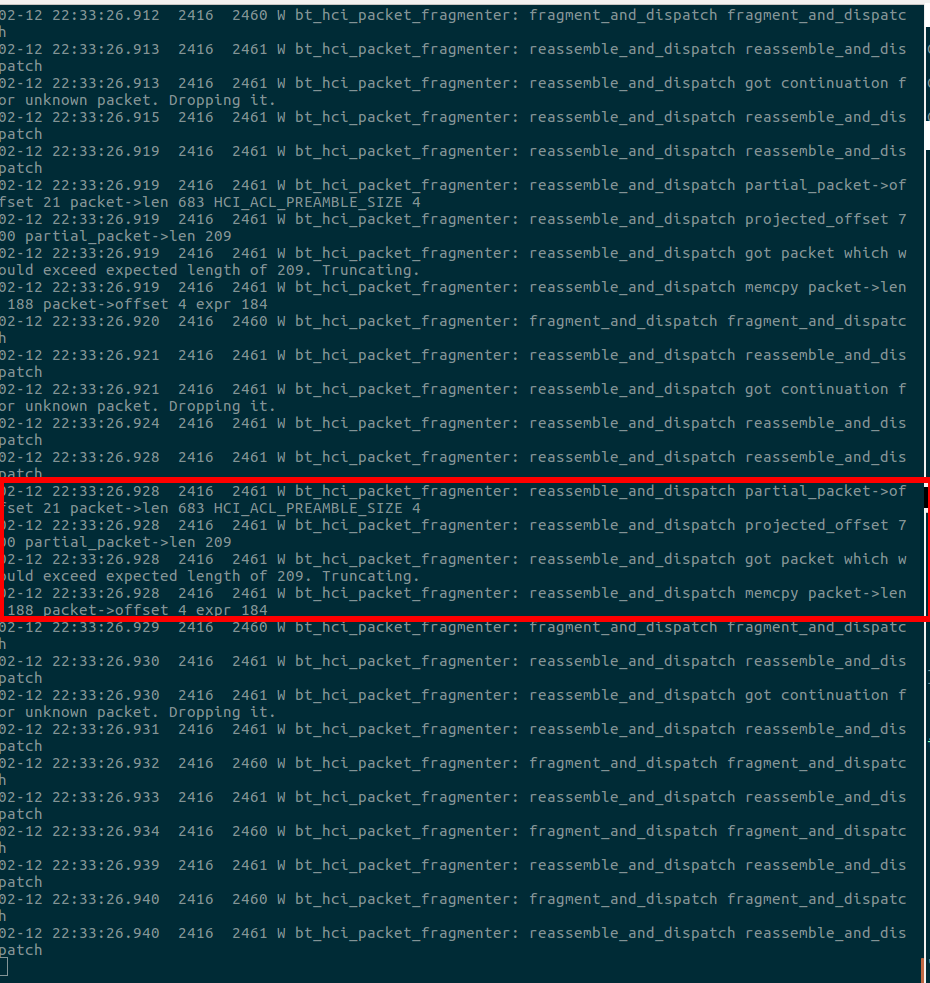

02-16 01:44:49.096 6423 6471 W bt_hci_packet_fragmenter: reassemble_and_dispatch reassemble_and_dispatch
02-16 01:44:49.096 6423 6471 W bt_hci_packet_fragmenter: reassemble_and_dispatch partial_packet->offset 40 packet->len 304 HCI_ACL_PREAMBLE_SIZE 4
02-16 01:44:49.096 6423 6471 W bt_hci_packet_fragmenter: reassemble_and_dispatch projected_offset 340 partial_packet->len 41
02-16 01:44:49.096 6423 6471 W bt_hci_packet_fragmenter: reassemble_and_dispatch got packet which would exceed expected length of 41. Truncating.
02-16 01:44:49.096 6423 6471 W bt_hci_packet_fragmenter: reassemble_and_dispatch memcpy packet->len 1 packet->offset 4 expr -3
02-16 01:44:49.096 6423 6471 W bt_hci_packet_fragmenter: reassemble_and_dispatch partial_packet->data 0xacb14580 partial_packet->data + partial_packet->offset 0xacb145a8 packet->data 0xa553e110 packet->data + packet->offset 0xa553e114
02-16 01:44:49.097 6423 6469 W bt_hci_packet_fragmenter: fragment_and_dispatch fragment_and_dispatch
Todavía sin bloqueo, pero debería.....
En el ejemplo anterior, con un tamaño de memcpy de -3, este valor se interpreta como un entero sin signo (4294967293) y el memcpy continúa hasta que ocurre un fallo de página debido a memoria no mapeada y el proceso debería terminar.
Mi teléfono en 32 bits, quizás por eso. El móvil es Samsung S3 Neo+. Usando jemalloc al menos en pruebas de Android 9.0.```
¯\_(ツ)_/¯
Bueno, parece que funciona correctamente
Sospecho que tienes que abrir muchas conexiones (durante algún tiempo) y de alguna manera asignar mucha memoria antes de que se bloquee.
Estamos enviando aquí 4294967293, casi 4 GB``` ¯_(ツ)_/¯
Swing y leommxj encontraron este comportamiento extraño de Android 8:
https://translate.google.com/translate?hl=en&sl=auto&tl=en&u=https%3A%2F%2Fbestwing.me%2FAndroid-8.1-memcpy-func.html
(Traducido del chino)
Posiblemente también afecta a Android 9. Lo comprobaremos.
En realidad, puede que esto no se ejecute en contexto de proceso, sino quizás en contexto de interrupción. Entonces, tal vez el fallo podría estar oculto.
Parece que. Produce Segfaults en GDB. Así que posiblemente puedas RCE/ejecutar código:```

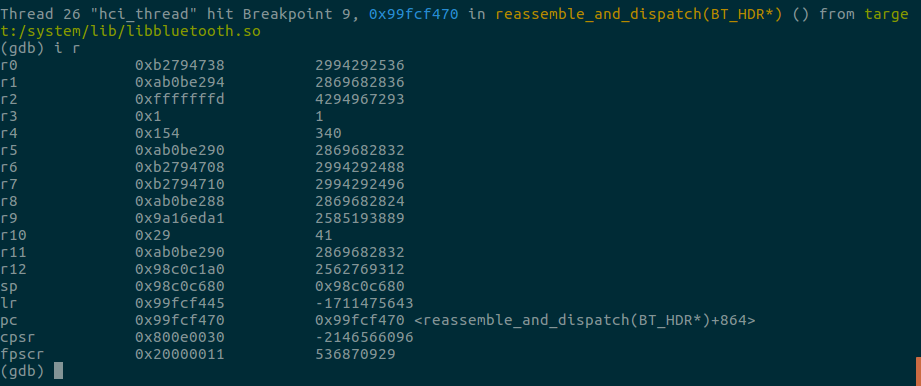

Thread 27 "hci_thread" hit Breakpoint 2, 0x917cc470 in reassemble_and_dispatch(BT_HDR*) () from target:/system/lib/libbluetooth.so
(gdb) i r
r0 0xa9f14738 2851161912
r1 0xa28be294 2727076500
r2 0xffffffff 4294967295
r3 0x3 3
r4 0x154 340
r5 0xa28be290 2727076496
r6 0xa9f14708 2851161864
r7 0xa9f14710 2851161872
r8 0xa28be288 2727076488
r9 0x9196bda1 2442575265
r10 0x2b 43
r11 0xa28be290 2727076496
r12 0x903131a0 2419143072
sp 0x90313680 0x90313680
lr 0x917cc445 -1854094267
pc 0x917cc470 0x917cc470 <reassemble_and_dispatch(BT_HDR*)+864>
cpsr 0x800e0030 -2146566096
fpscr 0x20000011 536870929
(gdb) stepi
[New LWP 2187]
0x916f4e90 in __aeabi_memcpy@plt () from target:/system/lib/libbluetooth.so
(gdb)
0x916f4e94 in __aeabi_memcpy@plt () from target:/system/lib/libbluetooth.so
(gdb)
0x916f4e98 in __aeabi_memcpy@plt () from target:/system/lib/libbluetooth.so
(gdb) disass
Dump of assembler code for function __aeabi_memcpy@plt:
0x916f4e90 <+0>: add r12, pc, #2097152 ; 0x200000
0x916f4e94 <+4>: add r12, r12, #208, 20 ; 0xd0000
=> 0x916f4e98 <+8>: ldr pc, [r12, #2824]! ; 0xb08
End of assembler dump.
(gdb) stepi
0xab920fa6 in __aeabi_memcpy_impl2 () from target:/system/lib/libc.so
(gdb)
0xab994b08 in ?? () from target:/system/lib/libc.so
(gdb)
0xab994b0c in ?? () from target:/system/lib/libc.so
(gdb)
0xab994b10 in ?? () from target:/system/lib/libc.so
(gdb)
0xab91e454 in memcpy@plt () from target:/system/lib/libc.so
(gdb)
0xab91e458 in memcpy@plt () from target:/system/lib/libc.so
(gdb) disass
Dump of assembler code for function memcpy@plt:
0xab91e454 <+0>: add r12, pc, #0, 12
=> 0xab91e458 <+4>: add r12, r12, #140, 20 ; 0x8c000
0xab91e45c <+8>: ldr pc, [r12, #408]! ; 0x198
End of assembler dump.
(gdb) stepi
0xab91e45c in memcpy@plt () from target:/system/lib/libc.so
(gdb)
0xab921e60 in memcpy () from target:/system/lib/libc.so
(gdb)
0xab921e64 in memcpy () from target:/system/lib/libc.so
(gdb) disass
Dump of assembler code for function memcpy:
0xab921e60 <+0>: pld [r1, #64] ; 0x40
=> 0xab921e64 <+4>: stmdb sp!, {r0, lr}
0xab921e68 <+8>: cmp r2, #4
0xab921e6a <+10>: blt.w 0xab921fb0 <memcpy+336>
0xab921e6e <+14>: cmp r2, #16
0xab921e70 <+16>: blt.w 0xab921f9a <memcpy+314>
0xab921e74 <+20>: cmp r2, #32
0xab921e76 <+22>: blt.w 0xab921f8a <memcpy+298>
0xab921e7a <+26>: cmp r2, #64 ; 0x40
0xab921e7c <+28>: blt.n 0xab921f7e <memcpy+286>
0xab921e7e <+30>: mov.w r12, r2, lsr #6
0xab921e82 <+34>: cmp.w r12, #10
0xab921e86 <+38>: ble.n 0xab921f62 <memcpy+258>
0xab921e88 <+40>: stmdb sp!, {r9, r10}
0xab921e8c <+44>: cmp.w r12, #64 ; 0x40
0xab921e90 <+48>: ble.n 0xab921f28 <memcpy+200>
0xab921e92 <+50>: add.w lr, r0, #1024 ; 0x400
0xab921e96 <+54>: add.w r9, r1, #640 ; 0x280
0xab921e9a <+58>: sub.w lr, lr, r9
0xab921e9e <+62>: mov.w lr, lr, lsl #21
0xab921ea2 <+66>: mov.w lr, lr, lsr #21
0xab921ea6 <+70>: add.w lr, lr, #640 ; 0x280
--Type <RET> for more, q to quit, c to continue without paging--
0xab921eaa <+74>: cmp.w r12, lr, lsr #6
0xab921eae <+78>: ble.n 0xab921f28 <memcpy+200>
0xab921eb0 <+80>: itt gt
0xab921eb2 <+82>: movgt.w r9, #10
0xab921eb6 <+86>: rsbsgt r9, r9, lr, lsr #6
0xab921eba <+90>: ble.n 0xab921f28 <memcpy+200>
0xab921ebc <+92>: add.w r10, r1, lr
0xab921ec0 <+96>: bic.w r10, r10, #63 ; 0x3f
0xab921ec4 <+100>: sub.w r12, r12, lr, lsr #6
0xab921ec8 <+104>: cmp r9, r12
0xab921eca <+106>: itee le
0xab921ecc <+108>: suble.w r12, r12, r9
0xab921ed0 <+112>: movgt r9, r12
0xab921ed2 <+114>: movgt.w r12, #0
0xab921ed6 <+118>: pld [r1, #576] ; 0x240
0xab921eda <+122>: pld [r1, #640] ; 0x280
0xab921ede <+126>: vld1.32 {d0-d3}, [r1]!
0xab921ee2 <+130>: vld1.32 {d4-d7}, [r1]!
0xab921ee6 <+134>: ldr.w r3, [r10]
0xab921eea <+138>: subs.w r9, r9, #1
0xab921eee <+142>: vst1.32 {d0-d3}, [r0]!
0xab921ef2 <+146>: vst1.32 {d4-d7}, [r0]!
0xab921ef6 <+150>: add.w r10, r10, #64 ; 0x40
--Type <RET> for more, q to quit, c to continue without paging--
0xab921efa <+154>: bne.n 0xab921eda <memcpy+122>
0xab921efc <+156>: cmp.w r12, #0
0xab921f00 <+160>: beq.n 0xab921f5a <memcpy+250>
0xab921f02 <+162>: cmp.w r12, #8192 ; 0x2000
0xab921f06 <+166>: blt.n 0xab921f3c <memcpy+220>
0xab921f08 <+168>: vld1.32 {d0-d3}, [r1]!
0xab921f0c <+172>: vld1.32 {d4-d7}, [r1]!
0xab921f10 <+176>: pld [r10]
0xab921f14 <+180>: subs.w r12, r12, #1
0xab921f18 <+184>: vst1.32 {d0-d3}, [r0]!
0xab921f1c <+188>: vst1.32 {d4-d7}, [r0]!
0xab921f20 <+192>: add.w r10, r10, #64 ; 0x40
0xab921f24 <+196>: bne.n 0xab921f08 <memcpy+168>
0xab921f26 <+198>: b.n 0xab921f5a <memcpy+250>
0xab921f28 <+200>: movw lr, #640 ; 0x280
0xab921f2c <+204>: add.w r10, r1, #640 ; 0x280
0xab921f30 <+208>: bic.w r10, r10, #63 ; 0x3f
0xab921f34 <+212>: sub.w r12, r12, #10
0xab921f38 <+216>: ldr.w r3, [r10, #-64]
0xab921f3c <+220>: vld1.32 {d0-d3}, [r1]!
0xab921f40 <+224>: vld1.32 {d4-d7}, [r1]!
0xab921f44 <+228>: ldr.w r3, [r10]
0xab921f48 <+232>: subs.w r12, r12, #1
--Type <RET> for more, q to quit, c to continue without paging--
0xab921f4c <+236>: vst1.32 {d0-d3}, [r0]!
0xab921f50 <+240>: vst1.32 {d4-d7}, [r0]!
0xab921f54 <+244>: add.w r10, r10, #64 ; 0x40
0xab921f58 <+248>: bne.n 0xab921f3c <memcpy+220>
0xab921f5a <+250>: mov.w r12, lr, lsr #6
0xab921f5e <+254>: ldmia.w sp!, {r9, r10}
0xab921f62 <+258>: vld1.32 {d16-d19}, [r1]!
0xab921f66 <+262>: vld1.32 {d20-d23}, [r1]!
0xab921f6a <+266>: subs.w r12, r12, #1
0xab921f6e <+270>: vst1.32 {d16-d19}, [r0]!
0xab921f72 <+274>: vst1.32 {d20-d23}, [r0]!
0xab921f76 <+278>: bne.n 0xab921f62 <memcpy+258>
0xab921f78 <+280>: ands.w r2, r2, #63 ; 0x3f
0xab921f7c <+284>: beq.n 0xab921fc2 <memcpy+354>
0xab921f7e <+286>: lsls r3, r2, #27
0xab921f80 <+288>: bcc.n 0xab921f8a <memcpy+298>
0xab921f82 <+290>: vld1.32 {d0-d3}, [r1]!
0xab921f86 <+294>: vst1.32 {d0-d3}, [r0]!
0xab921f8a <+298>: bpl.n 0xab921f9a <memcpy+314>
0xab921f8c <+300>: vld1.32 {d16-d17}, [r1]!
0xab921f90 <+304>: vst1.32 {d16-d17}, [r0]!
0xab921f94 <+308>: ands.w r2, r2, #15
0xab921f98 <+312>: beq.n 0xab921fc2 <memcpy+354>
--Type <RET> for more, q to quit, c to continue without paging--
0xab921f9a <+314>: lsls r3, r2, #29
0xab921f9c <+316>: bcc.n 0xab921fa6 <memcpy+326>
0xab921f9e <+318>: vld1.8 {d0}, [r1]!
0xab921fa2 <+322>: vst1.8 {d0}, [r0]!
0xab921fa6 <+326>: bge.n 0xab921fb0 <memcpy+336>
0xab921fa8 <+328>: vld4.8 {d0[0],d1[0],d2[0],d3[0]}, [r1]!
0xab921fac <+332>: vst4.8 {d0[0],d1[0],d2[0],d3[0]}, [r0]!
0xab921fb0 <+336>: lsls r2, r2, #31
0xab921fb2 <+338>: itt cs
0xab921fb4 <+340>: ldrhcs.w r3, [r1], #2
0xab921fb8 <+344>: strhcs.w r3, [r0], #2
0xab921fbc <+348>: itt mi
0xab921fbe <+350>: ldrbmi r3, [r1, #0]
0xab921fc0 <+352>: strbmi r3, [r0, #0]
0xab921fc2 <+354>: pop {r0, pc}
End of assembler dump.
(gdb) stepi
[New LWP 2188]
0xab921e68 in memcpy () from target:/system/lib/libc.so
(gdb)
0xab921e6a in memcpy () from target:/system/lib/libc.so
(gdb)
0xab921fb0 in memcpy () from target:/system/lib/libc.so
(gdb)
0xab921fb2 in memcpy () from target:/system/lib/libc.so
(gdb)
0xab921fb4 in memcpy () from target:/system/lib/libc.so
(gdb)
0xab921fb8 in memcpy () from target:/system/lib/libc.so
(gdb)
Thread 49 "Binder:777_7" received signal SIGSEGV, Segmentation fault.
[Switching to LWP 2188]
0xa96c9708 in ?? ()
(gdb)
[New LWP 2189]
[New LWP 2190]
process 777 is executing new program: /system/bin/crash_dump32
Warning:
Cannot insert breakpoint 2.
Cannot access memory at address 0x917cc470
(gdb) cont
Continuing.
Warning:
Cannot insert breakpoint 2.
Cannot access memory at address 0x917cc470
Command
Ejemplo de crash en otra iteración (los PIDs y offsets serán diferentes):``` 02-19 21:23:03.676 2212 2245 F libc : Fatal signal 11 (SIGSEGV), code 2 (SEGV_ACCERR), fault addr 0xaa1f5f52 in tid 2245 (hci_thread), pid 2212 (droid.bluetooth) 02-19 21:22:59.332 617 729 E WifiScanner: listener cannot be found 02-19 21:23:03.950 2371 2371 I chatty : uid=1002(bluetooth) crash_dump32 expire 125 lines 02-19 21:23:04.149 409 409 I /system/bin/tombstoned: received crash request for pid 2245 02-19 21:23:04.325 2371 2371 F DEBUG : *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** *** 02-19 21:23:04.325 2371 2371 F DEBUG : LineageOS Version: '16.0-20200216-UNOFFICIAL-s3ve3gjv' 02-19 21:23:04.326 2371 2371 F DEBUG : Build fingerprint: 'samsung/s3ve3gxx/s3ve3g:4.4.2/KOT49H/I9301IXXUANL1:user/release-keys' 02-19 21:23:04.326 2371 2371 F DEBUG : Revision: '0' 02-19 21:23:04.327 2371 2371 F DEBUG : ABI: 'arm' 02-19 21:23:04.327 2371 2371 F DEBUG : pid: 2212, tid: 2245, name: hci_thread >>> com.android.bluetooth <<< 02-19 21:23:04.327 2371 2371 F DEBUG : signal 11 (SIGSEGV), code 2 (SEGV_ACCERR), fault addr 0xaa1f5f52 02-19 21:23:04.327 2371 2371 F DEBUG : r0 00000400 r1 00000400 r2 919ef025 r3 9041967c 02-19 21:23:04.328 2371 2371 F DEBUG : r4 919eeda1 r5 00000005 r6 6e61166f r7 a9f14710 02-19 21:23:04.328 2371 2371 F DEBUG : r8 a28be288 r9 919eeda1 r10 0000002b r11 a28be290 02-19 21:23:04.328 2371 2371 F DEBUG : ip 00000400 sp 90419258 lr abda4160 pc aa1f5f52 02-19 21:23:04.355 2371 2371 F DEBUG : 02-19 21:23:04.355 2371 2371 F DEBUG : backtrace: 02-19 21:23:04.355 2371 2371 F DEBUG : #00 pc 0232ff52 /system/framework/framework-res.apk (offset 0x2313000) 02-19 21:23:04.448 617 729 E WifiScanner: listener cannot be found 02-19 21:23:05.118 409 409 E /system/bin/tombstoned: Tombstone written to: /data/tombstones/tombstone_05 02-19 21:23:05.120 2245 2245 I chatty : uid=1002(bluetooth) com.android.bluetooth expire 1 line 02-19 21:23:05.132 303 303 I Zygote : Process 2212 exited due to signal (11) 02-19 21:23:05.143 617 638 I BootReceiver: Copying /data/tombstones/tombstone_05 to DropBox (SYSTEM_TOMBSTONE)
Android 8.1.0```
01-01 02:35:50.429 1496 1594 D bt_btif_dm: remote version info [00:1a:7d:da:71:13]: 0, 0, 0
01-01 02:35:50.430 1496 1594 E BluetoothRemoteDevices: aclStateChangeCallback: device is NULL, address=00:1A:7D:DA:71:13, newState=0
01-01 02:35:50.475 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch got packet which would exceed expected length of 209. Truncating.
01-01 02:35:50.476 1496 1945 W bt_l2cap: L2CAP - Invalid MTU Size
01-01 02:35:50.478 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 02:35:50.482 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch found l2cap full length 201 less than the hci length 683.
01-01 02:35:50.482 1496 1945 W bt_l2cap: L2CAP - bad length in pkt. Exp: 201 Act: 675
01-01 02:35:50.484 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 02:35:50.487 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 02:35:50.490 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch found l2cap full length 201 less than the hci length 683.
01-01 02:35:50.491 1496 1945 W bt_l2cap: L2CAP - bad length in pkt. Exp: 201 Act: 675
01-01 02:35:50.493 1496 1765 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 02:35:52.576 1496 1945 I bt_btm_sec: btm_sec_disconnected clearing pending flag handle:3 reason:19
Android 7.1.2``` 12-31 13:13:53.209 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch found l2cap full length 201 less than the hci length 683. 12-31 13:13:53.209 2820 2878 W bt_l2cap: L2CAP - bad length in pkt. Exp: 201 Act: 675 12-31 13:13:53.214 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it. 12-31 13:13:53.217 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it. 12-31 13:13:53.221 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch found l2cap full length 201 less than the hci length 683. 12-31 13:13:53.221 2820 2878 W bt_l2cap: L2CAP - bad length in pkt. Exp: 201 Act: 675 12-31 13:13:53.223 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it. 12-31 13:13:53.231 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch got packet which would exceed expected length of 209. Truncating. 12-31 13:13:53.231 2820 2878 W bt_l2cap: L2CAP - Invalid MTU Size 12-31 13:13:53.233 2820 2855 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
Android 6.0.1```
01-01 01:09:12.828 4314 4340 E BluetoothRemoteDevices: aclStateChangeCallback: Device is NULL
01-01 01:09:12.839 4314 4455 W bt_hci_packet_fragmenter: reassemble_and_dispatch got packet which would exceed expected length of 209. Truncating.
01-01 01:09:12.839 4314 4456 W bt_l2cap: L2CAP - Invalid MTU Size
01-01 01:09:12.841 4314 4455 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 01:09:12.847 4314 4455 W bt_hci_packet_fragmenter: reassemble_and_dispatch got packet which would exceed expected length of 209. Truncating.
01-01 01:09:12.847 4314 4456 W bt_l2cap: L2CAP ignoring duplicate echo request (1)
01-01 01:09:12.847 4314 4456 W bt_l2cap: L2CAP - Invalid MTU Size
01-01 01:09:12.850 4314 4455 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 01:09:12.854 4314 4455 E bt_hci_packet_fragmenter: reassemble_and_dispatch Invalid L2cap length : 201 :return .
01-01 01:09:12.856 4314 4455 W bt_hci_packet_fragmenter: reassemble_and_dispatch got continuation for unknown packet. Dropping it.
01-01 01:09:14.931 4314 4456 I bt_btm_sec: btm_sec_disconnected clearing pending flag handle:1 reason:19
01-01 01:09:14.931 4314 4456 W bt_l2cap: L2CA_SetDesireRole() new:x0, disallow_switch:0
01-01 01:09:14.931 4314 4340 E BluetoothRemoteDevices: aclStateChangeCallback: Device is NULL
Android 5.1.1``` E/bt_mct ( 2413): Unable to acquire buffer for incoming HCI message. E/bt_mct ( 2413): Invalid L2CAP Con't Packet: return NULL E/bt_mct ( 2413): Unable to acquire buffer for incoming HCI message. W/bt_mct ( 2413): dropping incomplete ACL frame
Android 4.3```
E/bt_h4 ( 6647): H4 - ACL frames reassembly failed:
E/bt_h4 ( 6647): Total length of all segmented packets exceeds the original PDU length [CID:0x0001].
W/bt_h4 ( 6647): H4 - dropping invalid ACL frames
E/bt_h4 ( 6647): H4: Unable to acquire buffer for incoming HCI message.
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: GKI_exception(): Task State Table
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [0] task name [BTU] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [1] task name [BTIF] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [2] task name [A2DP-MEDIA] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: GKI_exception 65535 Send - Buffer corrupted#####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception:
E/GKI_LINUX( 6647): ********************************************************************
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: * GKI_exception(): 65535 Send - Buffer corrupted
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: ********************************************************************
E/GKI_LINUX( 6647): #####
E/bt_h4 ( 6647): H4: Unable to acquire buffer for incoming HCI message.
D/IOP_DB_BT( 6647): db_query_create: id EnforceMasterRole :: key KEY_BDADDR, value 00:1a:7d:da:71:13
D/IOP_DB_BT( 6647): db_query_add_key: key KEY_LMP_MFCT, value 10
D/IOP_DB_BT( 6647): db_query_add_key: key KEY_LMP_VER, value 6:8891
D/IOP_DB_BT( 6647): db_query_add_key: key KEY_DIR_ALL, value *
E/bt_h4 ( 6647): H4: Unable to acquire buffer for incoming HCI message.
D/IOP_DB_BT( 6647): db_query_execute: result 1
D/ ( 6647): remote version info [00:1a:7d:da:71:13]: 6, a, 22bb
D/BluetoothRemoteDevices( 6647): aclStateChangeCallback: State:Connected to Device:00:1A:7D:DA:71:13
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: GKI_exception(): Task State Table
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [0] task name [BTU] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [1] task name [BTIF] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [2] task name [A2DP-MEDIA] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: GKI_exception 65535 Send - Buffer corrupted#####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception:
E/GKI_LINUX( 6647): ********************************************************************
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: * GKI_exception(): 65535 Send - Buffer corrupted
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: ********************************************************************
E/GKI_LINUX( 6647): #####
E/bt_h4 ( 6647): H4: Unable to acquire buffer for incoming HCI message.
E/bt_h4 ( 6647): H4: Unable to acquire buffer for incoming HCI message.
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: GKI_exception(): Task State Table
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [0] task name [BTU] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [1] task name [BTIF] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: TASK ID [2] task name [A2DP-MEDIA] state [1]
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: GKI_exception 65535 Send - Buffer corrupted#####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception:
E/GKI_LINUX( 6647): ********************************************************************
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: * GKI_exception(): 65535 Send - Buffer corrupted
E/GKI_LINUX( 6647): #####
E/GKI_LINUX( 6647): ##### ERROR : GKI_exception: ********************************************************************
E/GKI_LINUX( 6647): #####
E/bt_h4 ( 6647): H4: Unable to acquire buffer for incoming HCI message.
D/BluetoothRemoteDevices( 6647): Remote Device name is: N20180019
D/KeyguardViewMediator( 2341): Received android.bluetooth.device.action.ACL_CONNECTED deviceClass = 268
V/BluetoothEventManager( 4184): Received android.bluetooth.device.action.NAME_CHANGED
D/BluetoothDevicePreference( 4184): Is my device connected::false
I/BluetoothDevicePreference( 4184): summaryResId else part
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/BluetoothNotiBroadcastReceiver( 4184): onReceive
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/SSRMv2:Monitor( 2341): SIOP:: AP = 300 (read only)
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/btif_config_util( 6647): btif_config_save_file(L181): in file name:/data/misc/bluedroid/bt_config.new
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/IOP_DB_BT( 6647): db_query_create: id DisablePwlCtrReq :: key KEY_BDADDR, value 00:1a:7d:da:71:13
D/IOP_DB_BT( 6647): db_query_add_key: key KEY_LMP_MFCT, value 10
D/IOP_DB_BT( 6647): db_query_add_key: key KEY_LMP_VER, value 6:8891
D/IOP_DB_BT( 6647): db_query_add_key: key KEY_DIR_ALL, value *
D/IOP_DB_BT( 6647): db_query_execute: result 1
D/BluetoothRemoteDevices( 6647): aclStateChangeCallback: State:DisConnected to Device:00:1A:7D:DA:71:13
V/BluetoothEventManager( 4184): Received android.bluetooth.device.action.ACL_DISCONNECTED
E/BluetoothEventManager( 4184): ACTION_ACL_DISCONNECTED
D/BleAutoConnectService( 6647): android.bluetooth.device.action.ACL_DISCONNECTED
D/BleAutoConnectService( 6647): ACTION_ACL_DISCONNECTED, reason is 19linktype is 1
I/NfcService( 2661): android.bluetooth.device.action.ACL_DISCONNECTED, restart
D/BleAutoConnectService( 6647): getAddress() - address ==> null
D/KeyguardViewMediator( 2341): Received android.bluetooth.device.action.ACL_DISCONNECTED connectedBTforSmartLock = false
I/NfcService( 2661): Disabling NFC
D/NfcService( 2661): updateState : newSate = 4 mState = 4
D/BluetoothDevicePreference( 4184): Is my device connected::false
I/BluetoothDevicePreference( 4184): summaryResId else part
I/SecNdefService( 2661): enableDisable(sendEnable=false,receiveEnable=false)
I/SecNdefService( 2661): stopSecNdefService()size=1
I/SecNdefService( 2661): stopServer() : SAP(21).
E/NdefPushServer( 2661): IO error
E/NdefPushServer( 2661): java.io.IOException
E/NdefPushServer( 2661): at com.android.nfc.dhimpl.NativeLlcpServiceSocket.accept(NativeLlcpServiceSocket.java:42)
E/NdefPushServer( 2661): at com.android.nfc.ndefpush.NdefPushServer$ServerThread.run(NdefPushServer.java:160)
E/SnepServer( 2661): IO error
E/SnepServer( 2661): java.io.IOException
E/SnepServer( 2661): at com.android.nfc.dhimpl.NativeLlcpServiceSocket.accept(NativeLlcpServiceSocket.java:42)
E/SnepServer( 2661): at com.android.nfc.snep.SnepServer$ServerThread.run(SnepServer.java:211)
E/SnepServer( 2661): IO error
E/SnepServer( 2661): java.io.IOException
E/SnepServer( 2661): at com.android.nfc.dhimpl.NativeLlcpServiceSocket.accept(NativeLlcpServiceSocket.java:42)
E/SnepServer( 2661): at com.android.nfc.snep.SnepServer$ServerThread.run(SnepServer.java:211)
E/HandoverServer( 2661): IO error
E/HandoverServer( 2661): java.io.IOException
E/HandoverServer( 2661): at com.android.nfc.dhimpl.NativeLlcpServiceSocket.accept(NativeLlcpServiceSocket.java:42)
E/HandoverServer( 2661): at com.android.nfc.handover.HandoverServer$ServerThread.run(HandoverServer.java:108)
I/SecNdefService( 2661): Stop SendThread
E/NFCJNI ( 2661): phLibNfc_SE_SetMode() returned 0x0095[NFCSTATUS_INVALID_HANDLE]
D/NfcService( 2661): NFC-C ON
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/NFCJNI ( 2661): Terminating client thread...
D/NFCJNI ( 2661): phLibNfc_Mgt_UnConfigureDriver() returned 0x0000[NFCSTATUS_SUCCESS]
D/NfcService( 2661): updateState : newSate = 1 mState = 1
D/ProgressBar( 4184): setProgress = 0
D/ProgressBar( 4184): setProgress = 0, fromUser = false
D/ProgressBar( 4184): mProgress = 0mIndeterminate = false, mMin = 0, mMax = 100
D/AbsListView( 4184): unregisterIRListener() is called
D/[SBeam] ( 4184): SBeamEnabler.saveSbeamOn : false
