SecurityClaw — Autonomous SOC Agentic Framework

A modular, skill-based autonomous Security Operations Center (SOC) agent that monitors OpenSearch/Elasticsearch data, builds RAG-based behavioral memory, and validates real-time anomalies using LLMs.

Features

• Skill Modularity — Capabilities as isolated folders with logic.py (Python) + instruction.md (LLM guidance)
• Heartbeat Loop — Cron-like scheduler: 1-minute anomaly watcher, 6-hour memory builder
• Provider Agnostic — Swap OpenSearch↔Elasticsearch via config
• RAG-Based Memory — Vector embeddings stored in OpenSearch; context-aware threat analysis
• LangGraph Orchestration — Multi-step DECIDE→EXECUTE→EVALUATE supervisor loop implemented as a StateGraph; conversation and chat working memory checkpointed to SQLite via SqliteSaver
• Manifest-Grounded Planning — Supervisor planning and retry steps are repaired against the currently loaded skill manifests before execution, so prerequisite chains come from manifest contracts instead of invented tool names
• Working Memory — Interactive chat working memory stays inside LangGraph state and is checkpointed in data/conversations.db; the scheduler/CLI runtime now uses the same checkpoint-backed model via data/runtime_memory.db
• Conversation-based Investigations — Investigate threats through an interactive chat interface with real-time LLM reasoning steps, manifest-declared capability contracts, and RAG context retrieval
• Web Interface — Modern React-based UI for chat, memory visualization, and skill dispatch

Context budgeting notes:

• Chat output budget defaults to llm.max_tokens: 16384 in config.yaml.
• Working memory injected into prompts is compacted by core/memory.py with a default max_context_chars budget of 4000 characters.
• Supervisor result summaries are clipped before prompt injection, so there is some compaction already, but there is not yet live token-usage telemetry in the chat router.

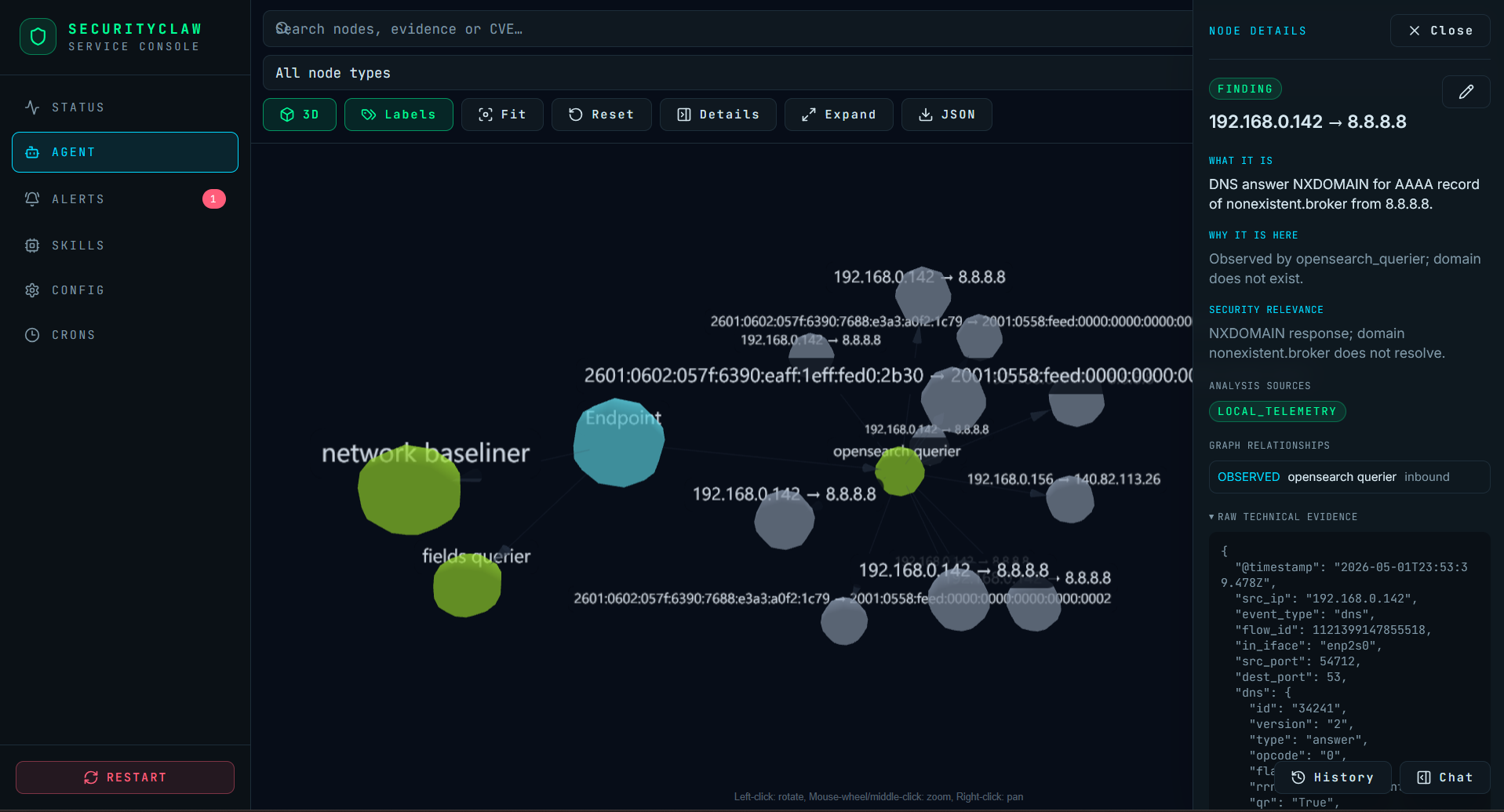

Web Interface

Quick Start

0. Prerequisites

• Python 3.11+ (check with python --version)
• Git (for cloning the repo)
• OpenSearch 2.x or Elasticsearch 8.x (or use mock for testing)
• Ollama (for LLM provider)
• 4GB+ RAM (recommended for Ollama models; 8GB+ for production)
• ~2GB disk space for models and vector indices

0.5 Quick Ollama Setup

The current example configuration in config.yaml.example uses:

• qwen2.5:7b-instruct-q4_K_M for chat/reasoning
• nomic-embed-text:latest as the lightweight local auxiliary model for embeddings referenced by the sample config

Quick setup:

curl -fsSL https://ollama.com/install.sh | sh
ollama serve
ollama pull qwen2.5:7b-instruct-q4_K_M
ollama pull nomic-embed-text:latest

1. Create Virtual Environment & Install Dependencies

Step 1a: Clone the repository

git clone https://github.com/SecurityClaw/SecurityClaw.git
cd SecurityClaw

Step 1b: Create a Python virtual environment

# Using venv (built-in)
python3.11 -m venv .venv

# Or using virtualenv (if installed)
virtualenv .venv

Step 1c: Activate the virtual environment

# On Linux/macOS
source .venv/bin/activate

# On Windows (PowerShell)
.venv\Scripts\Activate.ps1

# On Windows (Command Prompt)
.venv\Scripts\activate.bat

Step 1d: Install Python dependencies

pip install -r requirements.txt

# Or using Pipenv (if you prefer):
pipenv install --dev

Verify installation:

python -c "import main; import core; print('✓ Dependencies OK')"

2. Interactive Onboarding

.venv/bin/python main.py onboard

The wizard will guide you through:

• Database: Host, port, SSL, auth
• LLM: Ollama configuration
• Connection testing for both services
• Configuration save to config.yaml and .env
• External APIs (optional): AbuseIPDB, AlienVault OTX, VirusTotal, Talos, MaxMind
• Skill variables: Auto-discover and prompt for any missing skill-specific env vars

See ONBOARDING.md for detailed walkthrough.

3. Start the Service (Recommended)

.venv/bin/python main.py service

Launches both the background scheduler and the web API server:

• Web UI: http://localhost:5173 (React frontend with hot reload)
• API: http://localhost:7799 (FastAPI REST service)
• Scheduler: Runs anomaly detection and memory building in background

For API-only mode (no scheduler):

SECURITYCLAW_API_ONLY=1 .venv/bin/python main.py service

3a. Or Run CLI Commands

For pure CLI/background agent operation without the web interface:

.venv/bin/python main.py run                    # Start scheduler loop (anomaly watcher + memory builder)
.venv/bin/python main.py dispatch <skill>      # Fire a skill once (e.g., threat_analyst)
.venv/bin/python main.py chat                  # Interactive terminal-based chat with routing
.venv/bin/python main.py status                # Print compact agent memory snapshot
.venv/bin/python main.py list-skills           # Show loaded skills and intervals

3b. Web Development (Frontend Only)

If you want to develop the React frontend locally:

.venv/bin/python main.py web-dev               # Start Vite dev server on :5173
# In a second terminal:
.venv/bin/python main.py service               # Start backend API on :7799

4. Web Interface Features

The React web UI provides:

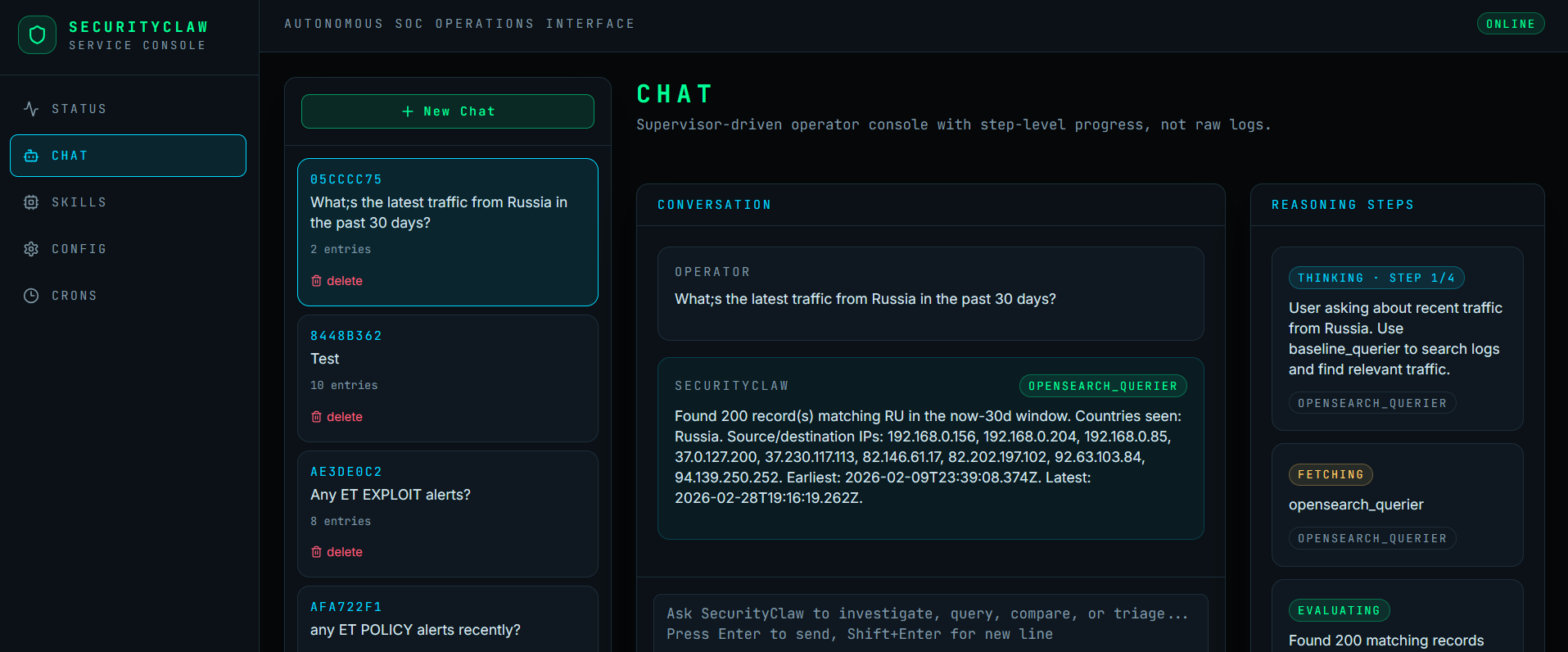

• Chat Interface — Type questions; see real-time reasoning steps with skill invocations
• Skills Dispatch — Manually trigger skills and view results
• Configuration Editor — Edit config.yaml and .env through the UI
• Cron/Interval Management — View and modify skill schedules
• Conversation History — Persist and recall previous Q&A sessions
• Status Dashboard — Real-time scheduler status, skill inventory, memory state

Architecture

SecurityClaw's chat orchestration is moving toward a capability-first contract model:

• The supervisor plans against manifest-declared capabilities, prerequisites, required entities, and artifacts.
• Live routing favors LLM planning plus manifest viability checks instead of manifest keyword guards.
• Follow-up grounding should be expressed through manifest hooks so the core router stays skill-agnostic.

Directory Structure

SecurityClaw/
├── config.yaml                 # Central DB/LLM/RAG configuration
├── .env                        # Secrets (master credentials)
├── main.py                     # CLI entrypoint
│
├── core/
│   ├── config.py              # YAML + env loader
│   ├── memory.py              # Structured memory helpers for file/state/checkpoint-backed runtimes
│   ├── runner.py              # Conductor (skill discovery, scheduling)
│   ├── scheduler.py           # APScheduler wrapper
│   ├── skill_loader.py        # Dynamic skill discovery
│   ├── db_connector.py        # OpenSearch/ES abstraction
│   ├── llm_provider.py        # Ollama provider
│   ├── rag_engine.py          # Embedding store & retrieval
│   └── chat_router/           # API-only: LangGraph StateGraph orchestrator
│
├── skills/
│   ├── network_baseliner/     # 6h: Aggregate logs → RAG vectors
│   ├── fields_baseliner/      # 1h: Catalog field schemas and aggregate example values into fields RAG
│   ├── anomaly_triage/        # Manual: Poll AD findings → enrich → escalate
│   ├── threat_analyst/        # Manual: RAG reasoning → verdict
│   ├── opensearch_querier/    # Manual: Execute database queries
│   ├── forensic_examiner/     # Manual: Build incident timelines
│   ├── baseline_querier/      # Manual: Search behavioral baselines
│   ├── fields_querier/        # Manual: Query field schema catalog
│   └── geoip_lookup/          # Cron (Tue/Fri 2 AM UTC): Maintain MaxMind DB
│
├── data/
│   ├── conversations.db       # SQLite — LangGraph checkpoint store (conversation + chat memory)
│   ├── runtime_memory.db      # SQLite — LangGraph checkpoint store (scheduler + CLI runtime memory)
│   └── geoip/                 # MaxMind GeoLite2 database files
│
├── web/
│   ├── api/
│   │   ├── server.py          # FastAPI REST service with SSE streaming
│   │   └── service.py         # SecurityClawService lifecycle (scheduler + cleanup)
│   ├── src/                   # React frontend source
│   ├── dist/                  # Built frontend (generated by `web-build`)
│   ├── package.json           # Frontend dependencies
│   └── vite.config.js         # Vite bundler config
│
├── tests/
│   ├── conftest.py            # Shared fixtures
│   ├── mock_opensearch.py     # In-memory DB (cosine kNN)
│   ├── mock_llm.py            # Deterministic LLM (keyword-dispatched)
│   ├── data_generator.py      # Synthetic network logs & anomalies
│   └── test_*.py              # Offline tests + coverage
│
├── requirements.txt / Pipfile  # Dependencies
└── ONBOARDING.md              # Interactive setup guide

Core Design Principles

Skill Reference

NetworkBaseliner (6-hour cycle)

Purpose: Build baseline of "normal" network behavior.

Logic:

1. Query recent logs (e.g., last 24 hours)
2. Aggregate into summaries (typical ports, protocols, byte volumes)
3. Generate LLM-enhanced descriptions
4. Store as embedding vectors in the RAG index

Output: Baseline vectors used by ThreatAnalyst for context.

AnomalyTriage (Manual)

Purpose: Poll anomaly detection findings and escalate high-confidence anomalies.

Publication note: This skill is in active validation. Convert to scheduled by adding schedule_interval_seconds: 60 to instruction.md.

Logic:

1. Query OpenSearch AD index for new findings (cursor-based, from last poll)
2. Enrich each finding with LLM description (entity, score, severity)
3. If severity ≥ threshold: write to the escalation queue in agent memory
4. Update cursor for next poll

Output: Escalated findings in memory, waiting for ThreatAnalyst analysis.

ThreatAnalyst (Manual)

Purpose: Analyze escalated findings using RAG context; issue verdict.

Publication note: This skill is in active validation. Convert to scheduled by adding schedule_interval_seconds: 300 to instruction.md.

Logic:

1. Read the escalation queue from agent memory
2. For each finding:
   • Query RAG engine for similar baseline context
   • Build LLM prompt with finding + baseline context
   • Request verdict (TRUE_THREAT, FALSE_POSITIVE, UNKNOWN, ERROR)
3. Write verdicts and actions to "Recent Decisions"
4. If TRUE_THREAT: set "Current Focus" and trigger IR playbooks

Output: Verdicts with confidence, MITRE tactic mapping, recommended actions.

GeoIPLookup (weekly refresh + on-demand lookup)

Purpose: Maintain a local MaxMind GeoLite2-City database and answer direct IP geolocation questions.

Logic:

1. On first use, download the MMDB if missing
2. Once per week, refresh it if stale
3. For a supplied IP, return local city / subdivision / country / timezone / coordinate data

Output: Deterministic geolocation fields from the local MaxMind DB.

Publication Status Notes

Legend:

• Stable: Publication-ready; tested in production patterns
• In-Progress: Under active validation; feedback welcome
• Deprecated: Use alternative skill; kept for backwards compatibility

Configuration

config.yaml

agent:
  name: SecurityClaw
  version: "1.0.0"
  skills_dir: skills
  log_level: INFO

scheduler:
  heartbeat_interval_seconds: 60
  memory_build_interval_hours: 6

db:
  provider: opensearch          # or: elasticsearch
  host: localhost
  port: 9200
  use_ssl: false
  verify_certs: false
  username: ""                  # Loaded from .env
  password: ""                  # Loaded from .env
  # Index configuration (configured during onboarding)
  logs_index: securityclaw-logs          # Where to scan for network logs
  anomaly_index: securityclaw-anomalies  # Where AD findings are stored
  vector_index: securityclaw-vectors     # RAG embedding store

llm:
  provider: ollama
  ollama_base_url: http://localhost:11434
  ollama_model: qwen2.5:7b-instruct-q4_K_M
  ollama_embed_model: nomic-embed-text:latest

rag:
  embedding_model: all-MiniLM-L6-v2
  top_k: 5
  similarity_threshold: 0.65

anomaly:
  detector_id: default-detector
  poll_interval_seconds: 60
  severity_threshold: 0.7
  max_findings_per_poll: 50

geoip:
  enabled: true
  db_path: data/geoip/GeoLite2-City.mmdb
  edition_id: GeoLite2-City
  update_interval_days: 7
  download_url: https://download.maxmind.com/app/geoip_download
  timeout_seconds: 60
  license_key: ""               # Loaded from .env via MAXMIND_LICENSE_KEY

Index Configuration Explained

SecurityClaw works with three indices:

Flow:

1. NetworkBaseliner → queries logs_index → generates summaries → stores embeddings in vector_index
2. AnomalyWatcher → polls anomaly_index for new findings → escalates to memory
3. ThreatAnalyst → reads escalations → retrieves context from vector_index → issues verdict

During onboarding, you can use any index names/patterns your environment provides (e.g., if your logs are in filebeat-networking-*, use that instead of securityclaw-logs).

.env (git-ignored)

OPENSEARCH_USERNAME=<your-opensearch-username>
OPENSEARCH_PASSWORD=<your-opensearch-password>
OLLAMA_BASE_URL=http://localhost:11434

CLI Commands

# Interactive setup
.venv/bin/python main.py onboard

# Start web interface + backend API + scheduler
.venv/bin/python main.py service

# Run the CLI agent (blocks; press Ctrl+C to stop)
.venv/bin/python main.py run

# Interactive chat in CLI
.venv/bin/python main.py chat

# Fire one skill immediately
.venv/bin/python main.py dispatch anomaly_triage
.venv/bin/python main.py dispatch network_baseliner
.venv/bin/python main.py dispatch threat_analyst

# View working memory
.venv/bin/python main.py status

# List skills and intervals
.venv/bin/python main.py list-skills

# Set logging level
.venv/bin/python main.py --log-level DEBUG run

Web Interface

Starting the Web Server

The web interface provides a modern chat-based UI for interacting with SecurityClaw skills and viewing reasoning steps.

# Activate virtual environment first
source .venv/bin/activate  # or: .venv\Scripts\activate on Windows

# Start the web server + backend API + scheduler
python main.py service

Expected output:

[INFO] Starting web server and API...
[INFO] Frontend available at: http://localhost:3000
[INFO] API backend available at: http://localhost:5000/api
[INFO] Scheduler running in background
[INFO] Press Ctrl+C to stop

Web Interface Features

Chat Interface (http://localhost:3000)

• Real-time chat: Send questions and receive answers from SecurityClaw skills
• Reasoning steps: View LLM reasoning and decision-making process
• Conversation history: Browse and manage past conversations
• Skill dispatch: Manually trigger skills (anomaly_triage, threat_analyst, etc.)
• Memory view: Monitor the agent's working memory and findings

API Endpoints (http://localhost:5000/api)

• GET /api/status — Agent status and memory summary
• POST /api/chat/stream — Stream chat responses
• GET /api/conversations — List conversation history
• DELETE /api/conversations/{id} — Delete a conversation
• GET /api/skills — List available skills
• POST /api/skills/{name}/dispatch — Manually trigger a skill
• GET /api/config (read-only) — View masked configuration

Accessing the Web UI

Local access (single machine):

• Open your browser to: http://localhost:3000

Remote access (from another machine):

1. Find the server's IP address:

   root@kitploit:~

   hostname -I        # Linux
   ipconfig            # Windows
   ifconfig            # macOS


2. Access from remote machine (replace SERVER_IP with actual IP):

   root@kitploit:~

   http://SERVER_IP:3000


   • Ensure firewall allows port 3000/5000 traffic
   • For production, use HTTPS and set up reverse proxy (nginx/Apache)

Example: Running Headless (Server Only)

If you only want the API without opening a browser:

# Start server
python main.py service &

# In another terminal, query the API
curl http://localhost:5000/api/status

# Or use the CLI in the main terminal
python main.py dispatch threat_analyst

Troubleshooting Web Server

"Port 3000 already in use"

# Kill the process using port 3000
lsof -ti:3000 | xargs kill -9     # Linux/macOS
netstat -ano | findstr :3000       # Windows

"Cannot connect to API"

• Verify backend is running: curl http://localhost:5000/api/status
• Check firewall rules
• Look for errors in the main terminal

"Chat not responding"

• Check LLM availability (Ollama running?)
• View logs: python main.py --log-level DEBUG service
• Check config.yaml for correct provider settings

Testing

All tests are offline by default (mock DB + mock LLM) and now emit coverage reports via pytest-cov.

# Run the full suite with coverage
.venv/bin/python -m pytest

# Run a specific test file
.venv/bin/python -m pytest tests/test_rag.py -v

# Optional HTML coverage report
.venv/bin/python -m pytest --cov-report=html

Coverage XML is written to coverage.xml for CI/reporting.

Current publication-prep baseline: the full suite is measured automatically, but aggregate coverage is still dragged down by in-progress modules and provider-specific adapters. Treat the report as a measurement tool, not as a claim that every skill is publication-hardened.

What's Tested

Redundant supervisor routing tests were consolidated to keep the publication suite smaller and easier to maintain.

Writing a New Skill

Anatomy of a Skill

skills/my_skill/
├── logic.py          # Python
└── instruction.md    # LLM guidance

logic.py:

"""
skills/my_skill/logic.py

Context dict keys:
  - db        → BaseDBConnector
  - llm       → BaseLLMProvider
  - memory    → StateBackedMemory (in-memory) or CheckpointBackedMemory (SQLite-backed)
  - config    → Config
  - skills    → dict of loaded Skill objects
"""
from pathlib import Path

SKILL_NAME = "my_skill"
INSTRUCTION_PATH = Path(__file__).parent / "instruction.md"

def run(context: dict) -> dict:
    """
    Main entry point. Called by Runner on schedule.

    Return a dict with status, results, etc.
    """
    db = context.get("db")
    llm = context.get("llm")
    memory = context.get("memory")
    config = context.get("config")

    # Your logic here
    memory.add_finding("Found something interesting")

    return {
        "status": "ok",
        "findings": 5,
    }

instruction.md:

---
schedule_interval_seconds: 300
---

# My Skill

You are a security analyst specializing in [X].

When given anomalies, your job is to:
1. [Step 1]
2. [Step 2]

Respond in JSON format with:
```json
{
  "verdict": "...",
  "confidence": ...,
  "reasoning": "..."
}

---

## Extending SecurityClaw

### Add a New Skill

1. Create `skills/my_skill/` directory
2. Write `logic.py` with `run(context)` function
3. Write `instruction.md` with LLM guidance and optional `schedule_interval_seconds`
4. Restart agent or run `.venv/bin/python main.py dispatch my_skill` to test

### Add a DB Backend

1. Subclass `BaseDBConnector` in `core/db_connector.py`
2. Set `db.provider: my_db` in `config.yaml`
3. Update `build_db_connector()` factory to instantiate your class

### Add an LLM Backend

1. Subclass `BaseLLMProvider` in `core/llm_provider.py`
2. Set `llm.provider: my_llm` in `config.yaml`
3. Update `build_llm_provider()` factory to instantiate your class

---

## Troubleshooting

**"Module 'X' not found"**
```bash
.venv/bin/pip install -r requirements.txt

"Cannot connect to OpenSearch"

• Verify OpenSearch is running: curl -u admin:admin http://localhost:9200
• Check config.yaml host/port
• Check firewall rules

"Cannot connect to Ollama"

• Start Ollama: ollama serve
• Pull the sample models: ollama pull qwen2.5:7b-instruct-q4_K_M && ollama pull nomic-embed-text:latest
• Verify base URL in config.yaml

"Skill not loading"

• Check /skills/<name>/logic.py exists
• Verify run(context) function signature
• Check logs: .venv/bin/python main.py --log-level DEBUG run

"No findings detected"

• Seed mock DB: See tests/conftest.py for example synthetic data
• Check anomaly indices: curl http://localhost:9200/_cat/indices?v
• Verify detector ID in config.yaml

Performance Notes

• LLM Calls: Each anomaly watcher and threat analyst cycle calls the LLM 1+ times (Ollama: ~1s per call)
• RAG Retrieval: kNN search is O(n) in mock; ~1ms per query on seeded DB
• Scheduler: Background APScheduler has minimal overhead (~1% CPU idle)

Contributing

Contributions welcome! Areas for enhancement:

• Elasticsearch compatibility testing
• anomaly_triage, forensic_examiner currently underperforming or not working depending on the query patterns; active validation and refactor needed
• Advanced MITRE ATT&CK mapping
• Enhanced RAG context (e.g., no hard-coded country codes, instead parse through RAG)
• Multi-tenant support

Support

For issues, questions, or feature requests, open an issue or contact the SecurityClaw team.

Security / Publication Checklist

• config.yaml, .env, data/conversations.db, and data/runtime_memory.db are intended to stay local.

• Use config.yaml.example as the public template.

• Run a quick scan before publishing:

  git grep -nEI '(password|api[-]?key|BEGIN [A-Z ]*PRIVATE KEY|sk-)' -- . git log --all -G 'password|api[-]?key|sk-' --oneline
