ATT&CK™ Tools 🛡️

Utilities for working with the MITRE™ ATT&CK™ framework, including a relational data model and an adversary emulation planning tool.

---

Repository Content

• ATT&CK™ Data Model – relational schema for representing MITRE™ ATT&CK data, enriched with Red Canary ATOMIC™ tests
• ATT&CK™ View – adversary emulation planning tooleee.

---

📑 Content

• Release Notes
• Overview
• The ATT&CK™ Data Model
• Accessing ATT&CK™ Data with SQL
• Additional Resources
• Support
• License
• Contact

---

📝 Release Notes

• attack_view_db_structure.sql and attack_view_db_data.sql – scripts to build SQLite database structure and load data.
• enterprise-attack.xml – XML version of MITRE™ ATT&CK™ JSON.
• ics-attack.xml – XML version of MITRE™ ICS ATT&CK™ JSON.
• mobile-attack.xml – XML version of MITRE™ Mobile ATT&CK™ JSON.

---

🔎 Overview

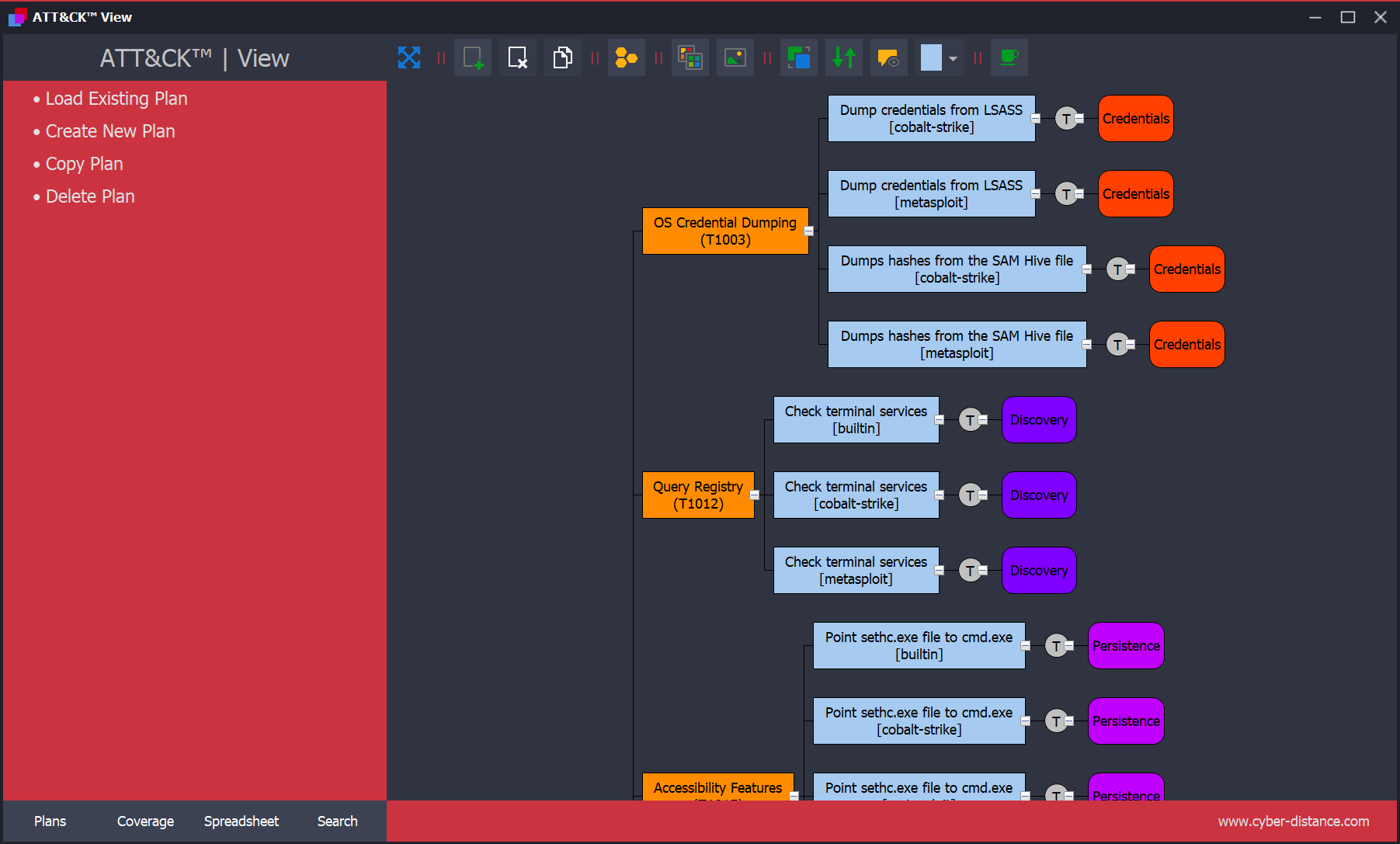

ATT&CK™ View is a planning tool to help defenders design adversary emulation plans using the MITRE™ ATT&CK™ framework.
It provides a structured approach and comes bundled with a full adversary emulation plan for APT3 (developed by MITRE™). It also serves as an example usage of teh relational data model and how to enrich teh model (extend) with additonal data such as Red Canary ATOMIC™ tests.

(Source: MITRE Adversary Emulation Plans)

---

🗂 The ATT&CK™ Data Model

The ATT&CK™ framework is widely used, but many use cases require ATT&CK-enabled tools.
This repository provides a relational database (SQLite) to simplify integration and enable building custom tools or fusing ATT&CK with other frameworks.

Think in terms of a data model instead of the underlying database technology — the schema can be adapted to any DBMS.

Example conceptual model (can be implemented in any RDBMS):

---

💻 Accessing ATT&CK™ Data with SQL

Below are sample SQL queries for exploring the ATT&CK™ database.
To run them, use any SQLite management tool (see SQLite Management Tools).

Get the list of ATT&CK™ techniques

SELECT name
FROM sdos_object
WHERE type IS "attack-pattern";

OUTPUT

name
.bash_profile and .bashrc
Access Token Manipulation
Accessibility Features
Account Discovery
Account Manipulation
...

Get techniques with their STIX 2.0 identifier

SELECT id, name
FROM sdos_object
WHERE type IS "attack-pattern";

OUTPUT

id	name
attack-pattern--01df3350-ce05-4bdf-bdf8-0a919a66d4a8	.bash_profile and .bashrc
attack-pattern--dcaa092b-7de9-4a21-977f-7fcb77e89c48	Access Token Manipulation
attack-pattern--9b99b83a-1aac-4e29-b975-b374950551a3	Accessibility Features
attack-pattern--72b74d71-8169-42aa-92e0-e7b04b9f5a08	Account Discovery
attack-pattern--a10641f4-87b4-45a3-a906-92a149cb2c27	Account Manipulation
...

The id field is a unique key that will be used frequently in many SQL queries

The external references are stored in external_references table, since one ATT&CK™ technique can have one or more references, the link between the two tables is the technique identifier (check previous query), I will list multiple ways to access the external references

Get techniques with MITRE external IDs

SELECT name, external_id
FROM sdos_object INNER JOIN external_references
  ON sdos_object.id = external_references.fk_object_id
WHERE sdos_object.type IS "attack-pattern"
  AND external_references.source_name IS "mitre-attack";

OUTPUT

name	external_id
.bash_profile and .bashrc	T1156
Access Token Manipulation	T1134
Accessibility Features	T1015
Account Discovery	T1087
Account Manipulation	T1098
...

List techniques associated with Windows platform

SELECT name, external_id
FROM sdos_object INNER JOIN external_references
  ON sdos_object.id = external_references.fk_object_id
WHERE sdos_object.type IS "attack-pattern"
  AND x_mitre_platforms_windows IS "true"
  AND external_references.source_name IS "mitre-attack";

OUTPUT

name	external_id
Access Token Manipulation	T1134
Accessibility Features	T1015
Account Discovery	T1087
Account Manipulation	T1098
AppCert DLLs	T1182
...

List all Malware objects

SELECT name, description
FROM sdos_object
WHERE type IS "malware";

OUTPUT

name	description
3PARA RAT	3PARA RAT is a remote access tool (RAT) programmed in C++ that has been used by Putter Panda. (Citation: CrowdStrike Putter Panda) Aliases: 3PARA RAT
4H RAT	4H RAT is malware that has been used by Putter Panda since at least 2007. (Citation: CrowdStrike Putter Panda) Aliases: 4H RAT
ADVSTORESHELL	ADVSTORESHELL is a spying backdoor that has been used by APT28 from at least 2012 to 2016. It is generally used for long-term espionage and is deployed on targets deemed interesting after a reconnaissance phase. (Citation: Kaspersky Sofacy) (Citation: ESET Sednit Part 2) Aliases: ADVSTORESHELL, NETUI, EVILTOSS, AZZY, Sedreco
ASPXSpy	ASPXSpy is a Web shell. It has been modified by Threat Group-3390 actors to create the ASPXTool version. (Citation: Dell TG-3390) Aliases: ASPXSpy, ASPXTool
Agent.btz	Agent.btz is a worm that primarily spreads itself via removable devices such as USB drives. It reportedly infected U.S. military networks in 2008. (Citation: Securelist Agent.btz) Aliases: Agent.btz
...

List all Adversaries (intrusion-sets)

SELECT name, description
FROM sdos_object
WHERE type IS "intrusion-set";

OUTPUT
