Mechanism

Under Fission, WebRender assigns each content process its own PipelineId namespace. The GPU-process bridge is expected to reject any resource whose namespace does not belong to the process that sent it, so that one content process cannot address or overwrite another's rendering resources.

WebRenderBridgeParent::AddPipelineIdForCompositable, which runs in the GPU process, validated the incoming pipeline against the root/WebRender guard and against this bridge's own set of registered pipelines, but it never called MatchesNamespace on the PipelineId. The image-key, font-key, and blob-key paths in the same file all perform that MatchesNamespace ownership check; the PipelineId path simply did not. RemovePipelineIdForCompositable is likewise unchecked, so the same namespace-ownership hole exists on removal.

Downstream, AsyncImagePipelineManager::AddAsyncImagePipeline guards the uniqueness of a pipeline only with MOZ_ASSERT, which compiles to a no-op in release builds. So when a forged, cross-namespace PipelineId reaches the shared AsyncImagePipelineManager, the manager does not reject the duplicate: it silently overwrites the victim origin's existing async image pipeline entry.

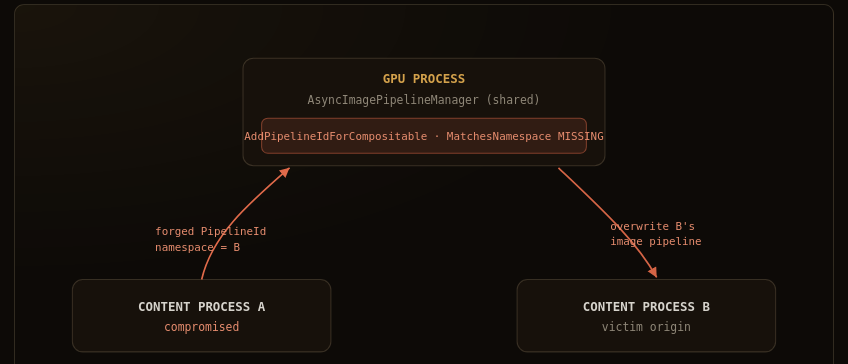

Chained together, a compromised content process A can forge a PipelineId whose namespace belongs to content process B (a different origin, in a separate process under Fission), submit it on the compositable-registration path, and have the GPU process accept it and clobber B's image pipeline in the shared manager.

Threat model

An already-compromised content process under Fission. The attacker is assumed to already have code execution in one content process (for example through a separate content-process bug) and to be able to send WebRender IPC messages with attacker-chosen fields. This defect is the missing authorization that lets that process reach across the site-isolation boundary into another origin's rendering resources.

This is a Fission site-isolation authorization bypass, not memory corruption. The impact is cross-origin rendering confusion and cross-tab denial of service. Downstream consumers are null-guarded and reference-counted, so it does not yield code execution. The PoC must not and does not claim code execution.

What is in this directory

• README.md — this file.
• forge-namespace.patch — a research patch for a local Firefox tree. On the content side, guarded by XRE_IsContentProcess() and the environment variable MOZ_POC_FORGE_WR_NAMESPACE, it forges the outgoing PipelineId's namespace. On the GPU-process parent side it prints an ACCEPTED diagnostic when a cross-namespace PipelineId is registered, demonstrating that the missing check let it through.
• poc.html — a bare content-side test case: a WebGL canvas (so an async image pipeline is created) plus a cross-origin out-of-process iframe (so Fission places it in a separate content process). On a stock build it renders normally and does nothing observable.
• victim.html — the synthetic second origin the iframe loads. It is a trivial, script-free page whose only job is to be a live cross-origin document, so that under Fission it lands in its own content process with its own PipelineId namespace (the namespace a forged registration would target).
• poc-render.png — a screenshot of poc.html loaded in the local stock Firefox 140.11.0esr. It shows the test page rendering normally: the WebGL canvas draws its frame and the out-of-process iframe loads victim.html. It shows only benign rendering. The bypass itself requires the research patch and a vulnerable build and was not triggered here (see Verification status).

How to apply and run against a LOCAL build

These steps are meant to be performed by the author against a local Firefox checkout. Nothing here was executed against Firefox in this environment (see Verification status below).

1. Check out a vulnerable Firefox source tree (before 154 / before ESR 153.1) and confirm Fission is enabled (fission.autostart = true, the default on recent builds).

2. Apply the research patch from the top of the source tree:

   root@kitploit:~

   patch -p1 < forge-namespace.patch


   The patch touches gfx/layers/wr/WebRenderBridgeChild.cpp (content side, forges the namespace) and gfx/layers/wr/WebRenderBridgeParent.cpp (GPU-process side, prints the ACCEPTED diagnostic). Both changes are inert unless the guard conditions are met.

3. Build normally (./mach build).

4. Serve this directory so that poc.html's out-of-process iframe loads the companion victim.html from a genuinely different registrable domain, so Fission puts the iframe in its own content process. For example, python3 -m http.server 8000 --bind :: and load the iframe from http://victim.localtest.me:8000/victim.html. See the inline comment in poc.html.

5. Launch the build with the forge variable set and load the test page:

   root@kitploit:~

   MOZ_POC_FORGE_WR_NAMESPACE=999999 ./mach run --temp-profile poc.html


   999999 is an arbitrary namespace value chosen so it belongs to no real process; it makes the forged, cross-namespace registration obvious in the log.

Expected accepted-cross-namespace log line

On a vulnerable build with the patch applied, the GPU-process parent accepts and registers a PipelineId whose namespace belongs to no such process, and prints (this is the exact shape shown in the writeup):

sender-namespace is the namespace legitimately owned by the sending content process; pipeline-namespace is the forged value. The two differing values, plus the fact that registration was accepted, is the whole point: the ownership check that would have rejected it is missing.

On a fixed build (154 / ESR 153.1 and later), the same message is rejected with an IPC_FAIL and no such ACCEPTED line is printed, because the PipelineId path now enforces MatchesNamespace.

The one-line fix

Enforce, on the PipelineId path, the same namespace-ownership check the resource-key paths already use:

Applied in AddPipelineIdForCompositable (and symmetrically on RemovePipelineIdForCompositable), this rejects any PipelineId whose namespace does not belong to the sending process, closing the bypass.

Verification status

• NOT done in this environment: Firefox was not built and not run here. No Firefox source tree or build is present in this environment, so the patch was not compiled, the test page was not loaded in Firefox, and the forged registration was not triggered. The accepted-cross-namespace log line shown above is illustrative: it is the exact line reproduced from the published writeup, not output captured in this environment.
• Done in this environment: authoring, plus one benign render. These files (the README, the research patch, and the HTML test case) were written to match the mechanism, threat model, and diagnostic shape described in the writeup. poc.html was then loaded once in the local stock Firefox 140.11.0esr and captured as poc-render.png; that screenshot shows only the test page rendering normally (the WebGL canvas draws a frame, the out-of-process iframe loads victim.html). Because the local Firefox is a stock, non-patched build, the screenshot contains no forged registration and no [POC-2056558] log line. To capture the accepted-cross-namespace output, apply the patch to a local vulnerable build and run it yourself as described above.

This scaffold contains no exploitation primitive beyond demonstrating that the missing authorization check lets a cross-namespace PipelineId through. It makes no attempt at code execution and produces no memory corruption.

Scope and ethics

This targets a locally built Firefox tree with synthetic, self-authored content, for a writeup of an already-reported, already-patched CVE. The research patch is guarded so it only affects a local developer build and encodes the compromised-content-process assumption the writeup describes; it is not a remote exploit. Nothing here attacks, contacts, probes, or references attacking any live or third party service. The out-of-process iframe in the test case is inherent to reproducing the Fission process split and is documented as such; the top page itself has no other network dependency.
