Humax-CLI

Um cliente de terminal não oficial para Humax IR4000HD com recursos aprimorados.

Tudo isso surgiu da engenharia reversa do aplicativo Android e em breve haverá um artigo 😄

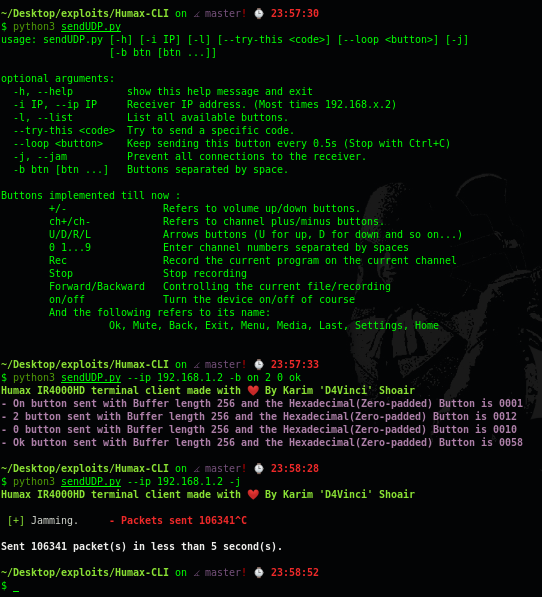

Captura de tela

Uso :

usage: sendUDP.py [-h] [-i IP] [-l] [--try-this <code>] [--loop <button>] [-j] [-b btn [btn ...]]

optional arguments:
  -h, --help         show this help message and exit
  -i IP, --ip IP     Receiver IP address. (Most times 192.168.x.2)
  -l, --list         List all available buttons.
  --try-this <code>  Try to send a specific code.
  --loop <button>    Keep sending this button every 0.5s (Stop with Ctrl+C)
  -j, --jam          Prevent all connections to the receiver.
  -b btn [btn ...]   Buttons separated by space.

Botões implementados até agora e que também podem ser visualizados com a opção -l

Buttons implemented till now :
    +/-                Refers to volume up/down buttons.
    ch+/ch-            Refers to channel plus/minus buttons.
    U/D/R/L            Arrows buttons (U for up, D for down and so on...)
    0 1...9            Enter channel numbers separated by spaces
    Rec                Record the current program on the current channel
    Stop               Stop recording
    Forward/Backward   Controlling the current file/recording
    on/off             Turn the device on/off of course
    And the following refers to its name:
        Ok, Mute, Back, Exit, Menu, Media, Last, Settings, Home

Todos os códigos dos botões, que você pode testar com a opção --try-this

STANDBY(1),
0(16),
1(17),
2(18),
3(19),
4(20),
5(21),
6(22),
7(23),
8(24),
9(25),
11(26),
12(27),
RED(32),
GREEN(33),
YELLOW(34),
BLUE(35),
INFO(48),
GUIDE(49),
MENU(50),
HUB(50),
QMENU(51),
FAVORITE(52),
CHLIST(53),
SETUP(54),
VFORMAT(55),
AUDIO(56),
SUBTITLE(57),
SLEEP(58),
OPT(59),
PLUS(59),
SCHEDULE(60),
MEDIA(61),
IP_BROWSER(62),
SELECT(63),
RESERVATION(64),
DLNA(65),
HDD(66),
VOD(67),
DISP_ON(68),
HOTKEY(69),
SMART_SEARCH(71),
AUDIO_LANGUAGE(72),
FAVORITES(73),
PROGRAM(74),
PLAYLIST(75),
PAGEUP(80),
PAGEDOWN(81),
ARROWLEFT(82),
ARROWRIGHT(83),
ARROWUP(84),
ARROWDOWN(85),
BACK(86),
EXIT(87),
OK(88),
ERASE(89),
CH_PLUS(96),
CH_MINUS(97),
LAST(98),
TVRADIO(99),
COMBO(100),
FREESAT(101),
CH_INPUT(102),
NETWORK_TER(103),
NETWORK_BS(104),
NETWORK_CATV(105),
DATA(106),
DIGITS(107),
VOLUMEUP(112),
VOLUMEDOWN(113),
MUTE(114),
EXT_AV(115),
EXT_AV_PLUS(116),
EXT_AV_MINUS(117),
AVMODE(118),
FREEZE(119),
WIDE(120),
3D(121),
SOURCE(122),
MHP(123),
MYEPG(124),
TIVUEPG(125),
OTTV(126),
TEXT(128),
TEXT_OPTION(129),
TTX_HOLD(130),
TTX_REVEAL(131),
TTX_DOUBLE(132),
TTX_CANCEL(133),
TTX_INDEX(134),
TTX_SUBPAGE(135),
TTX_UPDATE(136),
PLAY(144),
PAUSE(145),
STOP(146),
RECORD(147),
FORWARD(148),
BACKWARD(149),
PREV(150),
NEXT(151),
REPLAY(152),
SKIP(153),
ADD_BOOKMARK(154),
BOOKMARK_LIST(155),
SLOW(156),
TSR(157),
QVIEW(160),
ENERGY_GREEN(161),
PSM(162),
SSM(163),
AD(164),
ALERT(165),
RECALL(166),
SYSTEM(167),
SETTING(168),
OP_MODE(169),
WELCOM(170),
MAIL(171),
PIP_MOVE(178),
HOTELMENU(192),
SERVICEMODE(193),
DISC(208),
TRAY_OPEN(209),
DISC_MENU(210),
DUB(211),
MODE_PVR(224),
MODE_TV(225),
MODE_DVD(226),
MODE_AUDIO(227),
MODE_WARNING(228),
RECENT(240),
HOME(241),
BROWSER_PREV(242),
BROWSER_NEXT(243),
BROWSER_BOOKMARK(244),
BROWSER_URL(245),
FRONT_EXT_AV(2049),
FRONT_MENU(2050),
FRONT_CH_PLUS(2051),
FRONT_CH_MINUS(2052),
FRONT_VOLUME_UP(2053),
FRONT_VOLUME_DOWN(2054),
FRONT_OK(2055),
FRONT_ARROW_UP(2056),
FRONT_ARROW_DOWN(2057),
FRONT_ARROW_LEFT(2058),
FRONT_ARROW_RIGHT(2059),
FRONT_TVRADIO(2060),
FRONT_GUIDE(2061),
FRONT_BACK(2062),
FRONT_INFO(2063),
FRONT_STOP(2064),
FRONT_PLAY_PAUSE(2065),
FRONT_OPEN_CLOSE(2066),
FRONT_HDD_DISC(2067),
FRONT_TER_BS_CATV(2068),
FRONT_PLAY_LIST(2069),
FRONT_RECORD(2070),
FRONT_LOCK_OFF(2176),
FRONT_HIDDEN(2177),
SPECIAL_CLEAR(61710),
SPECIAL_MODE(61731),
SPECIAL_KEYBOARD(61732),
SPECIAL_PC(61733),
SPECIAL_SCREEN(61734),
UNI_SHIFT(61953),
UNI_CONTROL(61954),
UNI_ALT(61956),
UNI_ALTGR(61960),
UNI_META(61968),
UNI_SUPER(61984),
UNI_HYPER(62016),
CUSTOM_PRESET_CH(62742),
CUSTOM_ETC(62803),
CUSTOM_RECOMMAND(62804),
UNKNOWN(65535),
NULL(0);

Instalação e requisitos

• Python 3.x ou 2.x (preferencialmente 3).
• Qualquer terminal.
• No Windows execute python -m pip install -r windows-requirements.txt para habilitar as cores.
