flowchart TB
    subgraph ENTRY["Entrypoint — main.go"]
        M1["Parse Flags (-debug)"]
        M2["InitDB — SQLite + WAL + GORM"]
        M3["InitModules — 10 tool wrappers"]
        M4["Load Plugins — normalization/all + plugins/all"]
        M5["Health Check — auto-install missing tools"]
        M6["CheckAndIndexTemplates — Nuclei versioning"]
        M7["StartServer — Gin on :8888"]
        M1 --> M2 --> M3 --> M4 --> M5 --> M6 --> M7
    end

    subgraph UI_LAYER["Web UI — internal/ui/server.go"]
        direction TB
        GIN["Gin HTTP Server\nEmbedded templates + static\nCSRF origin-check middleware"]

        subgraph Pages["HTML Pages"]

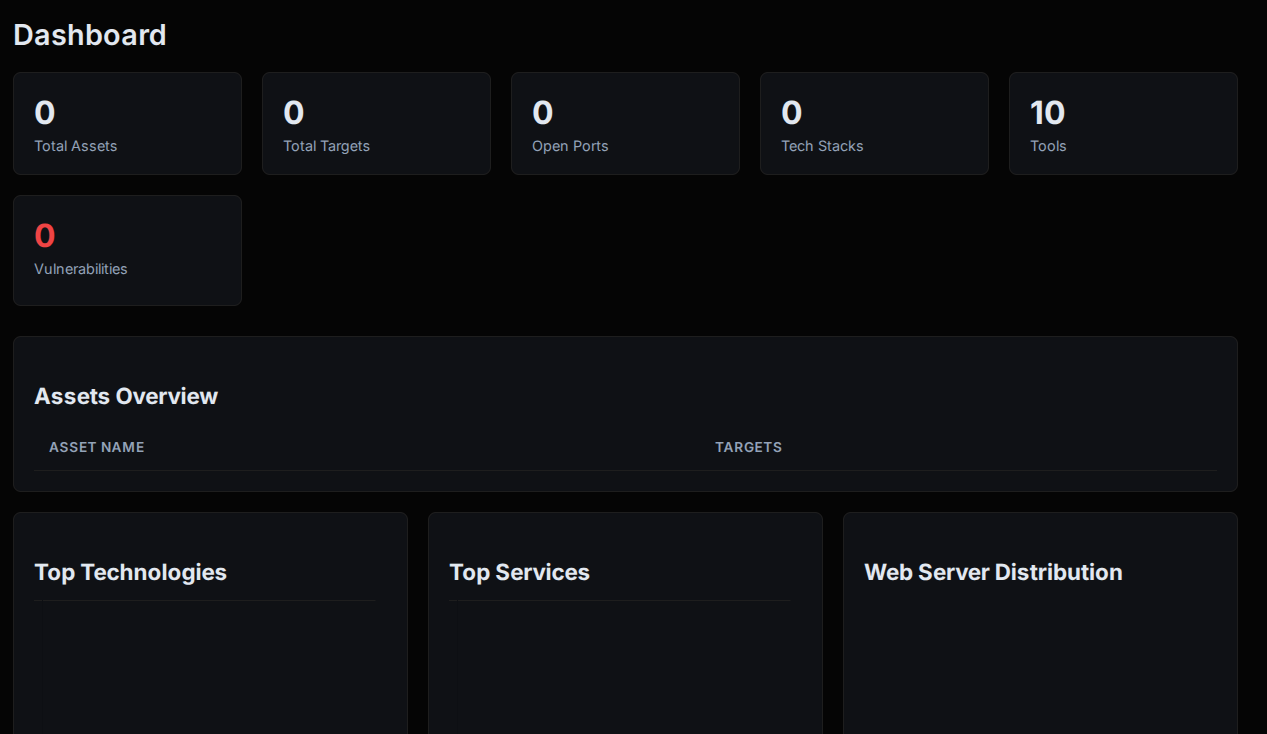

            P1["Dashboard — SSE live stage progress"]

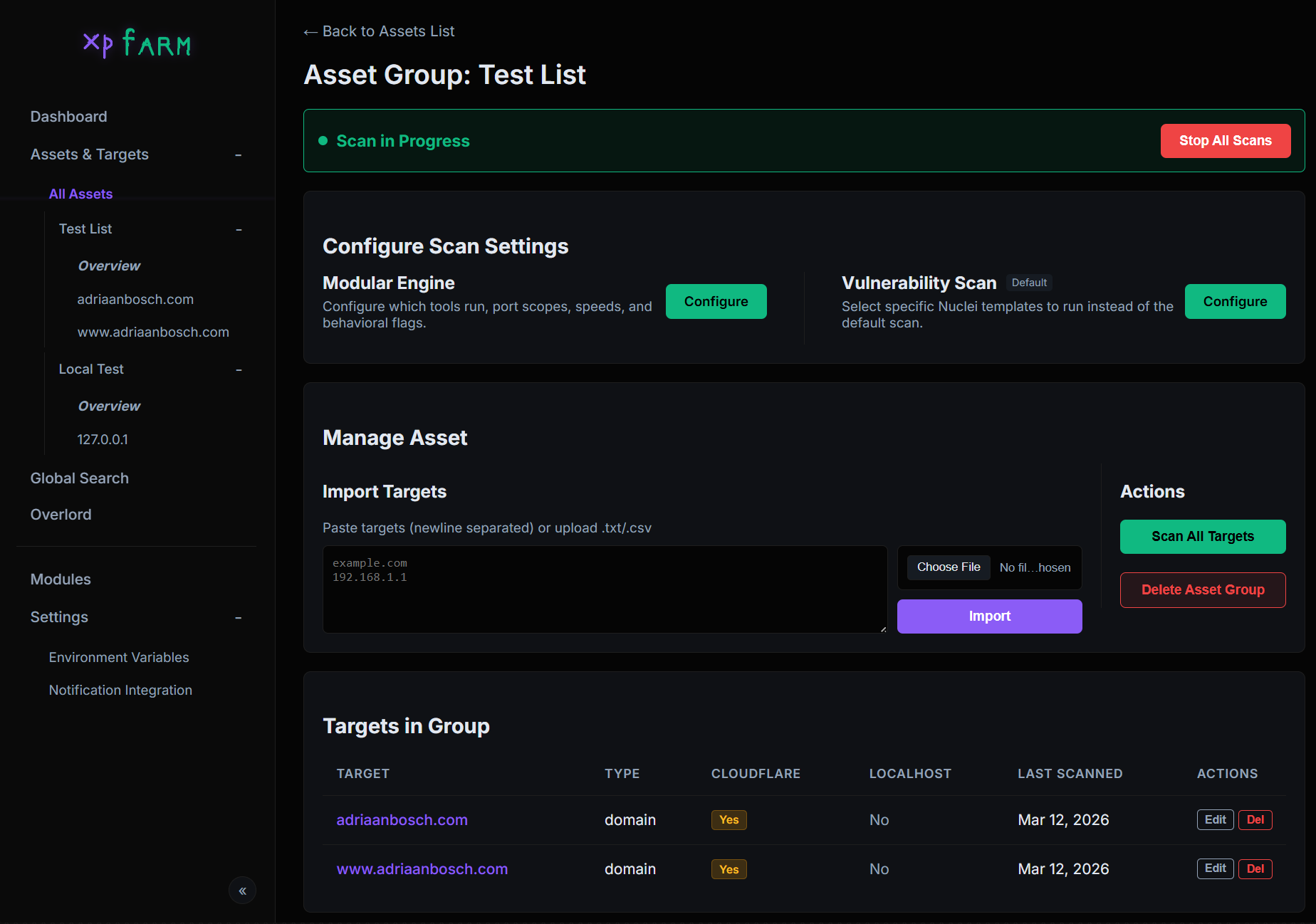

            P2["Assets & Targets"]
            P3["Global Search — paginated + truncation"]

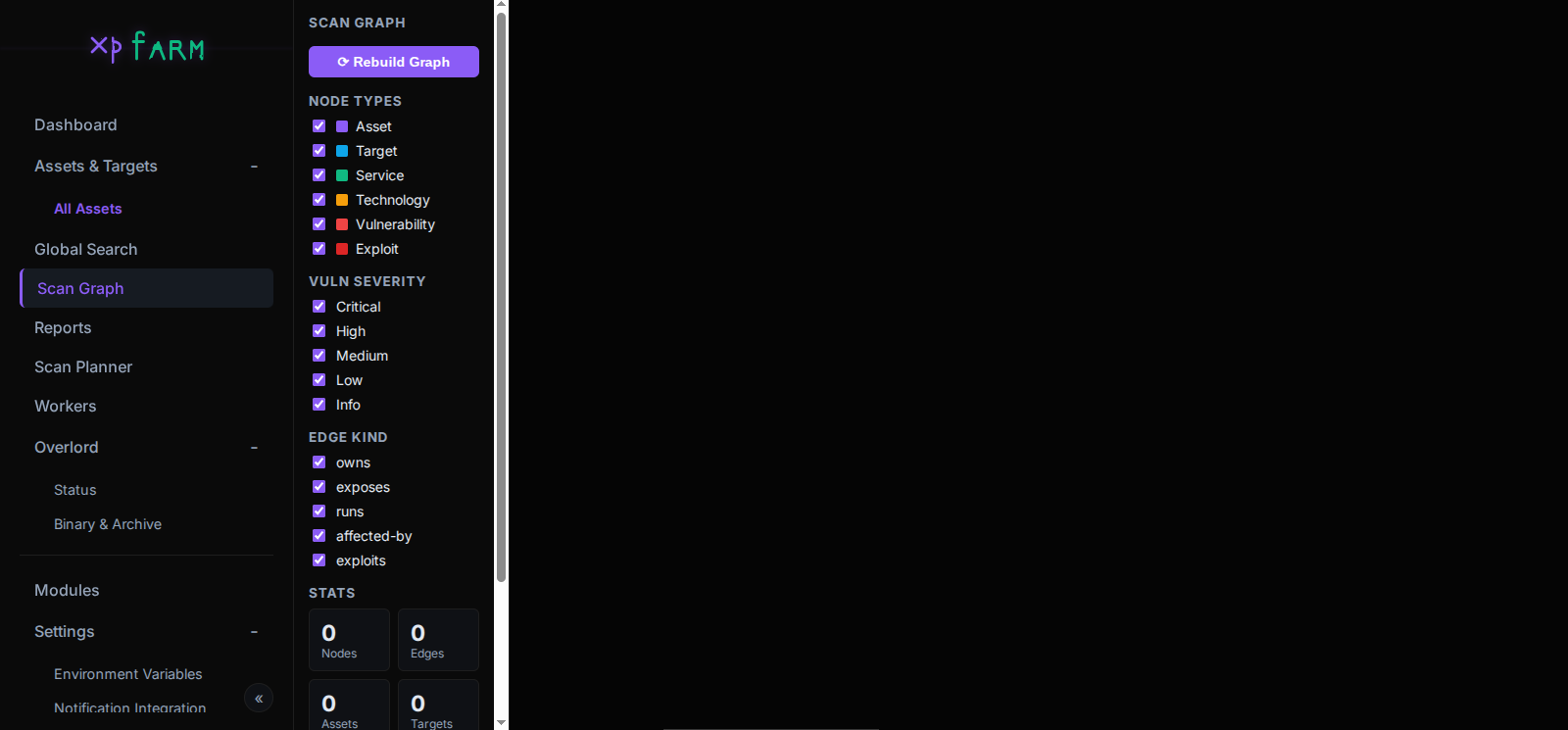

            P4["Scan Graph — Cytoscape.js"]

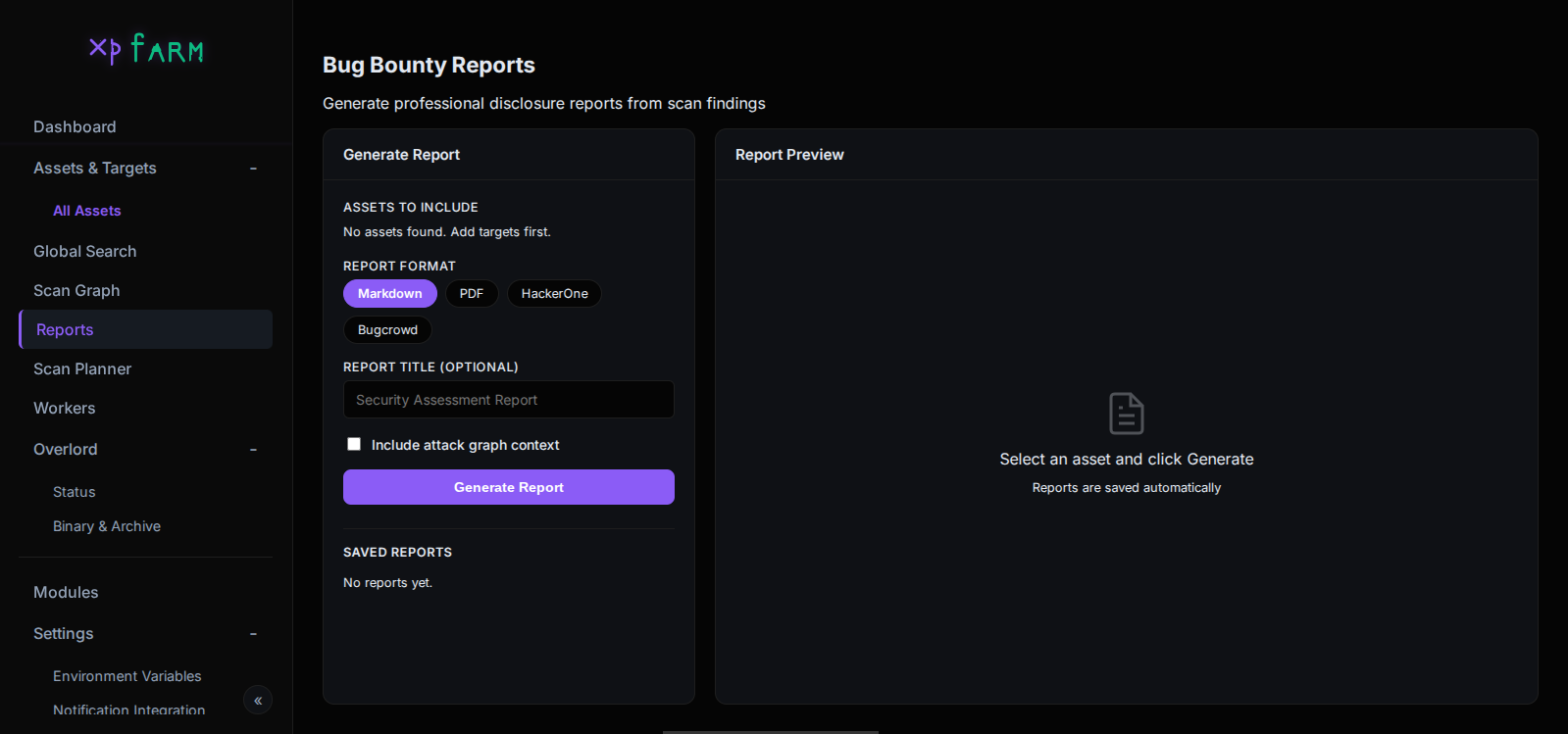

            P5["Bug Bounty Reports"]

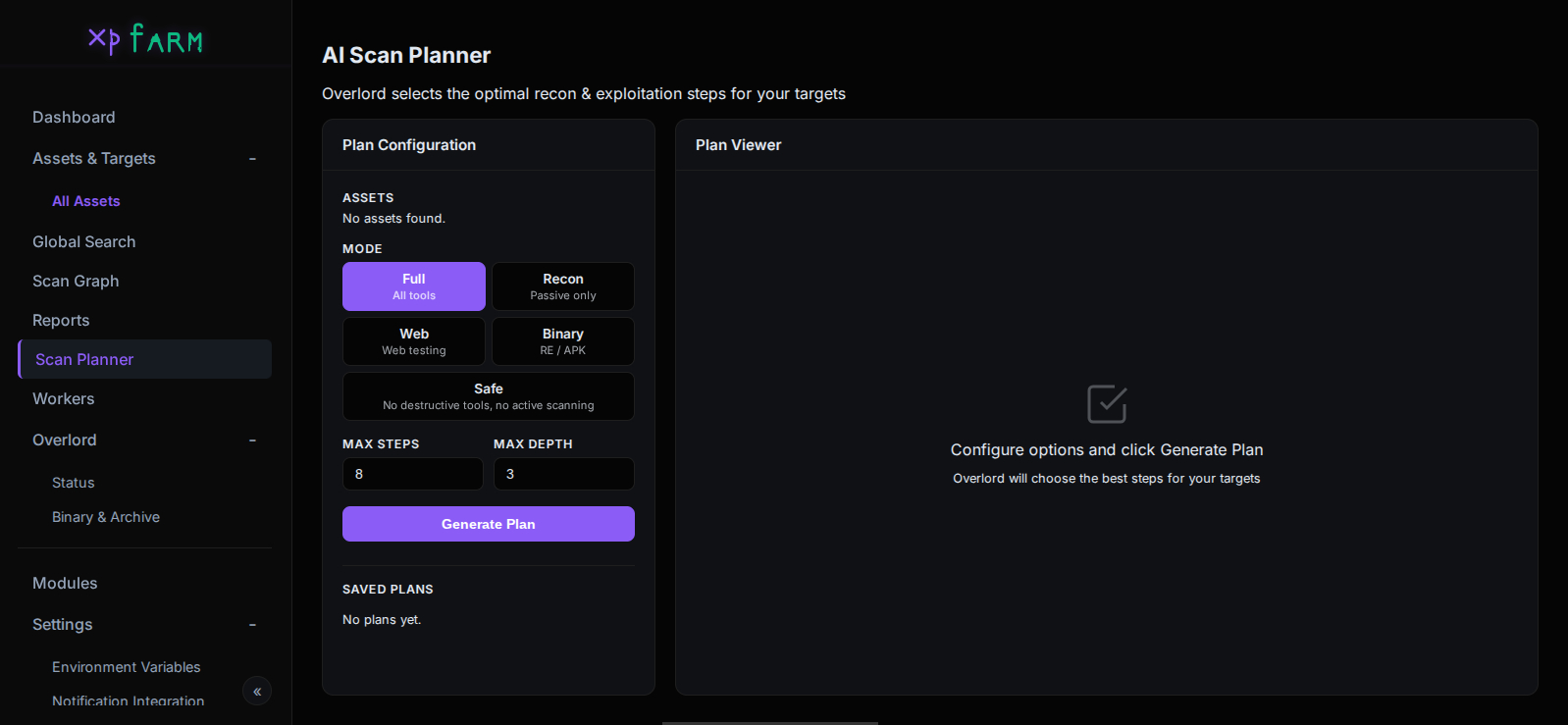

            P6["AI Scan Planner"]
            P7["Workers & Jobs"]
            P8["Overlord Chat + Binary Upload"]

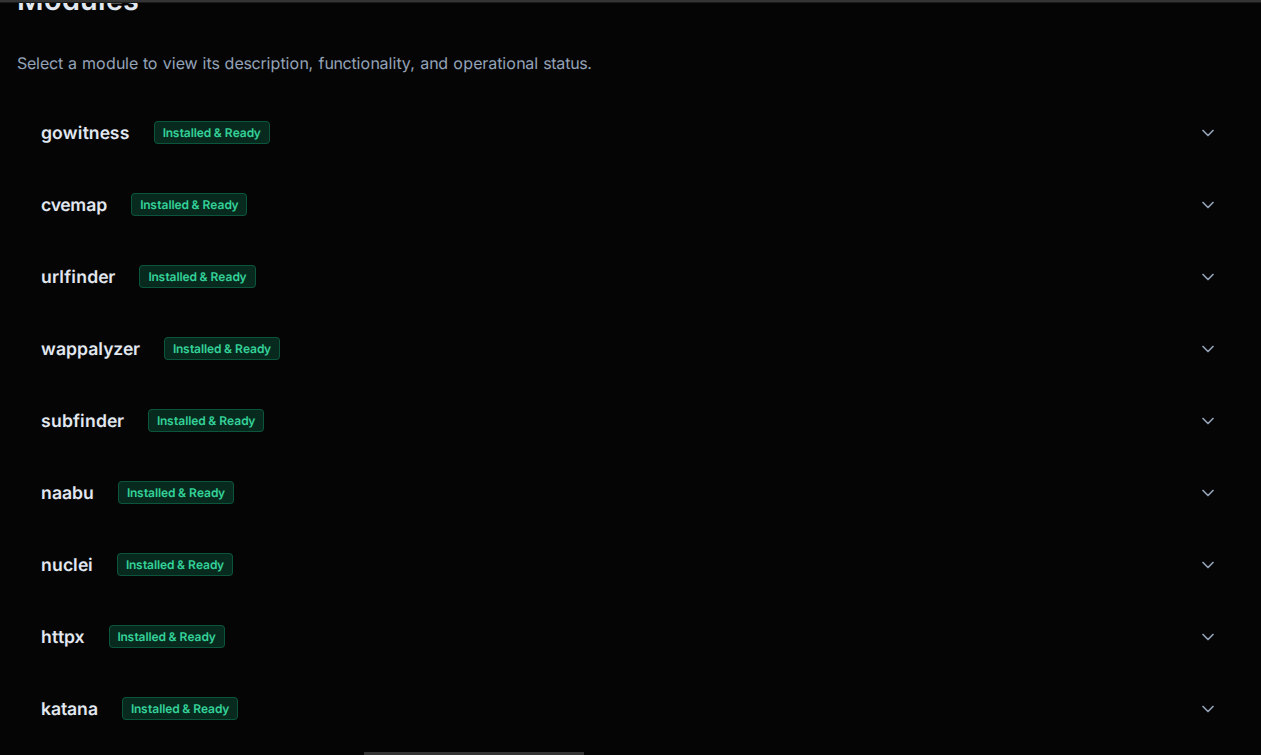

            P9["Modules"]
            P10["Settings — AES-256-GCM encrypted"]
        end

        GIN --> Pages
    end

    subgraph SCAN_ENGINE["Scan Engine — internal/core/"]
        direction TB
        SM["ScanManager\nSingleton, mutex-guarded\nPanic recovery + SSE broadcast"]

        subgraph PIPELINE["8-Stage Scanning Pipeline"]
            direction TB
            S1["1. Subfinder — Subdomain Discovery"]
            S2["2. Filter & Save — Cloudflare / Localhost / Alive"]

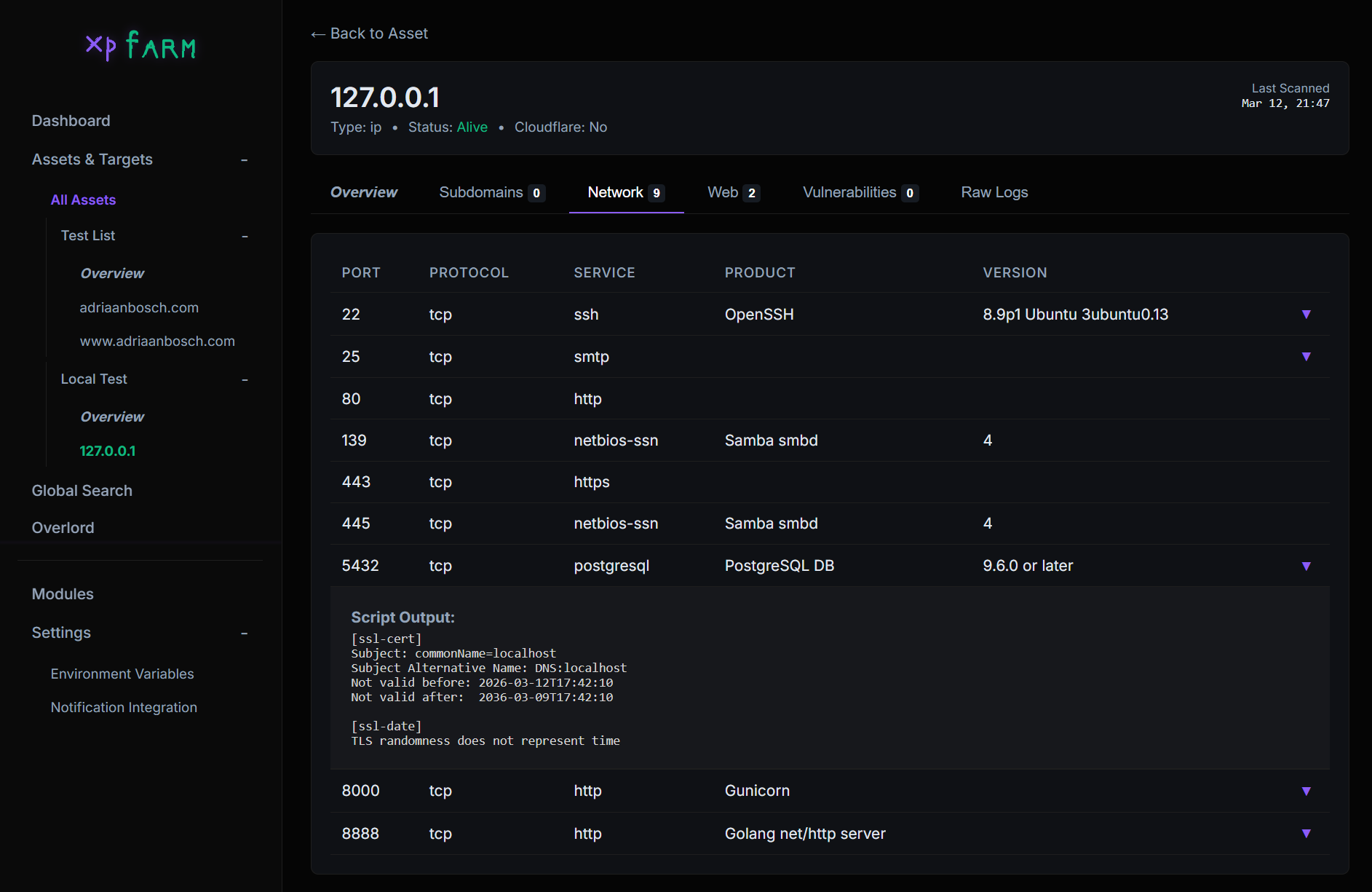

            S3["3. Naabu — Port Scanning (5-worker pool)"]
            S4["4. Nmap — Service + Version Detection"]
            S5["5. Httpx — HTTP Probing + Metadata"]
            S6["6. Parallel Web — Screenshots, Crawl, URLs, Tech"]
            S7["7. CVEMap — CVE lookup by product/tech"]
            S8["8. Nuclei — Vulnerability Scanning"]
            S1 --> S2 --> S3 --> S4 --> S5 --> S6 --> S7 --> S8
        end

        SM --> PIPELINE
    end

    subgraph REPORTS["Bug Bounty Reports — internal/reports/"]
        RG["GenerateReport()\nCollects DB context + graph\nOverlord AI generation\nFallback built-in templates"]
        RF["Formats: Markdown · PDF · HackerOne · Bugcrowd"]
        RS["Storage: internal/storage/reports/"]
        RG --> RF --> RS
    end

    subgraph PLANNER["AI Scan Planner — internal/planner/"]
        PL["GenerateScanPlan()\nGathers asset/finding/graph context\nPolls Overlord for JSON plan\nFallback heuristic plan"]
        PC["Capability Registry — 26 capabilities\n10 built-in modules + 16 Overlord agents\nRisk levels: safe / active / destructive"]
        PS["ExecutePlanWithLogs()\nSSE log streaming per step\nRoutes builtin vs Overlord agent steps"]
        PL --> PC --> PS
    end

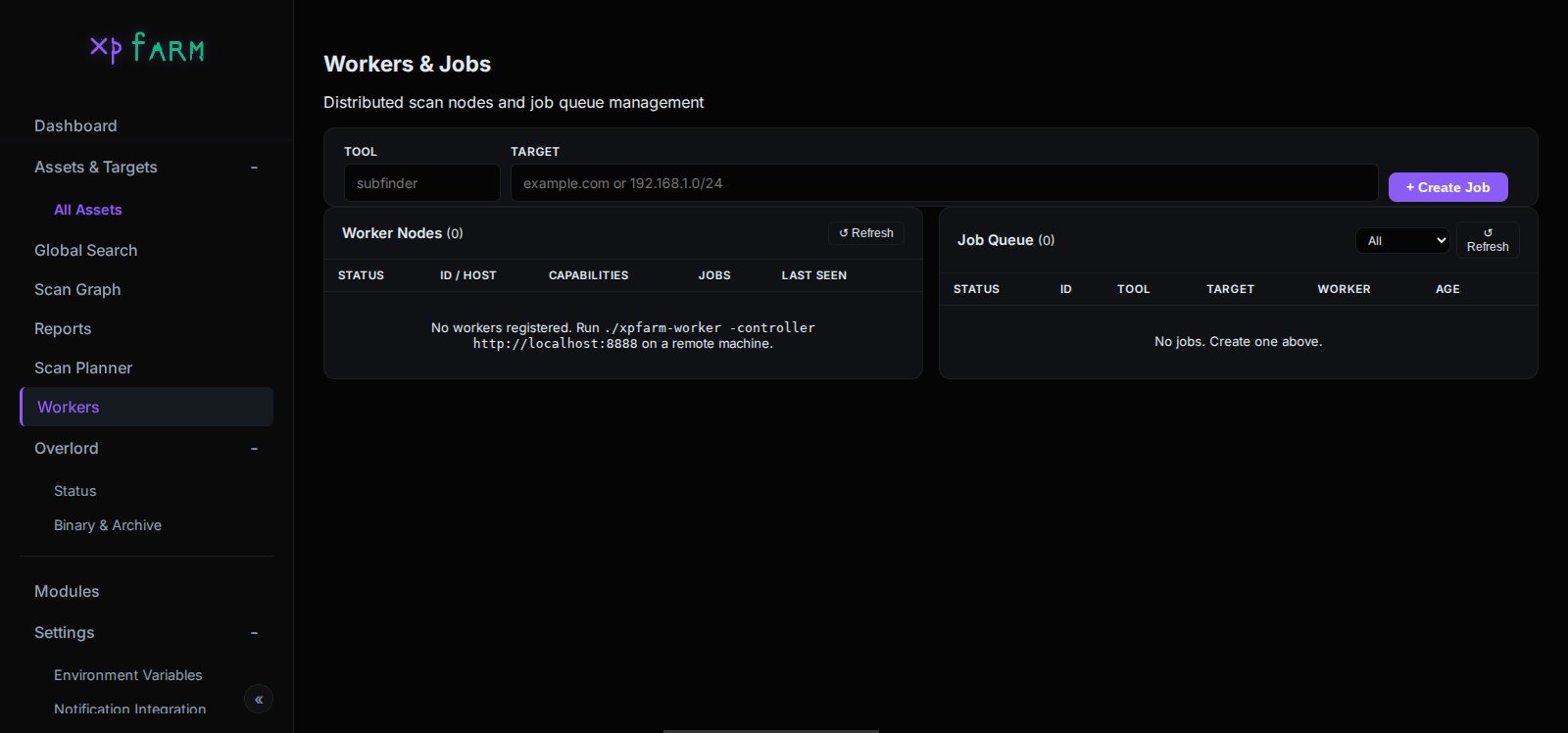

    subgraph DISTRIBUTED["Distributed Workers — internal/distributed/"]
        DW["Worker Binary — cmd/worker/main.go\n./xpfarm-worker -controller http://host:8888"]
        DC["Controller — token auth, heartbeat monitor\nAtomically claims jobs from queue"]
        DS["Scheduler — BestWorkerForTool()\nRoutes by capability + active job count"]
        DJ["Job Queue — internal/storage/jobs/\nClaim via DB transaction, 30min timeout"]
        DW --> DC --> DS --> DJ
    end

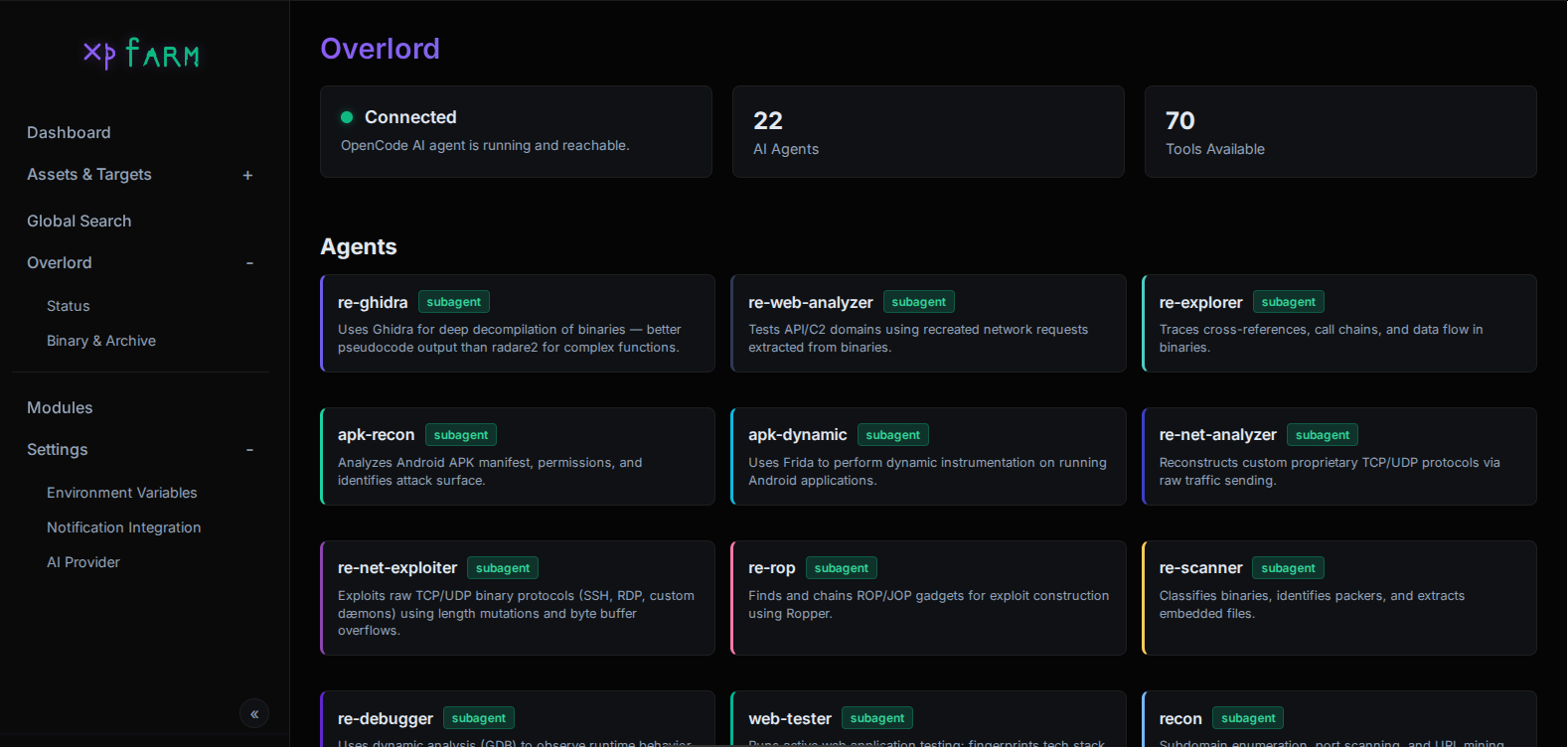

    subgraph OVERLORD["Overlord — AI Agent Subsystem"]
        OV_PROXY["Overlord Proxy — internal/overlord/"]

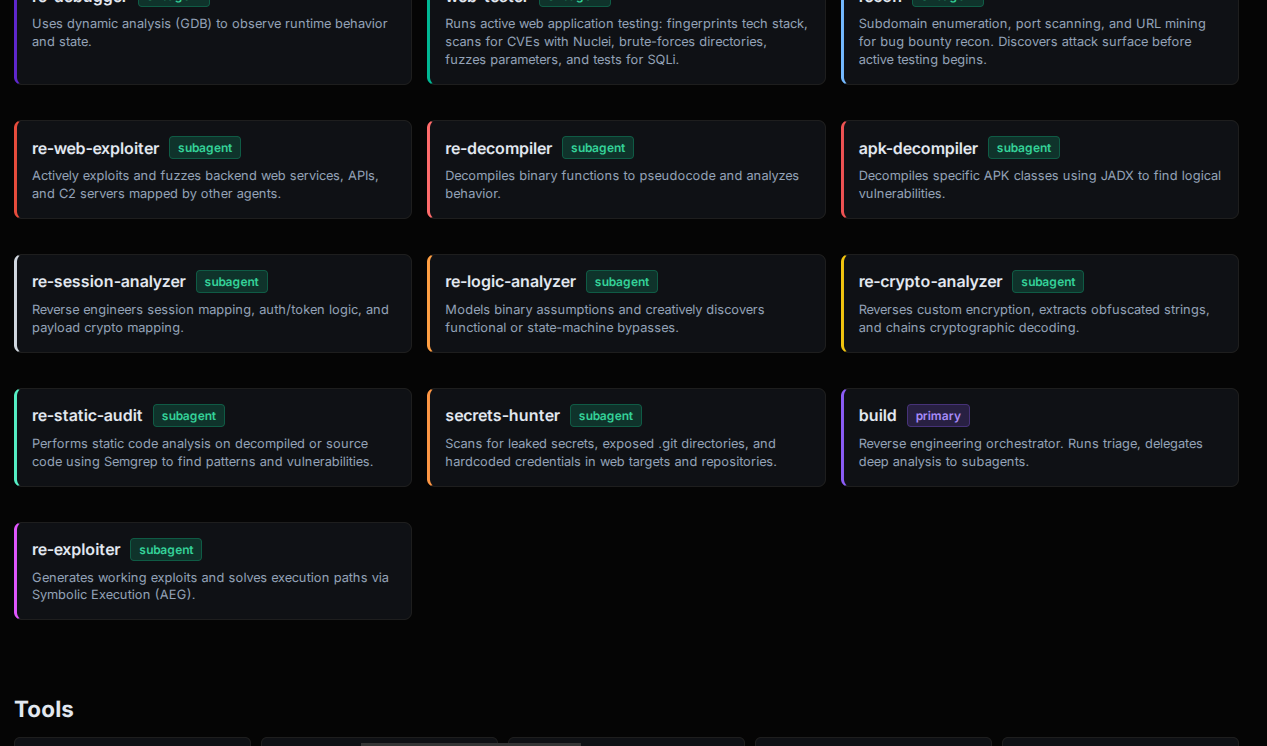

        subgraph OV_AGENTS["22 Specialized Agents"]
            OA1["Binary RE — re-explorer, re-debugger, re-decompiler, re-scanner"]
            OA2["APK — apk-recon, apk-dynamic, apk-decompiler"]
            OA3["Web + Exploit — web-tester, re-exploiter, secrets-hunter, recon"]
        end

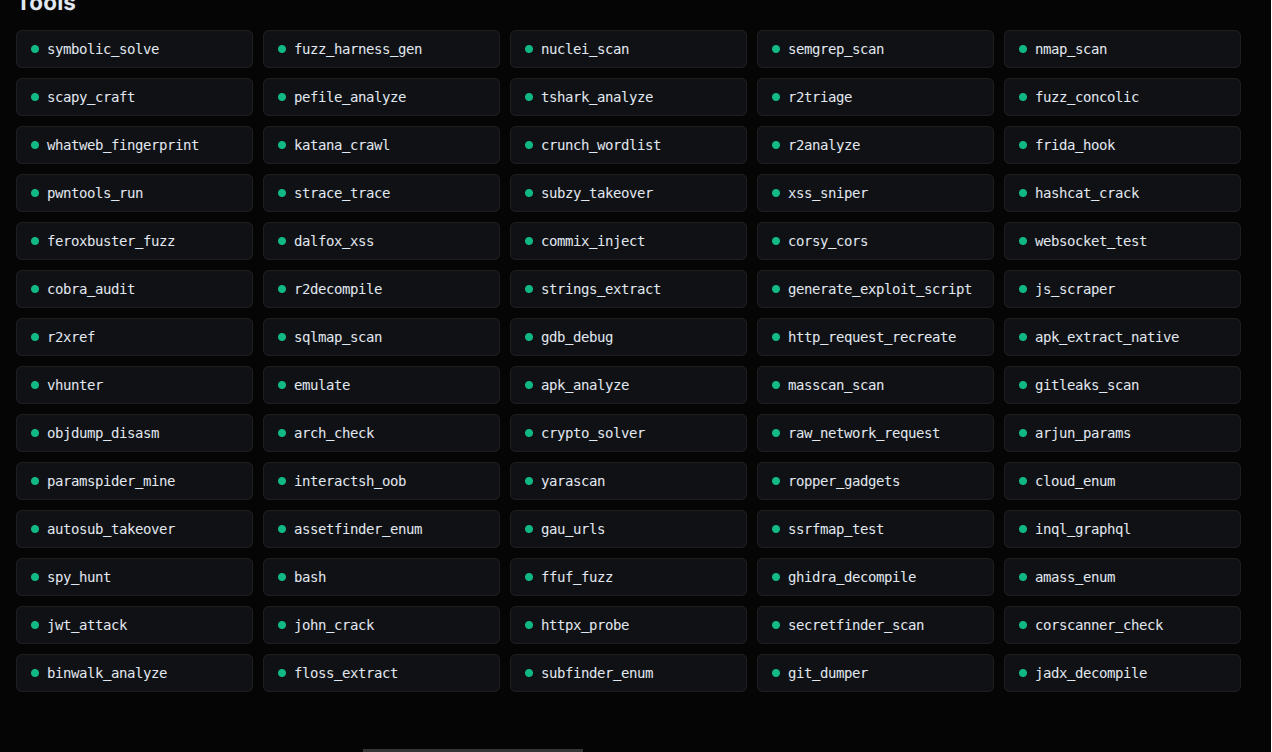

        subgraph OV_TOOLS["70+ TypeScript Tools"]
            OT1["radare2, ghidra, binwalk, frida, angr, strings"]
            OT2["semgrep, gitleaks, gau, corscanner, whatweb"]
            OT3["git_dumper, js_scraper, crypto_solver, ropper"]
        end

        subgraph PROVIDERS["21 AI Providers"]
            PR1["Anthropic · OpenAI · Groq · DeepSeek"]
            PR2["Ollama (local) · xAI · OpenRouter · Cerebras"]
        end

        OV_PROXY --> OV_AGENTS
        OV_PROXY --> OV_TOOLS
        OV_PROXY --> PROVIDERS
    end

    subgraph SCAN_GRAPH["Scan Graph — internal/graph/"]
        GB["BuildGraph() — queries 5 tables\nDeduplicates nodes + edges"]
        subgraph GNODES["Node Types"]
            GN1["asset #8b5cf6"]
            GN2["target #0ea5e9"]
            GN3["service #10b981"]
            GN4["tech #f59e0b"]
            GN5["vuln #ef4444"]
            GN6["exploit #dc2626"]
        end
        GB --> GNODES
    end

    subgraph DATABASE["Database — internal/database/ + internal/storage/"]
        DB["SQLite + WAL Mode\nGORM ORM\n10 open / 5 idle conns, 64MB WAL cap"]
        subgraph MODELS["Data Models"]
            DM1["Asset · Target · Port · WebAsset"]
            DM2["Vulnerability · CVE · ScanResult"]
            DM3["ScanProfile · NucleiTemplate · SavedSearch"]
            DM4["Setting (AES-256-GCM encrypted)"]
            DM5["Report · Plan · WorkerRecord · JobRecord"]
        end
        DB --> MODELS
    end

    subgraph DOCKER["Docker — docker-compose.yml"]
        DC1["xpfarm — Go app :8888"]
        DC2["overlord — OpenCode :3000"]
        DC3["mobsf — Mobile scan :8000 (optional)"]
        DC1 <-->|xpfarm-network| DC2
        DC1 <-->|xpfarm-network| DC3
    end

    M7 --> GIN
    GIN --> SCAN_ENGINE
    GIN --> REPORTS
    GIN --> PLANNER
    GIN --> DISTRIBUTED
    GIN --> OVERLORD
    GIN --> SCAN_GRAPH
    GIN --> DATABASE

./xpfarm-worker -controller http://xpfarm-host:8888 -id worker-1 -labels high-bandwidth,internal

example.com (アセット)
  └─所有──► www.example.com (ターゲット)
              ├─公開──► 443/tcp https (サービス)
              │              └─実行──► nginx 1.24 (テクノロジー)
              ├─影響あり──► CVE-2023-44487 (脆弱性)
              │                   └─エクスプロイト──► エクスプロイト: CVE-2023-44487
              └─影響あり──► http-missing-security-headers (脆弱性)

plugins/
├── all/all.go                    ← ここにプラグインのインポートを追加
├── example-echo/                 ← 最小限のスターターテンプレート
├── example-repo-scanner/         ← モックリポジトリスキャナーの例
├── repo-semgrep/                 ← Semgrep SASTプラグイン（プロダクション対応）
└── repo-secrets/                 ← Gitleaks + SecretFinderプラグイン（プロダクション対応）

POST /api/normalize  {"source": "nuclei", "raw": {...}}
         │
         ▼  アダプター (nuclei / nmap / semgrep / gitleaks)
         │  → 正規化されたFinding (CVE, CWE, severity, evidence, tags)
         │
         ▼  エンリッチャー (順に適用)
         │  1. CWE   — 40ルールのキーワードトライ + 35タグマップ (ローカル, 即時)
         │  2. CVSS  — NVD REST API v2, CVSS 3.1→3.0→2.0, インプロセスキャッシュ
         │  3. EPSS  — FIRST.org エクスプロイト確率API, インプロセスキャッシュ
         │  4. KEV   — CISA既知エクスプロイト脆弱性カタログ (sync.Once)
         │
         ▼  SHA-256フィンガープリント → 重複排除 → CWE/CVE/深刻度/ターゲットでグループ化
         │
         ▼  SQLiteストレージ (FindingRecord + GroupRecord)

# Recommended
./xpfarm.sh build     # Build all containers
./xpfarm.sh up        # Start everything (xpfarm :8888 + overlord :3000)
./xpfarm.sh update    # Rebuild with latest tool versions (opt-in upgrade)

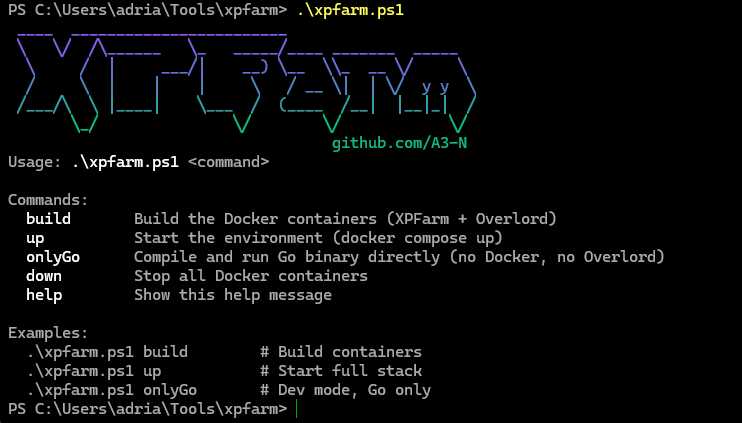

# Windows
.\xpfarm.ps1 build
.\xpfarm.ps1 up

# Standard Docker
docker compose up --build

# Build from source (no Overlord)
go build -o xpfarm
./xpfarm
./xpfarm -debug
