Formbook-Payload-Extraction-XOR-Decryption-Net-Assembly-Analysis

1. x32dbg – Encrypted Configuration Decryption & Memory Allocation

The x32dbg memory dump reveals that Formbook decrypts its configuration data and allocates memory for it using NtAllocateVirtualMemory.

Key Observations:

• NtAllocateVirtualMemory – Allocates memory for the decrypted payload.
• mov edx, dword ptr ds:[esi+1C] – Retrieves the size of the encrypted data from the ESI register.
• push 0x1000 – Uses MEM_COMMIT to allocate memory.
• push 0 – Specifies the allocation type or protection flag.
• mov edx, dword ptr ds:[esi+4] – Retrieves another configuration value.
• lea ecx, [ebp-4] – Loads a pointer to a local variable.
• test ecx, ecx – Checks if the pointer is valid.
• mov ecx, [esi+1C] – Retrieves the encrypted data size again.
• push 0x1000 – Repeats the MEM_COMMIT flag.
• push 0 – Repeats the allocation flag.

Lower Dump Section:

• ConnectionStrings – .NET configuration key for C2 addresses.
• system.data, DbProviderFactories – .NET configuration sections (likely decoy).
• system.serviceModel – .NET service model section.
• <DbProviderFactories /> – Empty XML element (decoy).

Why This Matters:

• Configuration Decryption: Formbook decrypts its config in memory.
• C2 Addresses: ConnectionStrings likely contains C2 URLs.
• Evasion: The use of .NET configuration keywords helps avoid detection.

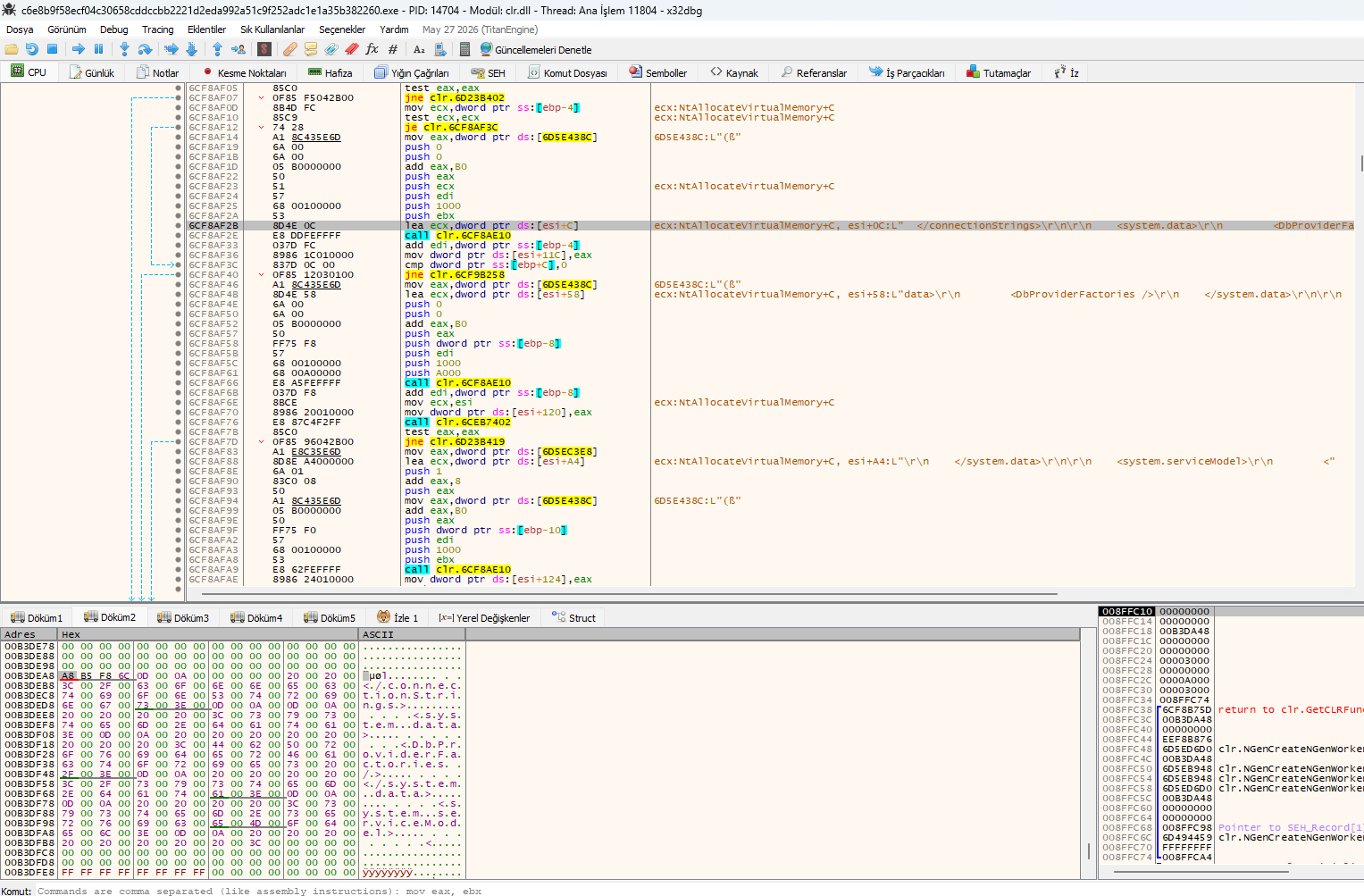

Visual Reference:

x32dbg view showing NtAllocateVirtualMemory and ConnectionStrings decryption.

2. x32dbg – .NET Assembly Manipulation, XOR Decryption & CLR Initialization

This x32dbg view reveals that Formbook uses .NET assembly manipulation, XOR-based decryption, and CLR (Common Language Runtime) initialization to execute its payload.

Key Observations:

• xor eax, eax – Clears EAX, indicating XOR-based decryption.
• call 0x6C6E7F60 – Calls a decryption or processing function.
• call 0x6C6EE8B0 – Calls another processing function.
• DllCanUnloadNowInternal – Manages .NET assembly loading/unloading.
• PublicKeyToken=31bf3856ad364e35 – Impersonates a Microsoft assembly.
• system.serviceModel – .NET service model configuration (C2 communication).
• System.Web – .NET web configuration (HTTP-based C2).
• clr.NGenCreateNGenWorker – Creates a .NET Native Image Generator worker.
• clr.GetCLRFunction – Retrieves CLR functions.
• return to clr.Initialize – Initializes the .NET runtime.

Why This Matters:

• XOR Decryption: The xor eax, eax and subsequent call functions confirm XOR-based decryption.
• .NET Execution: Formbook uses the CLR to run its payload.
• Impersonation: The PublicKeyToken makes it look like a Microsoft assembly.
• C2 Configuration: system.serviceModel and System.Web store C2 settings.

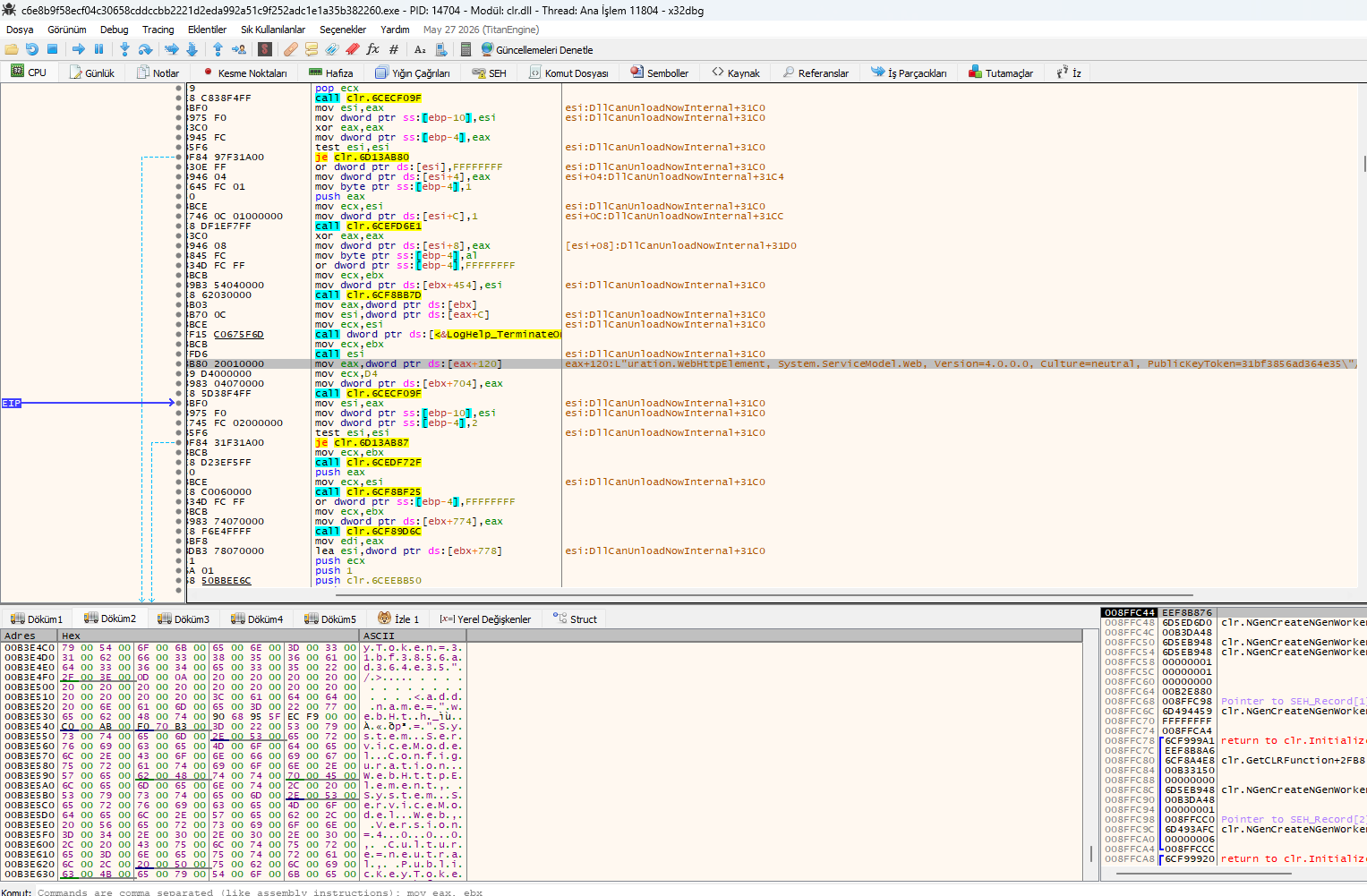

Visual Reference:

x32dbg view showing XOR decryption, DllCanUnloadNowInternal, and CLR initialization.

3. x32dbg – SQLExpress Decoy & CLR Initialization

This x32dbg view reveals that Formbook uses a SQLExpress-related string as a decoy and initializes the .NET CLR to execute its payload.

Key Observations:

• L"ce=..\SQLEXPR" – A decoy string, not related to SQL data theft. It is used to make the malware look like a legitimate SQL Server Express component
• clr.InitializeFusion – Initializes the .NET Fusion assembly loader, which is used to load the .NET payload into memory.
• clr.GetCLRFunction – Retrieves CLR functions to execute managed code.
• clr.NGenCreateNGenWorker – Creates a .NET Native Image Generator worker, allowing the payload to run without JIT compilation.
• return to clr.InitializeFusion+1751 – Returns to the CLR initialization routine.

Why This Matters:

• Impersonation: The SQLEXPR string is a decoy to evade detection by security tools.
• .NET Execution: Formbook uses the CLR to load and run its payload directly in memory
• Evasion: CLR initialization helps the malware bypass static analysis.

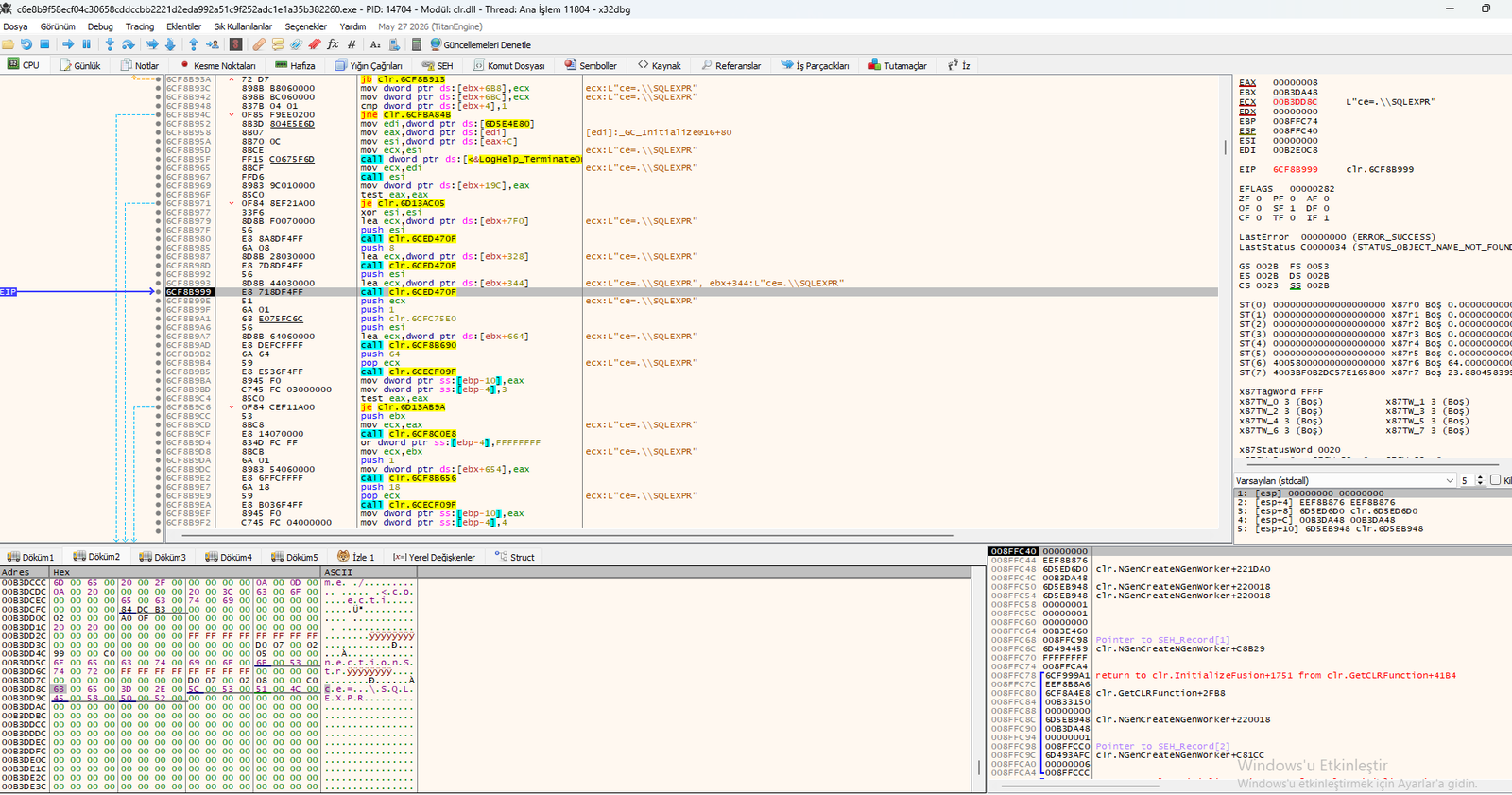

Visual Reference:

x32dbg view showing L"ce=..\SQLEXPR", clr.InitializeFusion, and CLR functions.

4. x32dbg – Payload Start & XOR Decryption Loop

This x32dbg view reveals the start of Formbook's payload, located after the standard PE DOS stub message. The malware uses a XOR decryption loop to decrypt its payload in memory.

Key Assembly Instructions:

• This program cannot be run in DOS mode – Standard PE DOS stub message.
• xor dword ptr ds:[edi], eax – XORs the data at EDI with EAX (decryption).
• mov al, byte ptr ds:[edi+1] – Loads a byte from EDI+1 into AL.
• xor al, byte ptr ds:[edx+1] – XORs AL with the byte at EDX+1 (decryption key).
• mov byte ptr ds:[edi], al – Writes the decrypted byte back to EDI.
• call ntdll.77DDE45C – Calls RtlIsCurrentThreadAttachExempt (anti-debug).
• cmp dword ptr ds:[esi+4], 0 – Checks if the counter (ESI+4) is zero.
• sub dword ptr ds:[esi+4], eax – Decrements the counter.
• test edx, edx – Tests EDX for zero.
• jne ntdll.77DDF9F4 – Loops back if not zero (decryption loop).

Why This Matters:

• Payload Start: The payload begins after the standard PE DOS stub.
• XOR Decryption: Formbook decrypts its payload in memory using XOR.
• Anti-Debug: Calls RtlIsCurrentThreadAttachExempt to evade debuggers.
• Loop: The decryption loop continues until the counter reaches zero.

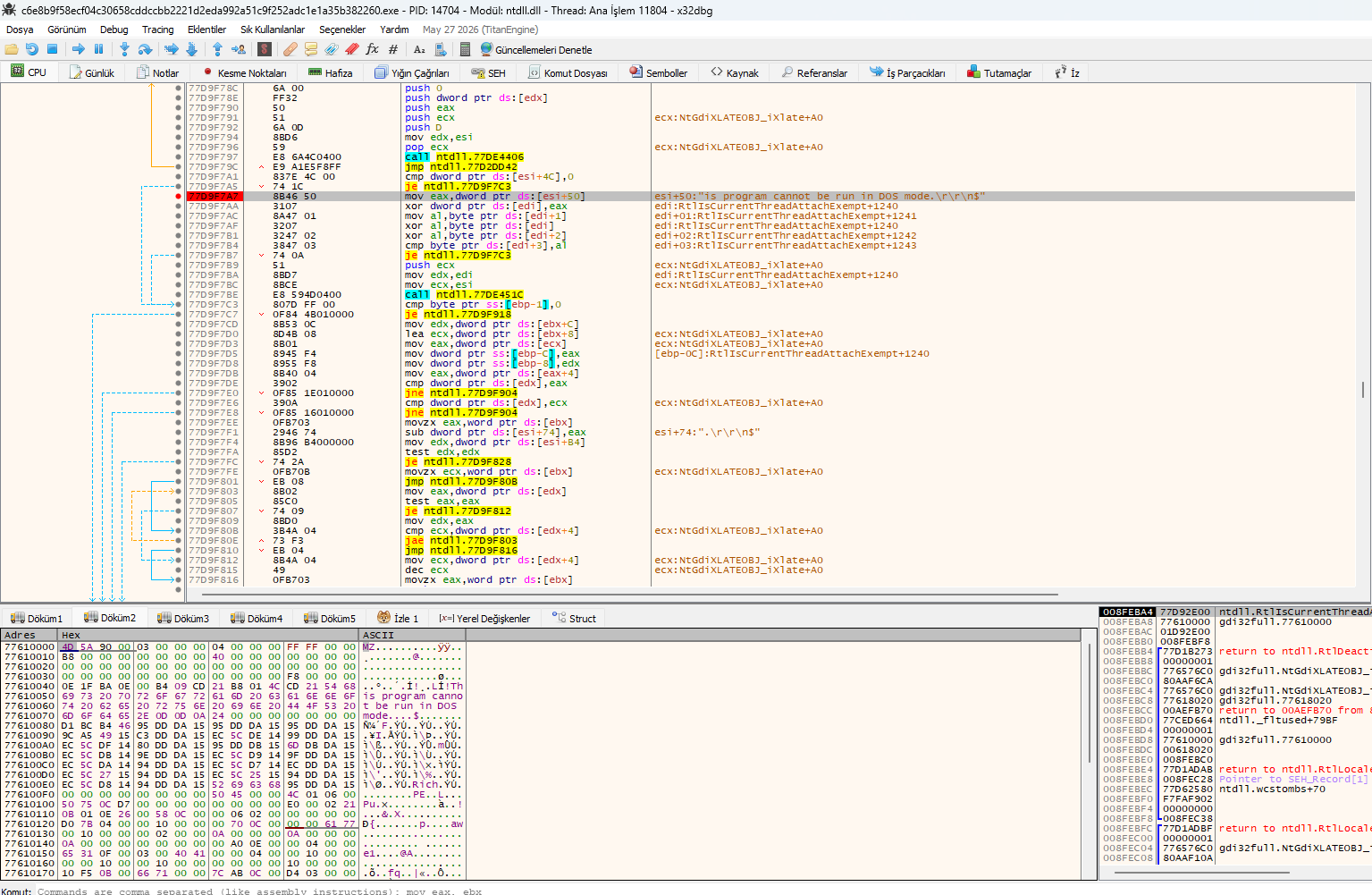

Visual Reference:

x32dbg view showing the XOR decryption loop after the standard PE DOS stub message.

5. Binary Ninja – Keylogger, Clipboard & Privilege Escalation APIs

Binary Ninja analysis of the extracted payload reveals a comprehensive list of APIs used by Formbook for keylogging, clipboard hijacking, and privilege escalation.

Key APIs Observed:

• Clipboard Hijacking: SetClipboardData, GetClipboardData – steals and replaces clipboard data.
• Keylogger: SetWindowsHookExW, SetWindowsHookExA – installs keyboard hooks.
• Process Manipulation: NtSetInformationProcess, NtCreateThreadEx, NtTerminateProcess.
• Privilege Escalation: NtAdjustPrivilegesToken – adjusts token privileges.
• System Control: NtShutdownSystem, SystemParametersInfoA/W.
• Persistence: MsInstallProductW/A – installs a product for persistence.
• Execution: CreateProcessInternalW – creates a new process.

Why This Matters:

• Keylogging: Captures every keystroke (passwords, messages).
• Clipboard Theft: Steals copied crypto addresses and passwords.
• Privilege Escalation: Gains higher privileges for deeper system access.
• Persistence: MsInstallProductW/A ensures the malware runs on startup.

Visual Reference:
