Fileless, pure x64 Assembly C2 implant utilizing a Dual-Channel (ICMP / DNS) architecture. Zero libc. Zero disk. Invisible to standard EDR hooks.

Ghost-C2

Overview

⭐️ If you find this research useful, please consider giving it a star to support further development

🚨 FULL TECHNICAL RESEARCH & SOURCE CODE: This repository is a summary. For the complete architectural breakdown, W^X memory evasion details, and VTable implementation, visit the official project page: ICMP-Ghost Technical Breakdown

Ghost-C2 is a command-and-control framework written entirely in pure x64 Linux Assembly with no libc dependencies. Every operation goes through direct syscalls. There are no import tables, no dynamic linker artifacts, and no disk writes.

Originally built as a raw ICMP stealth channel, version 3.6.2 introduces a Dual-Channel Protocol Pivoting architecture. Operators can seamlessly switch the implant's communication channel between silent ICMP Raw Sockets and evasive DNS UDP Tunneling on the fly. The implant lives exclusively in RAM, injected into a running system process via a custom ptrace-based loader.

This project was built to explore how far user-space stealth and network state synchronization can go without touching the kernel.

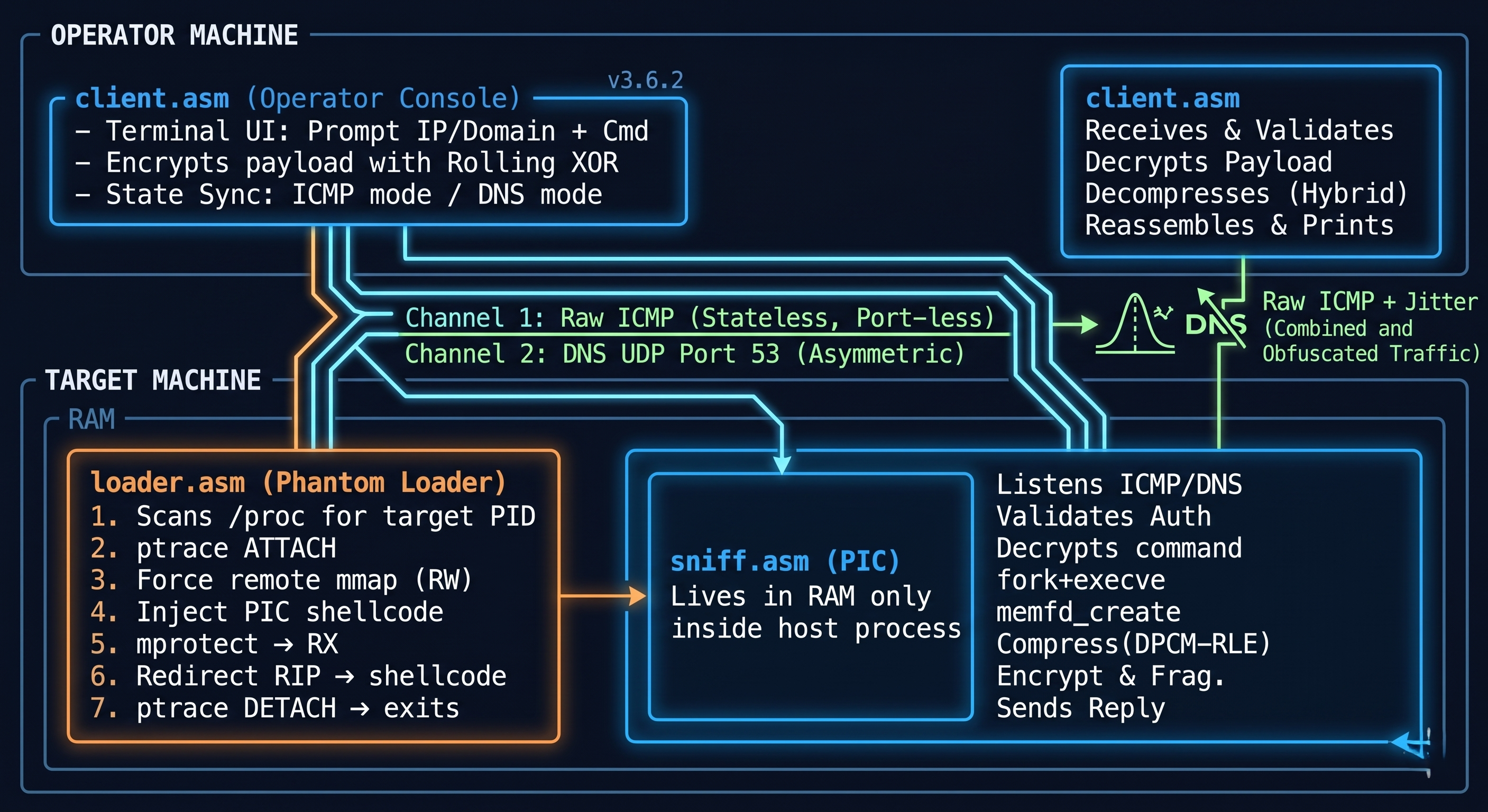

Architecture

┌─────────────────────────────────────────────────────────────┐
│                      OPERATOR MACHINE                       │
│                                                             │
│   ┌──────────────┐                                          │
│   │  client.asm  │  ← Terminal UI: Prompt IP/Domain + Cmd   │
│   │  (Operator   │    Encrypts payload with Rolling XOR     │
│   │   Console)   │    State Sync: ICMP mode / DNS mode      │
│   └──────┬───────┘                                          │
│          │                                                  │
└──────────┼──────────────────────────────────────────────────┘
           │  Channel 1: Raw ICMP (Stateless, Port-less)
           │  Channel 2: DNS UDP Port 53 (Asymmetric)
┌──────────┼──────────────────────────────────────────────────┐
│          │             TARGET MACHINE                       │
│          ▼                                                  │
│   ┌──────────────┐     ┌─────────────────────────────────┐  │
│   │  loader.asm  │────▶│         sniff.asm (PIC)         │  │
│   │  (Phantom    │     │         Lives in RAM only       │  │
│   │   Loader)    │     │         inside host process     │  │
│   └──────────────┘     └────────────────┬────────────────┘  │
│                                         │                   │
│   1. Scans /proc for target PID         │ Listens ICMP/DNS  │
│   2. ptrace ATTACH                      │ Validates Auth    │
│   3. Force remote mmap (RW)             │ Decrypts command  │
│   4. Inject PIC shellcode               │ fork+execve       │
│   5. mprotect → RX                      │ memfd_create      │
│   6. Redirect RIP → shellcode           │ Compress(DPCM-RLE)│
│   7. ptrace DETACH → exits              │ Encrypt & Frag.   │
│                                         │ Sends Reply       │
└─────────────────────────────────────────┼───────────────────┘
                                          │  Encrypted Traffic
                                          ▼
                                   [ client.asm ]
                                   Receives & Validates
                                   Decrypts Payload
                                   Decompresses (Hybrid)
                                   Reassembles & Prints

Components

client.asm — Operator Console

The attacker-side terminal. Handles UI, dynamic memory management, and target state synchronization. Can dispatch packets as either ICMP Echo Requests or DNS TXT queries. Listens for fragmented replies, prevents buffer overflows, and reconstructs the output. Features an "Active Target Reconnection" module to rescue orphaned sessions.

sniff.asm — PIC Implant Agent

The implant running on the target. Compiled as a raw binary (position-independent, no ELF headers) so it can be injected into arbitrary memory addresses. It dynamically updates its internal VTable to switch between ICMP sniffing and UDP DNS binding based on operator pivot commands.

Phantom_Loader/loader.asm — Injection Engine

The delivery mechanism. Scans /proc, finds a target process by comm name, and injects the PIC shellcode into it using a multi-stage ptrace state machine. Exits cleanly after injection — leaves no trace.

Stealth & Evasion Techniques

Dual-Channel Protocol Pivoting (ICMP ↔ DNS)

Ghost-C2 v3.6.2 allows the operator to hot-swap the network protocol without losing the agent. By sending specific pivot commands, the VTables in both the Master and the Agent are dynamically overwritten:

• !D (Pivot to DNS): Both nodes close ICMP sockets and initialize UDP Port 53 communication. Ideal for bypassing strict Layer 3 filtering by blending into corporate DNS traffic.
• !I (Pivot to ICMP): The Agent closes UDP sockets, kills port bindings, and drops back into silent Raw Socket sniffing. Perfect for "Phantom" stealth mode.

DPCM-RLE Hybrid x64 Compressor

Ghost-C2's data transmission engine utilizes a hybrid compression and encoding layer heavily optimized in x86-64 Assembly.

• DPCM (Differential Pulse Code Modulation): Calculates and sends the mathematical difference (Delta) between a reference character and subsequent ones, lowering data entropy.
• RLE (Run-Length Encoding): Packs consecutive spaces and repeating blocks at the bit level.
• Result: Reduces overall data payload by 40% to 55%, minimizing network footprint and the number of injected packets.

ICMP Protocol Mimicry

Every outgoing ICMP packet is structured to be indistinguishable from a standard Linux ping:

• Dynamic RDTSC timestamps mimic struct timeval.
• Exact Linux iputils padding (0x10 to 0x1F) bypasses basic heuristic firewalls.

Rolling XOR Cipher

Both directions are encrypted with a progressively shifting QWORD key. This keeps Shannon entropy low (unlike AES, which scores ~8.0 and triggers DPI anomalies). Rolling XOR produces entropy that looks like naturally noisy data. No cryptographic constants, no S-boxes, nothing for YARA to match.

Asymmetric Authentication

The implant ignores all ICMP packets where ID + SEQ ≠ 45,000. The implant replies with packets where ID + SEQ = 55,000. This prevents OS echo confusion and filters out internet scanners or honeypots.

Fileless Execution via memfd_create

Command output never touches disk. The shell output is captured via an anonymous RAM file (memfd_create), named [shm] to blend into legitimate shared memory mappings in /proc/PID/fd.

W^X Memory Injection (Phantom Loader)

Defeats modern kernel mitigations that forbid RWX memory. The loader uses a two-phase approach (Remote mmap with RW → Inject → Remote mprotect with RX). No page is ever simultaneously W and X.

Libc-Free Syscall Obfuscation

All syscall numbers are split across two instructions to defeat static analysis and simple grep-based scanners.

Weaponization: Configuring & Building the Agent

To maintain strict OPSEC, the Ghost-C2 agent (sniff.asm) does not use external configurations. You must define your Master C2 IP, Port, and Decoy DNS Domain directly inside the assembly code before compiling and injecting.

Step 1: Configure OPSEC Variables

Open sniff.asm and scroll to the very bottom of the .text segment. (Note: Because the agent is strictly Position Independent Code (PIC), there is no .data segment. All configuration variables are stored inline).

Modify the following values to match your Master Server:

• IP Address: Change db 127, 0, 0, 1 to your Master's IP.
• UDP Port: Change dw 0xB414 (Port 5300) to your desired port in Network Byte Order (e.g., 0x3500 for Port 53).

Step 2: Assemble to Raw Shellcode

nasm -f bin sniff.asm -o shellcode.bin

Step 3: Format the Shellcode

python3 -c "data = open('shellcode.bin', 'rb').read(); lines = ['\tdb ' + ', '.join(f'0x{b:02x}' for b in data[i:i+12]) for i in range(0, len(data), 12)]; open('c2_payload.txt', 'w').write('\n'.join(lines))"

Step 4: Encrypt the Payload (Rolling XOR)

1. Copy the contents of the generated c2_payload.txt.
2. Open xor.py and replace the raw_asm variable's contents with your copied shellcode.
3. Run python3 xor.py and copy the encrypted output.

Step 5: Inject into the Phantom Loader

1. Open loader.asm.
2. Locate the c2_payload: label.
3. Delete the existing placeholder and paste your encrypted shellcode directly under the label.
4. (Optional: Change the target injection process by modifying target db "cron", 10).

Step 6: Compile the Final Loader

nasm -f elf64 loader.asm -o loader.o

ld loader.o -o loader

Execute on the target machine with root privileges (sudo ./loader). The agent is now running entirely fileless.

Configuring the Operator Console (client.asm)

Before compiling the Master Console, you must ensure its listener and target profiles align with your Agent's configuration. Open client.asm and navigate to the section .data area.

Step 1: Configure Listener Port

Locate master_bind_addr. This is where the Master listens for incoming DNS beacons.

UDP Port: Change dw 0xB414 to match the port your Agent is sending to.

Note: This must be in Network Byte Order. For Port 53, use 0x3500.

Step 2: Configure Pivot/Reconnect Port

Locate target_addr. This port is used when you perform a DNS Pivot (!D) or use the Reconnect module.

Port Alignment: Change dw 0xB414 to match the UDP port the Agent is listening on. If these ports do not match, the (Deadlock) will occur as the Master will be shouting into the wrong void.

Step 3: Build the Console

Once configured, assemble and link the Master:

nasm -f elf64 client.asm -o client.o

ld client.o -o client

💡 OPSEC Tip for Users

Protip: Always keep a "Profile Sheet" for your operation. If you change the port to 0x3500 (Port 53) in sniff.asm, you MUST update both master_bind_addr and target_addr in client.asm before the operation begins.

Note: The Operator Console requires root privileges to bind raw sockets and UDP port 53.

⚠️ CRITICAL: Operational State Synchronization

To ensure persistent access and prevent session loss, always pivot the Agent back to ICMP Mode (!I) before terminating your Master Console session.

The Logic: ICMP is Ghost-C2's "Golden Channel"—it is stateless, passive, and always reachable via the Target IP.

The Risk: DNS mode relies on dynamic UDP port synchronization. If the Master Console is closed while in DNS mode, the Agent remains "trapped" in a UDP listening state. Re-establishing connection would require knowing the Agent's specific ephemeral port, which is lost upon Master restart.

Rule of Thumb

1. !I (Switch to ICMP)
2. Verify Command Prompt
3. Ctrl+C (Exit Master)

Empirical Results

Tested in a controlled lab environment against active traffic inspection:

Syscall Reference

Ghost-C2 interacts directly with the Linux kernel:

Roadmap

✅ Completed in v3.6.3

• RFC 1035 compliant DNS headers (Transaction ID, QTYPE A, QDCOUNT)
• Base32 RFC 4648 encoding (replaces raw hex)
• Per-packet domain rotation (5-entry CDN pool)
• Wireshark "Malformed Packet" warnings eliminated

v3.6.4 — DNS Response Simulation

• Master and agent will return synthetic A record responses (QR=1, RCODE=0, ANCOUNT=1) after every query
• Eliminates unanswered query anomaly detected by ML-based NDR (Darktrace, ExtraHop)
• Remaining gap between rule-based bypass and full ML evasion

v4.0 — Authoritative DNS Routing & Async Beaconing

• Route payloads through public ISP DNS caches to a C2 authoritative name server (real DNS infrastructure)
• Randomized nonce prepended to every subdomain query to prevent DNS caching drops
• Full async jitter with variable beacon intervals

v4.x — MAC Bypass Research

• AppArmor / SELinux confined process bypass via ROP-based execution (Living off the Land)
• Dynamic ASLR defeat to eliminate mprotect dependencies

Why No Interactive TTY?

The absence of a PTY is an architectural decision, not a limitation:

• Protocol integrity: ICMP and DNS are stateless/asymmetric. Emulating TCP-like ordered delivery for a TTY stream would bloat the codebase and destroy the lightweight design.
• Volumetric stealth: An interactive shell generates traffic for every keystroke, creating a detectable frequency spike.
• EDR surface: Allocating a PTY requires /dev/ptmx and ioctl calls that EDRs heavily monitor.

Ghost-C2 is a hyper-stealth command execution and exfiltration implant. Interactivity trades invisibility for convenience — this project chose invisibility.

Contributing

By design, Pull Requests and Forks are strictly ignored. The architecture of this project is maintained directly by the author. If you find a bug, logic flaw, or have a feature suggestion, please open an Issue. Keep it objective and technical.

Resources

• Blog / Technical Writeup: netacoding.com/posts/icmp-ghost
• Author: github.com/JM00NJ
• Related Resource: netacoding.com/posts/compressdpcm-rle

💖 Support the Project

Ghost-C2 is built with passion, sweat, and pure x64 Assembly. If this project helped you understand low-level evasion, protocol mimicry, or just made your red teaming operations smoother, consider supporting the development!

👉 Become a Sponsor on GitHub

⚖️ Disclaimer & License (AGPL-3.0)

Ghost-C2 is developed strictly for educational purposes, reverse engineering, and authorized cybersecurity research.

As of version 3.6.1 and onwards, this project is licensed under the GNU Affero General Public License v3.0 (AGPLv3). Any entity interacting with or modifying this software over a network must disclose their complete source code as mandated by the license. Commercial exploitation or integration into proprietary/closed-source platforms is strictly prohibited.

Copyright (c) 2026 JM00NJ (commSync). All Rights Reserved.

The author is not responsible for any illegal use or damage caused by this tool. Use it at your own risk.
