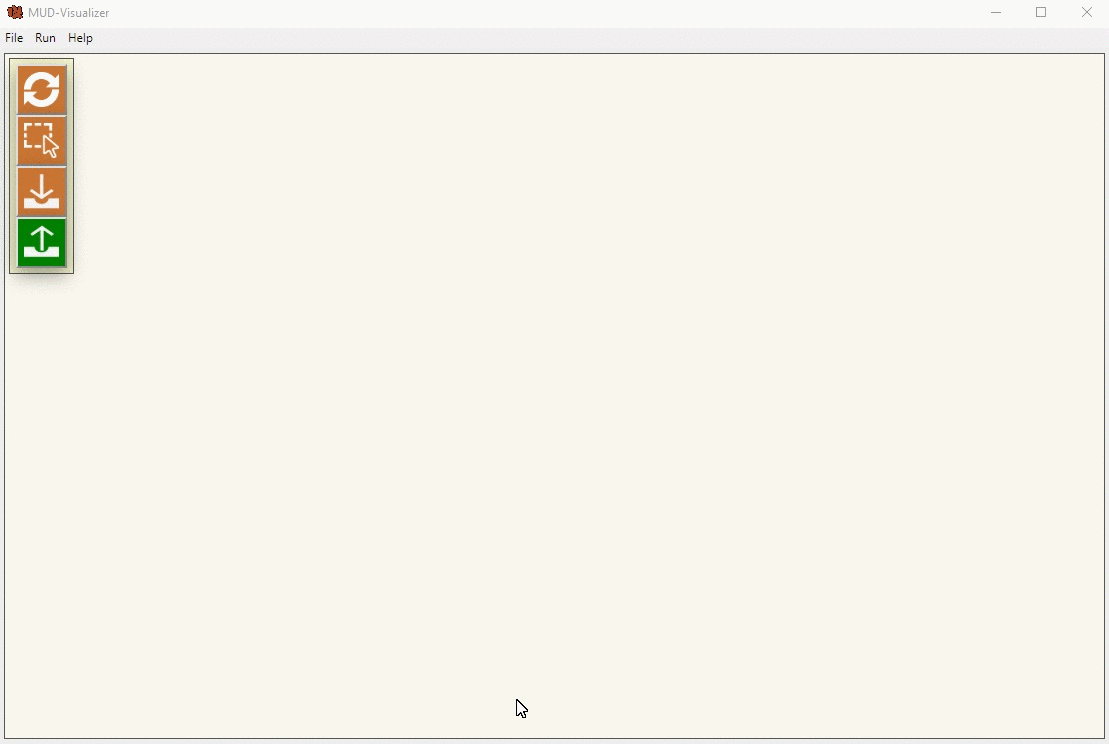

iot-onboarding/mud-visualizermud-visualizer is a tool to visualize MUD files
Warning: mud-visualizer is currently beta. Use at your own risk.
This tool can be used to visualize the MUD files in JSON format.
MUD files are plain text files in JSON format that contain ACL rules for a device. A MUD file can contains tens or hundrends of ACL rules which makes it difficult to read and validate the files manually. mud-visualizer will help you to read and validate (and modify in near future) the MUD files.
Use the following commands to install and run mud-visualizer:
$ git clone https://github.com/iot-onboarding/mud-visualizer
$ cd mud-visualizer
$ npm install
$ npm start
Currently the following MUD abstractions are supported in both incoming and outgoing traffic directions:
domain-nameslocal-networkssame-manufacturermanufacturermy-controllercontrollerContributions are welcome! Submit your pull requests to the master branch.
Feel free to reach out to us at [email protected].
Also, you are strongly encouraged to use Github's Issues to submit new issues, or request enhancements or new features.
If you find this tool useful in your research, please consider citing our papers:
@inproceedings{andalibi2021analysis,
title={On the Analysis of MUD-Files’ Interactions, Conflicts, and Configuration Requirements Before Deployment},
author={Andalibi, Vafa and Lear, Eliot and Kim, DongInn and Camp, L Jean},
booktitle={5th EAI International Conference on Safety and Security in Internet of Things, SaSeIoT},
year={2021}
}
@inproceedings{andalibi2021making,
title={Making Access Control Easy in IoT},
author={Andalibi, Vafa and Dev, Jayati and Kim, DongInn and Lear, Eliot and Camp, L Jean},
booktitle={International Symposium on Human Aspects of Information Security and Assurance},
pages={127--137},
year={2021},
organization={Springer}
}
@inproceedings{andalibi2021visualization,
title={Is Visualization Enough? Evaluating the Efficacy of MUD-Visualizer in Enabling Ease of Deployment for Manufacturer Usage Description (MUD)},
author={Andalibi, Vafa and Dev, Jayati and Kim, DongInn and Lear, Eliot and Camp, L Jean},
booktitle={Annual Computer Security Applications Conference},
pages={337--348},
year={2021}
}
