This repository contains a technical analysis of Google's antibot (reCAPTCHA) focusing on:

Payload Structure and Values
Fingerprinting Techniques
Obfuscation Techniques

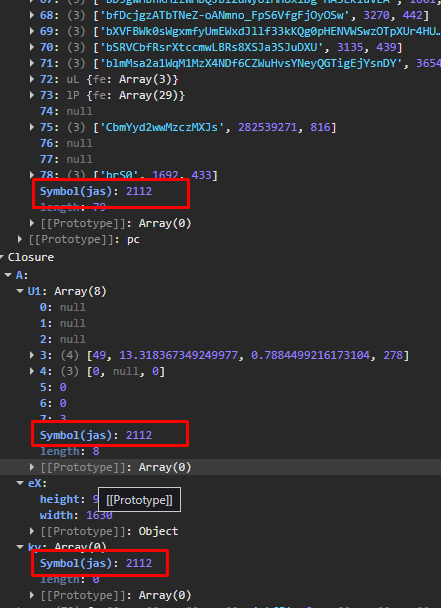

Anti-debugging/Tampering Techniques
Virtual Machines

Contact

Discord: @g_recaptcha
Telegram: @lyxlobyx

Obfuscation Techniques

reCAPTCHA is one of the anti-bot systems with the most sophisticated obfuscation techniques, employing a series of transformations that make the code less readable and more difficult to reverse engineer. Most obfuscations can be easily manipulated using the Abstract Syntax Tree (AST), but some are processed at runtime, rendering the AST useless in this case. Polymorphism is also applied to the code to change its structure in each version of the script. For example, the code doesn't perform the action directly. Instead, it uses objects or functions that change shape

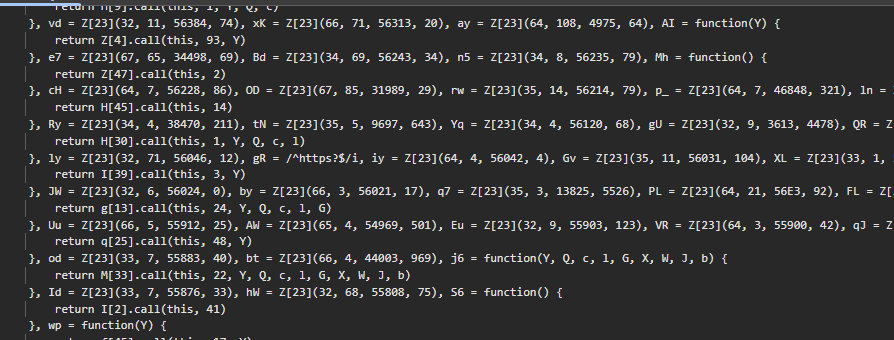

Sequence Expressions The code is flattened by converting each block statement into a continuous comma-separated expression, it can appear in if statements, function arguments, and even within objects
Mixed Boolean Arithmetic Intertwines arithmetic operations (addition, subtraction, multiplication) with bitwise operations (AND, OR, XOR, NOT) to hide the original logic, for example -2 * ~(h & H) + -2 + (h ^ H)
Indirect Function Table Each function is built within a table, and is called using its index, like functions[index](https://github.com/elyelysiox/recaptcha/blob/HEAD/args)

Inline Constant Array A local array literal is assigned inline, mid-expression, the array groups constants (numbers, strings) that are reused throughout the function body via index access

// b = [14, 1, "call"] assigned inline inside a sequence expression
function(Y, Q, c, l, G, X, W, J, b, P) {
    (Y & 94) == Y && (b = [14, 1, "call"], ...)
    W[b[2]](J, G)   // W.call(J, G)
    Y >> b[1] & b[0]  // Y >> 1 & 14
}

Function Multiplexing Multiple logically distinct functions are merged into one, using a numeric parameter as a block selector. The active block is determined by evaluating the parameter against bitwise conditions. Callers pass a numeric literal as the selector

function(N, y, U, Y, h, H, m, C, u) {
    C = [26, 47, 6];

    // block 1
    if ((N - 2 ^ 14) < N && (N - C[2] | 28) >= N) {
        // convert value to string logic
    }

    // block 2
    if ((N + 4 & 40) >= N && (N + 5 & C[0]) < N) {
        Y = bB();
        throw Error(Y === void 0 ? "unexpected value " + U + y : Y);
    }

    return u;
}

Logical Operator Branching Replaces if statements and if/else blocks with logical operator short-circuit evaluation, converting control flow into expressions. combined with sequence expressions, multiple branches appear as a single continuous comma-separated expression

// if (a) { block }
a && (block)

// if (!a) { block }
a || (block)

// if (a) { x } else { y }
a ? x : y

// combined with CFF and sequence expressions:
(Y | 1) & 14 || (c = Q.O, J = c.O.length + c.g.length),
(Y ^ 59) >> 3 == 3 && (Q.classList
    ? Q.classList.add(c)
    : Z[31](31, Q, c) || (l = f[0](84, "string", "", Q), ...)),

Bind Native Methods Constants Binds native browser methods to their original receivers, storing them as constants to prevent tampering

LO = (Tw = self) == null ? void 0 :
 (K9 = Tw.Math) == null ? void 0 :
 (v4 = K9.floor) == null ? void 0 :
 (mF = v4.bind) == null ? void 0 :
 mF.call(v4, Math)  // Math.floor.bind(Math)

LO(x)           // Math.floor(x)
U4()            // Math.random()
Ge(obj, prop)   // Object.defineProperty(obj, prop)

Dead Code Inaccessible or unused blocks of code are injected throughout the file, increasing its size to over 60,000 lines, this makes static analysis and LLM-based reverse engineering difficult

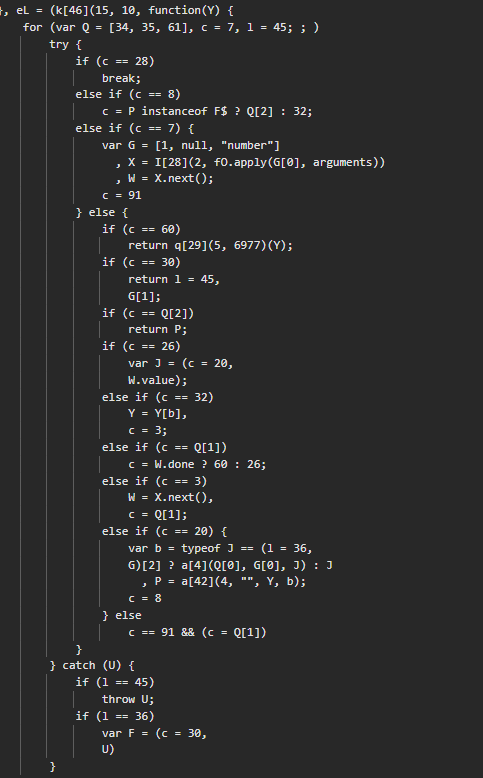

Control Flow Flattening Transforms each part of the code (declarations and loops) into a flat state machine. It hides the original execution logic by routing all code blocks through a central "dispatcher" block

Dispatchers can change shape; some have 2-3 state variables, and the loop/condition type changes. They look like this

This is a CFF with 2 state variables, one handles the catch block and the other the try block.

Encrypted String Pool All string literals (DOM APIs, browser properties, CSS values, error messages, etc) are encrypted into a single massive string pool. A decryption function uses a seed and an LCG-based XOR cipher to extract each string at runtime

There are 1990+ call sites spread across the code, the decryption function uses a running key that accumulates decoded codepoints, making each character dependent on all previous ones

X = function(J, b, P, F, U) {
    U = ["codePointAt", 127, "char encrypted pool"];
    for (F = (P = 0, b = "", l); P < Q; P++)
        J = (U[2][U[0]](c + P) ^ F) & U[1],  // XOR with running key
        b += String.fromCodePoint(J),
        F += J; // accumulate key
    return G = b;
}

// call sites pass a seed to locate and decrypt each string
Z[23](64, 4, 54961, 103)()  // → "lang"
Z[23](66, 4, 54961, 103)()  // → "addEventListener"
Z[23](32, 12, 20287, 852)() // → "inline-block"

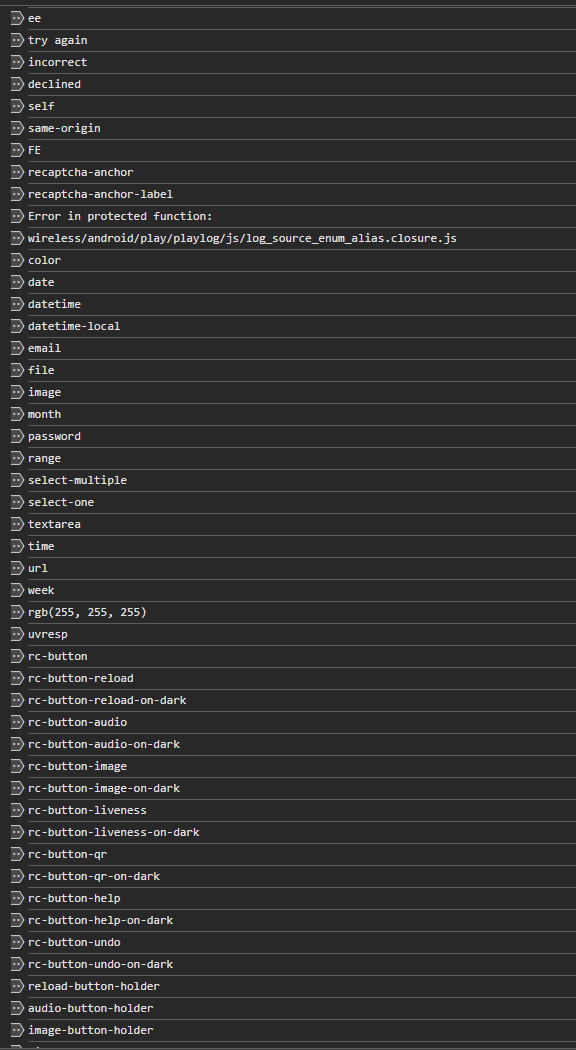

decstrings

Stateful Value Iterator reCAPTCHA uses stateful function that returns a sequence of runtime objects and values (like window, document.body, numeric constants) in a fixed order, each call advances an internal cursor, calling it out of sequence or too many times corrupts all subsequent reads. A timeout mechanism invalidates the state after a fixed interval, returning null for any late reads
```
// sequential calls return different values:
c()  // → window
c()  // → document.body
c()  // → 123
c()  // → null (timeout expired)

l(c(), G[2], G[W[1]], G[1]) + l(c(), G[2], G[W[1]], 12)
// ↑ window                     ↑ window

10 * l(c(), G[2], G[W[1]], G[1]) + l(c(), G[2], G[W[1]], 12))

c().querySelectorAll(a[X[2]](98, X[1], X[1]))
// ↑ document.body
```

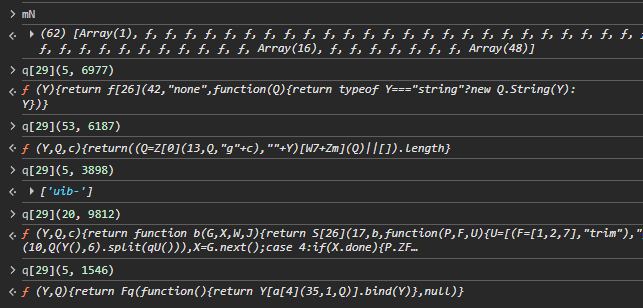

Computed Function Table This is similar to Indirect Function Table, but here the index of the function to be obtained is calculated at runtime with a seed, using XOR and Modulus

c = ((Q ^ no | U[1]) >> 5) + no
A = mN[(c % U[2] + U[2]) % U[2]]  // mN is the function table (50+ functions)

q[29](5, 6977)   // seed=6977  → index resolves to function at mN[X]
q[29](53, 6187)  // seed=6187  → different index, different function

computed

Runtime Value Encryption Some values (captcha configuration parameters, anchor parameters, etc) are never stored in plain text; they are encrypted immediately after collection and decrypted only at the time of use, have a prefix B at the beginning

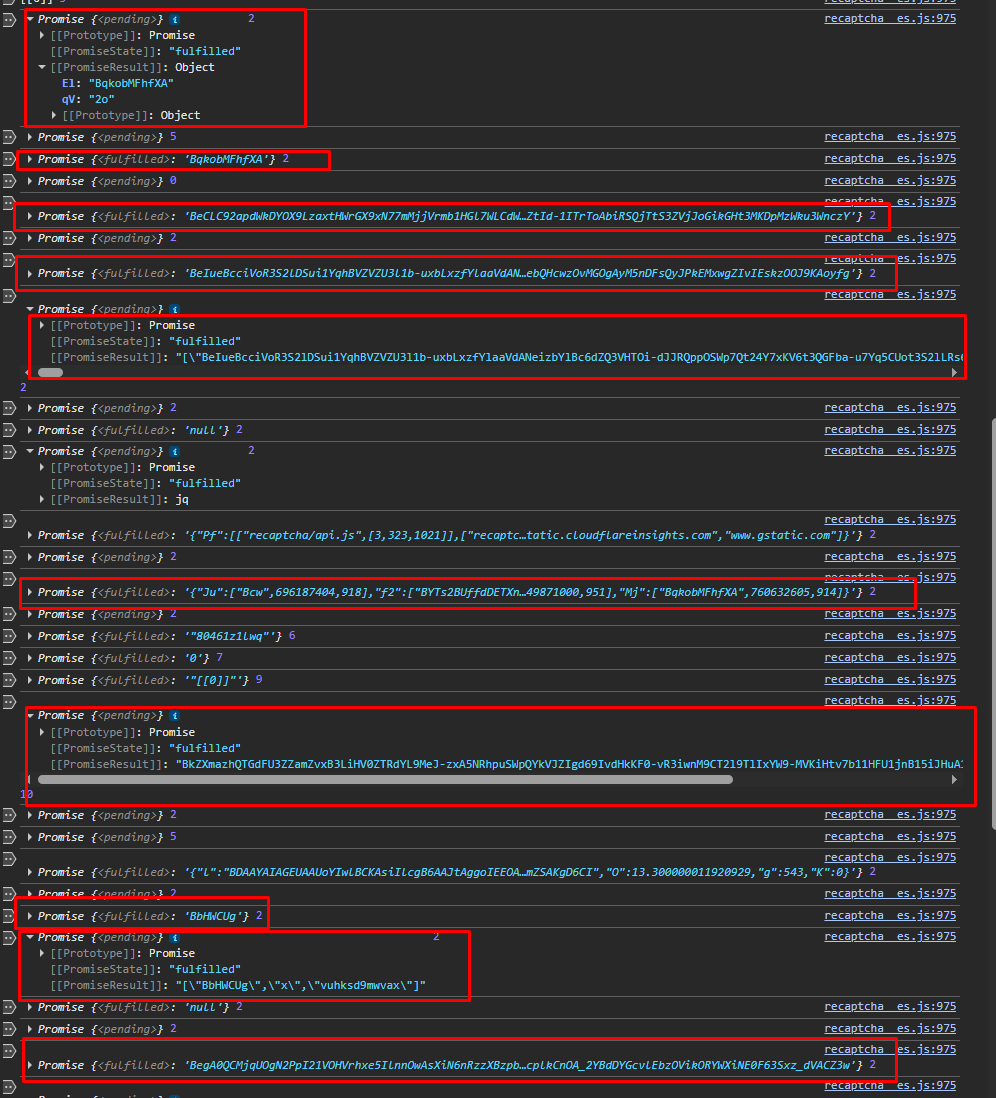

Async Control Flow Obfuscation Synchronous logic is converted into generator-based state machines wrapped in recursive Promise chains, tracing any value through the debugger forces stepping through multiple async handlers, losing the original execution context at each .then() boundary

Anchor Payload/Response

Payload Structure

Components to initialize reCAPTCHA

ar:         <WidgetInit?>
k:          <Website Key>
co:         <Website URL Base64-Encoded>
hl:         <Browser Main Language>
v:          <Recaptcha Version>
size:       <Type>
sa:         <Site Action>
anchor-ms:  <Widget Load Timeout>
execute-ms: <Execution Timeout>
cb:         <CallBack ID>

Response

The response contains:

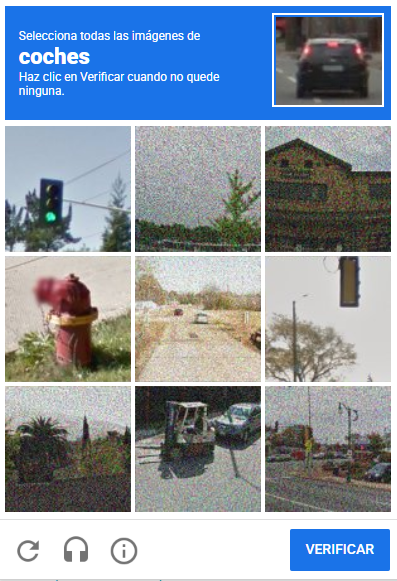

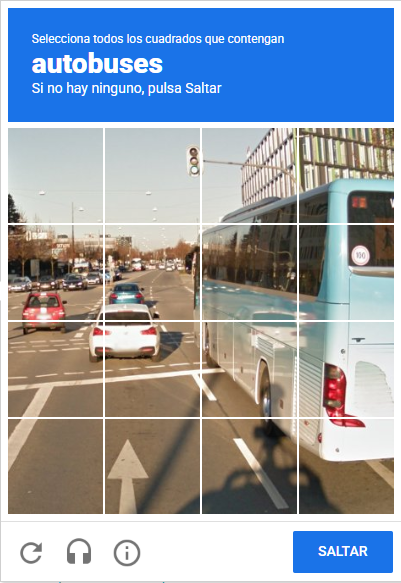

CAPTCHA iframe window design
Anchor token used for payload validation (/reload)
The main configuration for initialization, executed in the recaptcha.anchor.Main.init method to receive it in recaptcha_en.js

Structure:

Note: Recaptcha BotGuard was removed 04/01/2026, You can see some samples here

[
    "ainput",
    [
        "bgdata",
        "",
        "LyogQW50aS1zcGFtLiBXYW50IHRvIHNheSBoZWxsbz8gQ29ud...", // BotGuard Script Base64-Encoded
        "YWVtZ0h5MGNCWXJDQ2lidGh0RW13RmhWdlc3aU5yeVpzSmx6U...", // BotGuard VM Bytecode Double Base64-Encoded
        "wrB8fsOVU8K0YAzDsyQpw7ZHw6jDnMK1AMO6SRcvw53CsGlQw6/DuMO0wqr" // VM Config Bytecode Base64-Encoded
    ],
    null,
    [
        "conf",
        null,
        "6LfTV4gkAAAAACDVrUvp9_DalxUPvFSU7M2HJDO-", // Website Key
        0,
        null,
        null,
        null,
        1,
        // Indexes for fingerprinting or something else
        [16, 21, 125, 63, 73, 95, 87, 41, 43, 42, 83, 102, 105, 109, 121],
        [-7614991, 137],
        0,
        null,
        null,
        null,
        null,
        0,
        null,
        0,
        null,
        700, // Time Start for Time Variances of Fingerprint Values
        1,
        null,
        0,
        // Encoded metadata for the VM's main bytecode constructs
        "CvsCEg8I8ajhFRgAOgZUOU5CNWISDwjmjuIVGAA6BlFCb29IYxIPCMfm1DgYADoGZHhkTmlkEg8Is4qgOBgBOgZMV0o1a2ISDwiB7OgVGAA6Bkh1dlBqZhIPCK6e6zcYADoGR2JpT1FkEg8I94jmNxgAOgZvaWxlRGQSDwjwzeMVGAE6BmZJVkloYhIPCOLKoDcYAToGZ0xOQ0hjEg8I3r+3NxgBOgZlYXp1NmQSDwjY0oEyGAA6BkFxNzd2ZhIOCLjllDIYAToFUUJPRDASDwio7784GAA6BkdGVU5jZhIPCLWzqzgYAToGb3JZVjZkEg8I0tuVNxgAOgZmZmFXQWUSDwiV2JQyGAE6BlBxNjBuZBIPCKuRyjgYADoGQVo0TmJiEg8IxfOINxgAOgZhWG9pYWMSDwiNyoYyGAE6Bk93TjR0ZhIOCIr9iDcYADoFTWZJSTQaJwgDEiMdJv3NgTUZp4oJGYQKGZzijAIZzPMRGa+VQBnqsCYZ5a8MGQ==",
        0,
        1,
        null,
        null,
        1,
        null,
        null,
        0,
        null,
        null,
        0,
        0,
        "cf5e3c3a6ab6c494c829a7932d9577c1e6de862dd4912e55dc7fe2e40a1f7604"
    ],
    "https://who.clickbait.team:443", // Website URL:Port
    null,
    [
        3,
        1,
        1
    ],
    null,
    null,
    null,
    1,
    3600,
    [
        "https://www.google.com/intl/es/policies/privacy/",
        "https://www.google.com/intl/es/policies/terms/"
    ],
    "vQWNjTpMwdevQPWmE8akDzp8jsOZfa1VqTzVHaPiQ/c=",
    1,
    0,
    null,
    1,
    1777669303203, // Fingerprint Data Encryption Key
    0,
    0,
    [203], // Config Bytecode Key
    null,
    [185], // Config Bytecode Key
    "RC--rg1OSRnOD0ayA",
    null,
    null,
    null,
    null,
    null,
    // Bft Token, Used in reCAPTCHA V2
    "0dAFcWeA4RepD9zDjeMQE73pAT27pXZ7Nz_419U2K36QNqzHaKtLIDkwZQLi-Ud8OvSZHbDEcxQxusBQnsF5QQErMRpJMcUplaFg",
    1777752103288 // "oc" Data Encryption Key
]

Fingerprint

The values are based on the decrypted values from the first sample fingerprint, look here

Each subfield of the fingerprint values has a base format:

[value, key, elapsed]

Where key is the encryption key, and elapsed is the time it took the collector to obtain and encrypt the value. This allows reCAPTCHA to detect:

Excessively fast execution
Hooks
Breakpoints and sandboxing

Collector Execution Order

The system uses an internal scheduler:

[42, 45, 53, 30, 28, 54, 29, 31, 32, 33, 34, 35, 37, 36, 38, 39, 43, 40, 41, 46, 48, 57, 58, 60, 61, 62, 63, 64, 66, 68, 69, 71, 72, 79, 55]

This represents:

Execution Order
Collector Pipeline
Signal Generation Sequence

Fingerprint Signals Codes & Key Derivation

Transforms fingerprint signals into deterministic encryption keys through a multi-stage derivation pipeline

Each fingerprint value is:

Normalized
Encoded into a compact signal code
Converted into a numeric encryption key
Encrypted using the derived key

The process is deterministic, meaning the same input value always generates the same signal code and encryption key

Raw Value
   ↓
Signal Code Derivation
   ↓
Compact Signal Code
   ↓
Numeric Key Derivation
   ↓
Encryption Key
   ↓
Value Encryption

Example

Input Signal

"BUTTON,195a81c9"

Step 1 - Derive Signal Code

deriveSignalCode("BUTTON,195a81c9")
// → "wg"

The generated signal code is a compact deterministic identifier for the original value.

Step 2 - Derive Numeric Key

deriveKey("wg")
// → 3792

The signal code is transformed into a numeric encryption key.

Step 3 — Encrypt Value

encryptValueWithKey(3792, "wgia1z9pwq")
// → "bYVbh6BUsE_5pLA"

The next value will be encrypted with the derived key, following the collector order.

Aggregate Fingerprint Structure

All generated signal codes are aggregated into a compact serialized structure

Process

value -> "BUTTON,195a81c9" seed code -> wg key -> 3792
value -> "wgia1z9pwq" seed code -> 21 key -> 1599
value -> 1 seed code -> p1 key -> 3521
value -> "8cc68d83" seed code -> ld key -> 3448
value -> "https://nextcaptcha.com/demo..." seed code -> 9p key -> 1879
value -> 4 seed code -> op key -> 3553
value -> false seed code -> 1r key -> 1633
value -> 7 seed code -> qf key -> 3605
value -> "jYAQSHAEAI" seed code -> 1z key -> 1641
value -> "" seed code -> 80 key -> 1784
value -> 2 seed code -> jk key -> 3393
value -> "AAAAAAAAAA" seed code -> 1z key -> 1641
value -> "h3" seed code -> 9p key -> 1879
value -> "0,BUTTON,195a81c9" seed code -> ia key -> 3352
value -> -1 seed code -> 1u key -> 1636
value -> 0 seed code -> wq key -> 3802
value -> "74,fbfbc5b3" seed code -> 6z key -> 1796
value -> 0 seed code -> wq key -> 3802
value -> 0 seed code -> wq key -> 3802
value -> 2 seed code -> jk key -> 3393
value -> 0 seed code -> wq key -> 3802
value -> "-1,-1" seed code -> 1m key -> 1628
value -> "static.cloudflareinsights.co,..." seed code -> 1g key -> 1622
value -> "" seed code -> 80 key -> 1784
value -> "https://nextcaptcha.com,https...." seed code -> pd key -> 3572
value -> "[4,\"CABIBQAggA\",\"BAgAAgAAgA\"]" seed code -> 1n key -> 1629
value -> "Demostración empresarial de reCAPTCHA v3..." seed code -> 1k key -> 1626
value -> "[2,76852,77850,77351]" seed code -> 9b key -> 1865
value -> "sha384-TNm" seed code -> 23 key -> 1601
value -> "[1680,1050,876,1166,844,876]" seed code -> 13 key -> 1570
value -> "[300,null,1778502450481]" seed code -> ex key -> 3251
value -> "[null,null,\"\",\"\"]" seed code -> rx key -> 3654
value -> "[2147483648,70806416,65303240]" seed code -> 2r key -> 1664
value -> "GA1.1.354395113.1778502448" seed code -> 1g key -> 1622
value -> false seed code -> 1r key -> 1633
value -> "[[[1,\"wg\"],..." seed code -> 85 key -> 1789

Final

[
  [
    [1, "wg"], [1, "21"], [1, "p1"],
    [1, "ld"], [1, "9p"], [1, "op"],
    [1, "1r"], [1, "qf"], [1, "1z"],
    [1, "80"], [1, "jk"], [1, "1z"],
    [1, "9p"], [1, "ia"], [1, "1u"],
    [1, "wq"], [1, "6z"], [1, "wq"],
    [1, "wq"], [1, "jk"], [1, "wq"],
    [1, "1m"], [1, "1g"], [1, "80"],
    [1, "pd"], [1, "1n"], [1, "1k"],
    [1, "9b"], [1, "23"], [1, "13"],
    [1, "ex"], [1, "rx"], [1, "2r"],
    [1, "1g"], [1, "1r"]
  ],
  "54"
]

Signals

Idx 4 (string)
- Value: 3ccb
- Hashed: true
- Description: Generates an HMAC key from window.localStorage.getItem("rc::a ") + "6d" converted to bytes, calculates HMAC-SHA256(siteKey) with that key, and returns the first 4 hexadecimal characters of the result.

  The value of rc::a is a randomly generated base64.
Idx 5 (integer)
- Value: window.localStorage.length * 2
- Hashed: false
- Description:window.localStorage length multiplied by 2
Idx 16 (string)
- Value: yM5Us/j/fn6EDgtmPlP4Pxj605nMJN9dRYHyy5Mn

Certain reCAPTCHA signals may be unavailable or fail to be collected (due to debugging-related timeouts). In such cases, the missing signal is filled with a randomly generated base64-encoded value. For example:

["CMXZyamk3ZHNjdGsyaQ==", 3249, 591]

Once the fingerprint construction is complete, it is serialized into a string and encrypted using the encryption key loaded from the anchor field (index 18). The encrypted result is then stored in the index 16 field of the /reload payload.

VM Signals

The following are the browser values obtained by the internal reCAPTCHA VM, along with the signal key. Some values are not shown in the sample fingerprint because the VM only extracts certain values from the configuration bytecode. Therefore, other values will be displayed. For more details, see here

Base Signal Format:

[
  null,
  collectorElapsed,
  encryptElapsed,
  value
]

Where collectorElapsed means how long (ms) it took the collector to obtain the value And encryptElapsed means how long (ms) it took to encrypt the value. These times are measured during the VM's execution.

Structure

[
  null,
  7,
  0,
  "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/144.0.0.0 Safari/537.36"
],
null,
null,
[ null, 0, 0, "[]" ],
null,
null,
[
  null,
  4,
  0,
  "[\"Join And Get Free Trial!\",\"\",\"Captcha Solving Service\",\"Products\",\"Docs\"]"
],
[ null, 0, 0, "false" ],
null,
[ null, 0, 0, "0" ],
[ null, 1, 0, "[null,null,null,null,\"false\"]" ],
[ null, 3, 4, "[[[0,921],[1,2053]],[[235054,1,1,1],[164277,3,4,1]],2,39]" ],
[ null, 1, 4, "[[[0,0,979]],1,0]" ],
[ null, 1, 1, "[[[1,0]]]" ],
[
  null,
  4,
  1,
  "[886,2300,262.2099999997952,392.7600000009595,2050.2399999993577]"
],
[ null, 1, 1, "[[[1123,0,0]]]" ],
[ null, 1, 2, "[[[1123,0]]]" ],
[ null, 1, 3, "[0,null,null,null,null,null,null]" ],
[
  null,
  5,
  9,
  "[1,[[2050,125,633,266,[609,266,105,44],3,1,50,1,1]],[3,3,318],[28,777,858,28],0,0,25]"
],
[ null, 0, 0, "" ],
[ null, 0, 0, "229.6" ],
[ null, 0, 0, "false" ],
[ null, 1, 0, "[1,0,0,Infinity]" ],
[ null, 1, 1, "["0",-1,-1,999]" ],
[ null, 1, 0, "[\"undefined\",3]" ],
[ null, 1, 6, "[2,4,53324367238]" ],
[
  null,
  12,
  0,
  "[\"Google Inc. (Intel Inc.)\",\"ANGLE (Intel Inc., Intel(R) UHD Graphics 630, OpenGL 4.1)\",30]"
],
[
  null,
  28,
  2,
  "[1542343452,0,105002991,3556653,96784904,-731949068,-902263026,-1914850612,571474391,-1588406278,3443508,1967713171,-1249474914,-1588406278,0,918504841,-807058197]"
]

Key 417 (string)
- Value: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36...
- Description: Full Browser User-Agent
Key 727 (array)
- Value: []
- Description: Product Prices Blocks, contains prices for commercial products on the website, these may appear on marketplace websites such as Amazon, eBay, AliExpress, etc, Sample
Key 150 (array)
- Value: [\"Join And Get Free Trial!\",\"\",\"Captcha Solving Service\",\"Prod...
- Description: Links extracted from the <a> elements of the website, the VM rarely extracts these values
Key 545 (boolean)
- Value: false
- Description: navigator.webdriver

Reload Request Payload

This data is serialized using protobuf (Protocol Buffers), an efficient, neutral method for serializing structured data, developed by Google.

[
  "rreq",
  "U5VsmTDhJM1iOJUyw4DEUTYv",
  "03AFcWeA5Els3SIQviW2OYCHYD4uDhKlFPG6A48z2nk74BC2vrXSRvtpP9uVkWW96kUKm7sHIr...",
  null,
  null,
  "-383788762",
  "q",
  "05APQrAobTCFGtbKVY3NwExv-K_G7oqmzGyUcTXi532CBKvSJUiT49tkRSgGD__OdfVRZtrI3i...",
  "submit",
  null,
  null,
  null,
  null,
  null,
  "6LcAbwIqAAAAAJvVAhSSJ8qzYsujc7kn1knmSgQX",
  null,
  "0XA4cHhALxgMF9_Kt6uze2ZTR08XAe2x8o3BrU1hbTouNf3o1cnRmYRxZW01IA0BCNC_qJykb...",
  null,
  null,
  null,
  "tbMywxNTQsODQ0XSxbMSwyOTksMTA4Nl1dLFtbMiw2MSwxMzIuNzM5OTk5OTk5ODQ2MzNdLF...",
  "0aAPQrAobqMEazjp9PGLYWTgxWGGcq9k5MJNI6LFBWfTh0UkDaVobdH-InwAYsTXtxs3rH_fI",
  "BDAAYAIAGEcAAUoYI4lDCKAsCJlcgB6AAJtgggoIEEOALSoQRZxSZyAJBHANCkAJQYhFJES...",
  null,
  null,
  "W1tbNTAwNiw0M10sWzY0NjA3LDFdLFs0NTQ2NCwxXSxbMzU4MzcsMV1dXQ==",
  null,
  null,
]

Components

Challenge Modes

Value	Description
`q`	reCAPTCHA V3 challenge
`fi`	reCAPTCHA V2/Invisible challenge
`a`	Audio challenge

Telemetry Payload (`Idx 20`)

To decode:

atob("W1tbMywwLDgyOV0sWzEs...")
// → [[[3,0,829],[1,42,863]],[[2,727,1341.300000011921]...

The payload contains:

Resource timing information
Long-task performance timing
reCAPTCHA VM execution deltas
Website script URLs
Browser object collection statistics

Base Structure

[
  [recaptchaResources],
  [tasksTiming],
  [
      null,
      null,
      null,
      idleTimeoutDelta,
      deltaTiming,
      0,
      0,
      0,
  ],
  websiteScriptsUrls,
  [collectionElapsed, browserObjectsLength]
]

Long Task Timing Format

[
   PerformanceLongTaskTiming.name == "self" ? 2 : 4,
   PerformanceLongTaskTiming.duration,
   PerformanceLongTaskTiming.startTime
]

reCAPTCHA Resource Timing Format

[
   resourceType,
   duration,
   startTime
]

Resource

Event Counters (`Idx 25`)

This field contains Base64-encoded counters for browser interaction events collected during execution

Decoded example:

[
  [
    [5006, 43],
    [64607, 1],
    [45464, 1],
    [35837, 1]
  ]
]

Event Counter Structure

[
  [
    [eventType, count]
  ]
]

Known Event Hashes

Response Structure

[
    "rresp",
    "<responseToken>",
    null,
    120,
    [
        "pmeta",
        [
            "/m/013xlm",
            null,
            3,
            3,
            3,
            null,
            "Tractor"
        ],
        null,
        [1]
    ],
    "<challengeType>",
    null,
    null,
    "<usagePatternToken>",
    "<challengeImageToken>",
    null,
    null,
    "<humanVerificationToken>",
    null,
    "<captchaSessionToken>",
    "<bftToken>",
    0
]

Field Descriptions

`pmeta` Structure

Example:

[
    "pmeta",
    [
        "/m/013xlm",
        null,
        3,
        3,
        3,
        null,
        "Tractor"
    ],
    null,
    [1]
]

`pmeta[1]` Values

Challenge Types

Challenge Image Retrieval

The value at Idx 9 (challengeImageToken) is used to retrieve the CAPTCHA image:

https://www.google.com/recaptcha/<type>/payload
    ?p=<challengeImageToken>
    &k=<websiteKey>

Category Identifiers

UserVerify Request Payload

The /userverify payload is submitted after the user completes a reCAPTCHA v2 image challenge

Payload Structure

v: hsFBb1u5wWWWkWP4in1ua2cQ
c: 03AFcWeA5RIHz5mI2COQqTcLjdrC7FiPpdfkX-hB-B2iFenI...
response: eyJyZXNwb25zZSI6WzMsMSw0LDksMCwxMSwxMCwxMywxNF0....
t: 24521
ct: 24521
ch: -4007845
oc: 0ZpqzzPgYKEEaN0xpfo3v_voeVUySZK3Ktf_fLVRdhnu3yeTy4BhO...
pm: 51bGwsbnVsbCxbbnVsbCxudWxsLG51bGwsWzEwLDQuMjcwMDAwMD....

Components

`response` Payload

Represents the indices/positions of the squares selected by the user in the grid

The payload is later encoded as JWT before submission

3×3 Grid Example

grid33

0 1 2
3 4 5
6 7 8

Example payload:

{
  "response": [2, 3, 6]
}

4×4 MultiCaptcha Grid Example

grid44

 0  1  2  3
 4  5  6  7
 8  9 10 11
12 13 14 15

Example payload:

{
  "response": [2, 3, 6, 14]
}

`e` Field

The response payload may also include an e field:

{
  "response": [2, 3, 6, 14],
  "e": "bxCoiXVt49I7CTS_tNlVbGg"
}

This field contains encrypted interaction metadata related to CAPTCHA button actions such as:

Verify
Next
Skip

Internal Structure of `e`

After decryption, the structure resembles:

[[["9ffd9672"]]]

Each value represents a hashed identifier for the rc-button-default button class/action

The hash is:

SHA-256-based
Truncated to 8 characters

Longer interaction sequences may look like:

[
  [
    ["9ffd9672"],
    ["9ffd9672"],
    ["9ffd9672"],
    ["9ffd9672"]
  ]
]

`oc` — Encrypted VM Signals

Uses the same encryption algorithm as the idx 16 field of the /reload request payload, with the encryption key loaded in the anchor (index 31) 1777752103288

`pm` — Telemetry Payload

The pm field contains a Base64-encoded telemetry structure similar to the telemetry payload used in /reload.

Anti-debugging/Tampering

Symbol-based Integrity Tag reCAPTCHA set a Symbol key Symbol(jas) to every array and object with a numeric value used as an integrity check. Since Symbols are non-enumerable and invisible to standard cloning operations (like JSON.stringify), any attempt to replace or clone these structures loses the tag, which reCAPTCHA detects as tampering
Closure Variable Capture Some values are intentionally scoped in an outer function and consumed only inside nested callbacks or closures, the variable never exists in the same scope where it is used
Timing Checks reCAPTCHA incorporates runtime debugging detection mechanisms. If it detects that the code is being analyzed by a debugger, it restarts the debugging session, causing the execution state and context to be lost
Crash Source Tab

https://github.com/user-attachments/assets/4ae3bf68-5ae7-4adc-a0b9-36cc11b64998

This bug occurs in browsers that use Chromium. There are several bugs that cause the browser or developer tools to close unexpectedly, such as the one shown here:

https://blog.castle.io/detect-and-crash-chromium-bots-with-one-weird-trick-bots-hate-it/ https://issues.chromium.org/issues/340836884?ref=blog.castle.io

Therefore, one of these bugs is most likely triggered when the timeout occurs, as it's probably not something that would happen in a real user's flow

reCAPTCHA Botguard

Although BotGuard was removed by Google, I will explain a little about how it works internally for those who are interested in how it is, and how different it is from other types of botguard

First, the token generation process: the VM generates tokens for persistent errors during execution. These errors can be due to bytecode offset deviations, missing VM registers, incorrect VM state, and poor control flow integrity. These errors are captured by the dispatcher, which calls a function that writes bytes for the token.

The VM uses ARX Cipher, an algorithm created by the NSA in 2013, similar to Speck for encrypting data. It is also used in all Google BotGuard. The algorithm changes with each version, as do the constant (3990), the order of operations and rounds. It looks like this:

/*
D -> cipher state array
P -> seed
E -> byte index
*/
Vl = function(D, P, E, F, v) {
    F = D[3] | 0;
    D = D[2] | 0;
    for (v = 0; v < 14; v++) {
        E = E >>> 8 | E << 24;
        E += P | 0;
        E ^= D + 3990;
        P = P << 3 | P >>> 29;
        P ^= E;
        F = F >>> 8 | F << 24;
        F += D | 0;
        F ^= v + 3990;
        D = D << 3 | D >>> 29;
        D ^= F;
    }
    return [P >>> 24 & 255, P >>> 16 & 255, P >>> 8 & 255, P >>> 0 & 255, E >>> 24 & 255, E >>> 16 & 255, E >>> 8 & 255, E >>> 0 & 255];
}

Byte Writer & Encryption

The main encryption function has two modes: encryption and no encryption. The encryption mode uses ARX Cipher, Bitwise + XOR to encrypt the data and set it in a buffer. There are 4 types of buffers:

Main buffer 180
Entropy Pad buffer 353
Error Buffer 304
PoE (Proof of Execution) buffer 243 (not used in this type of botguard).

The no-encryption mode just set already encrypted bytes to the buffer

// (The sequence flatten messed up the statements a bit)
/*
Q -> cipher state array
FQ(v, c) -> derive a seed
c = (z << 3) - 4 -> index
FQ(v, (c | 0) + 4) -> position
*/
t = function(D, P, E, F, v, Q) {
    if (E.O == E) {
        P = function(h, A, c, x, z) {
            A = v.length; // buffer length
            z = (A | 0) - 4 >> 3;
            if (v.Jw != z) { // vm.block_index != index
                v.Jw = z; // set new block index
                c = (z << 3) - 4;
                x = [0, 0, Q[1], Q[2]];
                try {
                    v.zB = Vl(x, FQ(v, c), FQ(v, (c | 0) + 4)); // call ARX Cipher to generate keyStream
                } catch (V) {
                    throw V;
                }
            }
            v.push(v.zB[A & 7] ^ h); // sets A to bits 0-7, and obtains a byte from the keystream and applies xor with a byte of the data to be encrypted
        };
        v = Z(P, E); // get buffer
        if (P == 180 || P == 243 || P == 353) {
            Q = Z(189, E);
        } else { // set encripted bytes to buffer
            P = function(h) {
                v.push(h);
            };
        }
        F && P(F & 255);
        E = D.length;
        for (F = 0; F < E; F++) {
            P(D[F]);
        }
    }
}

And this is the function that handles errors and calls the byte writer

// (The sequence flatten messed up the statements a bit)

p = function(D, P, E, F, v, Q, h, A) {
    D = E[1];
    A = E[2];
    Q = Z(465, P) >> 3;
    h.push(D, Q >> 8 & 255, Q & 255); // error code/header bytes
    E.message && (D += E.message);
    A = void 0;
    E && E[0] === U && (E = void 0);
    h = Z(244, P);
    h.length == 0 && (A != void 0 && h.push(A & 255));
    D = "";
    E && (E.stack && (D += ":" + E.stack));
    E = Z(0, P); // buffer size limit (2048)
    if (!P.TB && E[0] > 3) {
        D = D.slice(0, (E[0] | 0) - 3);
        E[0] -= (D.length | 0) + 3;  // reduce size limit
        D = Pv(D);
        E = P.O;
        P.O = P;
        try {
            v = (v = Z(304, P)) && v[v.length - 1] || 95;
            if (P.n3) {
                // this path is never executed
                (F = Z(123, P)) && F[F.length - 1] == v || t([v & 255], 123, P);
            } else {
                t([95], 304, P); // set byte to error buffer
            }
            t(O(2, D.length).concat(D), 180, P, 9); // set bytes to main buffer
        } finally {
            P.O = E;
        }
    }
}

At the end of the execution, the VM calls the main function that prepares the payload with these buffers and generates the token, which is a signature. Unlike other BotGuard VM, this VM does not have a fingerprinting system, Google Botguard nor does it perform these error-emitting + writing bytes, and is much simpler and easier to reverse engineer.

Disclaimer

This repository is exclusively for educational and research purposes. The code, techniques, and concepts presented here are intended for the academic study and understanding of the topics covered.

Element Type	ID
`""`	1
`text`	2
`button`	3
`submit`	4
`checkbox`	5
`email`	6
`password`	7
`select-one`	8
`select-multiple`	9
`radio`	10
`textarea`	11
`file`	12
`tel`	13
`number`	14
`date`	15
`reset`	16
`range`	17

Name	Description
`timestamp`	Event timestamp relative to event start
`clickDuration`	Duration between `pointerdown` and `pointerup`
`clientX`	...
`clientY`	...
`elementBounds`	Bounding rectangle of the interacted element
`elementTagType`	Encoded DOM tag identifier of the interacted element
`trackedElementIndex`	Internal identifier of the interacted DOM element from the runtime interaction map
`pressure`	Normalized pointer pressure value multiplied by `100`
`pointerTravelDistance`	Distance traveled between `pointerdown` and `pointerup`
`pointerArea`	Contact area computed as `width * height`

`0`	`rreq`	Request type identifier
`1`	`U5VsmTDhJM1iO...`	reCAPTCHA Version
`2`	`03AFcWeA5Els3...`	Validation token obtained from the `/anchor` endpoint
`5`	`-383788762`	Hashed the entire serialized fingerprint payload, Sample
`6`	`q`	Indicates the challenge or request mode being executed
`7`	`05APQrAobTCFG...`	Usage Patterns, containing usage history and previously solved challenge patterns. Can significantly increase the score if valid
`8`	`submit`	Specific Site action the user is performing on the page at the time of verification (e.g `signin`, `register`)
`14`	`6LcAbwIqAAAA...`	Website Key
`16`	`0XA4cHhALxgM...`	Encrypted the entire serialized fingerprint payload with the encryption key from anchor (index 18) `1777669303203`
`20`	`tbMywxNTQsOD...`	Base64-encoded telemetry structure containing VM timing deltas, resource timings, collected browser object statistics and website script urls
`21`	`0aAPQrAobqME...`	Token associated with a previously solved CAPTCHA. Used for session continuity and trust correlation
`22`	`BDAAYAIAGEcA...`	Hashed all brower objects keys
`25`	`W1tbNTAwNiw...`	Base64-encoded counters for user interaction events such as mouse movement, clicks, keyboard and focus changes

`recaptcha/api.js`	`3`
`recaptcha/releases/<version>`	`1`
`https://www.google.com/recaptcha/api2/anchor`	`2`
`https://www.google.com/recaptcha/api2/bframe`	`4`

`5006`	`pointermove`
`64607`	`pointerdown`
`45464`	`pointerup`
`31617`	`keydown`
`37178`	`keyup`
`35837`	`focusin`

recaptcha

Most Popular

Element Type

Behavior CheckSum Algorithm

Example

Base Format

Base Format:

Mouse Event Structure:

Element Tag Type

Example

Behavior CheckSum Algorithm

Example

`0`	`rresp`	Response type identifier returned by the reload endpoint
`1`	`responseToken`	reCAPTCHA response token
`3`	`tokenExpiration`	Token lifetime in seconds before expiration
`4`	`pmeta`	Challenge metadata block containing information about the CAPTCHA type, category, and grid layout
`5`	`challengeType`	Type of CAPTCHA challenge
`8`	`usagePatternToken`	Usage Patterns, stored in `window.sessionStorage` and reused in future `/reload` requests
`9`	`challengeImageToken`	Token used to retrieve the CAPTCHA image payload from the `/payload` endpoint
`12`	`humanVerificationToken`	Human identification token associated with Google reCAPTCHA state and browser cookies
`14`	`captchaSessionToken`	Internal session token
`15`	`bftToken`	...

`0`	`/m/013xlm`	Internal category identifier for the target object class
`2`	`3`	Number of grid columns
`3`	`3`	Number of grid row
`5`	`null`	Reserved or optional metadata field
`6`	`"Tractor"`	Text label

`imageselect`	Standard image selection CAPTCHA
`tileselect`	Tile-based dynamic image challenge
`dynamic`	Dynamic challenge where tiles reload after selection
`multicaptcha`	Multi-step CAPTCHA challenge
`audio`	Audio-based accessibility challenge
`nocaptcha`	Checkbox-only verification flow
`doscaptcha`	Deny CAPTCHA if there is abuse

`/m/0pg52`	Taxi
`/m/01bjv`	Bus
`/m/02yvhj`	School bus
`/m/04_sv`	Motorcycle
`/m/013xlm`	Tractor
`/m/01jk_4`	Chimney
`/m/014xcs`	Crosswalk
`/m/015qff`	Traffic light
`/m/0199g`	Bicycle
`/m/015qbp`	Parking meter
`/m/0k4j`	Car
`/m/015kr`	Bridge
`/m/019jd`	Boat
`/m/0cdl1`	Palm tree
`/m/09d_r`	Mountain / hill
`/m/01pns0`	Fire hydrant
`/m/01lynh`	Stairs

`v`	`recaptchaVersion`	reCAPTCHA Version
`c`	`challengeToken`	Challenge state token returned from `/replaceimage` or a previous `/userverify` request
`response`	Encoded payload containing the selected tile indices and additional interaction metadata
`t`	`challengeElapsed`	Elapsed time since the challenge was initially loaded
`ct`	`completionTime`	Total time taken by the user to solve and submit the CAPTCHA
`ch`	`ocHash`	Hashed the entire serialized `oc` payload, Sample
`oc`	`encryptedVmSignals`	Encrypted signals collected from the reCAPTCHA VM, see here.
`pm`	`telemetryPayload`	Base64-encoded telemetry structure containing VM timing deltas, resource timings, collected browser object statistics, and website script metadata

`BODY`	1
`INPUT`	2
`BUTTON`	3
`SELECT`	4
`TEXTAREA`	5
`FORM`	6
`A`	7
`AREA`	8
`AUDIO`	9
`VIDEO`	10
`IFRAME`	11
`DIV`	12
`SPAN`	13
`LABEL`	14

recaptcha

Most Popular

Description

Contact

Obfuscation Techniques

Anchor Payload/Response

Payload Structure

Response

Structure:

Fingerprint

Collector Execution Order

Fingerprint Signals Codes & Key Derivation

Example

Aggregate Fingerprint Structure

Signals

VM Signals

Structure

Reload Request Payload

Components

Challenge Modes

Telemetry Payload (Idx 20)

Base Structure

Long Task Timing Format

reCAPTCHA Resource Timing Format

Event Counters (Idx 25)

Event Counter Structure

Known Event Hashes

Response Structure

Field Descriptions

pmeta Structure

pmeta[1] Values

Challenge Types

Challenge Image Retrieval

Category Identifiers

UserVerify Request Payload

Payload Structure

Components

response Payload

3×3 Grid Example

4×4 MultiCaptcha Grid Example

e Field

Internal Structure of e

oc — Encrypted VM Signals

pm — Telemetry Payload

Anti-debugging/Tampering

reCAPTCHA Botguard

Byte Writer & Encryption

Disclaimer

Element Type

Behavior CheckSum Algorithm

Example

Base Format

Base Format:

Mouse Event Structure:

Element Tag Type

Example

Behavior CheckSum Algorithm

Example

Telemetry Payload (`Idx 20`)

Event Counters (`Idx 25`)

`pmeta` Structure

`pmeta[1]` Values

`response` Payload

`e` Field

Internal Structure of `e`

`oc` — Encrypted VM Signals

`pm` — Telemetry Payload
