DockerSecurityPlayground

Docker Security Playground is an application that allows you to:

• Create network and network security scenarios, in order to understand network protocols,
  rules, and security issues by installing DSP in your PC.
• Learn penetration testing techniques by simulating vulnerability labs scenarios
• Manage a set of docker-compose project . Main goal of DSP is to learn in penetration testing and network security, but its flexibility allows you the creation, graphic editing and managment run / stop of all your docker-compose labs.

Installation

The suggested installation workflow for DSP is by using kali VM:

• Install docker and docker-compose
• Install latest stable nodejs
• Install dsp

Here the steps to install DSP on a kali VM. Follow the similar steps for other Linux distributions, but be sure to install all the requirements.

1. Install DSP Requirements:

sudo apt update && sudo apt install -y docker.io docker-compose nodejs npm git

Note (kali keyring issue 2025).

If you have the following problem during the installation:

Fetched 34.0 kB in 1s (58.4 kB/s)
Warning: Failed to fetch http://http.kali.org/kali/dists/kali-rolling/InRelease  The following signatures couldn't be verified because the public key is not available: NO_PUBKEY ED65462EC8D5E4C5
Warning: Some index files failed to download. They have been ignored, or old ones used instead.

You need to add the missing key:

wget https://http.kali.org/kali/pool/main/k/kali-archive-keyring/kali-archive-keyring_2025.1_all.deb
sudo dpkg -i kali-archive-keyring_2025.1_all.deb
rm kali-archive-keyring_2025.1_all.deb

2. Enable the docker start at boot and configure your current user to use docker without sudo:

sudo systemctl enable docker
sudo groupadd docker
sudo usermod -aG docker $USER

3. Log-out and log-in (it is required to let your current user to use docker withou sudo), and verify that you can use docker without sudo:

docker ps

Also, verify that docker compose is working:

docker compose --version # or docker-compose --version for older versions

Also verify the npm and nodejs installation:

node -v
npm -v

Note for macOS M1 users

It is possible to run DSP on host M1 by enabling Rosetta, but I strongly suggest to create a kali VM with UTM or Vmware fusion, follow the previous installation steps and install the binfmt-misc package in order to run x86 images on ARM architecture.

sudo apt install binfmt-support qemu-user-static

Restart the machine.

Then, use the Tonisiigi container to register all the interpreters for the different architectures:

docker run --privileged --rm tonistiigi/binfmt --install amd64

Verify that docker images can run on your machine:

docker run --rm -it --platform linux/amd64 ubuntu uname -m

4. Now you can install DSP:

git clone https://github.com/DockerSecurityPlayground/DSP.git
cd DSP
npm install

When the installation is completed, you can start DSP:

npm start

DSP will run on "http://localhost:18181" .

Note for using Wireshark on kali: I suggest to use chromium browser, as the wireshark container uses some codec that are not supported by firefox on Kali. You can start chromium by just tiping "chromium" in the terminal.

The first step will be to install all the required folders in the current machine.

You can also automate this insstallation step by using the environment variable

export DSP_AUTOINSTALL=1  && npm start

Run DSP in virtual machine - expose on 0.0.0.0 interface

If you want to user your host browser , you can expose on 0.0.0.0 interface.
If you want to expose on another interface, change DSP_IFACE environment variable:

export DSP_IFACE="0.0.0.0"

Now you can use dsp on Remote interface.

Clean DSP

If something goes wrong, you can reset DSP to factory by using the following command:

npm run uninstall

This will delete everything, and you can start DSP from the installation step.

Official Repository

DSP_Repo contains official DSP labs. Contribute to DSP by creating new DSP Labs

How can I share my labs with the world ?

During the installation you can create a local environment that has not link with git, or you can associate a personal repository the the application. This is very useful if you want to share your work with other people.
DSP Repository must have several requirements, so I have created a base DSP Repo Template that you can use to create your personal repository.
So, the easiest way to share labs is the following:

1. Fork the NS-Unina project: https://github.com/NS-unina/DSP_Repo.git
2. During the installation set github directory param to your forked repository.
3. Now create your labs and share it!

It is important that all images that you use should be available to other users, so:

• You can publish on docker hub so other users can pull your images in order to use your labs.
• You can prov[ide dockerfiles inside the .docker-images directory, so users can use build.sh to build your images and use your repo.

If you need a "private way" to share labs you should share the repository in other ways, at current time there is no support to share private repositories.

In DSP you can manage multiple user repositories (Repositories tab)

DSP Features

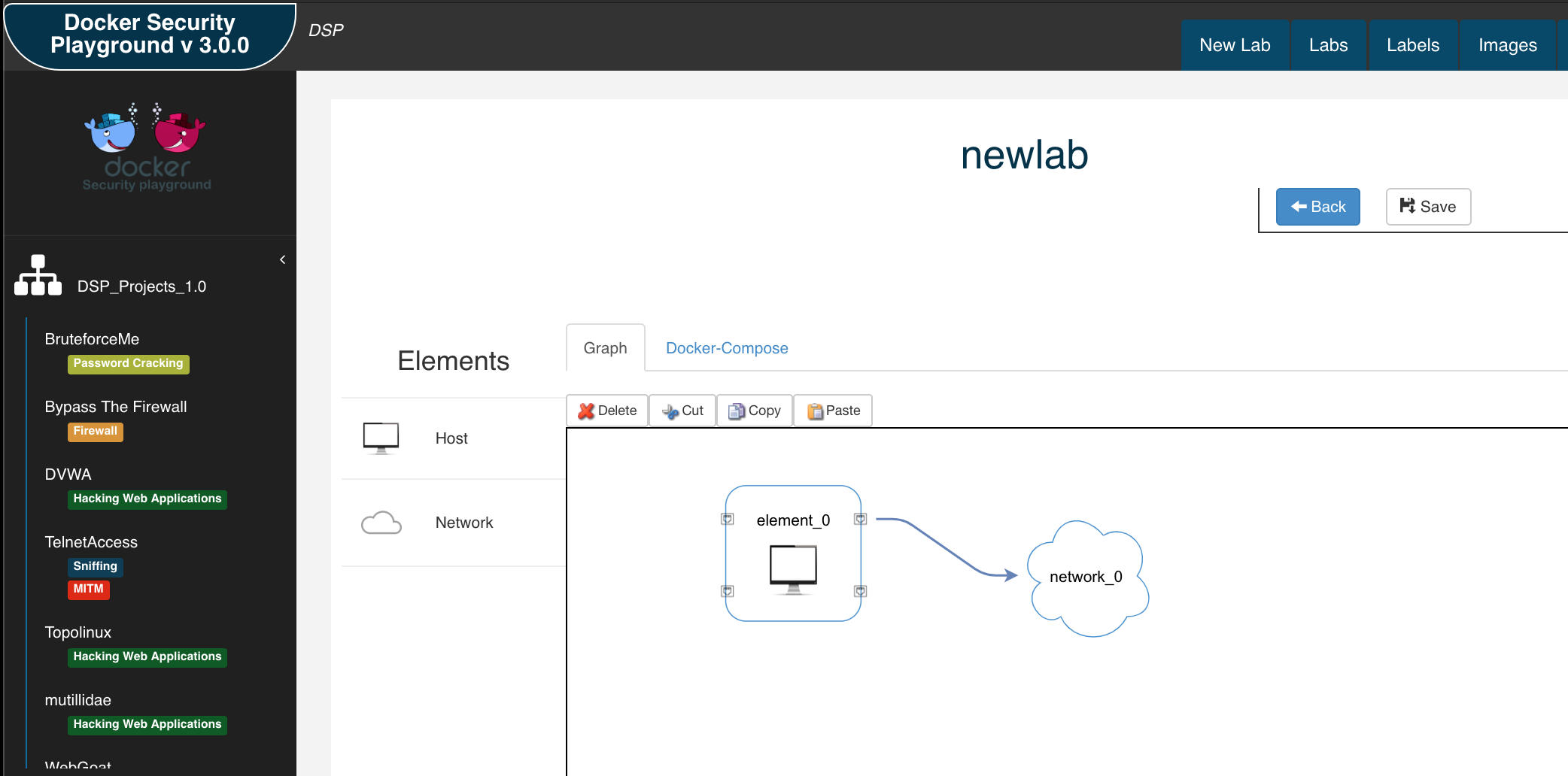

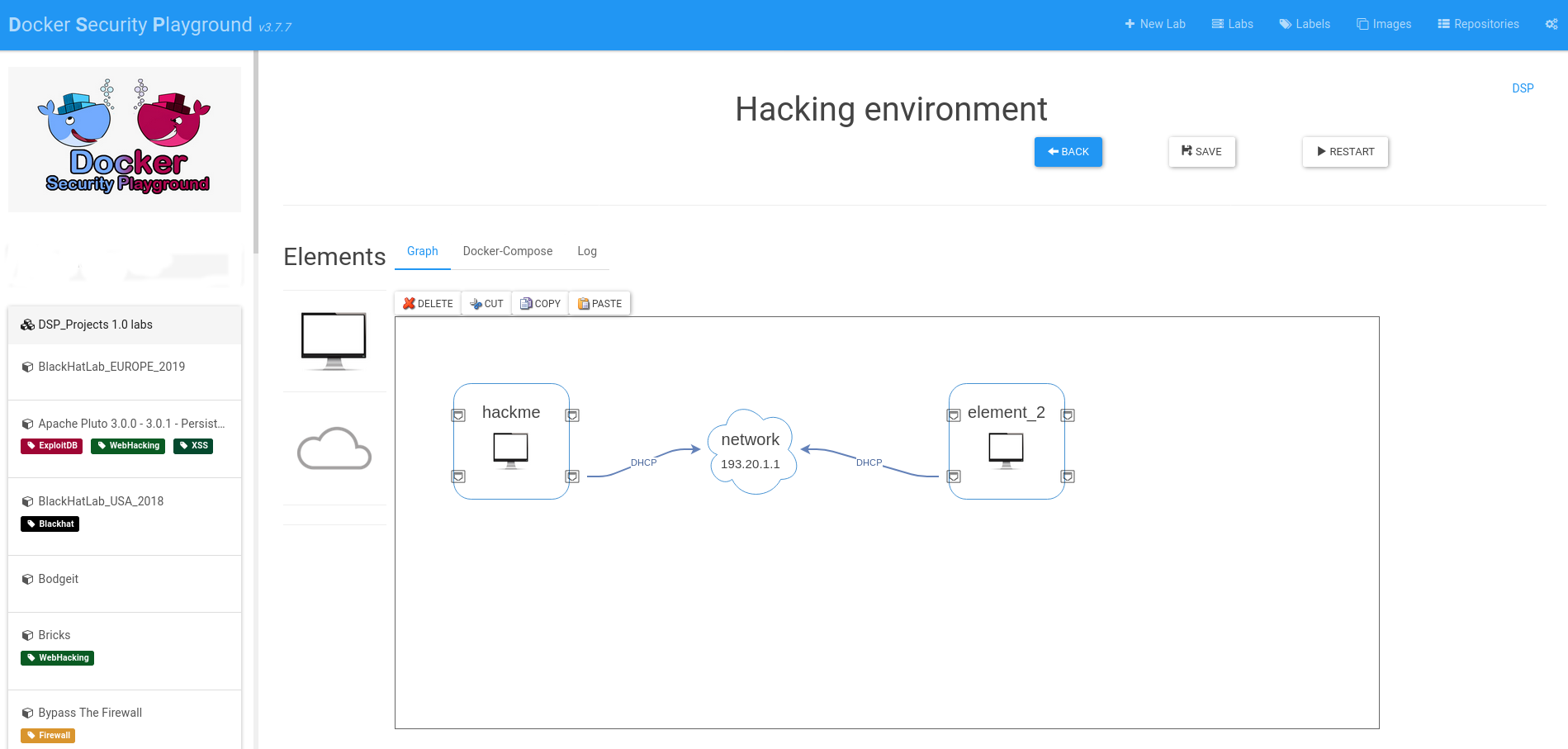

• Graphic Editor of docker-compose
• Docker Image and Dockerfile Management
• GIT Integration
• DSP Repository with a set of network security scenarios

Any question ?

If you have a problem you can use Issue section.

Tests

To run a test:

mocha test/<test-nodejs-file.js>

tests use helper.start() method to initialize the test environment:

• A test config is created
• homedir directory is mocked, in this way it is possible to use internal dsp directory for tests.

Troubleshooting

During DSP installation

If you have the following error during the installation:

[2020-12-14T10:18:21.854Z]  INFO: DockerSecurityPlayground/1536 on vagrant: [DOCKER ACTIONS - DOWNLOAD IMAGE]
events.js:174
      throw er; // Unhandled 'error' event
      ^

Error: connect EACCES /var/run/docker.sock
    at PipeConnectWrap.afterConnect [as oncomplete] (net.js:1107:14)
Emitted 'error' event at:
    at Socket.socketErrorListener (_http_client.js:401:9)
    at Socket.emit (events.js:198:13)
    at emitErrorNT (internal/streams/destroy.js:91:8)
    at emitErrorAndCloseNT (internal/streams/destroy.js:59:3)
    at process._tickCallback (internal/process/next_tick.js:63:19)

Verify 2 things:

1. docker is installed
2. current user is in docker group
