Ttyd - Share Your Terminal Over The Web


ttyd is a simple command-line tool for sharing terminal over the web, inspired by GoTTY.

Features
  • Built on top of Libwebsockets with C for speed
  • Fully-featured terminal based on Xterm.js with CJK and IME support
  • Graphical ZMODEM integration with lrzsz support
  • SSL support based on OpenSSL
  • Run any custom command with options
  • Basic authentication support and many other custom options
  • Cross platform: macOS, Linux, FreeBSD/OpenBSD, OpenWrt/LEDE, Windows

Installation

Install on macOS
Install with homebrew:
brew install ttyd

Install on Linux
  • Binary version: download from the releases page.
  • Build from source (debian/ubuntu):
    sudo apt-get install cmake g++ pkg-config git vim-common libwebsockets-dev libjson-c-dev libssl-dev
    git clone https://github.com/tsl0922/ttyd.git
    cd ttyd && mkdir build && cd build
    cmake ..
    make && make install
    You may also need to compile/install libwebsockets from source if the libwebsockets-dev package is outdated.
  • Install on Gentoo: clone the repo at https://bitbucket.org/mgpagano/ttyd/src/master/ and follow the directions here for creating a local repository.

Install on Windows
ttyd can be built with MSYS2 on windows, The build instructions is here.
NOTE: Native windows console programs may not work correctly due to pty incompatibility issues. As a workaround, you can use winpty as a wrapper to invoke the windows program, eg: ttyd winpty cmd.

Install on OpenWrt/LEDE
LEDE 17.01.0 and later:
opkg install ttyd
You may want to compile it manually.

Usage

Command-line Options
ttyd is a tool for sharing terminal over the web

USAGE:
    ttyd [options] <command> [<arguments...>]

VERSION:
    1.4.2

OPTIONS:
    -p, --port              Port to listen (default: 7681, use `0` for random port)
    -i, --interface         Network interface to bind (eg: eth0), or UNIX domain socket path (eg: /var/run/ttyd.sock)
    -c, --credential        Credential for Basic Authentication (format: username:password)
    -u, --uid               User id to run with
    -g, --gid               Group id to run with
    -s, --signal            Signal to send to the command when exit it (default: 1, SIGHUP)
    -r, --reconnect         Time to reconnect for the client in seconds (default: 10)
    -R, --readonly          Do not allow clients to write to the TTY
    -t, --client-option     Send option to client (format: key=value), repeat to add more options
    -T, --terminal-type     Termin   al type to report, default: xterm-256color
    -O, --check-origin      Do not allow websocket connection from different origin
    -m, --max-clients       Maximum clients to support (default: 0, no limit)
    -o, --once              Accept only one client and exit on disconnection
    -B, --browser           Open terminal with the default system browser
    -I, --index             Custom index.html path
    -6, --ipv6              Enable IPv6 support
    -S, --ssl               Enable SSL
    -C, --ssl-cert          SSL certificate file path
    -K, --ssl-key           SSL key file path
    -A, --ssl-ca            SSL CA file path for client certificate verification
    -d, --debug             Set log level (default: 7)
    -v, --version           Print the version and exit
    -h, --help              Print this text and exit

Vi   sit https://github.com/tsl0922/ttyd to get more information and report bugs.

Example Usage

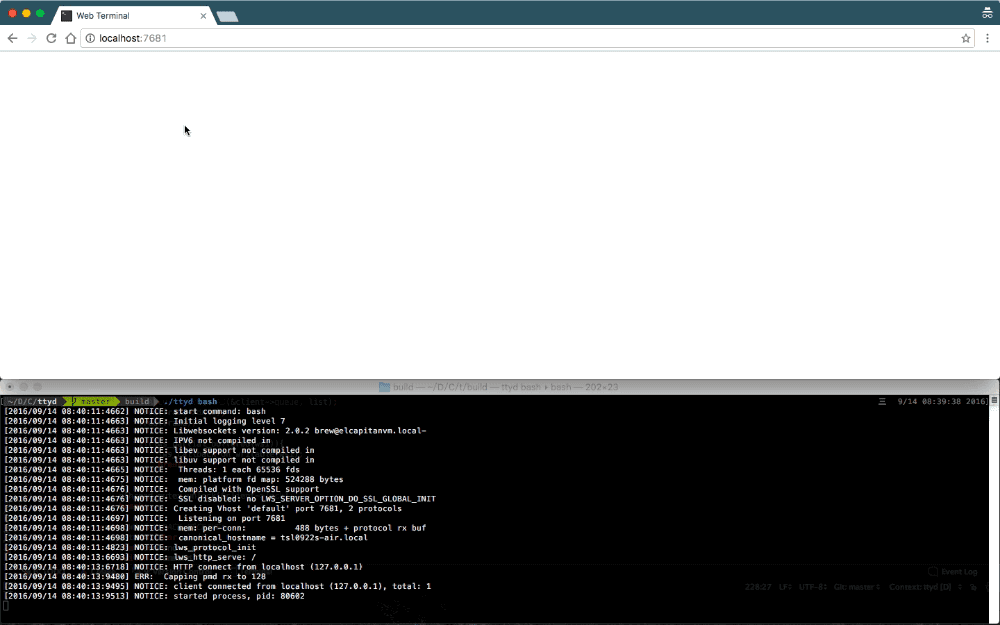

ttyd starts web server at port 7681 by default, you can use the -p option to change it, the command will be started with arguments as options. For example, run:
ttyd -p 8080 bash -x
Then open http://localhost:8080 with a browser, you will get a bash shell with debug mode enabled.
More Examples:
  • If you want to login with your system accounts on the web browser, run ttyd login.
  • You can even run a none shell command like vim, try: ttyd vim, the web browser will show you a vim editor.
  • Sharing single process with multiple clients: ttyd tmux new -A -s ttyd vim, run tmux new -A -s ttyd to connect to the tmux session from terminal.

Browser Support
Modern browsers, See Browser Support.

SSL how-to
Generate SSL CA and self signed server/client certificates:
# CA certificate (FQDN must be different from server/client)
openssl genrsa -out ca.key 2048
openssl req -new -x509 -days 365 -key ca.key -subj "/C=CN/ST=GD/L=SZ/O=Acme, Inc./CN=Acme Root CA" -out ca.crt

# server certificate (for multiple domains, change subjectAltName to: DNS:example.com,DNS:www.example.com)
openssl req -newkey rsa:2048 -nodes -keyout server.key -subj "/C=CN/ST=GD/L=SZ/O=Acme, Inc./CN=localhost" -out server.csr
openssl x509 -req -extfile <(printf "subjectAltName=DNS:localhost") -days 365 -in server.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out server.crt

# client certificate (the p12/pem format may be useful for some clients)
openssl req -newkey rsa:2048 -nodes -keyout client.key -subj "/C=CN/ST=GD/L=SZ/O=Acme, Inc./CN=client" -out client.csr
openssl x509 -req -days 365 -in client.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out client.crt
openssl pkcs12 -export -clcerts -in client.crt -inkey clie   nt.key -out client.p12
openssl pkcs12 -in client.p12 -out client.pem -clcerts
Then start ttyd:
ttyd --ssl --ssl-cert server.crt --ssl-key server.key --ssl-ca ca.crt bash
You may want to test the client certificate verification with curl:
curl --insecure --cert client.p12[:password] -v https://localhost:7681
If you don't want to enable client certificate verification, remove the --ssl-ca option.

Docker and ttyd
Docker containers are jailed environments which are more secure, this is useful for protecting the host system, you may use ttyd with docker like this:
  • Sharing single docker container with multiple clients: docker run -it --rm -p 7681:7681 tsl0922/ttyd.
  • Creating new docker container for each client: ttyd docker run -it --rm ubuntu.

Credits
  • GoTTY: ttyd is a port of GoTTY to C language with many improvements.
  • Libwebsockets: is used to build the websocket server.
  • Xterm.js: is used to run the terminal emulator on the web, hterm is used previously.
